Description

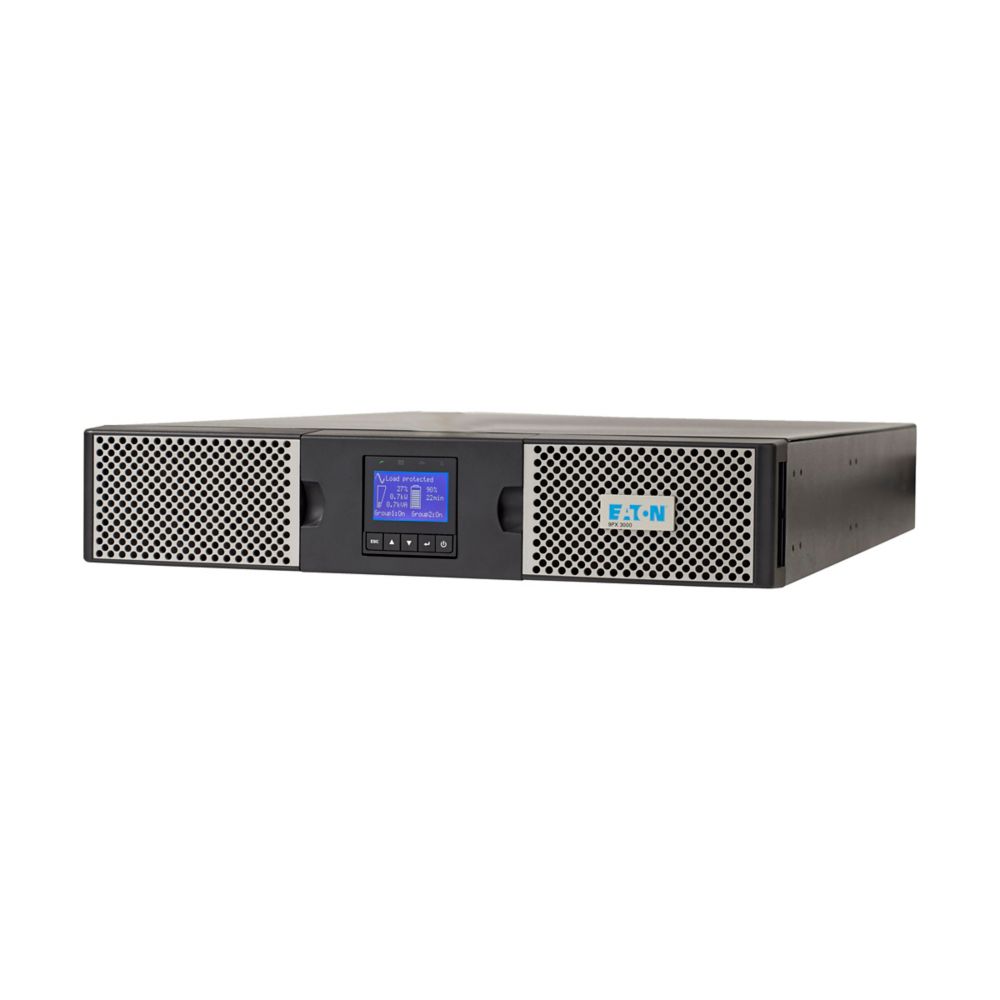

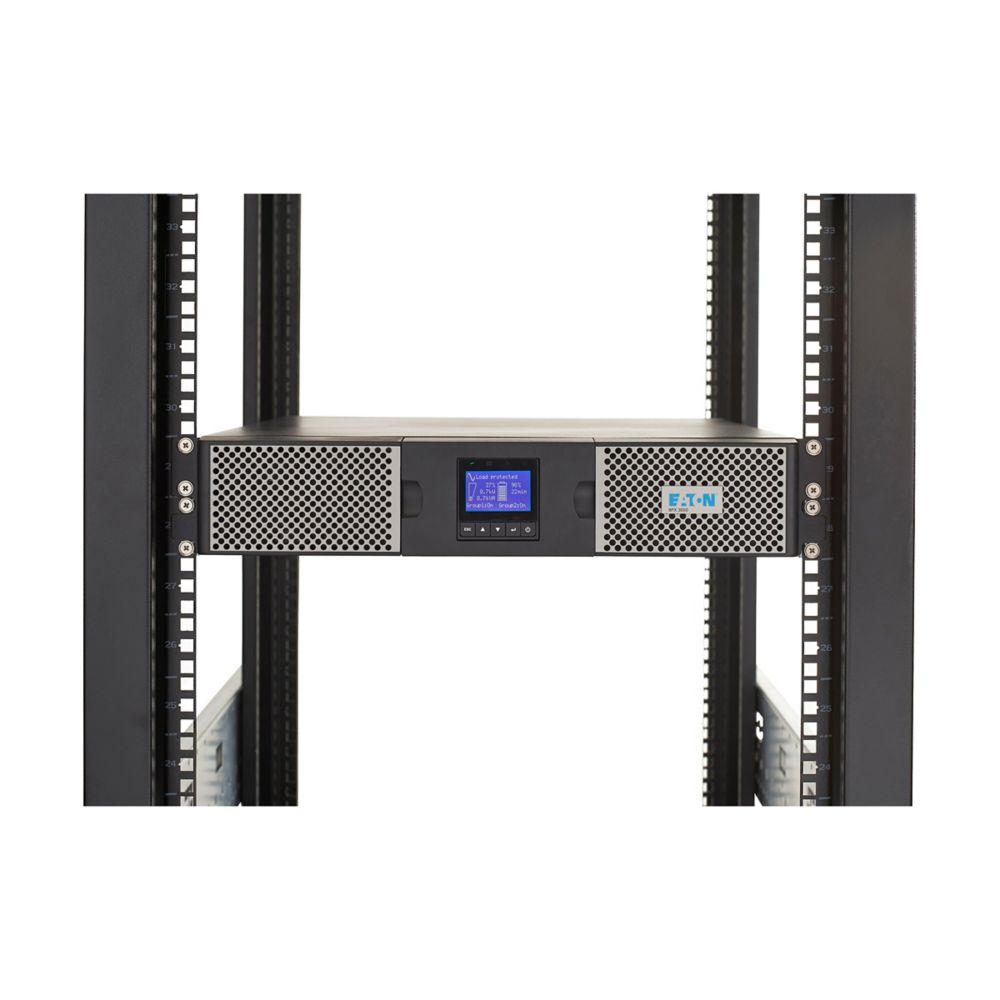

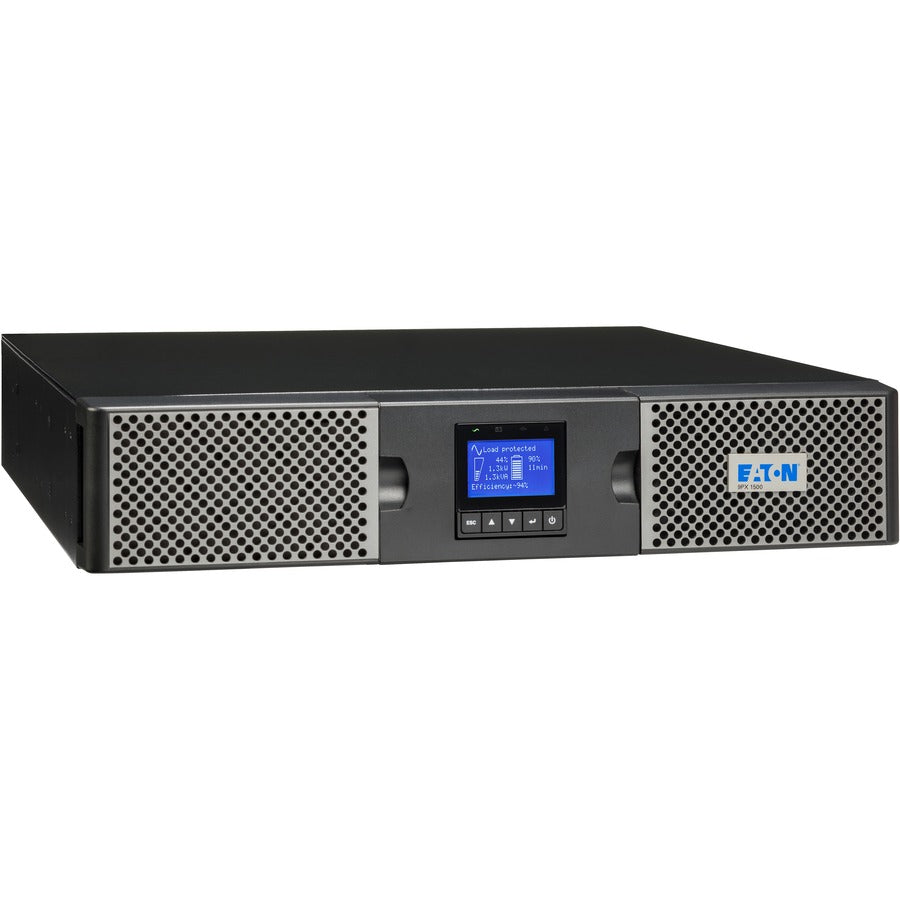

The Eaton 9PX1500GRT is a high-efficiency online double-conversion UPS offering reliable power protection in a compact 2U rack/tower form factor. With 1500VA/1350W capacity, it delivers consistent 208V output and features a C14 input and (8) C13 outlets. Ideal for servers, storage, and network equipment, it supports extended runtime with up to four external battery modules. It includes ABM battery management technology for extended battery life, ENERGY STAR certification for efficiency, and a user-friendly graphical LCD display. The 9PX1500GRT ensures secure, intelligent, and adaptable power protection for critical IT environments.
| Specification | Details |
|---|---|
| Model | Eaton 9PX1500GRT |
| Form Factor | Rack/Tower Convertible |
| Rack Height | 2U |
| Power Rating | 1500 VA / 1350 W |
| Input Connection | C14 |
| Input Voltage | 208V default (200–250V selectable) |
| Input Cord Length | 6 ft |
| Output Connections | (8) IEC C13 |
| Output Voltage | 208V (Selectable: 200–250V) |
| Output Waveform | True Sine Wave |
| Topology | Online / Double Conversion |
| Output Power Factor | 0.9 |
| Efficiency (Max Load) | 91.2% |
| Bypass | Internal |
| Battery Type | Sealed Lead-Acid, Hot-swappable |
| Battery Management | ABM 3-Stage Charging Technology |

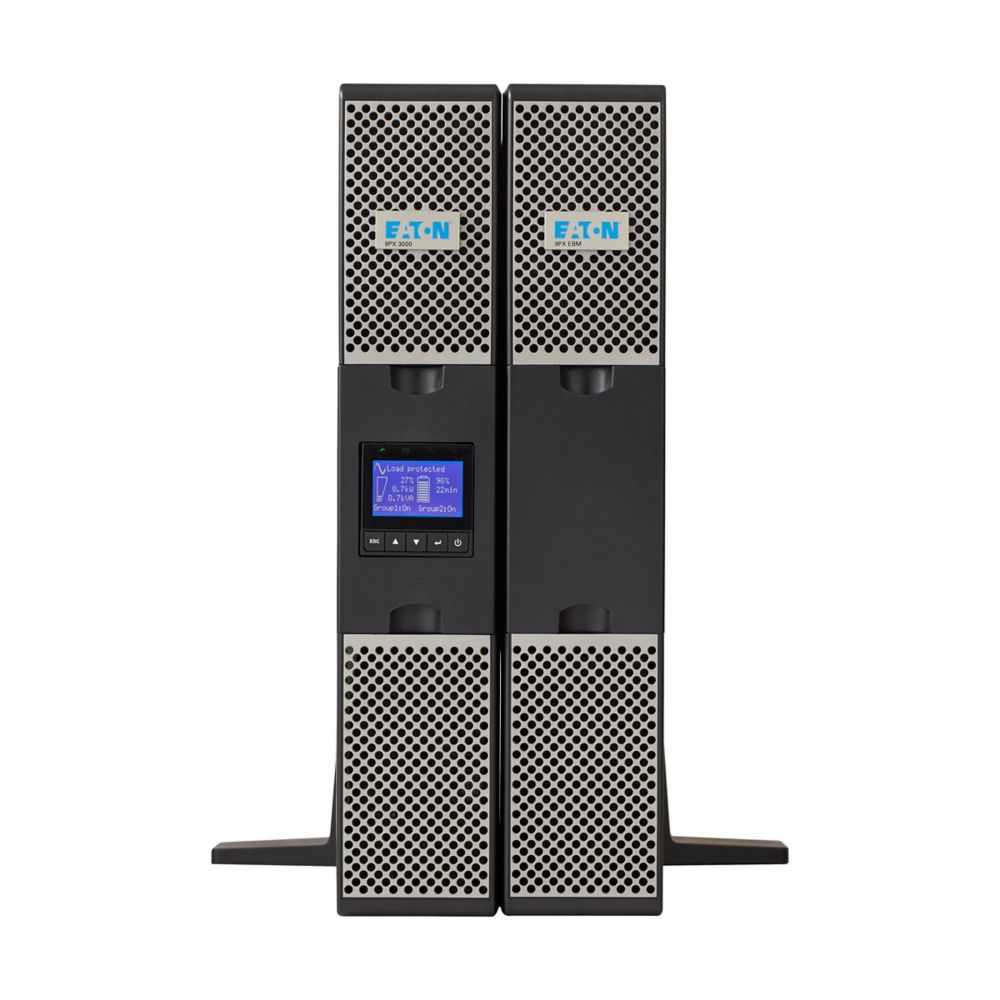

| Extended Battery Support | Up to 4 EBMs (9PXEBM48RT) |

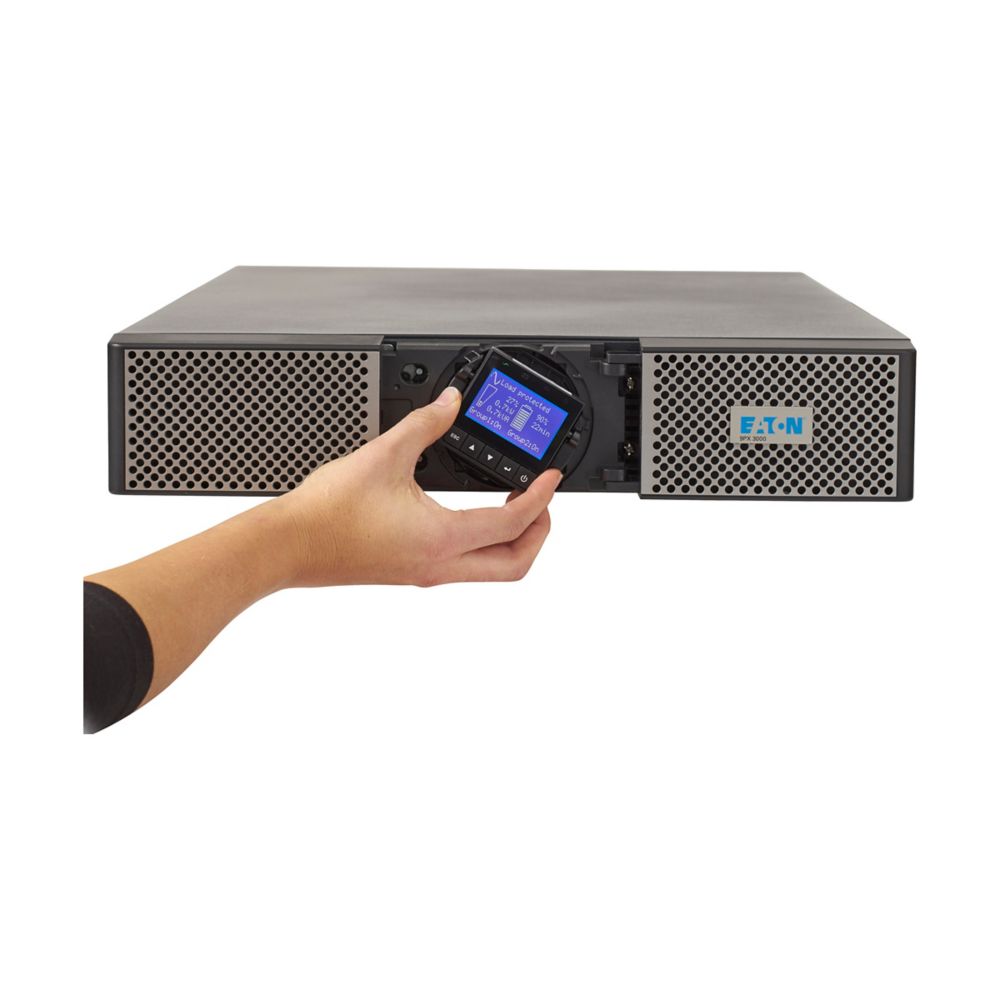

| Interface | Graphical LCD, 5-button menu |
| Communication Ports | USB, RS232, MiniSlot, Relay/Remote |
| Software | Intelligent Power Software Suite |
| Noise Level | <40 dB at 1 meter |
| Temperature Range | 0°–40°C (32°–104°F) |
| Altitude Rating | 0–3000m with temp derating |
| Certifications | ENERGY STAR, cULus, CE, FCC Part 15 |
| Compliance | IEC 62040-2 Class B, CISPR22 Class B |
| Warranty | 3-Year Factory Warranty |
| Dimensions (W x D x H) | 17.3 x 17.7 x 3.4 in |
| Weight | 41.4 lb |
| Included Accessories | Rail kit, tower pedestals, manuals, USB & RS-232 cables, software CD |
