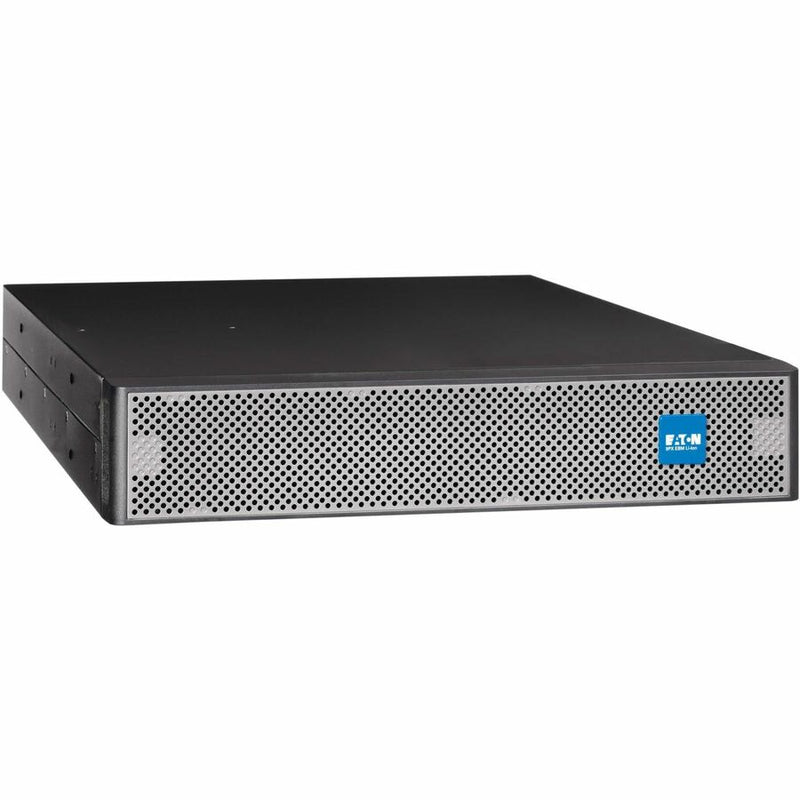

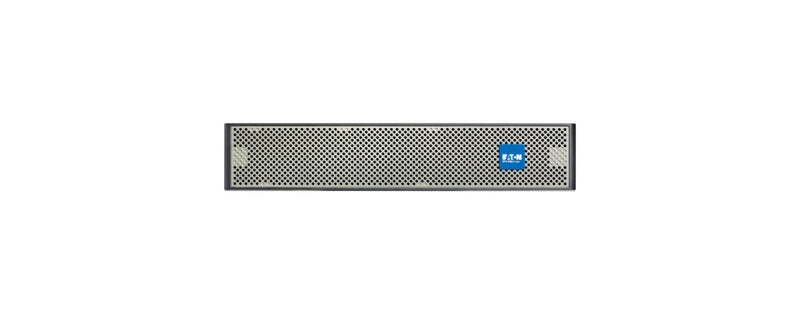

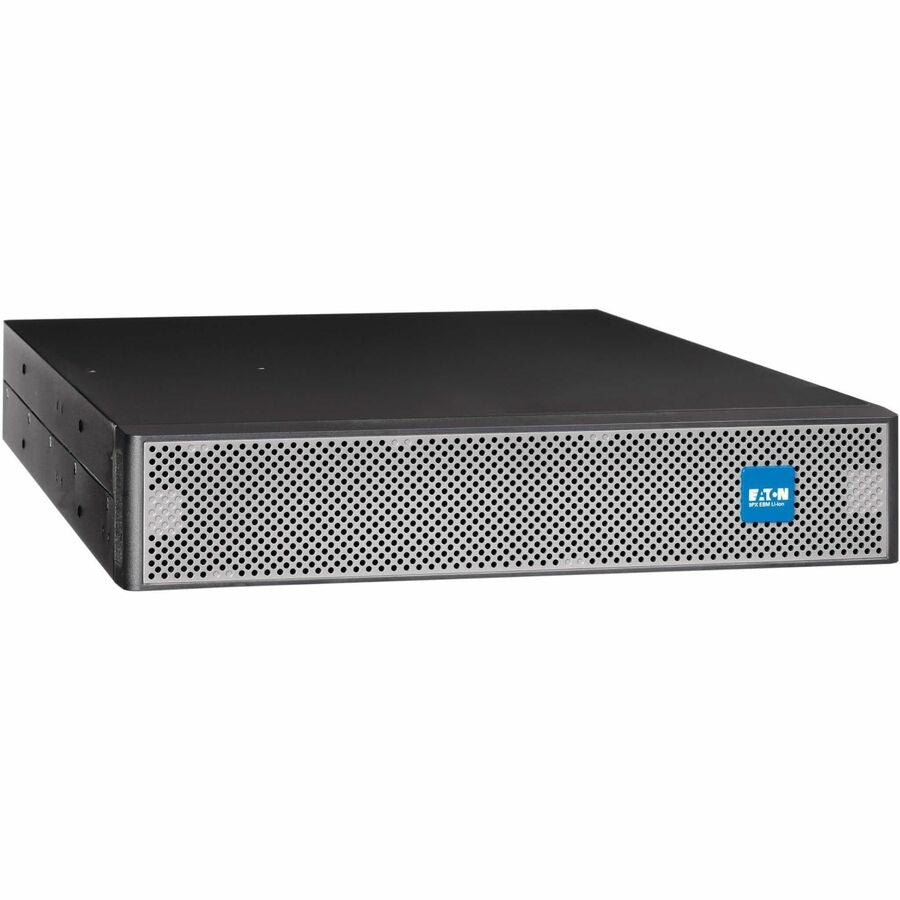

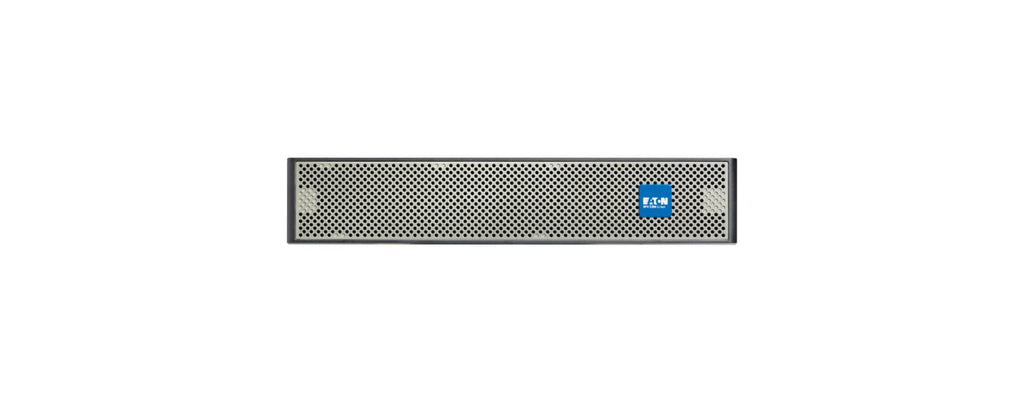

Boost Your UPS Runtime with the Eaton 9PXEBM192RT-L Lithium-Ion Battery Module
The Eaton 9PXEBM192RT-L is a 192V Lithium-Ion Extended Battery Module (EBM) designed to seamlessly integrate with the Eaton 9PX6K-L UPS system, delivering longer runtimes and enhanced power protection. With daisy-chain capability for up to four EBMs, this unit is ideal for mission-critical environments requiring reliable extended backup power.
This 2U form factor is optimized for either rack-mount or tower installation, offering flexibility in deployment. The EBM features a Battery Management System (BMS) and hot-swappable design for safe, efficient battery maintenance. Complete with heavy-gauge DC cabling, detection cable, and a power cable, the unit simplifies installation and ensures secure connections.
Covered by a 5-year Eaton warranty, the 9PXEBM192RT-L offers superior durability and peace of mind for long-term power continuity.
| Category | Details |
|---|---|
| Brand | Eaton |
| Model | 9PXEBM192RT-L |
| Battery Chemistry | Lithium-Ion |
| Battery Voltage | 192V |
| Compatibility | Eaton 9PX6K-L UPS |
| Form Factor | 2U Rack-Mountable / Tower Convertible |

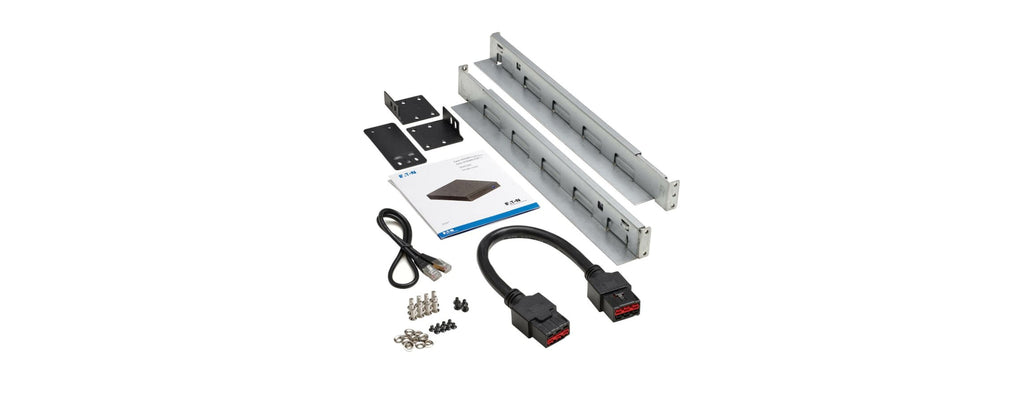

| Rack Mounting Kit | Included (4-post rail kit and brackets) |
| Optional Accessories | RK2PC kit for 2-post rack (sold separately) |

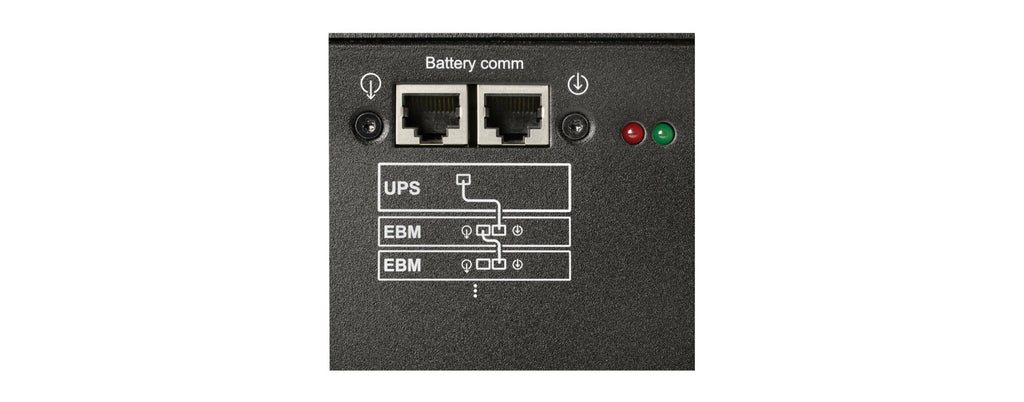

| Features | Battery Management System (BMS), Hot-swappable, Daisy-chain support |

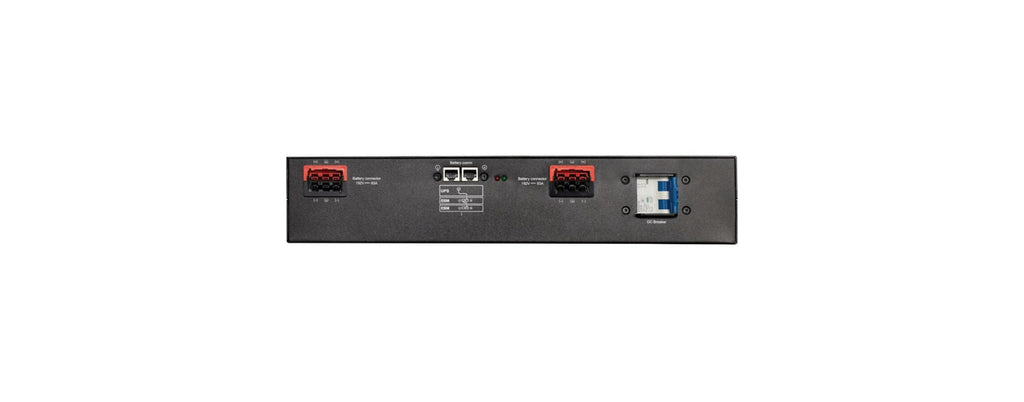

| Included Accessories | Power cable (1 ft), Detection cable |
| Dimensions (H x W x D) | 3.4 in x 17.2 in x 25.4 in |
| Weight | 1.26 oz (likely a typo in source; actual unit weight expected to be ~60 lbs) |
| Operating Temp | 32°F to 104°F (0°C to 40°C) |
| Humidity | 0 – 96% non-condensing |
| Certifications | cUL, EN 62040-2, FCC Part 15 A, NOM, RoHS |
| Warranty | 5-Year Limited Warranty |
| Color | Black/Silver |
