Description
The Eaton 9PX2000RTN-L is a high-performance lithium-ion UPS designed for maximum efficiency and long battery life in IT and edge environments. Featuring a 2U rack/tower convertible form factor, it delivers 2000 VA / 1800 W of clean power with online double-conversion topology. The unit includes a hot-swappable lithium iron phosphate (LiFePO₄) battery with intelligent battery management, and it supports up to 4 external battery modules. With a graphical LCD interface, 91% efficiency at full load, and an included Gigabit Network Card (NETWORK-M3), this UPS ensures reliable protection, easy integration, and reduced TCO over traditional UPS systems.
| Specification | Details |
|---|---|
| Model | Eaton 9PX2000RTN-L |

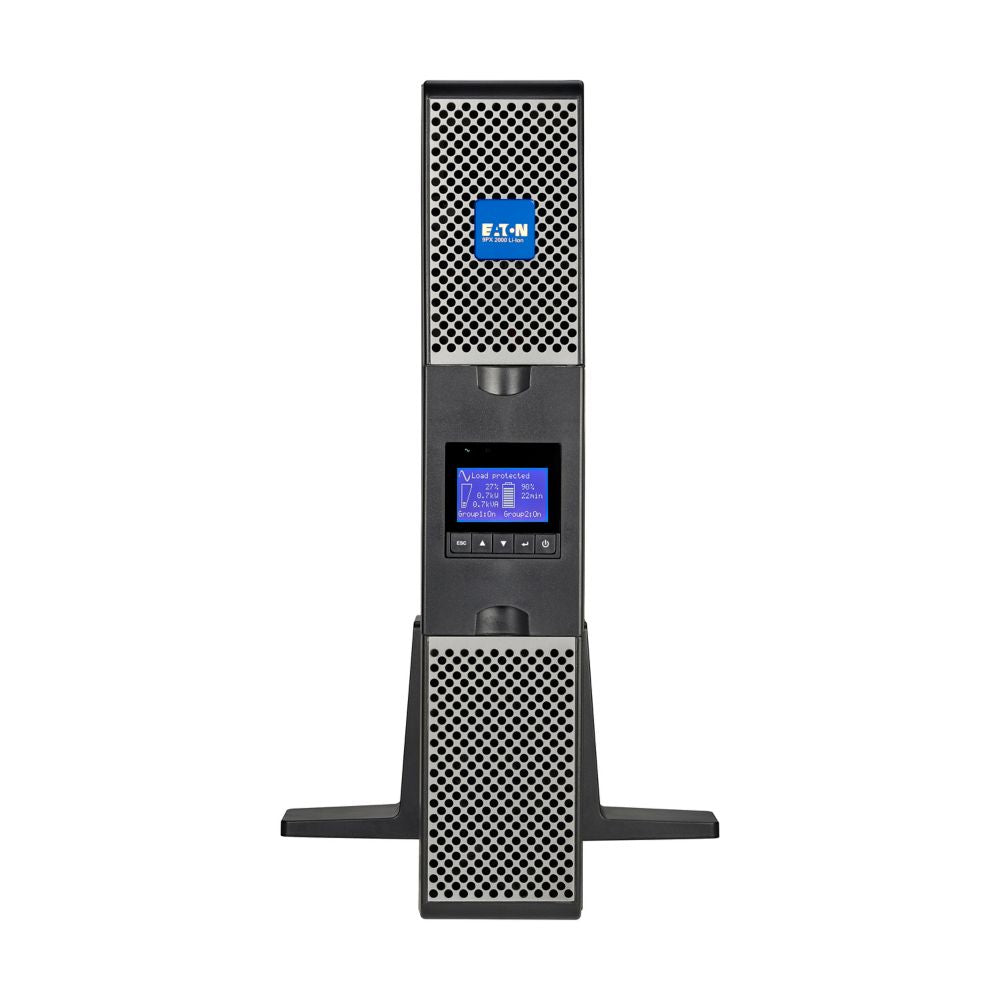

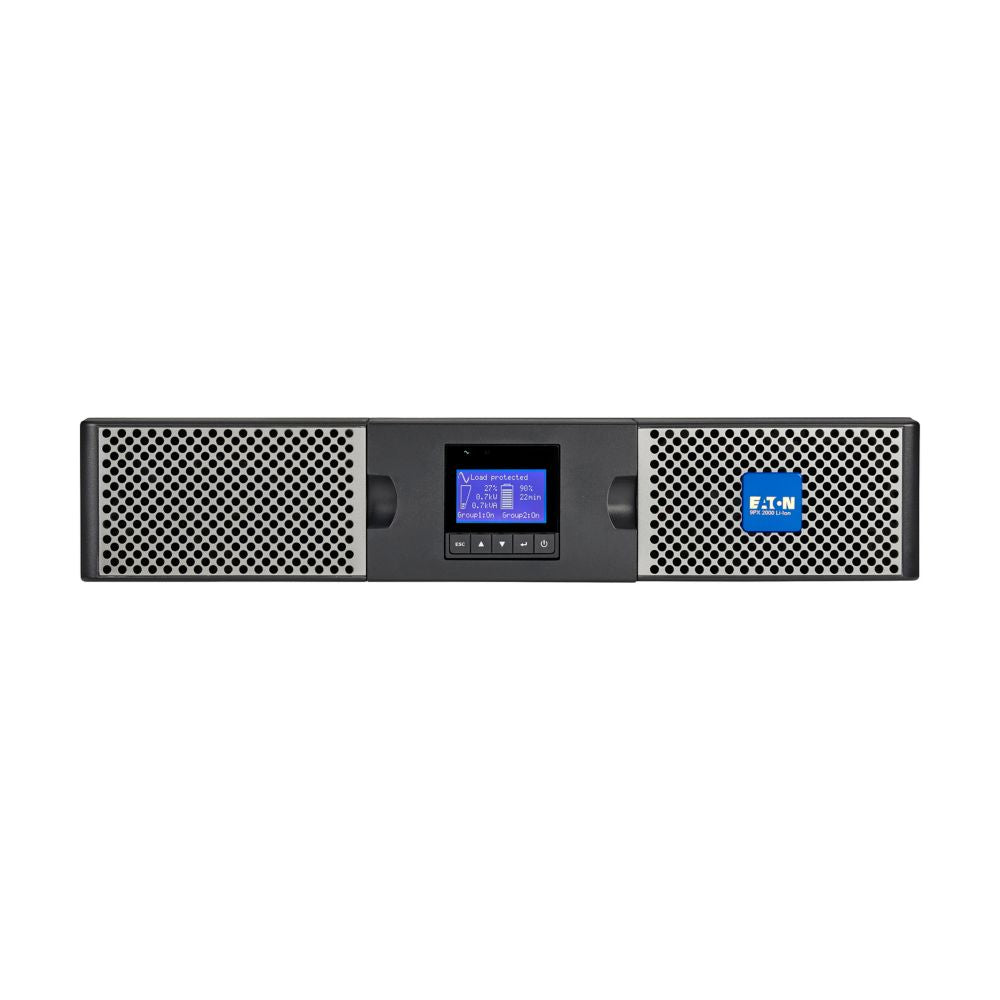

| Form Factor | Rack/Tower Convertible (2U) |
| Power Capacity | 2000 VA / 1800 W |
| Topology | Online, Double-Conversion |
| Input Voltage | 120V (adjustable to 100/110/120/125V) |
| Input Plug | NEMA 5-20P |
| Input Cord Length | 8 ft |

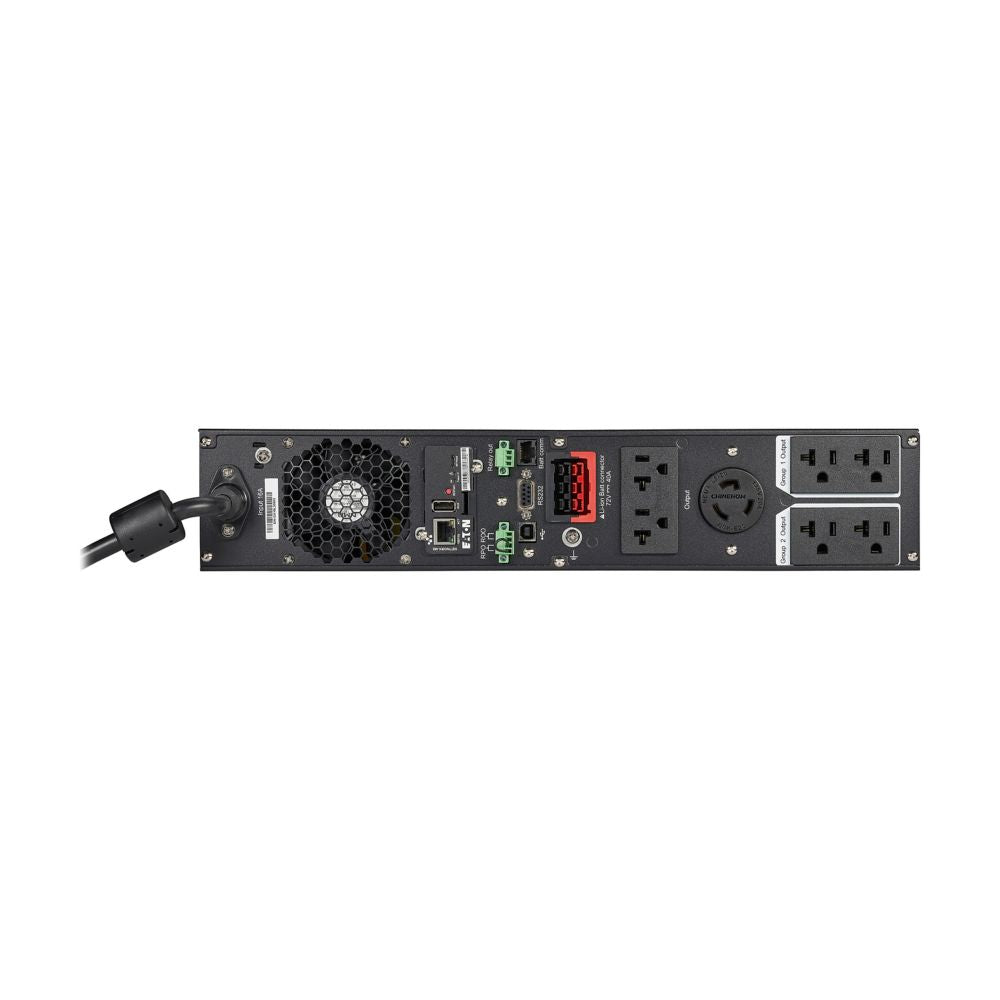

| Output Receptacles | (6) 5-20R, (1) L5-20R |
| Output Voltage Range | ±1% (Steady-State) |
| Output Frequency | 50/60 Hz (Auto-sensing) |
| Output Waveform | True Sine Wave |
| Battery Type | Lithium Iron Phosphate (LiFePO₄) |
| Battery Management | Integrated BMS (life & temp monitoring) |

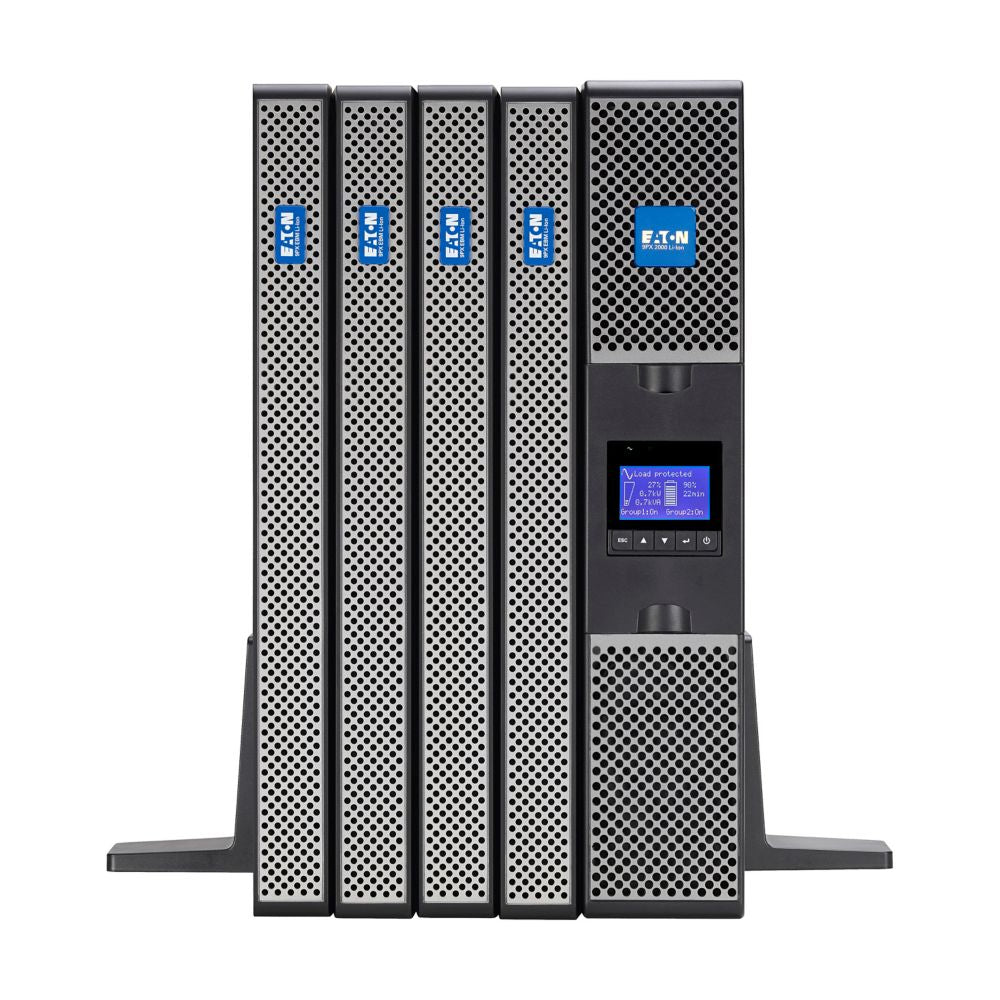

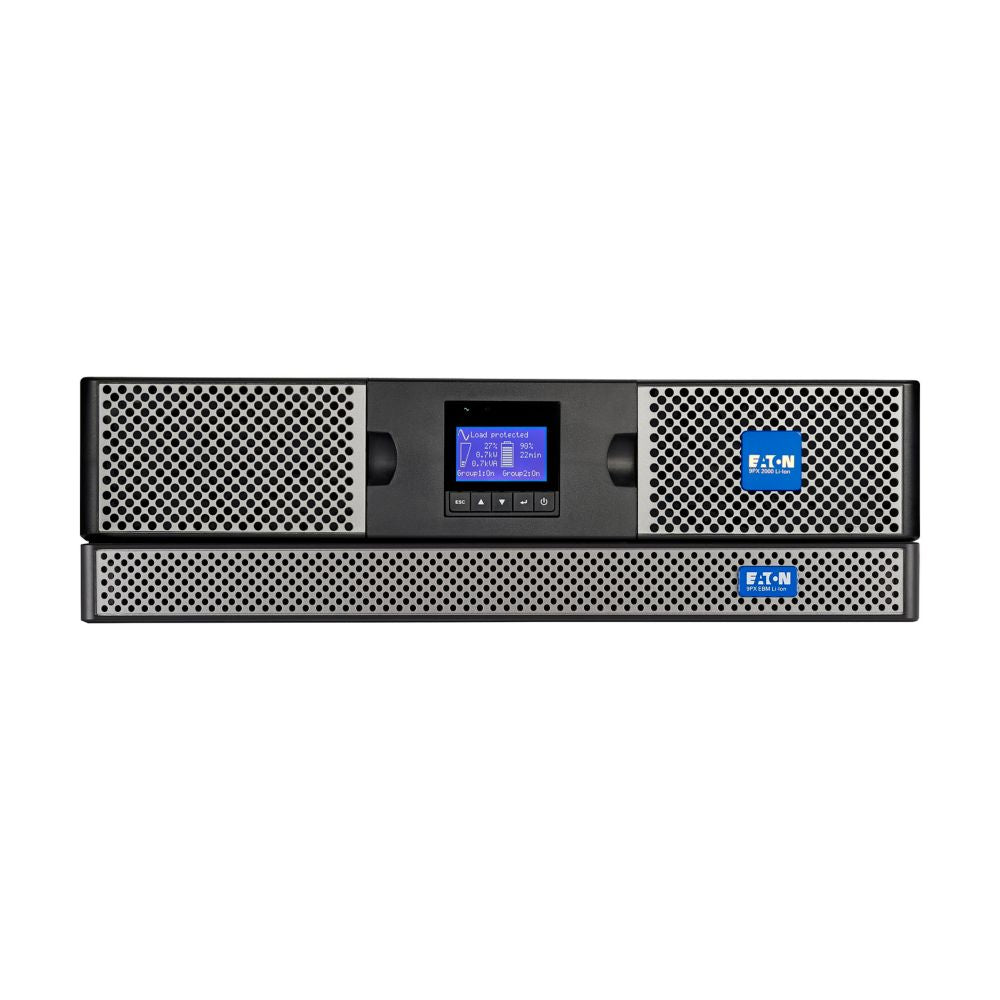

| Extended Battery Support | Up to 4 EBMs (9PXEBM72RT-L) |
| Hot-Swappable Batteries | Yes |
| Efficiency (Full Load) | 91% |
| Display | Graphical LCD with 5-button menu |
| Network Management | Included Gigabit Network Card (M3) |
| Communication Ports | USB, RS-232 (RJ45) |
| Software Support | Eaton Intelligent Power Software Suite |
| Certifications | cULus, NOM, CE, FCC Class B, OSHPD |
| Seismic Certified | Yes (ICC-ES AC156) |
| Operating Temp Range | 0°C to 40°C (32°F to 104°F) |
| Humidity Range | 0–96% (non-condensing) |
| Noise Level | <47 dB at 1 meter |
| BTU Rating | Online: 578, Battery: 974 |
| Dimensions (L x W x H) | 23.8 x 17.3 x 3.4 in |
| Weight | 51.6 lbs |
| Rack Mount Kit | Included |
| Pedestals for Tower Use | Included |
| Warranty | 5-Year Limited (UPS + Battery) |
