Description
The Eaton 9PX2000RTN is a high-efficiency double-conversion UPS that delivers reliable 2000VA/1800W power protection in a compact 2U rack/tower form factor. Designed for IT and edge network environments, it features an intuitive graphical LCD, hot-swappable batteries, and extended runtime capability via EBMs. The included Gigabit Network Card (NETWORK-M3) provides real-time monitoring and management over SNMP, web, and other protocols. Backed by a 3-year warranty, the 9PX ensures clean, continuous power for critical equipment, minimizing downtime and data loss.
| Category | Specification |
|---|---|
| Model | Eaton 9PX2000RTN |
| Topology | Online, Double-Conversion |
| Form Factor | Rack/Tower Convertible |
| Rack Size | 2U |
| Power Rating | 2000 VA / 1800 W |
| Input Plug | NEMA 5-20P |
| Input Voltage | 120V (100/110/120/125V) |
| Input Cord Length | 8 ft |
| Output Receptacles | (6) NEMA 5-20R, (1) NEMA L5-20R |
| Output Voltage | 120V (Selectable: 100–125V) |
| Output Waveform | True Sine Wave |
| Output Frequency | 50/60 Hz |
| Power Factor | 0.9 |
| Efficiency (Full Load) | Up to 91% |
| Bypass | Internal Static Bypass |
| Battery Type | Sealed, Lead-Acid |
| Battery Replacement | Hot-Swappable |
| Extended Runtime | Supports up to 4 EBMs (9PXEBM72RT) |
| Network Management | Gigabit Network Card (NETWORK-M3) Included |
| Communication Ports | USB, RS232, Mini-Terminal Blocks |

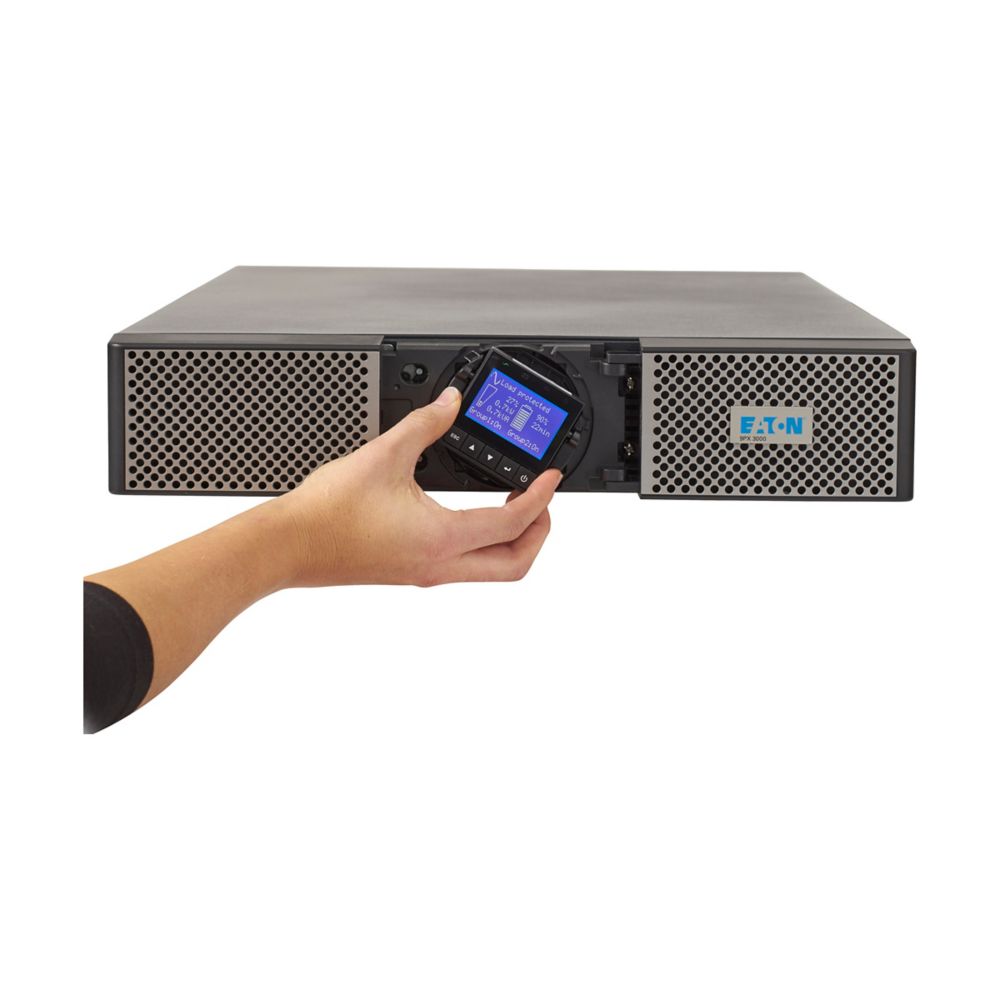

| Display | LCD Graphical Display with 5-button Menu |

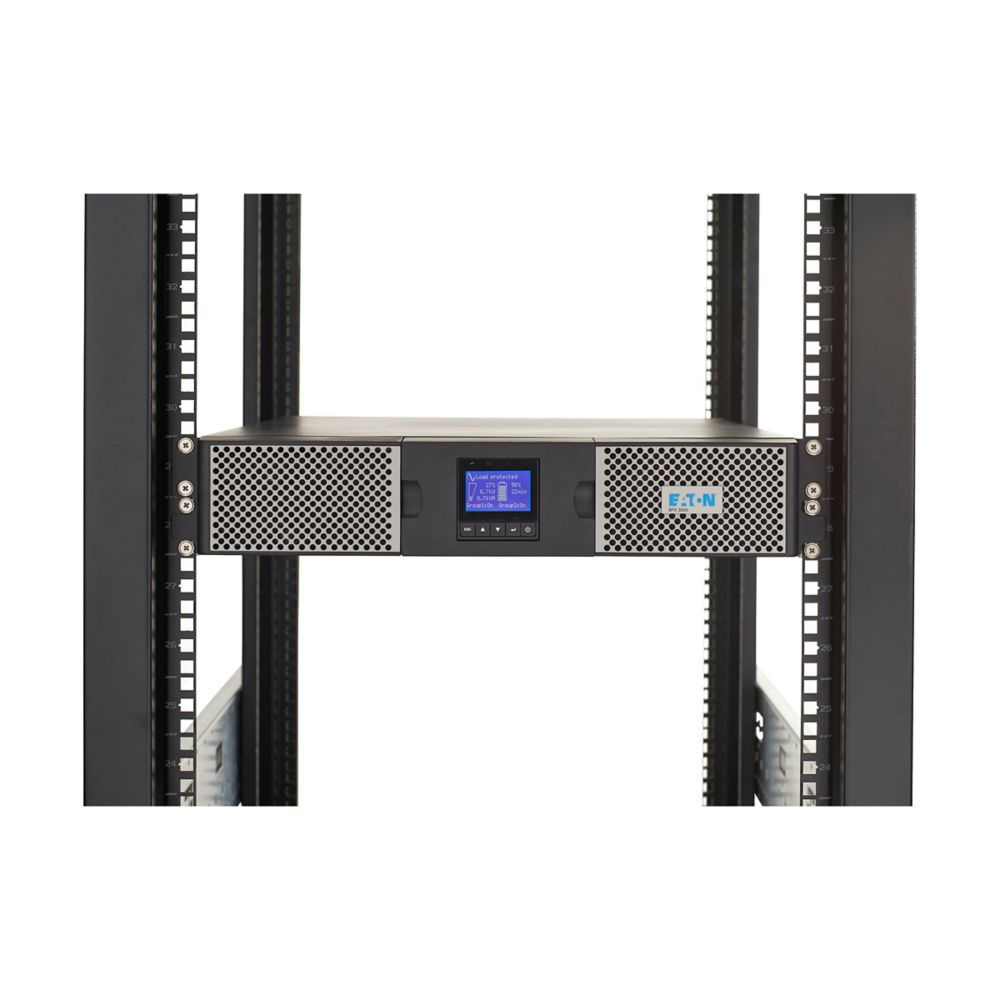

| Mounting Kit | Included (4-post rail kit & tower pedestals) |
| Certifications | ENERGY STAR, cULus, NOM, CE, FCC Class B |
| Warranty | 3-Year Limited Warranty (parts, electronics, and batteries) |
| Dimensions (WxDxH) | 17.3 x 23.8 x 3.4 in |
| Weight | 61.5 lb |
| Noise Level | <47 dB at 1 meter |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 0–96% non-condensing |
| Altitude Range | 0–1500m (0–40°C), 1500–3000m (0–35°C) |
