Description

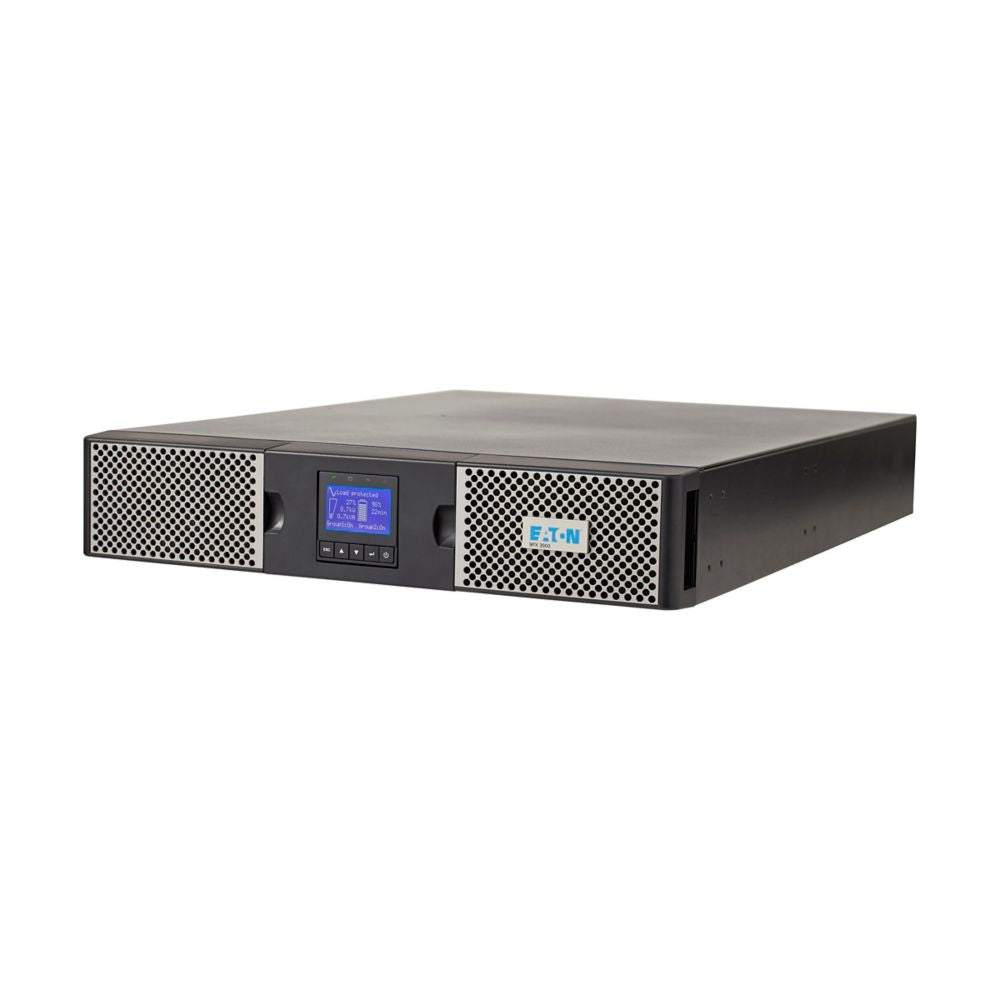

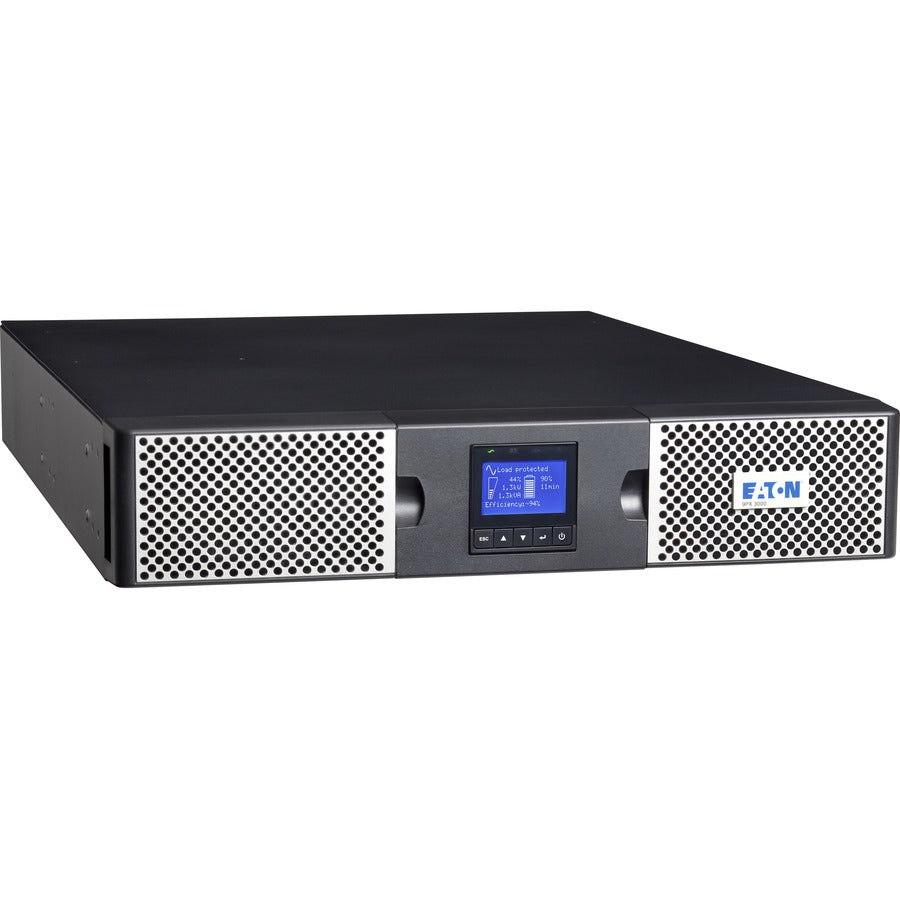

The Eaton 9PX2200GRT UPS delivers reliable double-conversion backup power in a compact 2U rack/tower form factor. Designed for IT and edge environments, this 2200VA/2000W UPS provides continuous power with true sine wave output and high efficiency up to 93%. With a robust suite of certifications including ENERGY STAR®, cULus, and CE, it ensures clean, regulated power across a broad voltage range (200–240V). Equipped with (8) C13 and (2) C19 outlets, the 9PX2200GRT also supports extended runtimes with up to 4 EBMs. Intelligent features like ABM battery management, hot-swappable batteries, network card compatibility, and a graphical LCD make it an ideal solution for critical power needs.
| Specification | Details |
|---|---|
| Model | Eaton 9PX2200GRT |
| Topology | Online/Double-conversion |

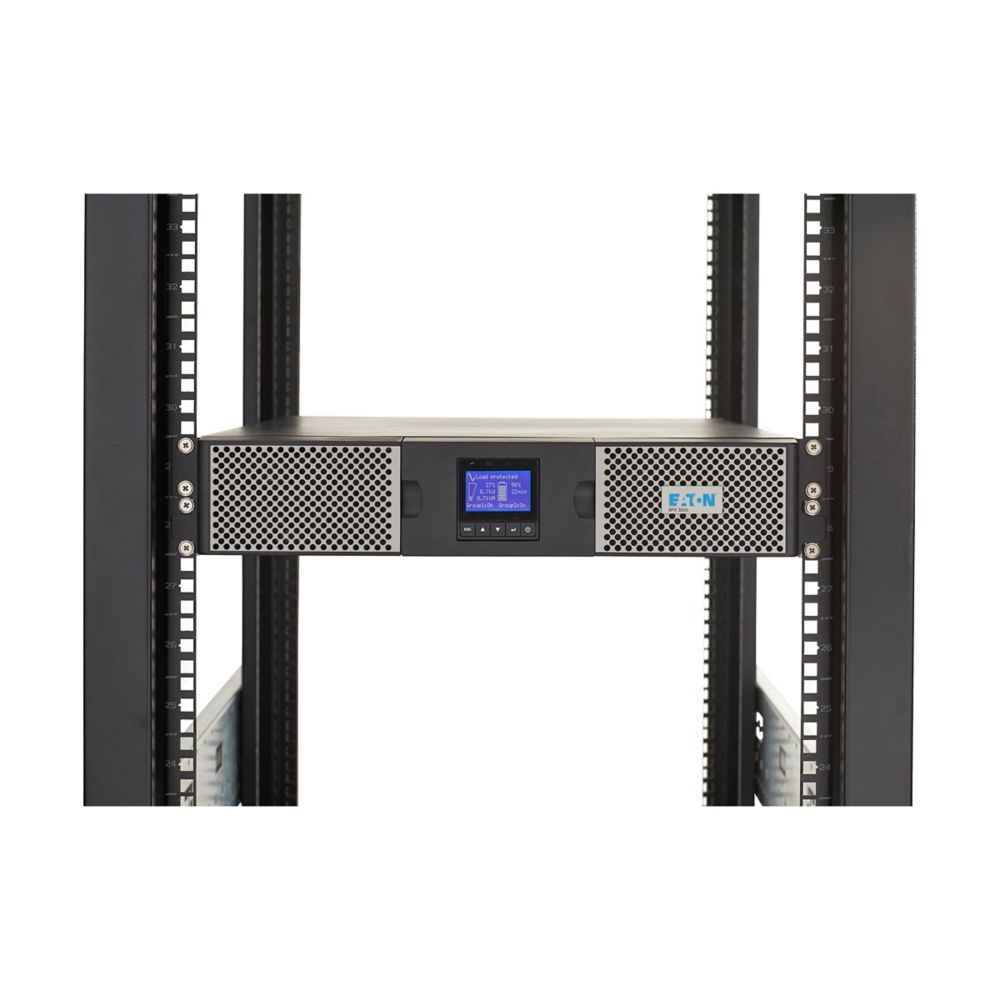

| Form Factor | 2U Rack/Tower |
| Power Capacity | 2200 VA / 2000 W |
| Input Plug Type | NEMA L6-20P |
| Input Voltage | 208V (200/208/220/230/240V selectable) |
| Input Cord Length | 6 ft, detachable |
| Output Voltage | 208V default (selectable range) |

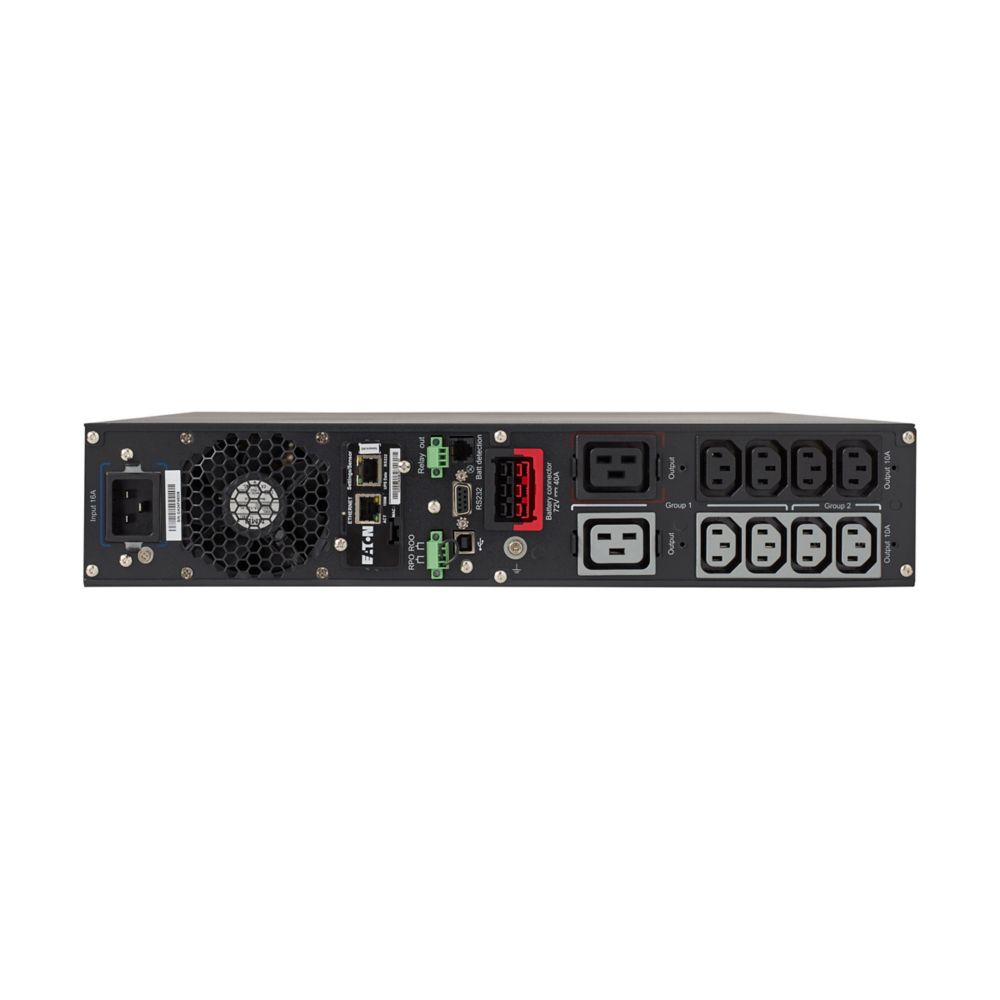

| Output Receptacles | (8) C13, (2) C19 |
| Waveform Output | True sine wave |
| Efficiency at Max Load | 93% |
| Output Frequency | 50/60 Hz |
| Output Power Factor | 0.91 |
| Bypass | Internal |
| Battery Type | Sealed lead-acid, hot-swappable |
| Battery Management | ABM® 3-stage charging |

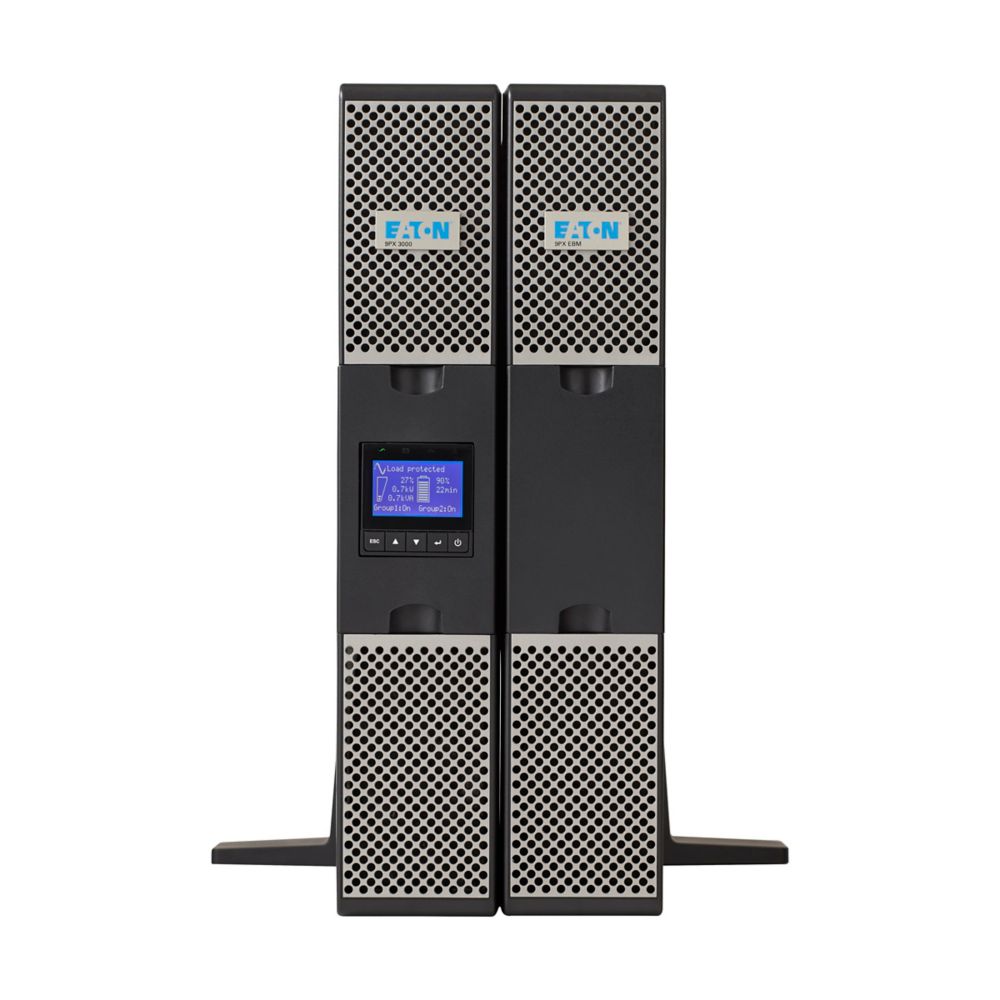

| Extended Battery Support | Up to 4 EBMs (9PXEBM72RT) |
| Runtime at Full Load | 6 minutes |
| Communication Ports | USB, RS232, Mini-Slot, relay & remote control |
| Network Card Support | NETWORK-M3, MODBUS (INDGW-M2), RELAY-MS |

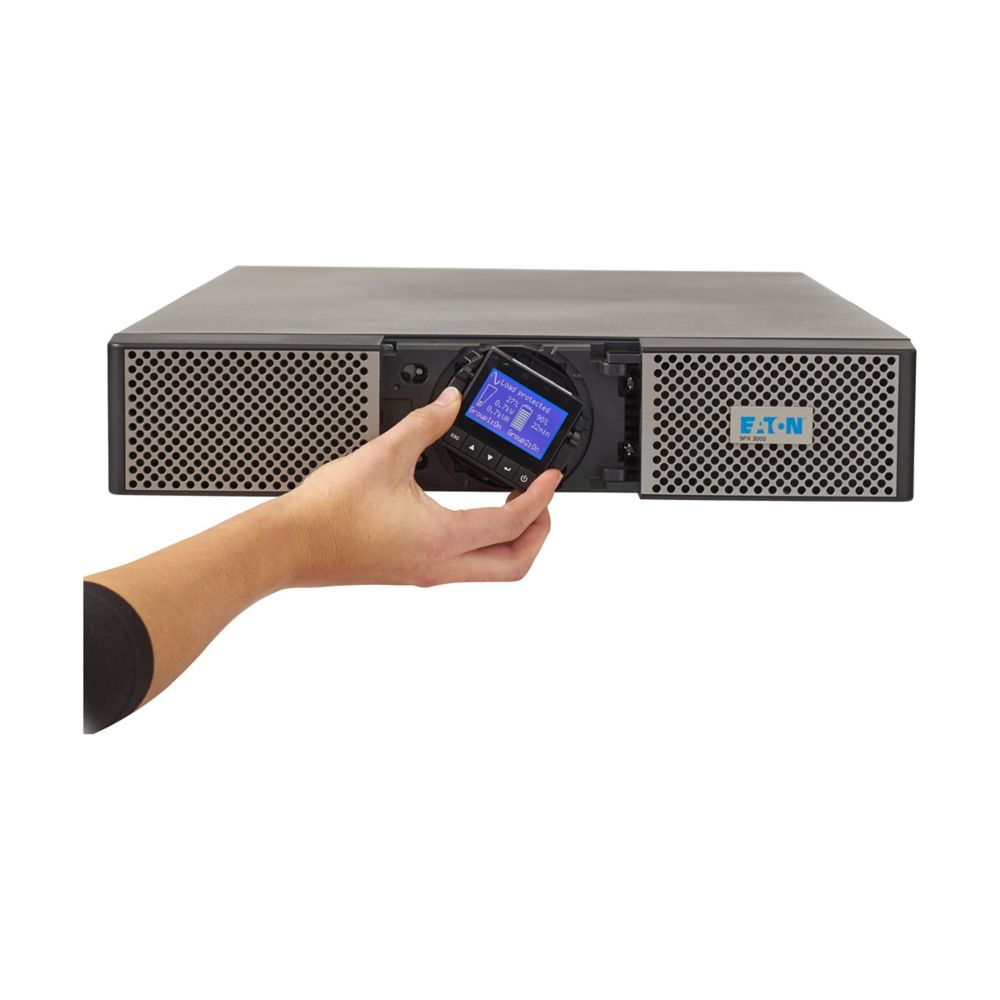

| Display | Graphical LCD with 5-button menu |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Noise Level | <47 dB @ 1m |
| Humidity Tolerance | 0–96% (non-condensing) |
| Altitude Support | Up to 3000m |
| Dimensions (W x D x H) | 17.3" x 23.8" x 3.4" |
| Weight | 60.4 lb |
| Compliance | ENERGY STAR, cULus, CE, FCC Part 15 Class B |
| Warranty | 3-Year Warranty (UPS, electronics, batteries) |
