Description

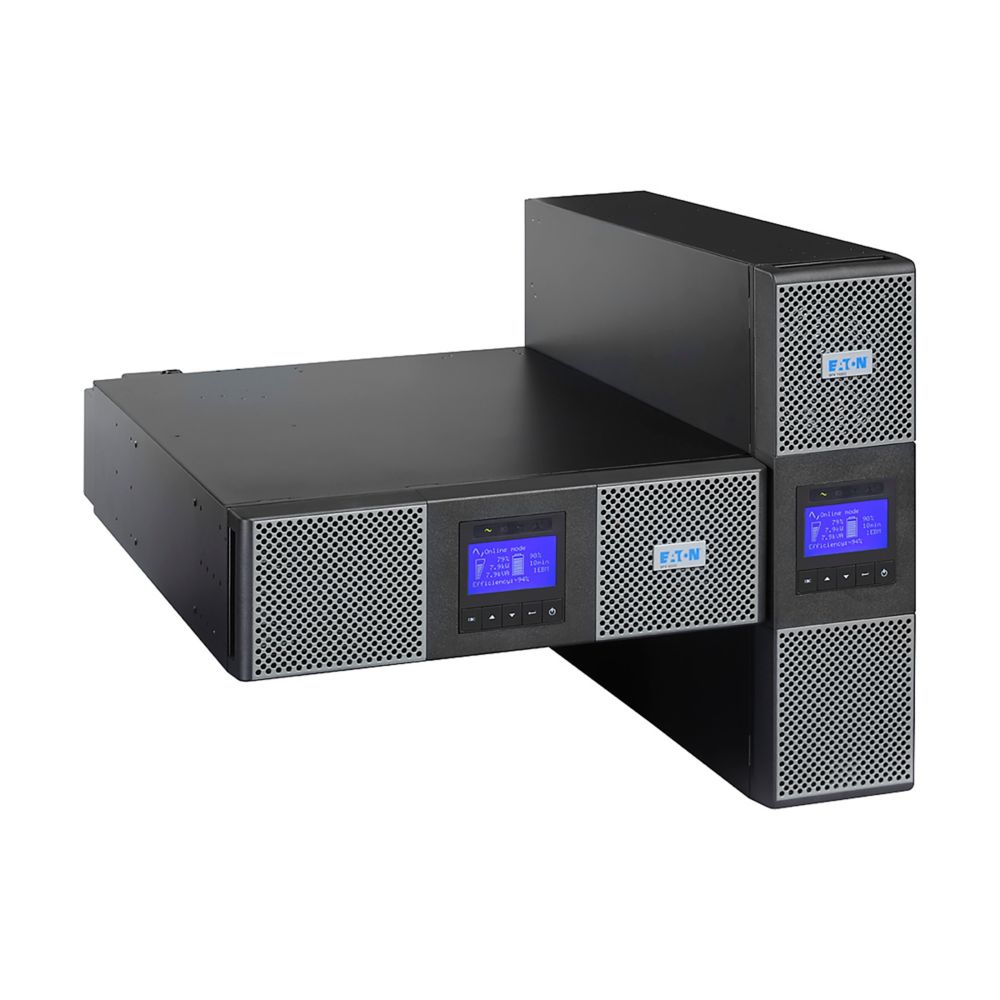

The Eaton 9PX6KIPM31 is a robust 6kVA/5.4kW double-conversion UPS power module designed for high-efficiency power protection in both rack and tower configurations. With hardwired input and output connections, it offers flexible deployment for IT environments demanding uninterrupted, regulated power. Its compact 3U form factor and advanced graphical LCD interface provide easy monitoring, while a built-in internal bypass ensures continuous operation during maintenance. Compatible with Eaton’s Intelligent Power Manager software, this model is ideal for safeguarding mission-critical systems in commercial, industrial, or data center applications.
| Specification | Details |
|---|---|
| Model Number | 9PX6KIPM31 |
| VA Rating | 6000 VA |
| Wattage | 5400 W |
| Input Type | Hardwired (3-phase, 305–408V) |
| Output Type | Hardwired (single-phase, 200–240V) |
| Input Voltage Range | 305–408V |
| Output Voltage Range | 200–240V ±1% |
| Power Factor | 0.9 |
| Topology | Online / Double Conversion |
| Rack Size | 3U |
| Form Factor | Rackmount / Tower |
| Internal Bypass | Yes |
| Efficiency (Max Load) | 94% |
| Efficiency (Eco Mode) | 98% |
| Interface | Multilingual Graphical LCD |
| Communication Ports | USB, RS232, Dry Contacts, Remote On/Off |
| Network Card Slot | 1 Expansion Slot (Card Not Included) |
| Battery Type | External (No internal battery) |
| Extended Battery Support | Yes (Up to 12 EBMs with supercharger) |
| Hot Swappable | No |
| Audible Noise | <48 dB at 1 meter |
| BTU Rating (Online Mode) | 1105 BTU |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC, TUV |
| Dimensions (W x D x H) | 13 x 70 x 44 cm |
| Weight | 23 kg |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 0–95% non-condensing |
| Mounting Kit | Not included |
| Software Compatibility | Eaton IPM & Intelligent Power Protector |
