Description

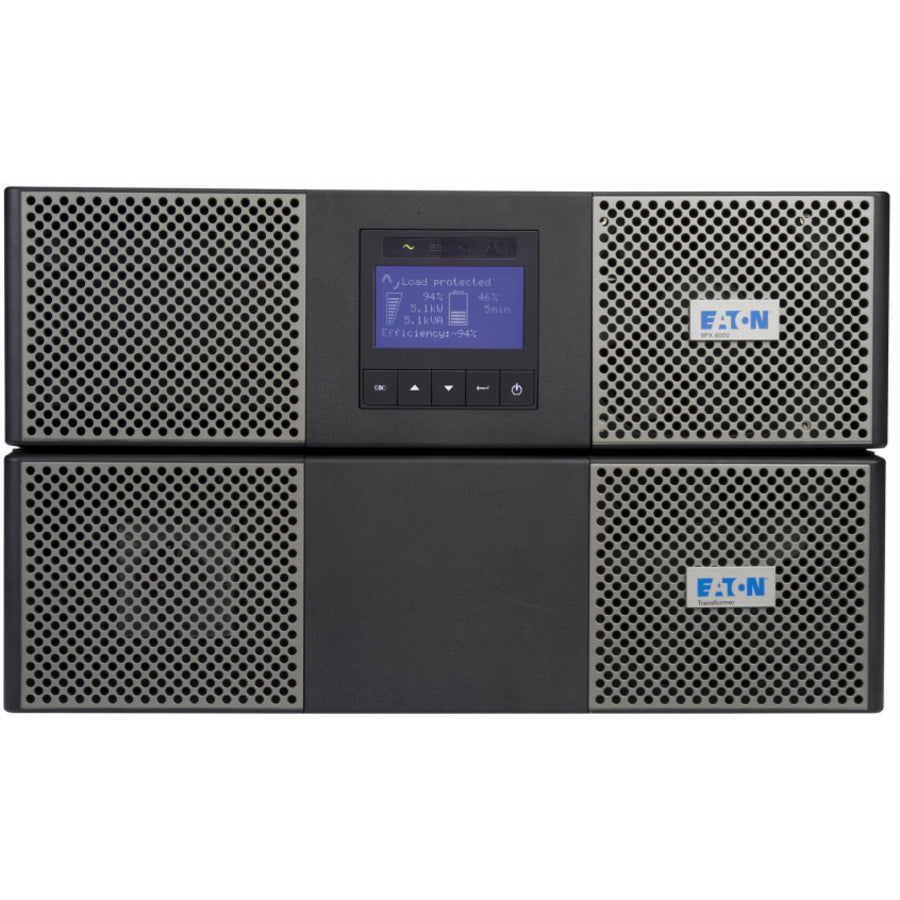

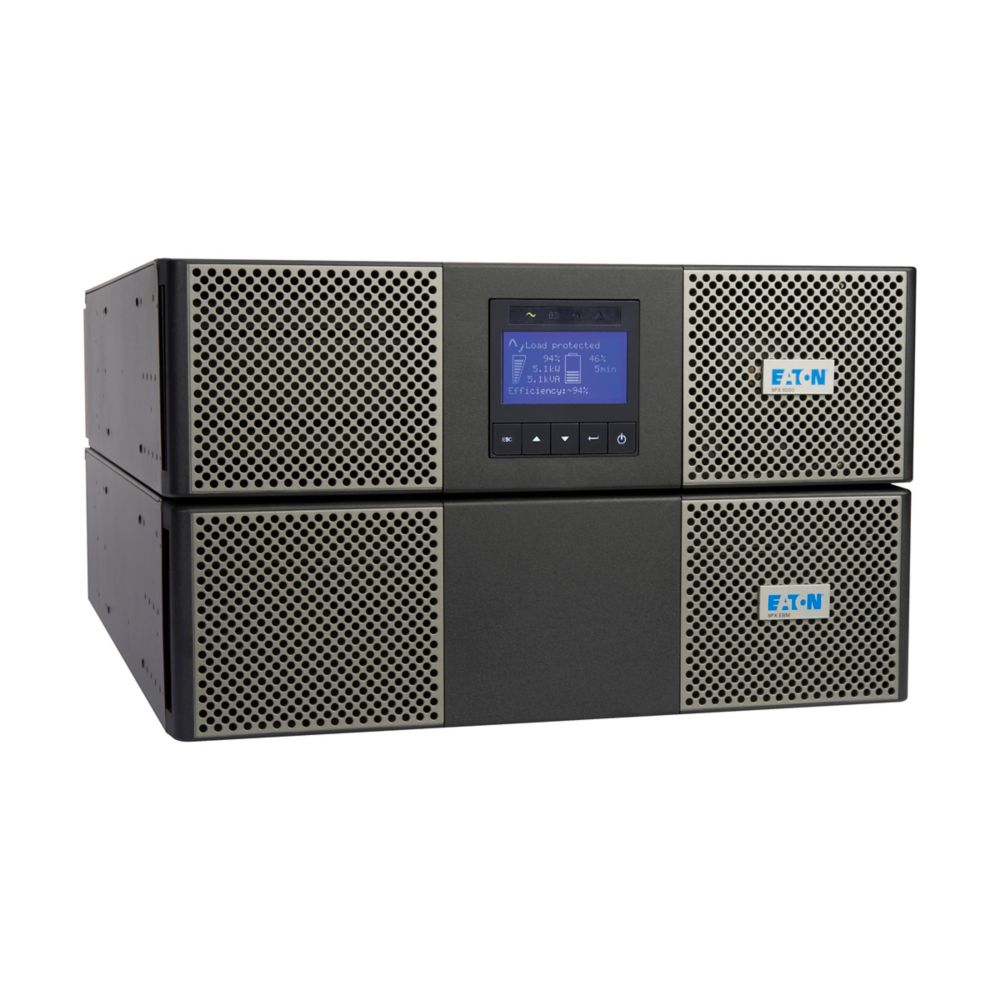

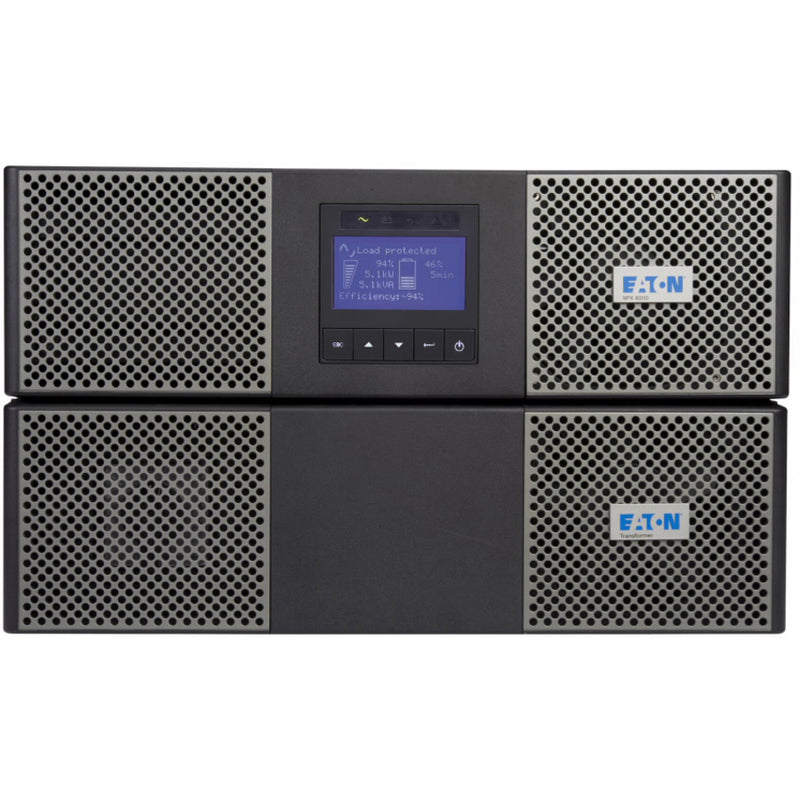

The Eaton 9PX3K3UNP2 is a high-performance 3000 VA/3000 W online double-conversion UPS designed for critical applications that demand reliable, continuous power. Featuring hardwired input and output connections, this 6U rack/tower convertible UPS delivers clean, true sine wave output at 120/240V with exceptional efficiency. It includes hot-swappable sealed lead-acid batteries supported by Eaton’s ABM technology for extended service life, along with an integrated Gigabit Network-M3 card for advanced remote monitoring and management. Ideal for IT, telecom, and industrial environments requiring robust backup power and flexibility.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Model | 9PX3K3UNP2 |
| Topology | Online/Double Conversion |
| VA Rating | 3000 VA |
| Wattage | 3000 W |
| Input Connection | Hardwired |
| Output Connection | Hardwired |
| Input Voltage | 208V default (200/208/220/230/240V) |
| Output Voltage | 120/240V (208V default) |
| Output Waveform | True sine wave |
| Output Power Factor | 1.0 |
| Output Frequency | 50/60 Hz |
| Efficiency at Full Load | 92% |
| Form Factor | Rack/Tower Convertible (6U) |
| Battery Type | Sealed, Lead-Acid (Hot-swappable) |
| Extended Battery | Supports up to 4 EBMs (9PXEBM180RT) |
| Battery Management | ABM 3-stage charging with 50% longer life |
| Communication Ports | 1x USB, 1x RS232, Mini-terminal blocks, Gigabit Network-M3 |

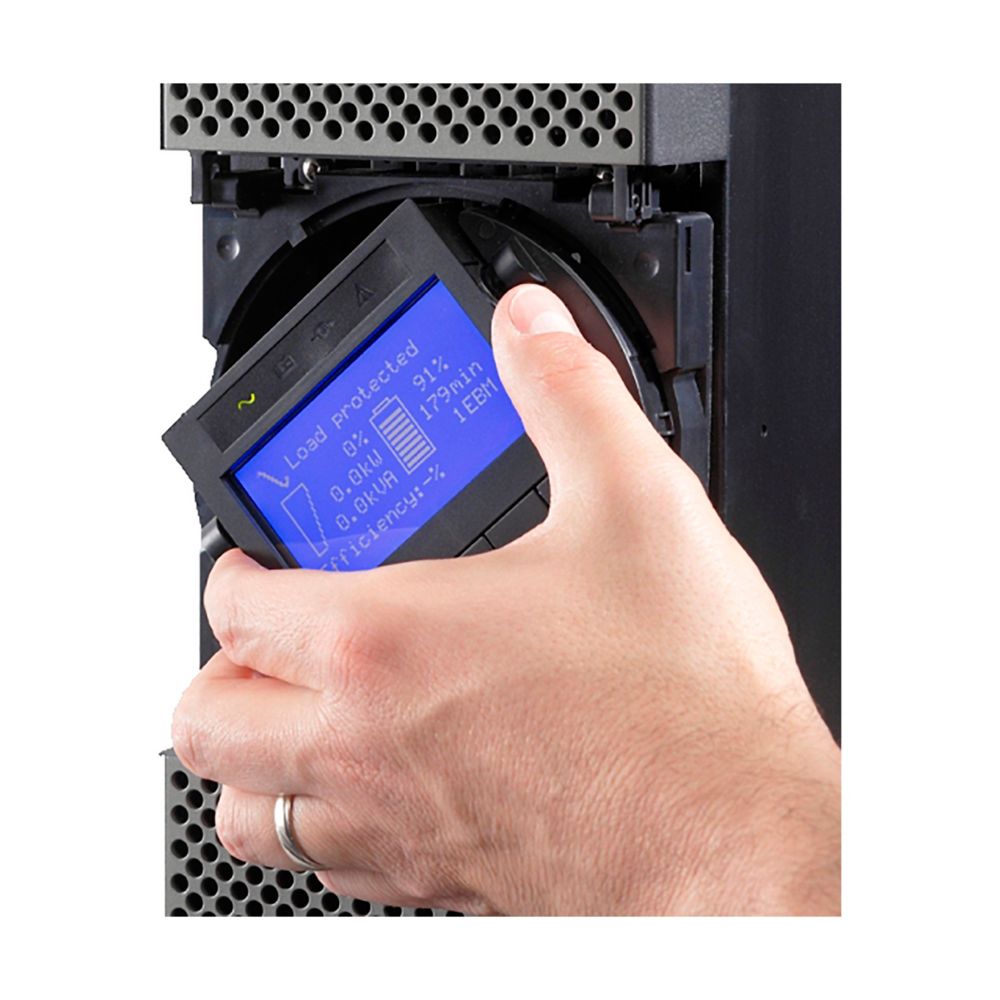

| Interface | Graphical LCD + 5-button menu |
| Mounting | Includes 4-post rail kits and tower pedestals |
| Dimensions (HxWxD) | 10.2 x 17.3 x 27 in |
| Weight | 203 lb |
| Certifications | ENERGY STAR, cULus, NOM |
| Noise Level | <45 dB at 1 meter |
| Warranty | 3-Year Limited (UPS, batteries, electronics) |
