Description

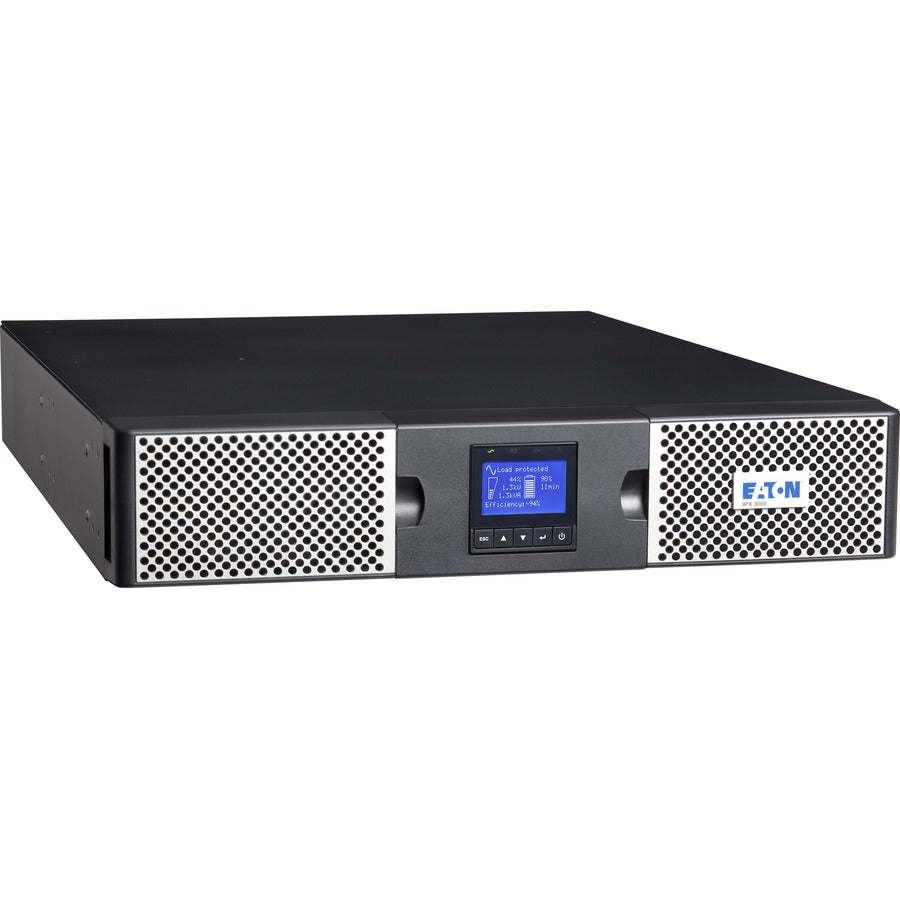

The Eaton 9PX3000GLRT is a high-efficiency, double-conversion online UPS that delivers robust 3000 VA / 3000 W power protection in a compact 2U rackmount form factor. Featuring advanced ABM battery technology and extended battery module (EBM) support, it ensures long-lasting reliability and optimal uptime for critical IT and networking environments. The unit includes (2) L6-20R and (1) L6-30R outlets and is ideal for 208V power distribution. With ENERGY STAR® certification, seismic compliance, and hot-swappable batteries, the 9PX3000GLRT is a dependable choice for data centers, edge computing, and distributed IT infrastructure.
| Category | Details |
|---|---|
| Model Number | 9PX3000GLRT |
| Form Factor | Rack/Tower convertible (2U) |
| Power Rating | 3000 VA / 3000 W |
| Input Voltage | 208V (configurable 200/208/220/230/240V) |
| Input Plug Type | NEMA L6-20P |
| Output Voltage | 208V nominal (±1% regulation) |
| Output Receptacles | (2) L6-20R, (1) L6-30R |
| Output Waveform | True sine wave |
| Power Factor | 1.0 |
| Topology | Double Conversion Online |
| Bypass | Internal Static Bypass |
| Battery Type | Sealed, lead-acid |
| Battery Features | ABM 3-stage charging, hot-swappable, supports up to 4 EBMs (9PXEBM72RT) |
| Runtime Extension | Yes, with optional EBMs |
| Efficiency | Up to 93% |
| Communications | USB, RS232, mini-terminal blocks, 1 MiniSlot expansion port |
| User Interface | Graphical LCD with 5-button menu |
| Certifications | ENERGY STAR, cULus, CE, FCC Part 15 Class B, OSHPD seismic certified |
| Compliance | IEC 62040-2, CISPR22, VCCI Class B |
| Noise Level | <47 dB @ 1 meter |
| Dimensions (HxWxD) | 3.4 x 17.3 x 23.8 inches |
| Weight | 60.4 lbs |
| Mounting Kit Included | Yes (4-post rail kit, tower pedestals included) |
| Warranty | 3-Year Limited (UPS, electronics, batteries) |
| Extended Services | 5-Year Depot: 9SW5Y-3000UC, 5-Year Onsite: WFLN75XX-6009UC |
