Description

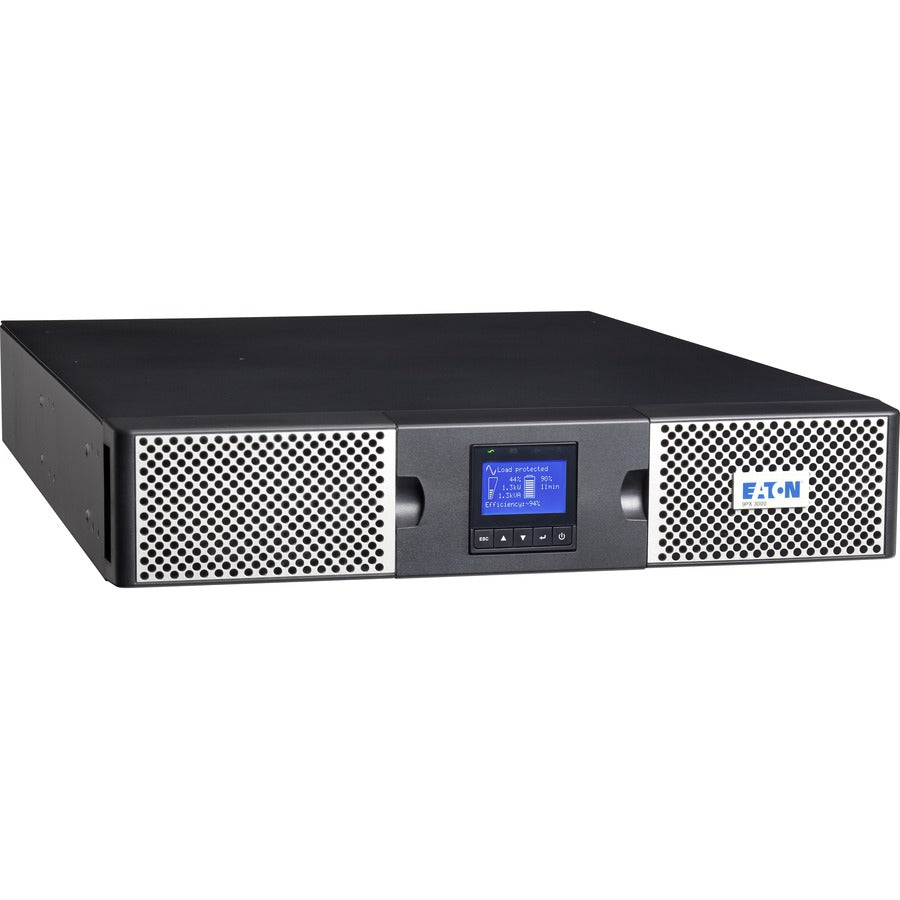

The Eaton 9PX3000GRT delivers robust online double-conversion power protection in a compact 2U rack/tower convertible design. With a 3000 VA / 3000 W power capacity and a true sine wave output, it is ideal for mission-critical servers, storage, and networking hardware. This ENERGY STAR® certified UPS features ABM® technology to extend battery life and hot-swappable batteries for continuous uptime.
Designed for maximum efficiency and flexibility, it supports up to four extended battery modules (EBMs) and comes with (8) C13 and (2) C19 outlets. The intuitive LCD interface, multiple communication ports, and optional network cards make it highly manageable and reliable in dynamic IT environments.
| Feature | Details |
|---|---|
| Model Number | 9PX3000GRT |
| Form Factor | Rack/Tower Convertible (2U) |
| Power Rating | 3000 VA / 3000 W |
| Input Voltage | 208V (200/208/220/230/240V configurable) |
| Input Plug Type | NEMA L6-20P (6 ft detachable cord) |
| Output Voltage | 208V default (configurable range ±1%) |
| Output Connections | (8) C13, (2) C19 |
| Output Frequency | 50/60 Hz |
| Output Waveform | True Sine Wave |
| Topology | Online, Double Conversion |
| Output Power Factor | 1.0 |
| Efficiency | 93% at full load |
| Battery Type | Sealed, Lead-Acid |
| Battery Management | ABM® 3-stage charging system |
| Hot-Swappable Batteries | Yes |
| Extended Battery Support | Up to 4 EBMs (9PXEBM72RT) |
| Communication Ports | RS-232 (RJ45), USB (HID), Mini-slot for optional cards |
| User Interface | Graphical LCD + 5-button navigation |
| Noise Level | <47 dB at 1 meter |
| BTU Rating | Online: 513, Battery: 741 |
| Operating Temp. | 0° to 40°C (32° to 104°F) |
| Humidity | 0–96% non-condensing |
| Mounting Kit | Included (4-post rails & tower pedestals) |
| Dimensions (H x W x D) | 3.4 x 17.3 x 23.8 in |
| Weight | 60.4 lb |
| Certifications | ENERGY STAR®, cULus, CE, FCC Part 15 Class B |
| Warranty | 3-Year Limited Warranty |
