Description

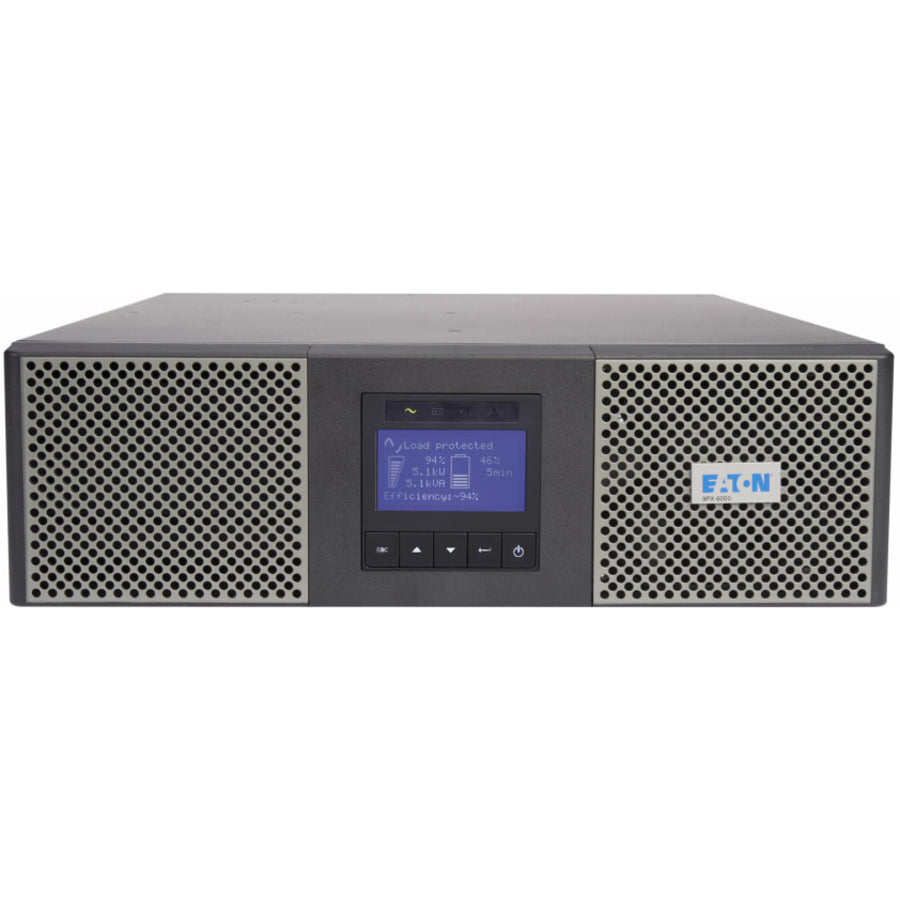

The Eaton 9PX3K3UN is a high-performance, 3U rack/tower uninterruptible power supply (UPS) designed for robust power protection in enterprise and IT environments. Delivering 3000 VA / 3000 W of double-conversion online power, this UPS features a true sine wave output and a unity power factor for maximum efficiency. Equipped with a pre-installed Gigabit Network Card (Network-M3), it supports advanced remote management and monitoring.
With (2) L6-20R and (2) L6-30R outlets, hot-swappable batteries, and support for up to four external battery modules (EBMs), the 9PX3K3UN is built for extended runtime and reliable uptime. ABM technology increases battery life by up to 50%, and the included 3-year warranty ensures peace of mind. Perfect for server rooms, edge networks, and healthcare or industrial applications requiring clean, scalable power protection.
| Category | Details |
|---|---|
| Model | Eaton 9PX3K3UN |

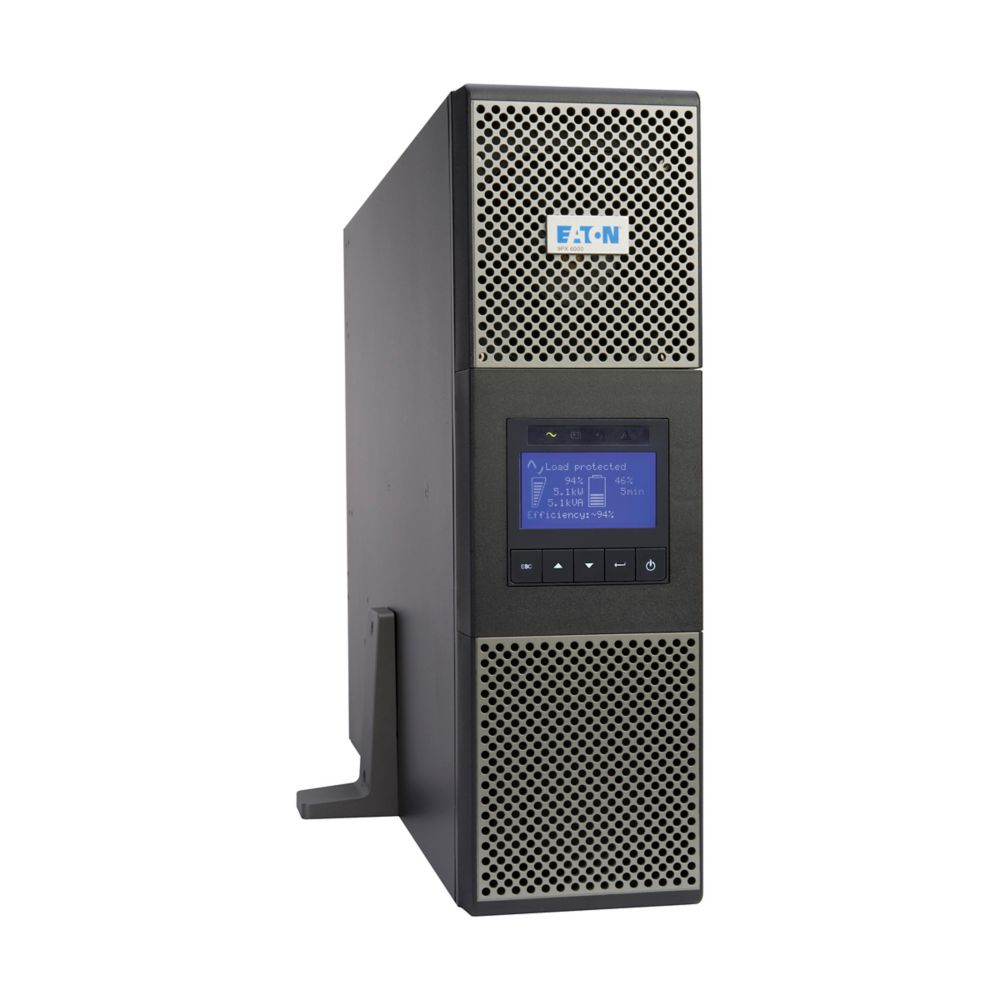

| Form Factor | Rack/Tower (3U) |
| VA / Wattage | 3000 VA / 3000 W |
| Input Voltage | 208V (200–240V compatible) |
| Input Plug Type | NEMA L6-30P |
| Input Cord Length | 6 ft |

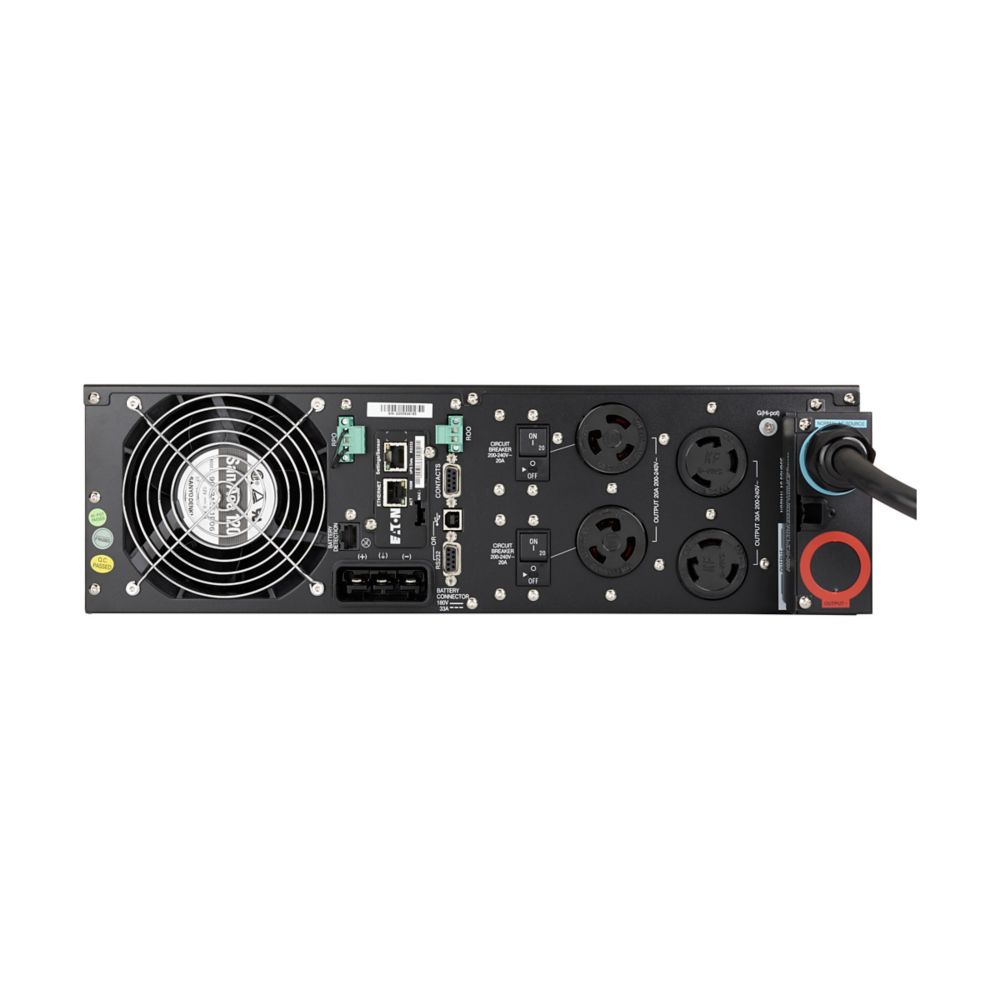

| Output Receptacles | (2) L6-20R, (2) L6-30R |
| Output Voltage | 208V default (adjustable: 200–250V) |
| Power Factor | 1.0 |
| Topology | Online (Double Conversion) |
| Output Waveform | True sine wave |
| Efficiency | 92% at full load |
| Battery Type | Sealed, lead-acid; hot-swappable |
| Battery Management | ABM Technology (3-stage charging) |
| Extended Battery Support | Up to 4 EBMs (9PXEBM180RT) |

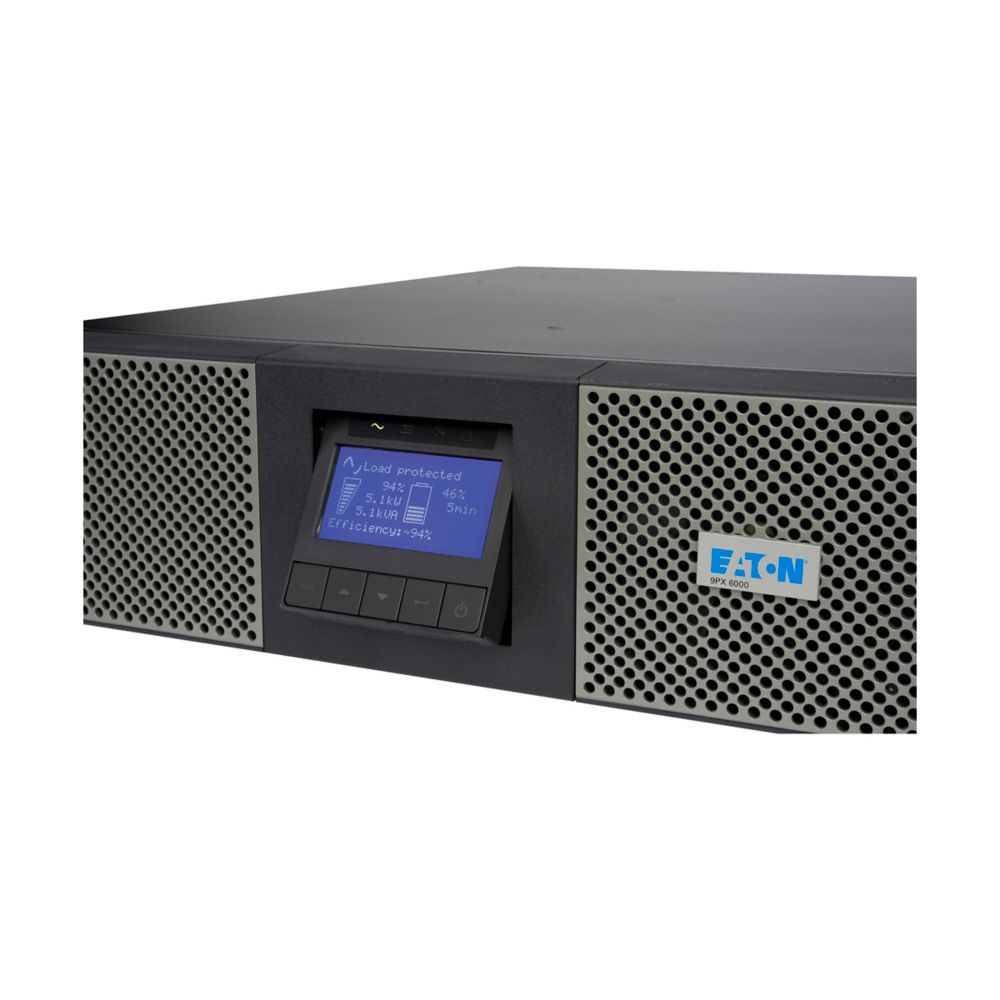

| Display | Graphical LCD, 5-button menu |
| Communications | USB, RS232, Mini-slot (Network-M3 card included), Relay I/O |
| Software | Eaton Intelligent Power Software Suite |

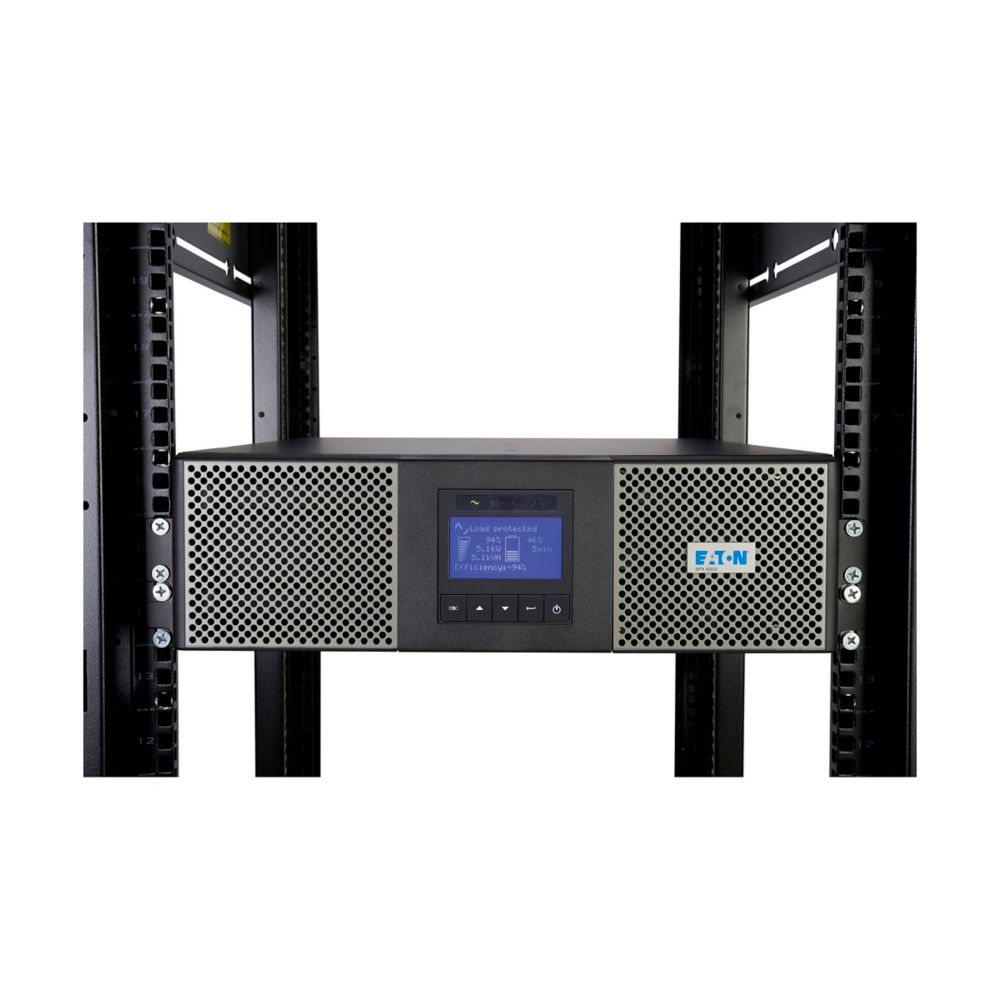

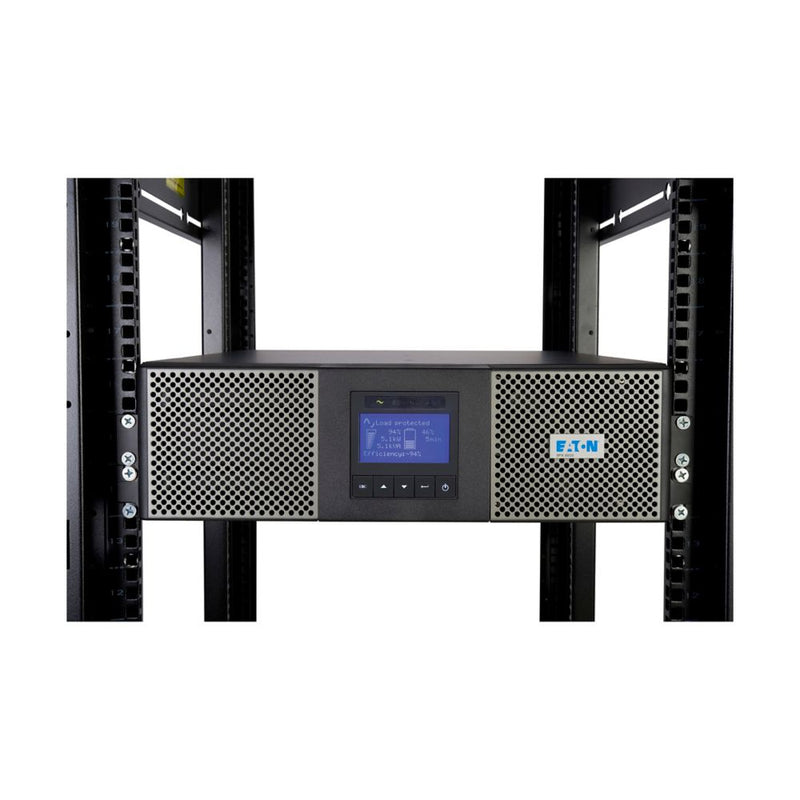

| Rack Mount Kit | Included (4-post rail kit + tower pedestals) |
| Bypass | Internal bypass included |
| Dimensions (W x D x H) | 17.3 in x 28.4 in x 5.1 in |
| Weight | 106 lb |
| Noise Level | <45 dB @ 1 meter |
| Operating Temp. | 0°C to 40°C (32°F to 104°F) |
| Certifications | ENERGY STAR, cULus, NOM, CE, FCC Part 15 Class A, CISPR22 |
| Warranty | 3-Year Factory Warranty (Parts and Batteries) |
| Extended Service | Optional 5-Year Depot or On-Site Support Plans |
