Description

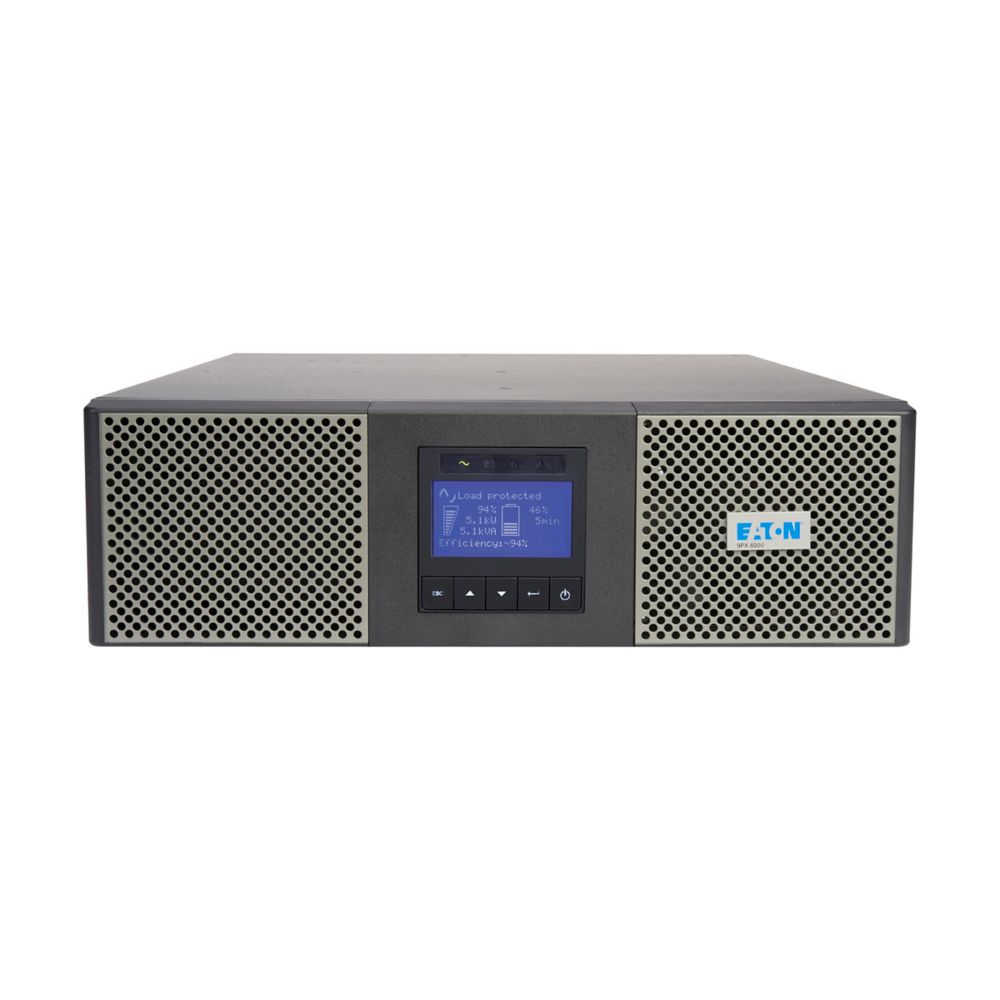

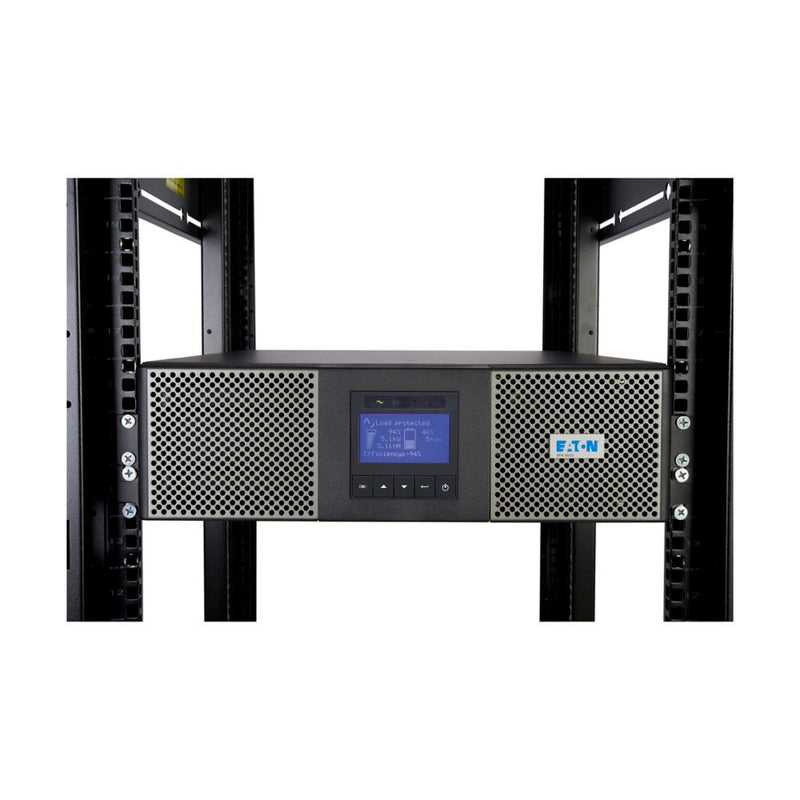

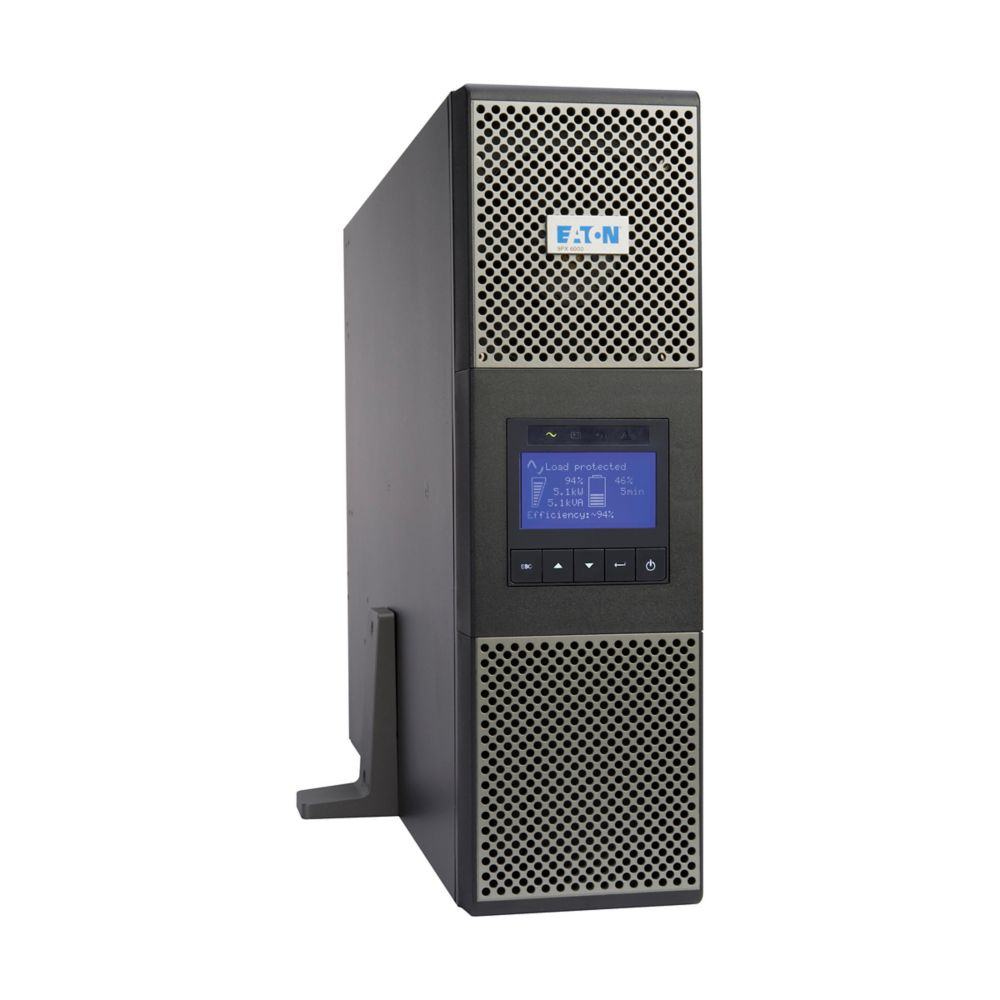

The Eaton 9PX5K is a high-efficiency, online double-conversion UPS delivering 5000 VA / 4500 W of reliable backup power in a compact 3U form factor. Designed for IT and industrial applications, this rack/tower convertible UPS includes a pre-installed Gigabit Network Card (NETWORK-M3) for advanced remote monitoring and management.
With its true sine wave output, extended battery support, and hot-swappable internal batteries, the 9PX5K ensures critical systems stay online through outages. Ideal for 208V environments, it includes hardwired outputs and L6-20R and L6-30R receptacles to support multiple high-power devices. Intelligent Power Software Suite compatibility makes integration into virtualized environments seamless.
| Specification | Details |
|---|---|
| Model | Eaton 9PX UPS |
| Part Number | 9PX5K |

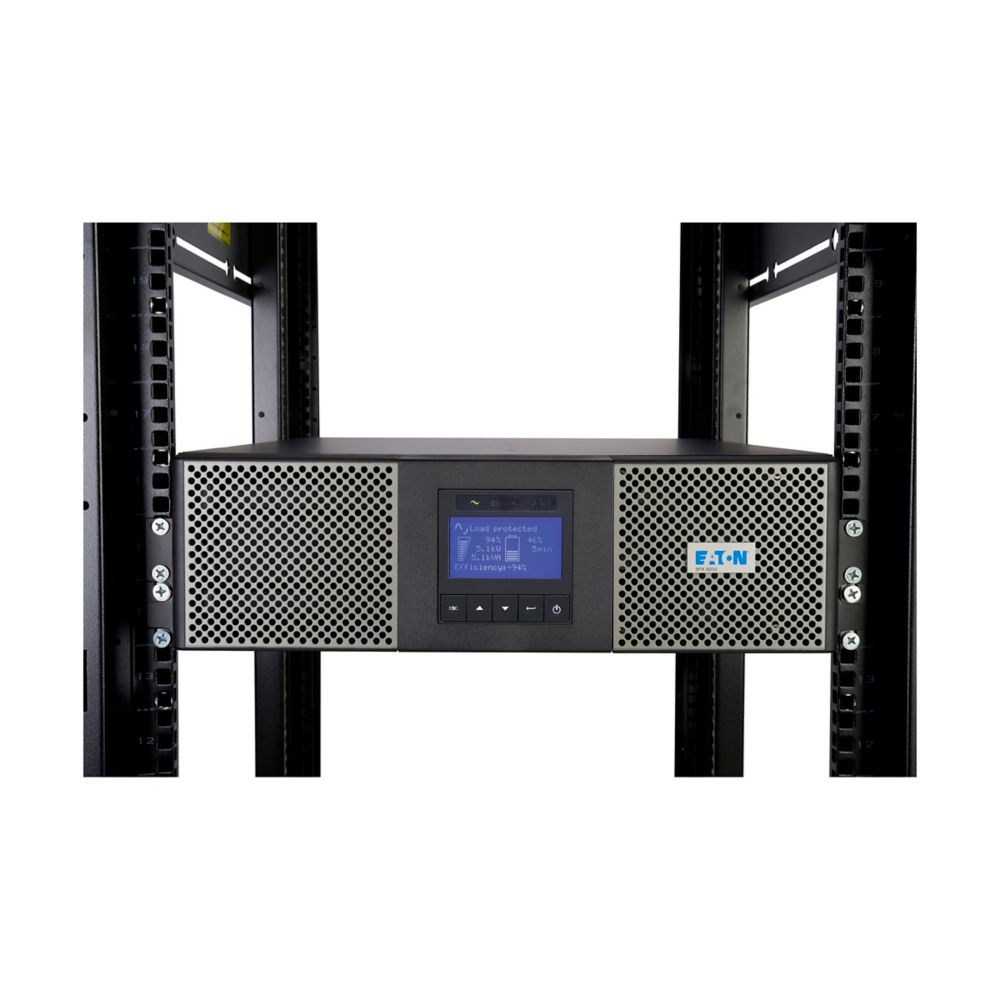

| Form Factor | Rack/Tower Convertible |
| Rack Height | 3U |
| VA Rating | 5000 VA |
| Wattage | 4500 W |
| Output Voltage | 208V (Selectable: 200/208/220/230/240/250V) |
| Input Voltage | 208V (Selectable) |
| Input Plug Type | L6-30P |
| Input Cord Length | 6 ft |

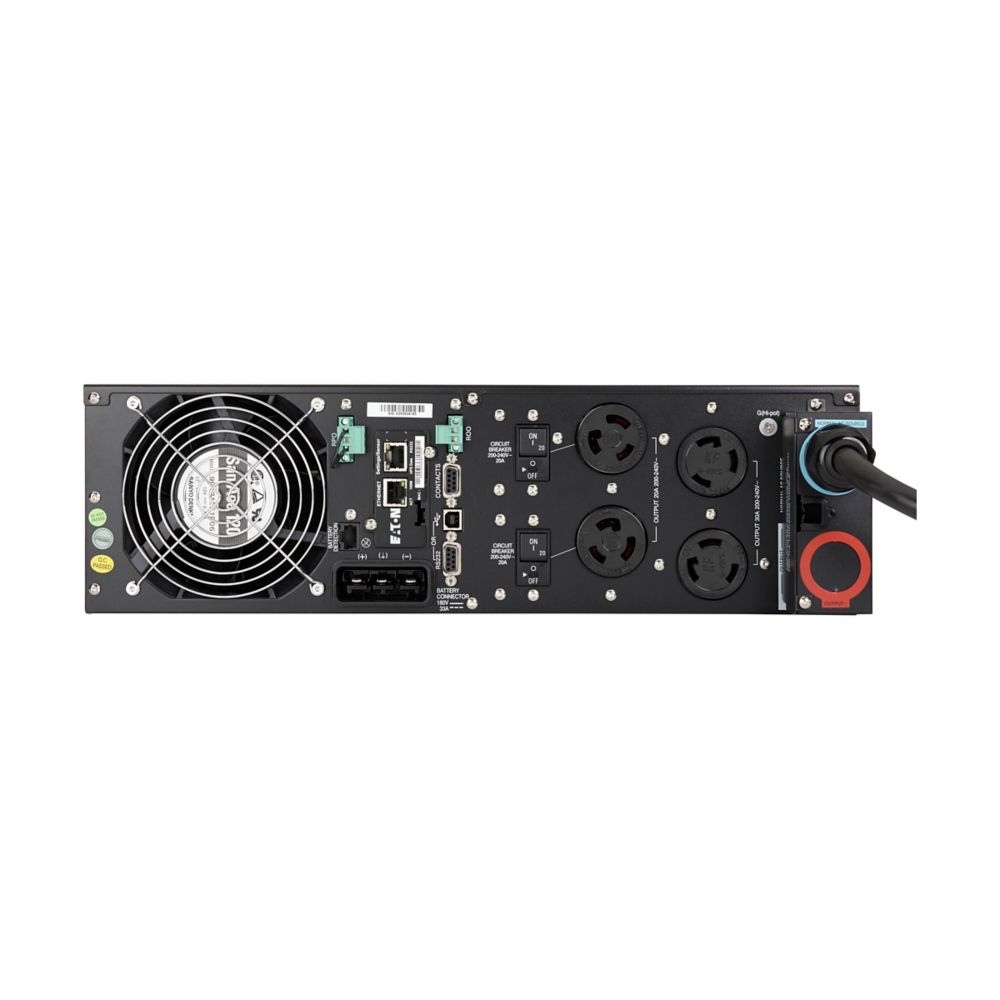

| Output Receptacles | (2) L6-20R, (2) L6-30R, Hardwired |
| Output Waveform | True Sine Wave |
| Power Factor | 0.9 |
| Topology | Online / Double Conversion |
| Battery Type | Sealed, Lead-Acid |
| Battery Replacement | Hot-swappable |
| Extended Battery Support | Up to 4 EBMs (9PXEBM180RT) |
| Battery Management | ABM technology for extended battery life |
| Efficiency at Full Load | 93% |
| BTU Rating | 1150 (Online), 1560 (Battery) |
| Noise Level | <45 dB @ 1 meter |
| Operating Temp. | 0° to 40°C (32° to 104°F) |
| Humidity Range | 0–95% non-condensing |
| Communications | Web/SNMP (NETWORK-M3), USB, RS-232, Relay I/O |
| Display | Graphical LCD, 5-button menu |
| Mounting Kit Included | Yes (4-post rail kit) |
| Network Card Included | Yes (Gigabit Network-M3) |
| Warranty | 3-Year (UPS + Battery) |
| Dimensions (W x D x H) | 17.3 x 28.4 x 5.1 in |
| Weight | 106 lb |
| Certifications | ENERGY STAR, cULus, FCC, NOM, CE, Seismic |
