Description

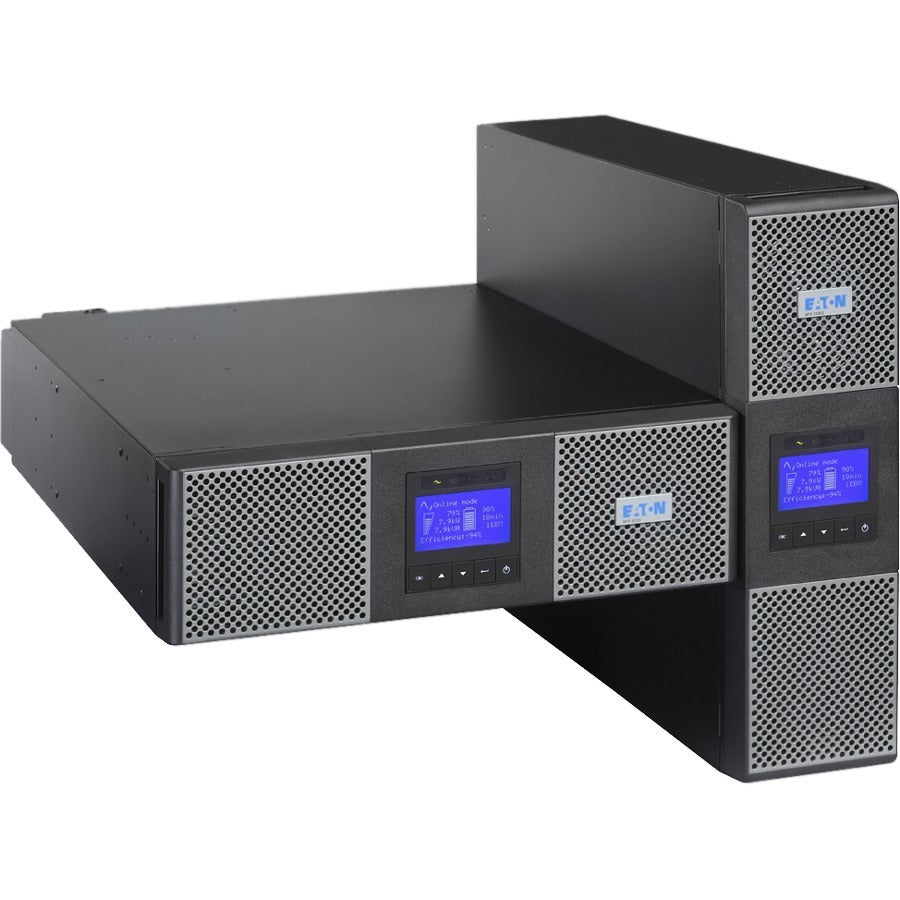

The Eaton 9PX6KSP delivers premium double-conversion backup power in a compact 4U rack/tower design. Engineered for critical applications, this UPS offers 5500 VA / 4900 W of true sine wave output with a 0.82 power factor and high efficiency at up to 92.9%. It includes an integrated Gigabit Network-M2 card, intelligent LCD interface, and hot-swappable internal batteries for maximum uptime.
This model features versatile output connections: (6) 5-20R, (1) L6-30R, (1) L14-30R, and hardwired output. With extended battery capability (up to 4 EBMs), advanced ABM battery management, and Energy Star certification, the 9PX6KSP is ideal for IT, edge networks, and mission-critical environments.
| Specification | Details |
|---|---|
| Product Name | Eaton 9PX UPS |
| Catalog Number | 9PX6KSP |
| VA / Watt Rating | 5500 VA / 4900 W |
| Topology | Online Double-Conversion |
| Input Voltage / Plug | 120/208V, L14-30P, 6 ft. cord |

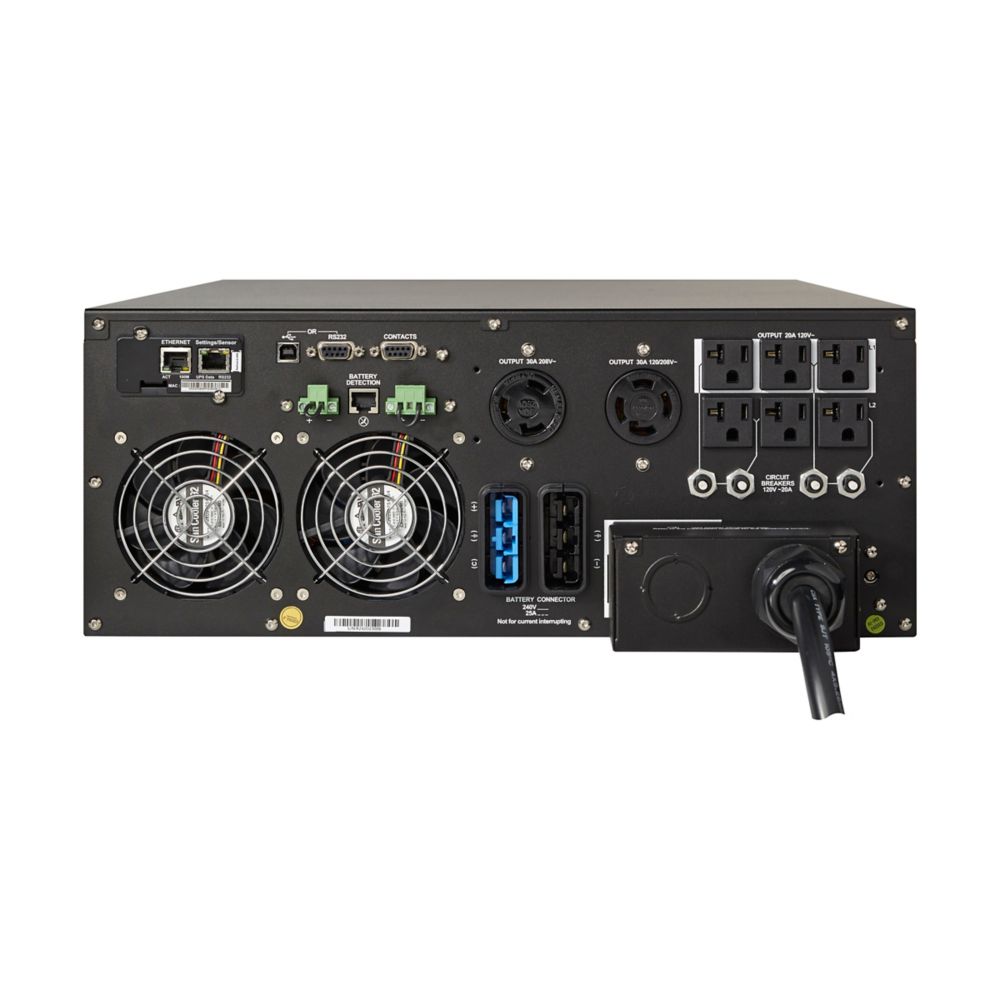

| Output Connections | (6) 5-20R, (1) L6-30R, (1) L14-30R, Hardwired |
| Output Voltage | 120/208V (Default), Multiple Config Options |
| Output Frequency | 50/60 Hz |
| Efficiency (Full Load) | 92.9% |

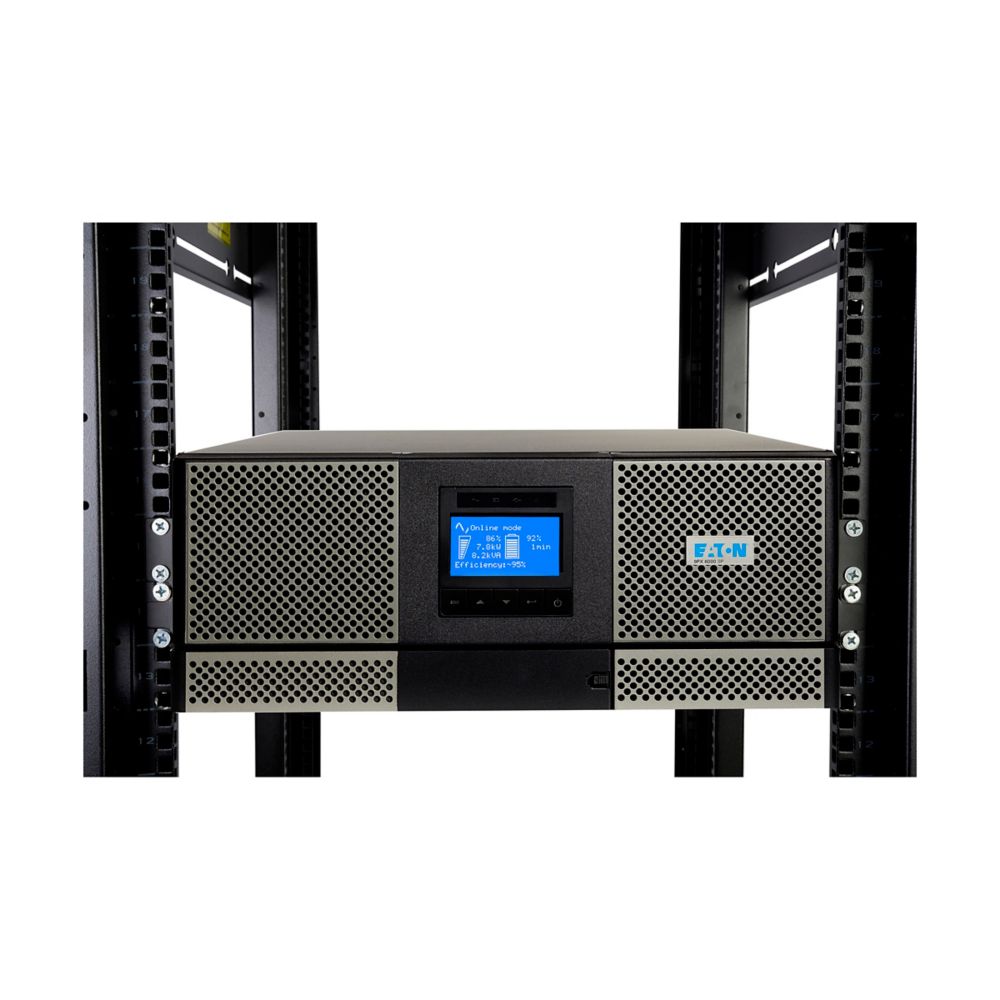

| Form Factor | 4U Rack/Tower (6U with mounting) |
| Dimensions (L x W x H) | 29.77 x 17.3 x 6.8 in |
| Weight | 157.3 lb |

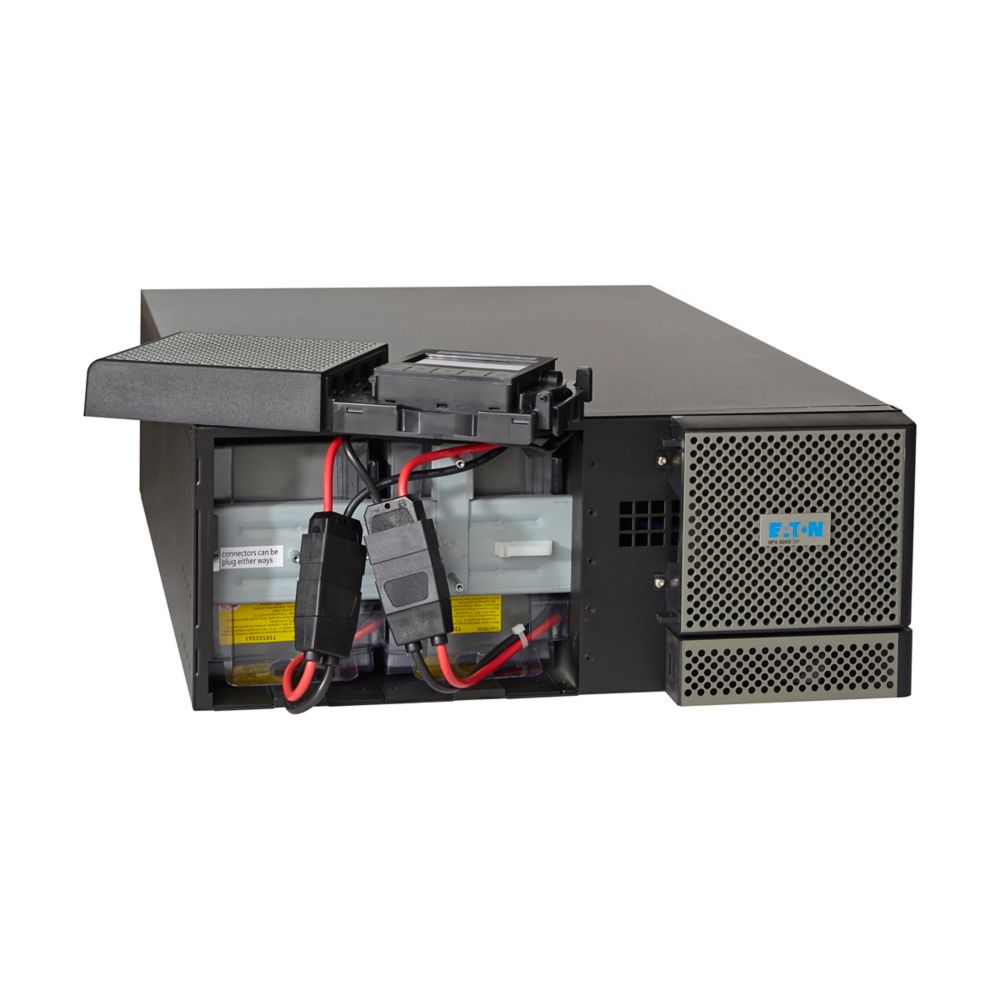

| Battery Type | Sealed lead-acid, Hot-swappable |
| Runtime (Full Load) | 6 minutes |
| Extended Battery Modules | Supports up to 4 (Model: 9PXEBM240SP) |
| Included Accessories | Network-M2 Card, USB/RS232 Cables, Rack Kit |
| Communications | SNMP, USB, RS232, Relay, Remote ON/OFF |
| User Interface | Graphical LCD with 5-button menu |
| Compliance/Certifications | ENERGY STAR, cULus, NOM, CE, IEC 62040-2 |
| Warranty | 3-Year Factory Warranty |
| Noise Level | < 55 dB @ 1m |
| Operating Temp | 0° to 40°C (32° to 104°F) |
