Description

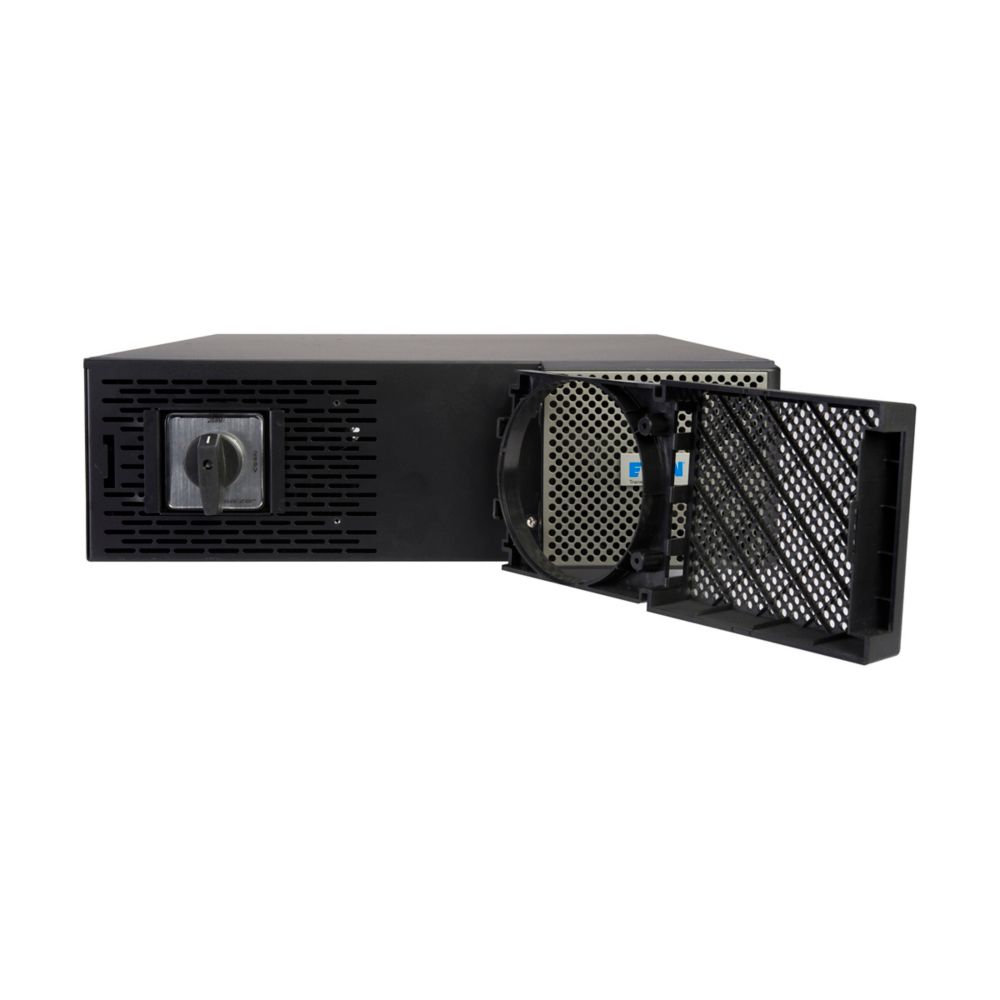

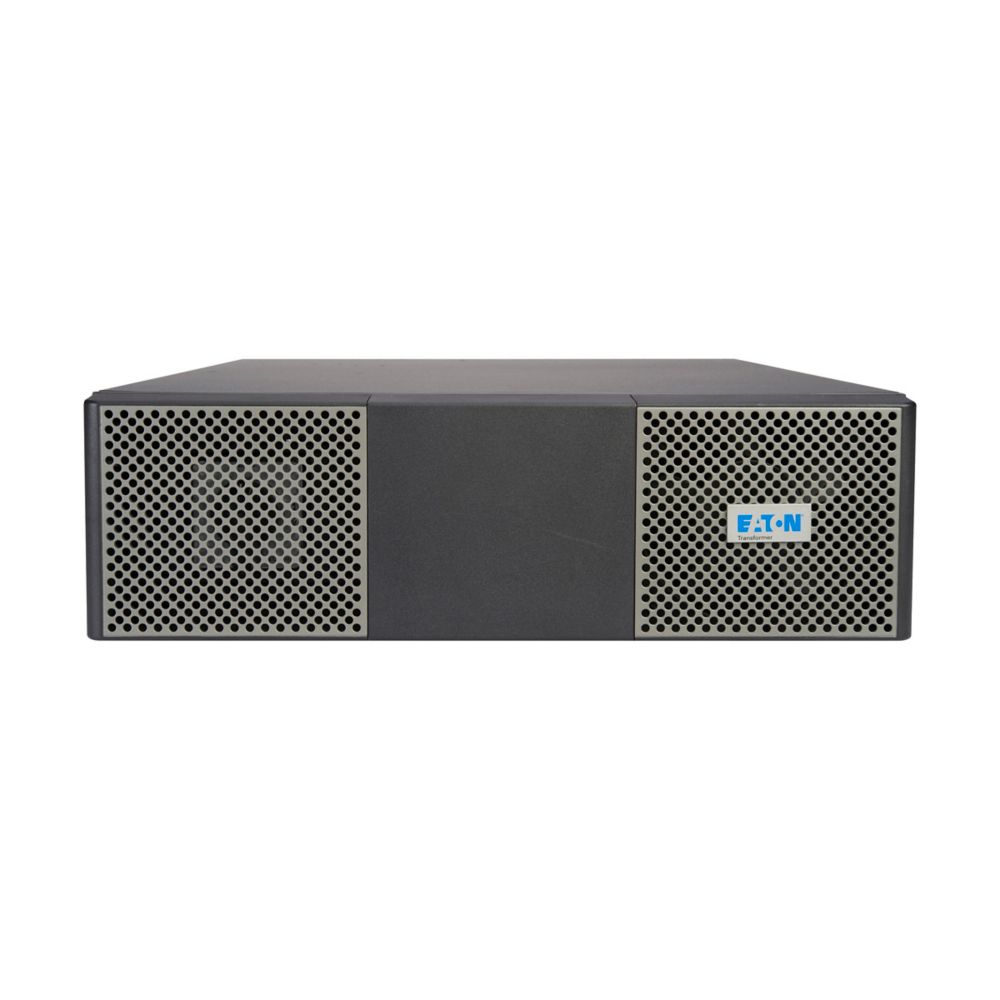

The Eaton 9PXTFMR5 is a high-capacity 5kVA stepdown isolation transformer designed to convert 208V UPS output to reliable 120V power for low-voltage, mission-critical equipment. Built for compatibility with Eaton 9PX UPS systems, it delivers clean, protected power through 18 NEMA 5-20R outlets, supporting both 5-15P and 5-20P plugs.
Designed for data centers, network closets, and enterprise IT environments, this transformer features resettable 20A circuit breakers to safeguard connected devices from overloads. Flexible deployment options allow installation in a standard 19-inch rack (3U) or tower configuration, making it ideal for scalable power distribution in mixed-voltage infrastructures.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Model | 9PXTFMR5 |
| Transformer Capacity | 5kVA |
| Voltage Conversion | 208V input to 120V output |
| Transformer Type | Stepdown Isolation Transformer |
| Input Plug | NEMA L6-30P |
| Input Cord Length | 3 ft (0.9 m) |

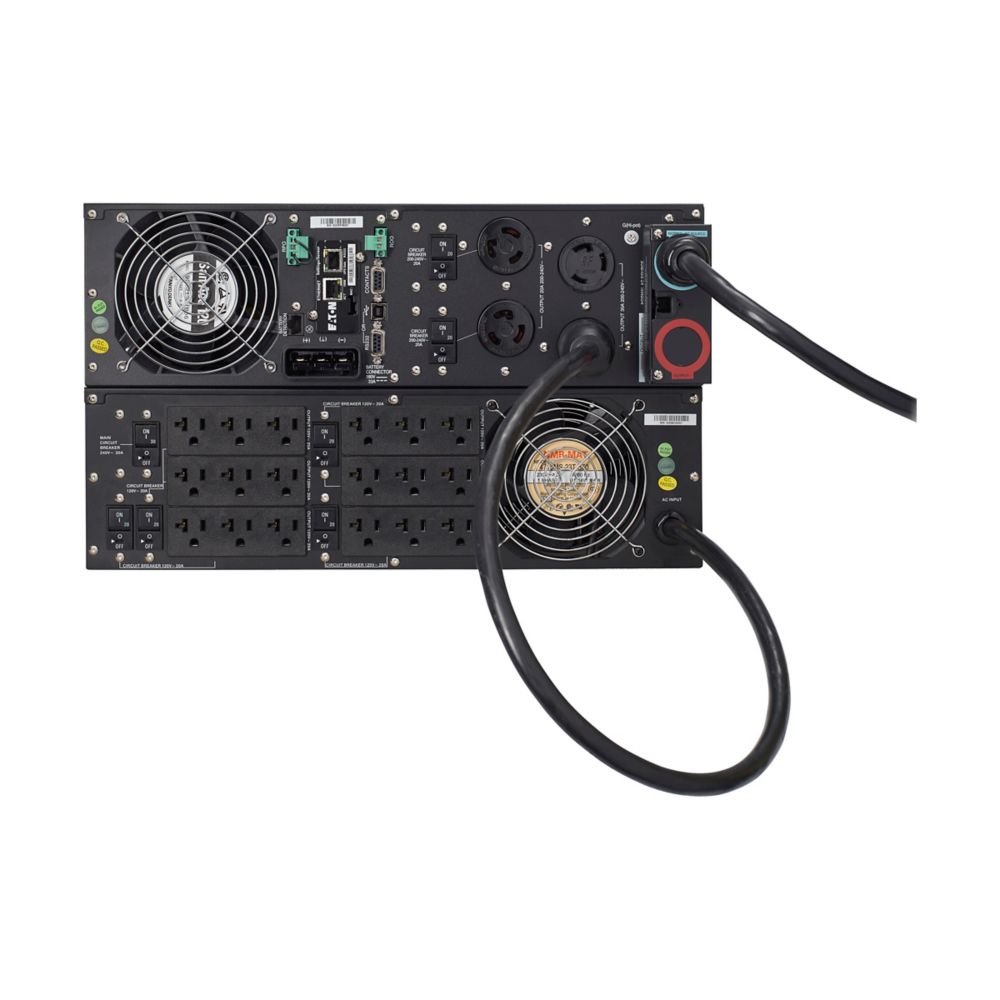

| Output Receptacles | 18 × NEMA 5-20R |
| Supported Plug Types | NEMA 5-15P, 5-20P |
| Circuit Protection | Resettable 20A circuit breakers |
| Input Phase | Single-phase |
| Form Factor | Rackmount or Tower |
| Rack Height | 3U |
| Dimensions (H × W × D) | 5.1 × 17.3 × 25.4 in |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Relative Humidity | 0–95% non-condensing |
| Compatibility | Eaton 9PX 5kVA–11kVA UPS systems |
| Certifications | cUL Listed, CE, RoHS |
| Warranty | 3-Year Limited Warranty |
