Description

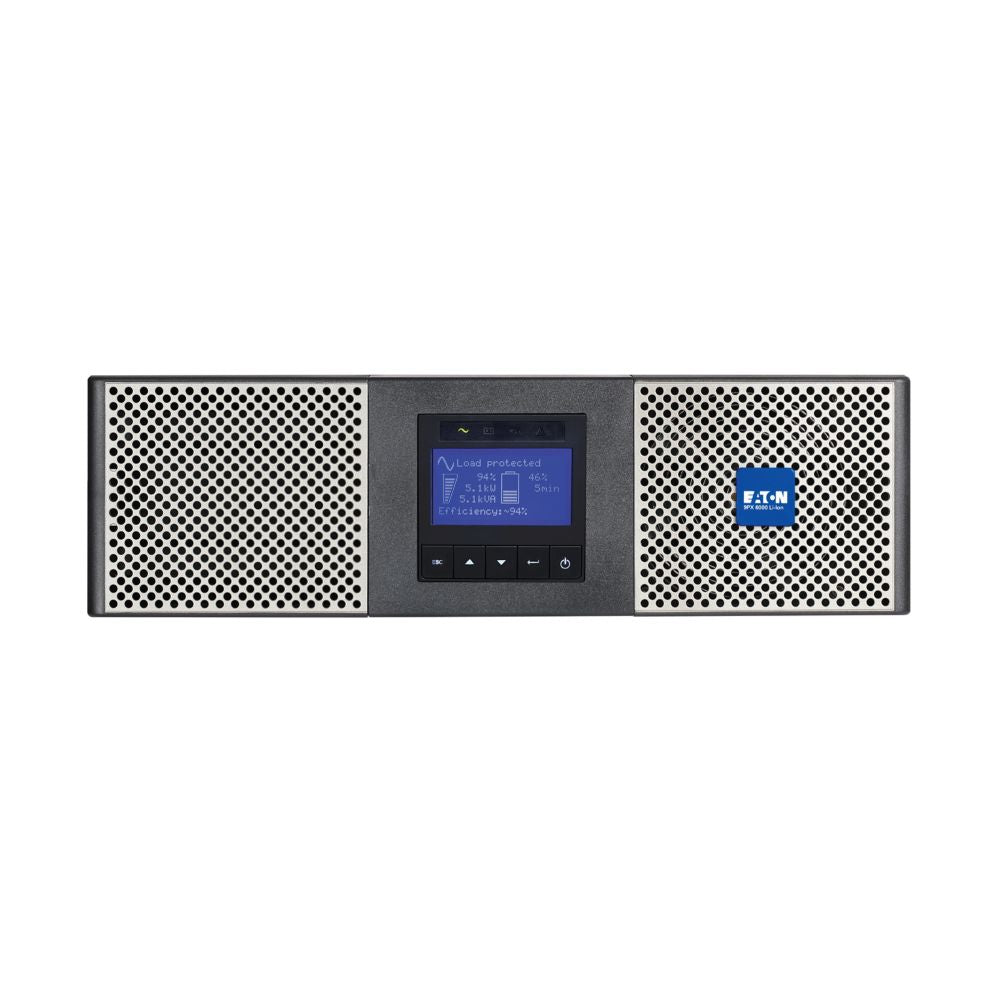

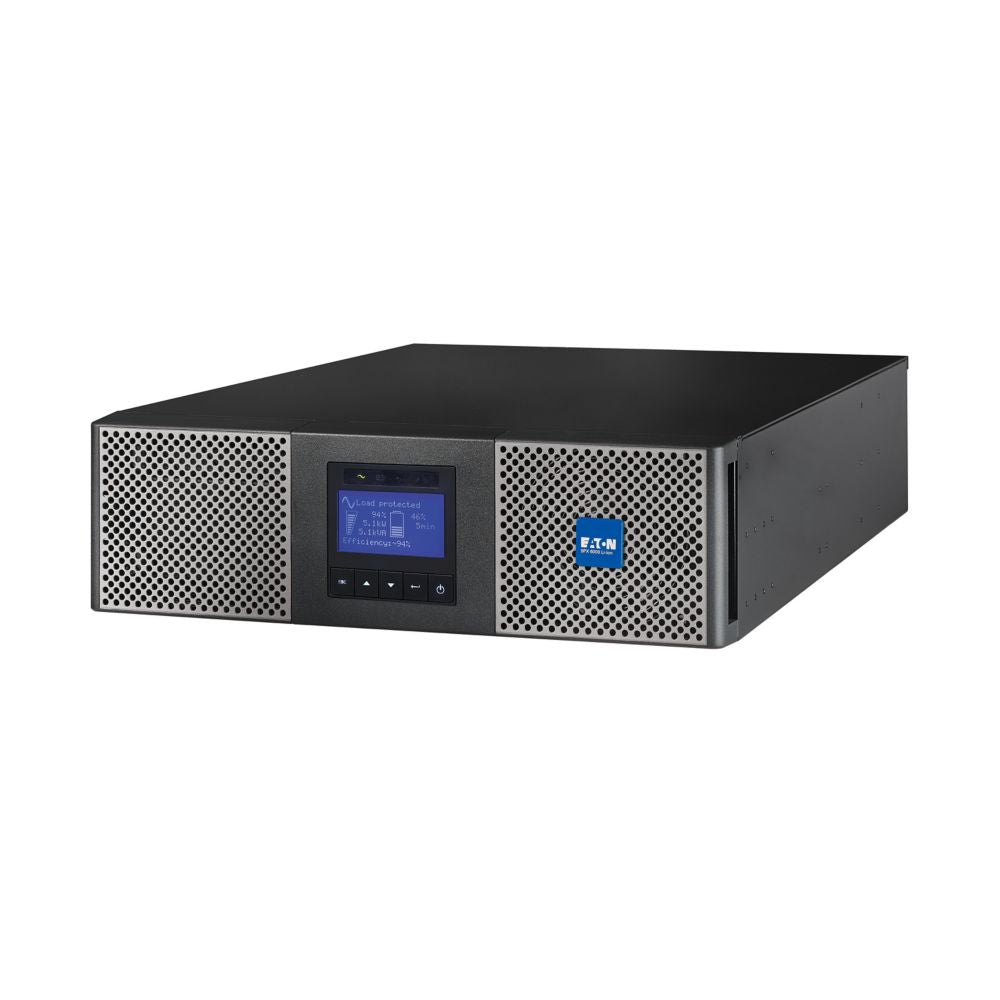

The Eaton 9PX6K-L is a high-efficiency, lithium-ion UPS designed for demanding IT and edge environments. Delivering 6000 VA/5400W of double-conversion online power, this 3U rack/tower UPS offers extended runtime capabilities with hot-swappable lithium iron phosphate (LiFePO₄) batteries. The 9PX6K-L includes a pre-installed Gigabit network card for remote management and supports both L6-30P plug and hardwire inputs. With seismic certifications, advanced battery management, and a 5-year warranty, the 9PX6K-L is engineered for reliability, scalability, and reduced total cost of ownership.
| Category | Details |
|---|---|
| Model | Eaton 9PX6K-L |
| Power Capacity | 6000 VA / 5400 W |

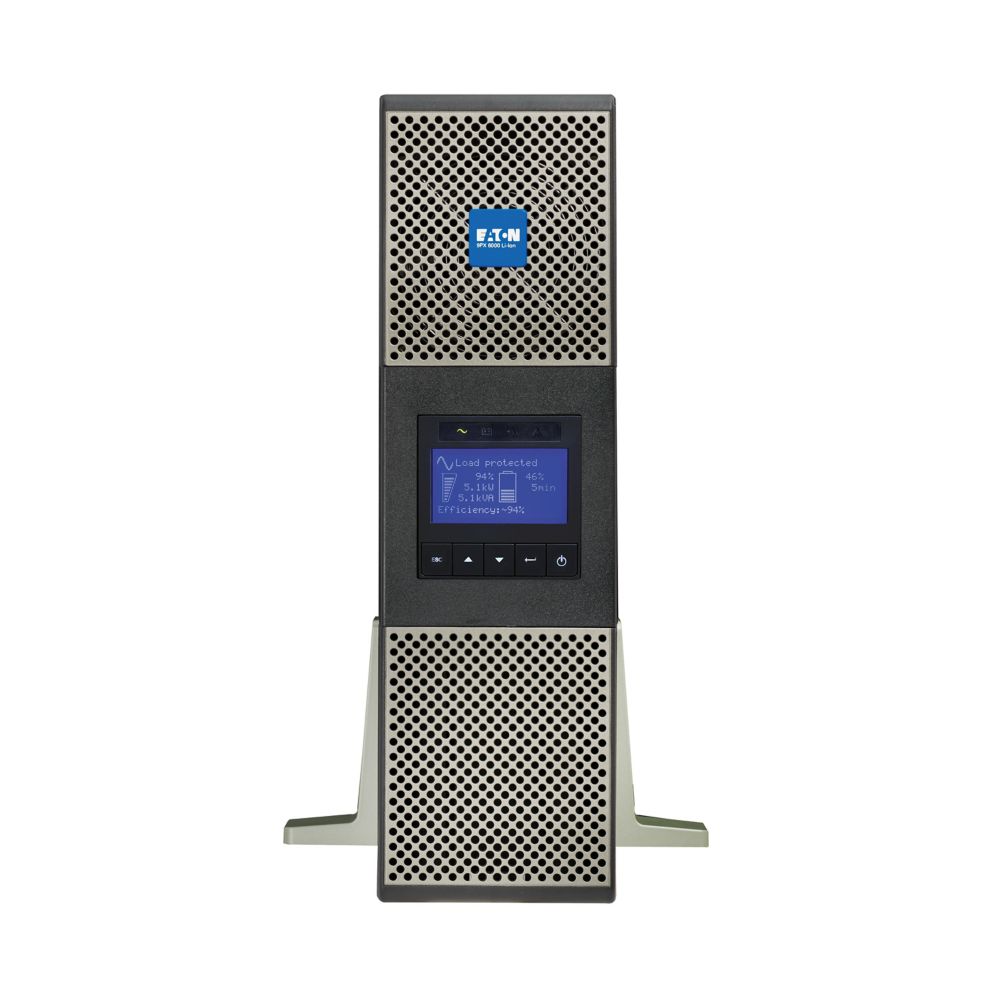

| Form Factor | 3U Rack/Tower Convertible |
| Input Voltage | 200–240V (default 208V) |
| Input Plug | NEMA L6-30P or Hardwire, 10 ft cord |

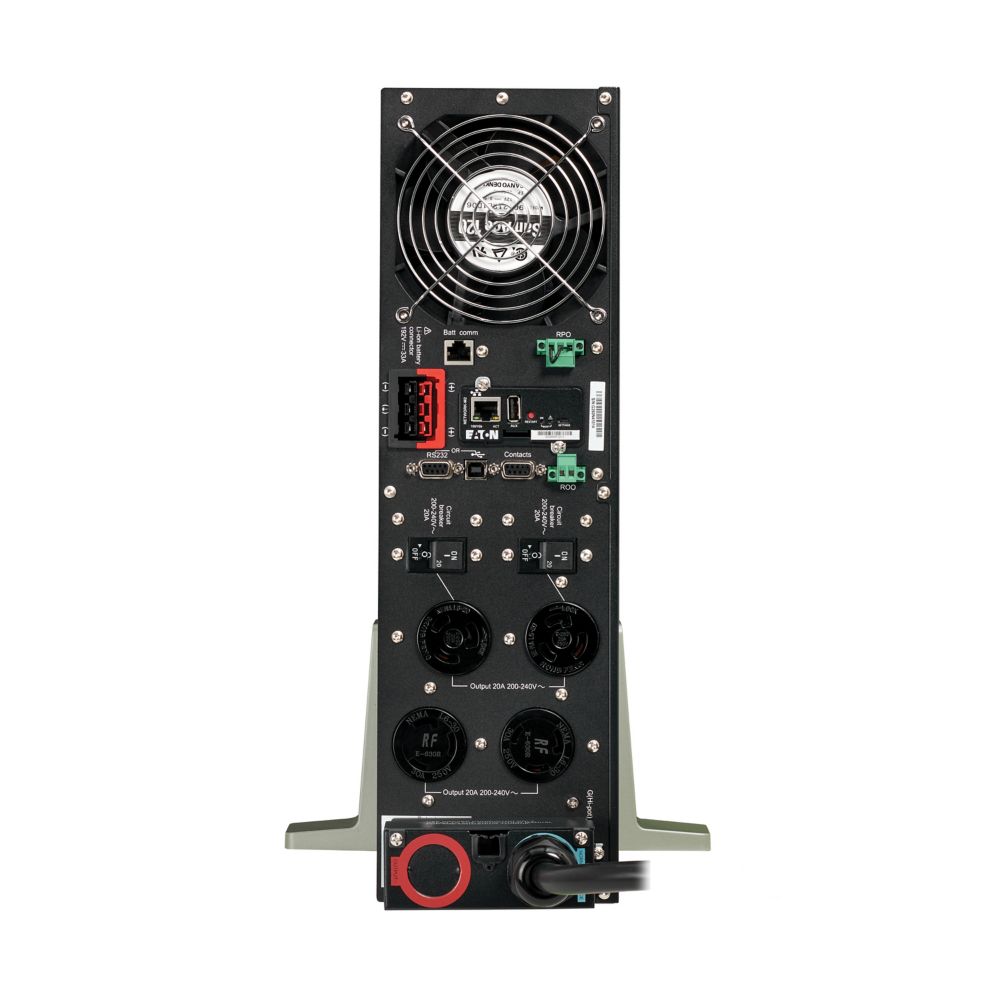

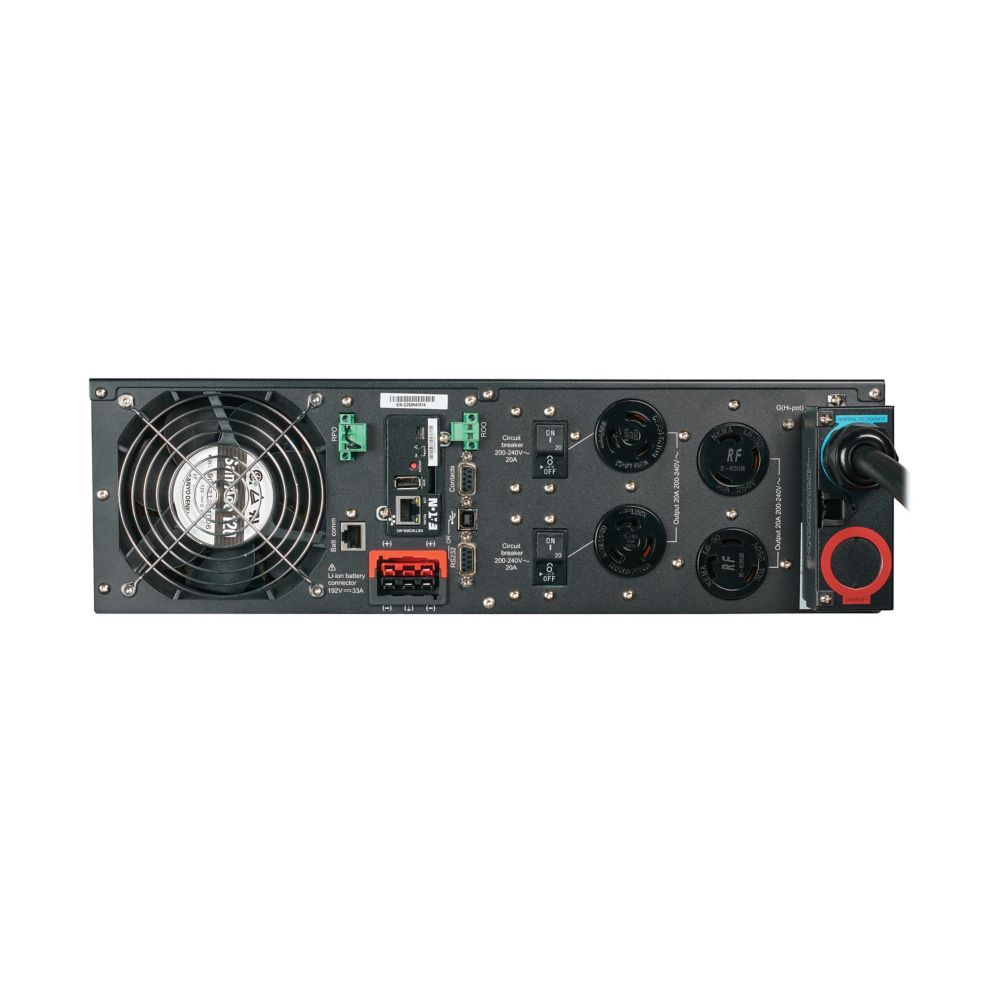

| Output Receptacles | (2) L6-30R, (2) L6-20R, Hardwire |
| Output Voltage | 200/208/220/230/240V (±1%) |
| Output Frequency | 50/60 Hz (auto-sensing) |
| Topology | Online / Double-conversion |
| Battery Type | Lithium-ion (LiFePO₄), Hot-swappable |
| Extended Battery | Supports up to 4 EBMs (Part #: 9PXEBM192RT-L) |
| Efficiency | Up to 93% at full load |
| Network Management | Gigabit Network-M3 Card included, Intelligent Power Software compatible |
| User Interface | LCD Graphical Display with 5-button Menu |

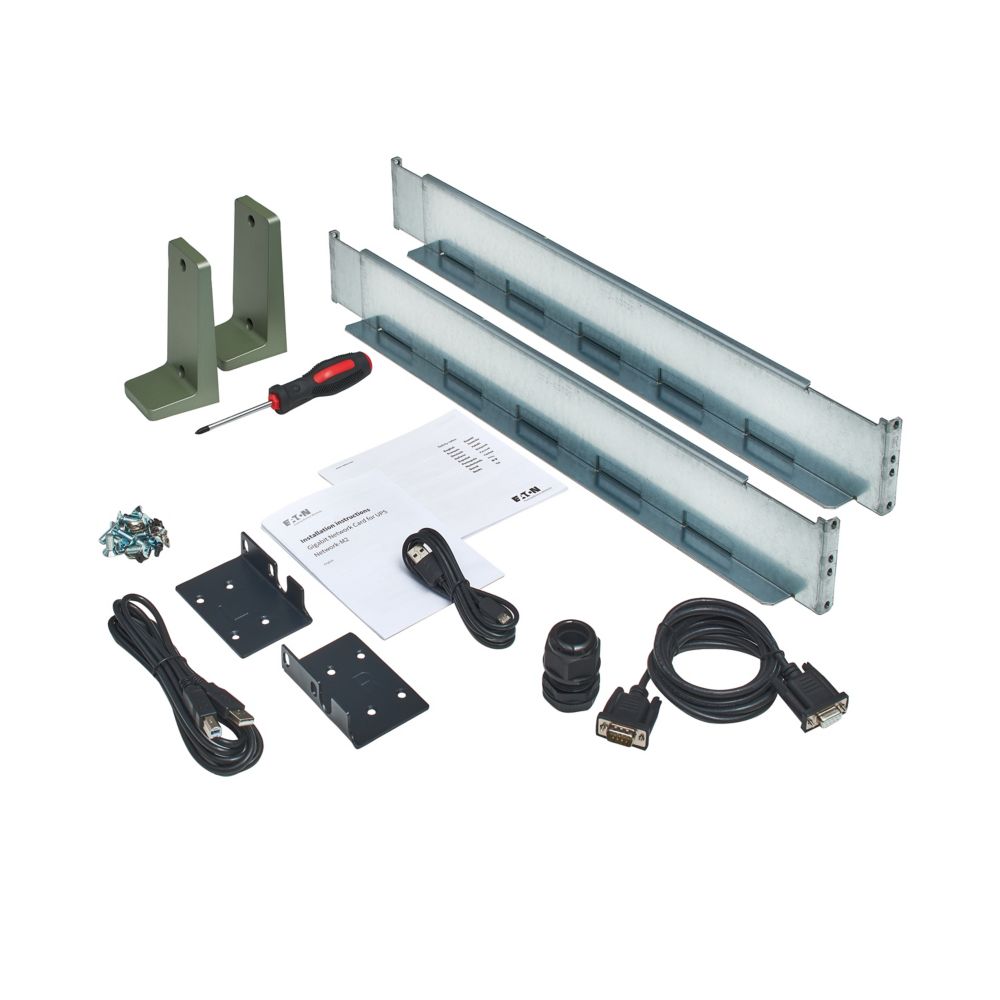

| Rack Mount Kit | Included |
| Certifications | CE, cULus, FCC Class A, RoHS, NOM, OSHPD Seismic Certified |
| Noise Level | <45 dB at 1 meter |
| Temperature Range | 0° to 40°C (32° to 104°F) |
| Humidity | 0–95% RH, non-condensing |
| Altitude | Up to 3000m with derating above 1000m |
| Dimensions (W x D x H) | 17.32 x 28.43 x 5.12 in |
| Weight | 80.25 lb (36.4 kg) |
| Warranty | 5-Year Limited Warranty |
