Description

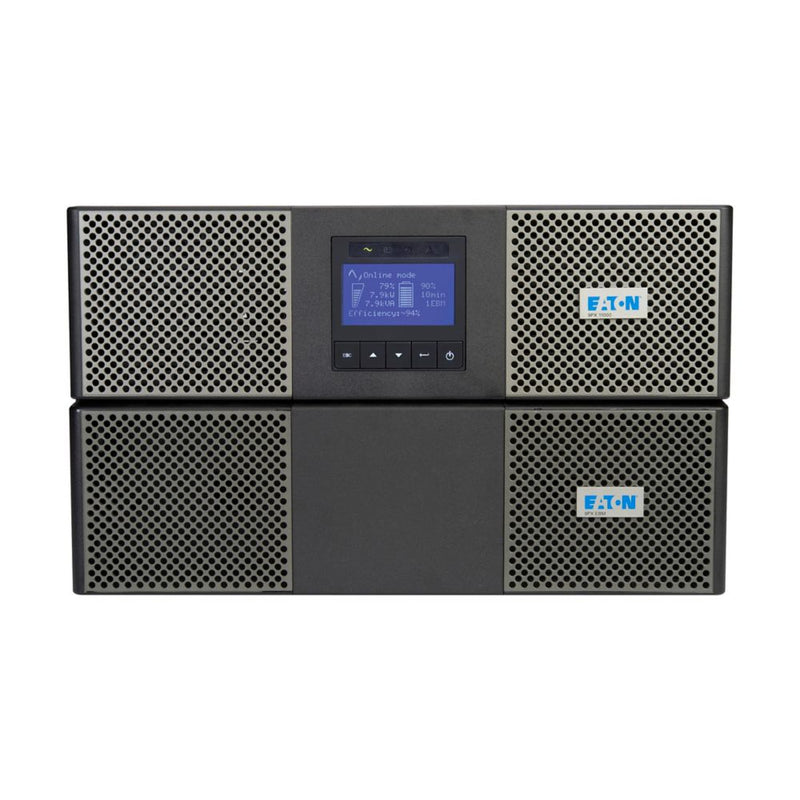

Ensure continuous power and protect mission-critical equipment with the Eaton 9PX8KSP UPS. This 8 kVA / 7.2 kW double-conversion online UPS delivers reliable power protection with a high 0.9 power factor and flexible output options including L6-30R, L14-30R, and hardwired terminals. Designed in a compact 6U form factor, it supports rack or tower mounting and includes a pre-installed Gigabit Network Card (Network-M2) for remote monitoring.
The 9PX8KSP features Eaton’s proprietary ABM® battery management technology that extends battery life by 50% and allows for hot-swappable battery modules. With ENERGY STAR® certification, 93% efficiency at full load, and a 3-year warranty, this UPS is ideal for servers, networking gear, and critical IT infrastructure in commercial or industrial environments.
| Specification | Details |
|---|---|
| Model | Eaton 9PX8KSP |
| Topology | Online Double-Conversion |
| Power Rating | 8 kVA / 7.2 kW |
| Output Voltage | 120/208V default (configurable: 120/240, etc.) |
| Input Voltage | 120/208V default (configurable: 120/240, etc.) |
| Input Connection | Hardwired |

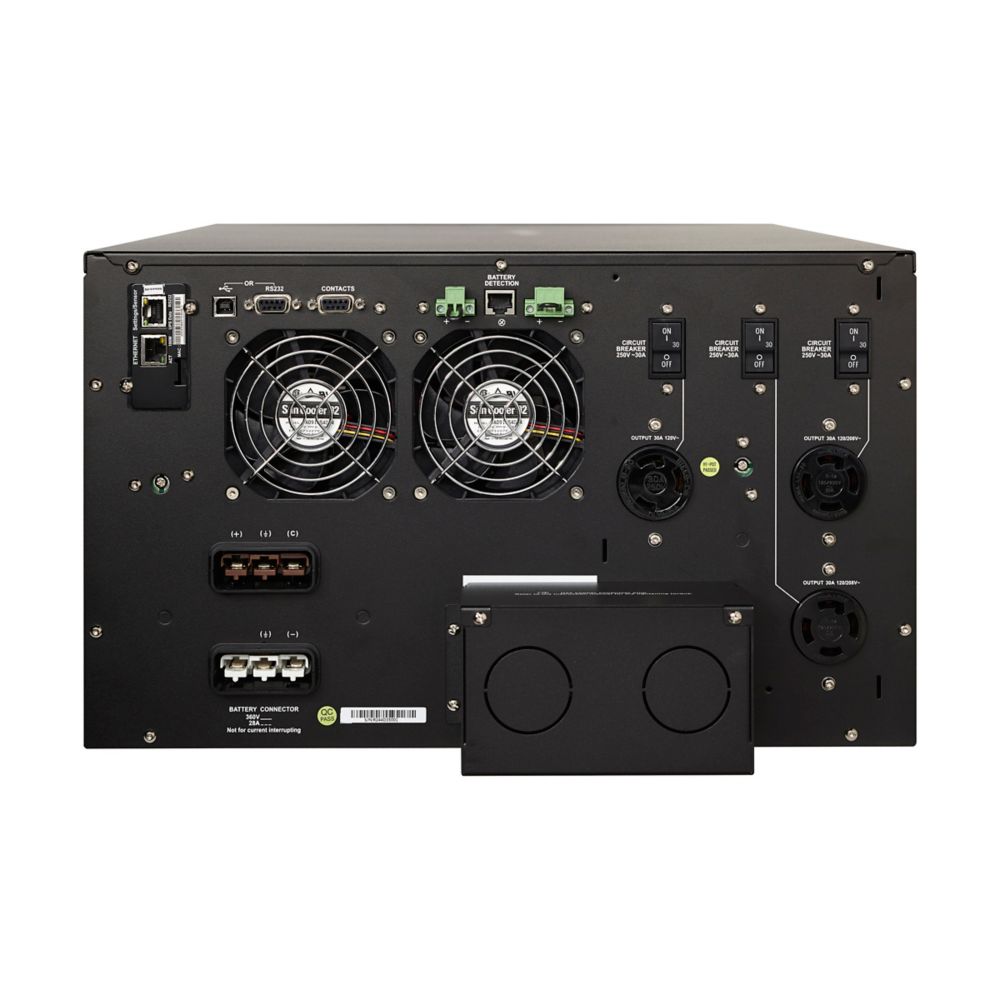

| Output Connections | (1) L6-30R, (2) L14-30R, Hardwired |

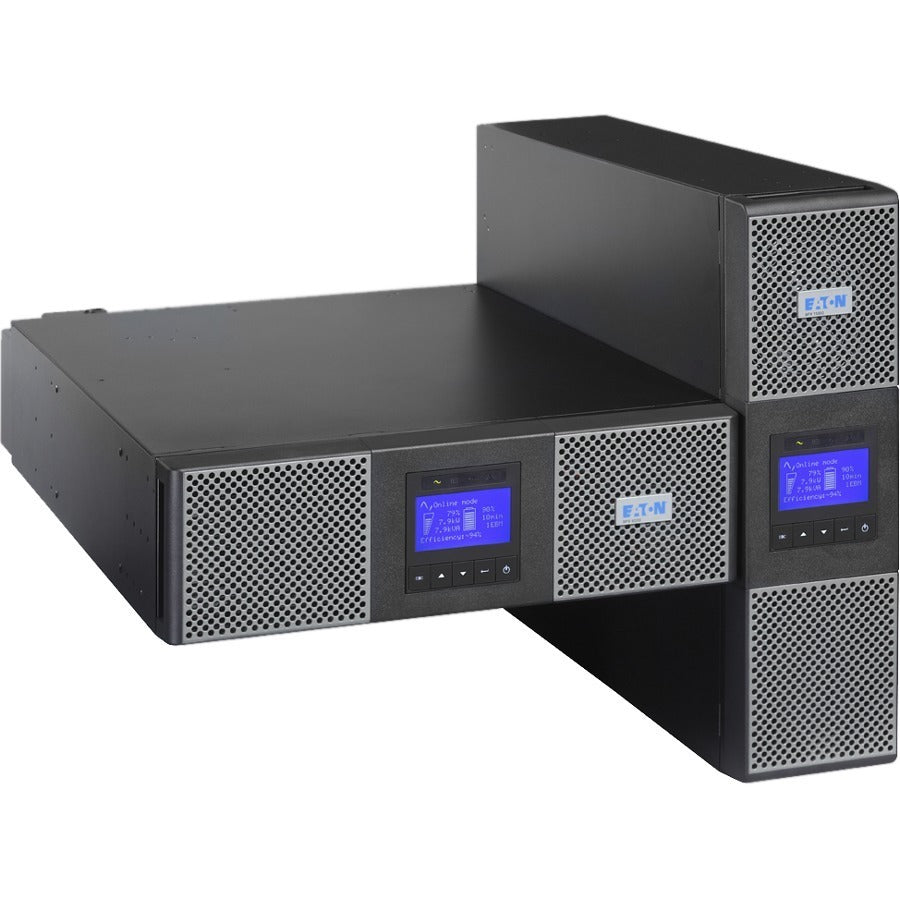

| Form Factor | Rack/Tower, 6U |
| Dimensions (H x W x D) | 10.3 in x 17.3 in x 32 in |
| Weight | 225 lb |
| Efficiency | 93% at full load |

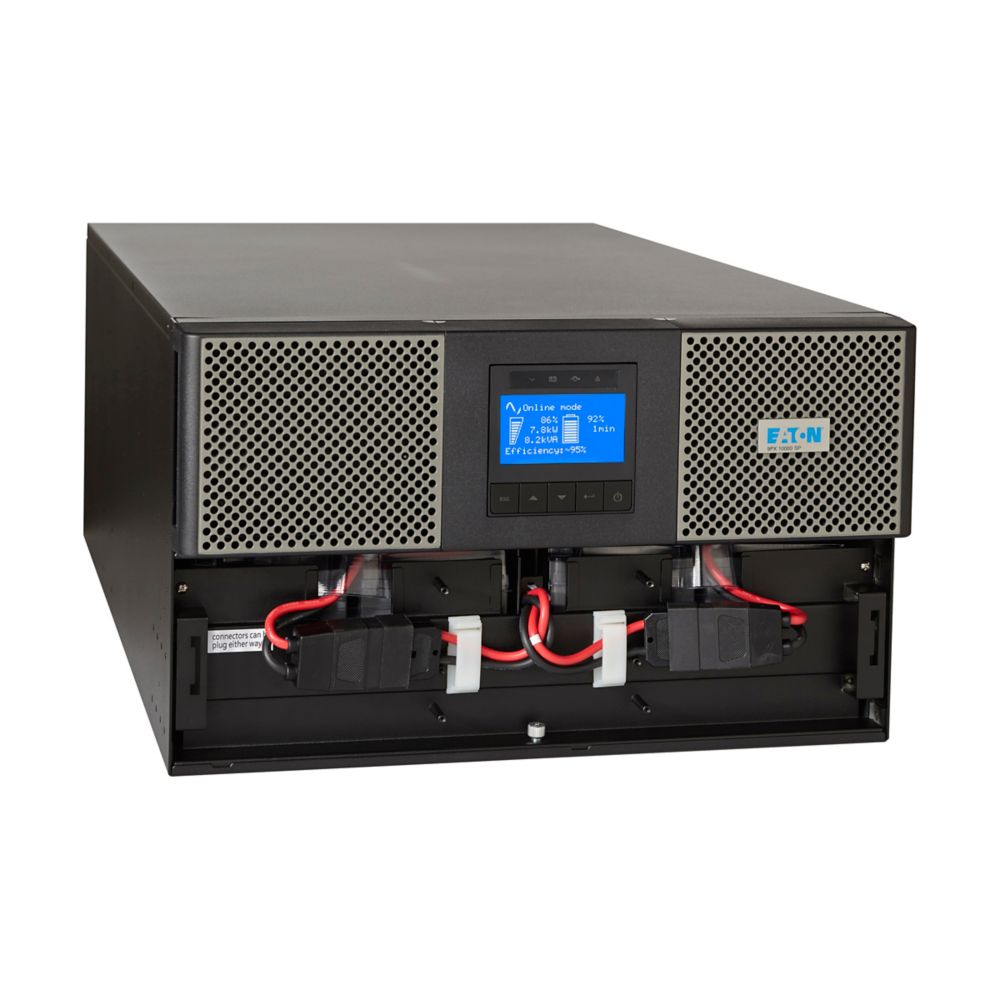

| Battery Type | Sealed lead-acid, hot-swappable |
| Extended Battery Option | Supports up to 4 EBMs (9PXEBM360SP) |
| Communications | Network-M2 (Gigabit), USB, RS232, Relay, Remote On/Off |

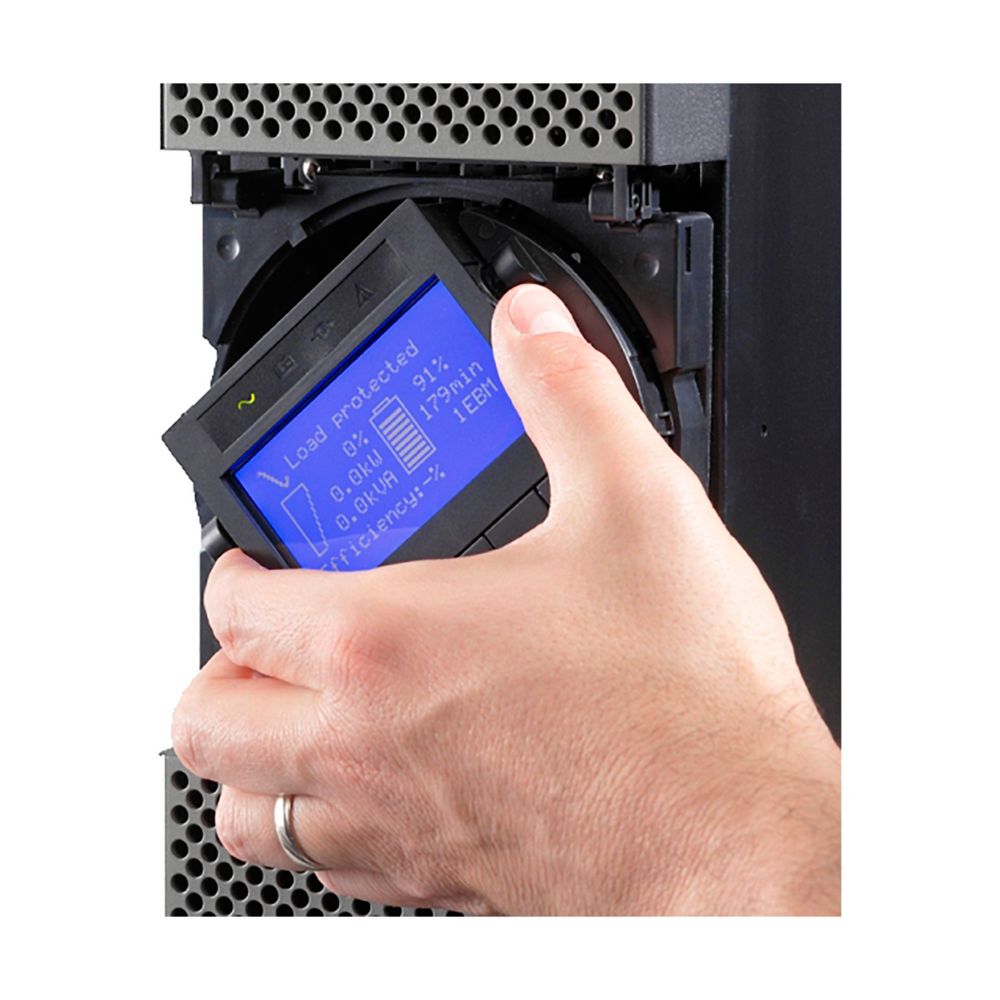

| User Interface | Graphical LCD with 5-button navigation |
| Certifications | ENERGY STAR, cULus, CE, NOM, RoHS, FCC Class A |
| Warranty | 3-Year Factory Warranty |
| Noise Level | <55 dB at 1 meter |
| Operating Temp Range | 0°C to 40°C (32°F to 104°F) |
