Description

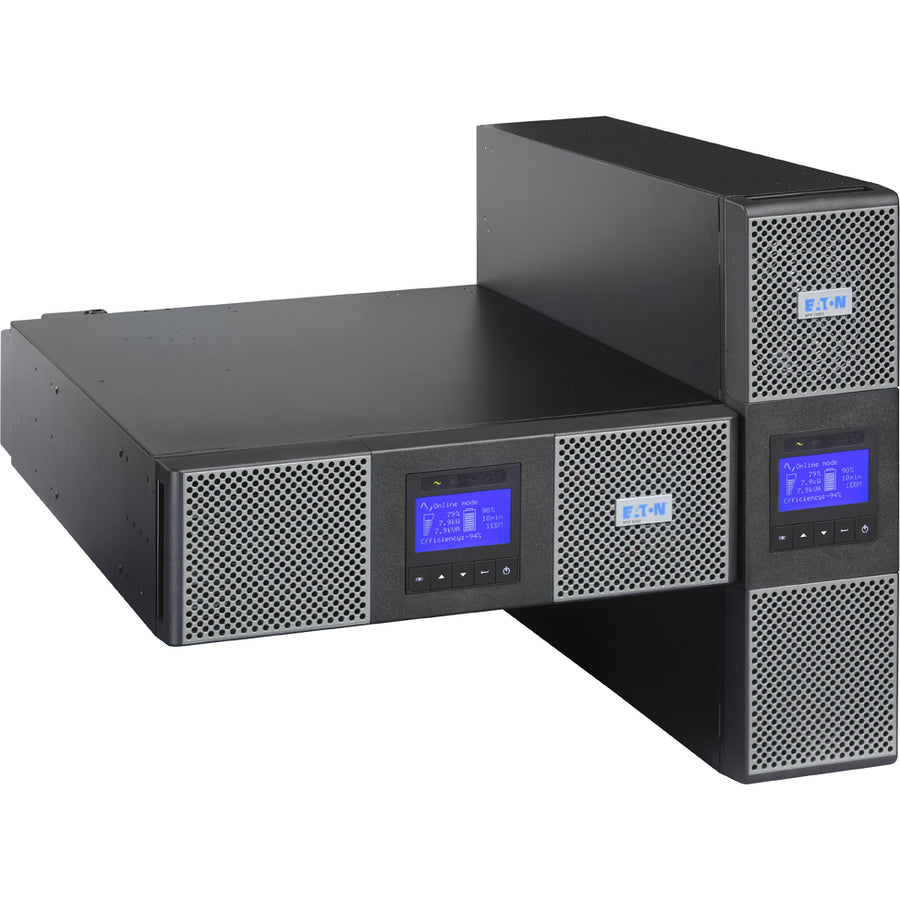

The Eaton 9PX8KHW is a high-performance 8 kVA/7.2 kW double-conversion UPS system engineered for superior power protection. Featuring a compact 6U rack/tower design, it includes a Gigabit Network-M3 card, internal bypass, and ABM technology for extended battery life. Designed for mission-critical IT and industrial environments, this UPS delivers true online sine wave output and supports up to 5 extended battery modules for scalable runtime. Ideal for installations requiring hardwired 208V input/output.
| Category | Details |
|---|---|
| Model | Eaton 9PX8KHW |
| Form Factor | 6U Rack/Tower |
| Power Rating | 8 kVA / 7.2 kW |
| Topology | Online, Double-conversion |
| Input Voltage | 208V (200–250V selectable), Hardwired |
| Output Voltage | 208V (200–250V selectable), Hardwired |
| Output Waveform | True Sine Wave |
| Output Power Factor | 0.9 |
| Frequency | 50/60 Hz (auto-sensing) |
| Battery Type | Sealed Lead-Acid, Hot-swappable |
| Extended Battery | Supports up to 5 EBMs (9PXEBM240RT) or 12 with SC240RT |
| Network Management | Gigabit Network-M3 Card, SNMP/Web, USB, RS232 |
| User Interface | Graphical LCD with 5-button programmable menu |
| Efficiency | Up to 94% |
| Noise Level | <45 dB |
| BTU Rating | 1760 (online), 2375 (battery) |
| Dimensions (WxDxH) | 17.3 x 27.6 x 10.2 in (6U) |
| Weight | 190 lb |
| Certifications | ENERGY STAR, cULus, CE, NOM, IEC 62040-2 |
| Warranty | 3-Year Factory Warranty (Parts & Batteries) |
| Included Accessories | Network card, rail kit, tower pedestals, cables |
