Description

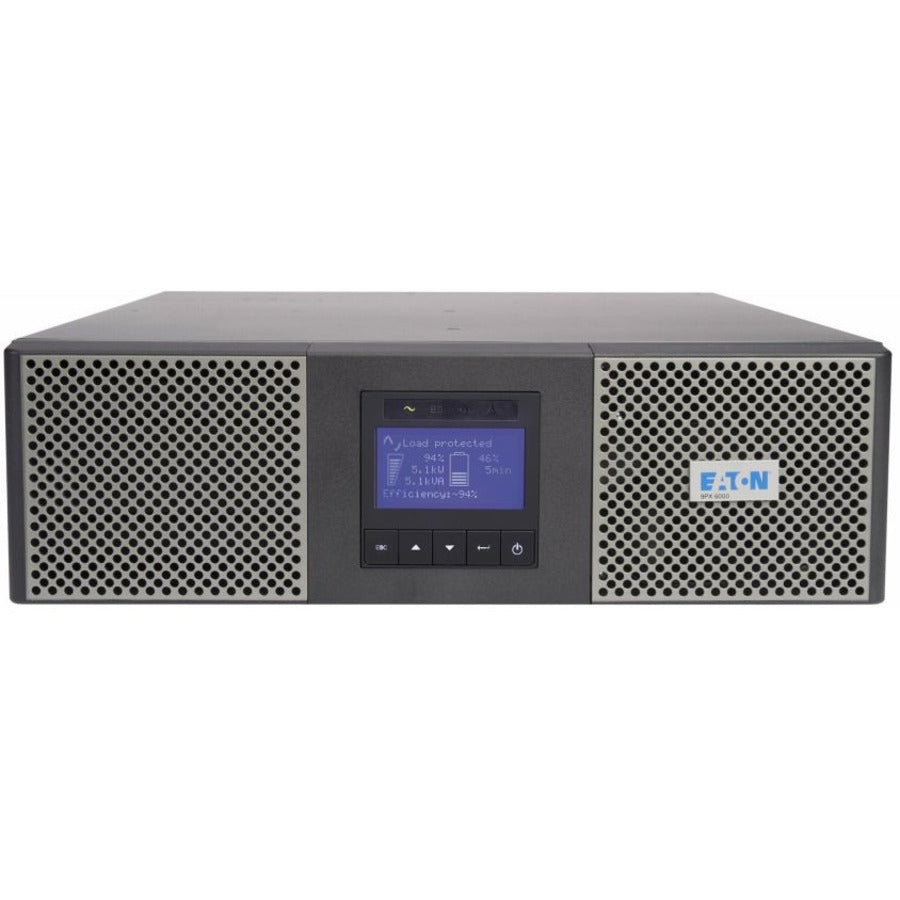

The Eaton 9PX8KPM is a high-performance 8 kVA/7.2 kW UPS power module designed for enterprise-grade power protection. This compact 3U rack/tower form factor unit features a true online double-conversion topology, ensuring consistent 208V power output. With hardwired input and output connections, internal bypass, and Eaton's advanced ABM battery technology, it delivers superior uptime and extended battery life. The included Gigabit Network-M2 card enables remote monitoring and management, while the Intelligent Power Software Suite ensures seamless integration with virtualized environments. Ideal for critical IT infrastructure, server rooms, and network closets.
| Specification | Details |
|---|---|
| Product Name | Eaton 9PX UPS Power Module |
| Catalog Number | 9PX8KPM |
| Form Factor | Rack/Tower, 3U |
| Power Rating | 8 kVA / 7.2 kW |
| Topology | Online, Double-conversion |
| Input | Hardwired, 208V |
| Output | Hardwired, 208V (adjustable 200–250V) |
| Output Waveform | True Sine Wave |
| Output Frequency | 50/60 Hz |
| Output Voltage Regulation | ±1% steady-state |
| Efficiency at Full Load | 94% |
| Battery Type | Sealed lead-acid with ABM technology |
| Extended Battery Support | Yes – up to 5 EBMs or 12 with SC240RT module |
| Internal Bypass | Yes |
| Communications | Gigabit Network-M2 card, USB, RS232, Relay I/O |
| User Interface | LCD with 5-button programmable menu |
| Noise Level | <45 dB at 1 meter |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Dimensions (H x W x D) | 5.1" x 17.3" x 23.5" |
| Weight | 47 lb |
| Certifications | ENERGY STAR, CE, cULus, NOM, IEC 62040-2:2006 |
| Warranty | 3-Year Limited Warranty |
