Description

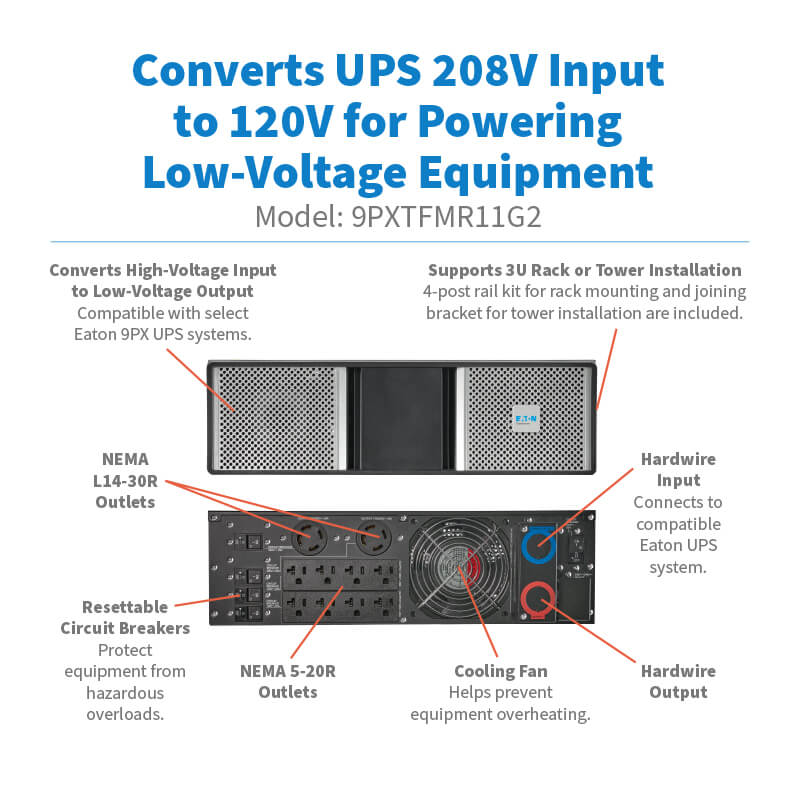

The Eaton 9PXTFMR11G2 is a 10kVA step-down isolation transformer designed to convert a 208V high-voltage input into a reliable 120V low-voltage output for mission-critical IT and AV equipment. Engineered to work seamlessly with Eaton 9PX8KG2 and 9PX11KG2 UPS systems, it features eight NEMA 5-20R and two L14-30R outlets to support multiple devices, while resettable circuit breakers provide overload protection. The transformer can be mounted in a 3U rack or adapted for tower installation with included hardware, offering flexible deployment in professional environments. Built for efficiency, safety, and long-term performance, the 9PXTFMR11G2 ensures consistent power delivery for essential systems.
| Category | Specification |
|---|---|
| Model | Eaton 9PXTFMR11G2 |
| Function | Step-Down Isolation Transformer |
| Input Voltage | 208V AC |
| Output Voltage | 100V / 110V / 120V AC |
| Output Capacity | 10 kVA / 10 kW |
| Frequency Compatibility | 50 / 60 Hz |

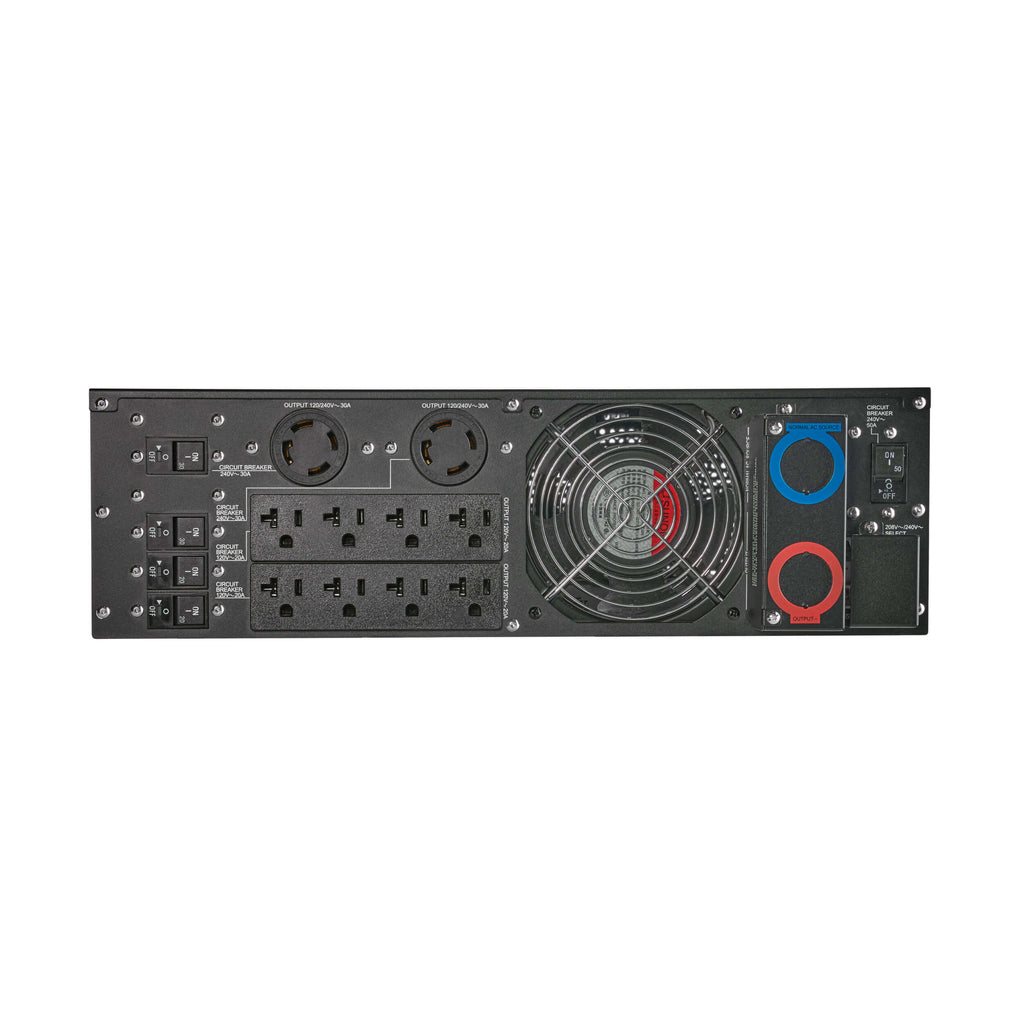

| Output Receptacles | (8) NEMA 5-20R, (2) L14-30R, (1) Hardwire |
| Output Waveform (Battery Mode) | Pure Sine Wave |
| Input Connection Type | Hardwire |
| Input Phase | Single-Phase |

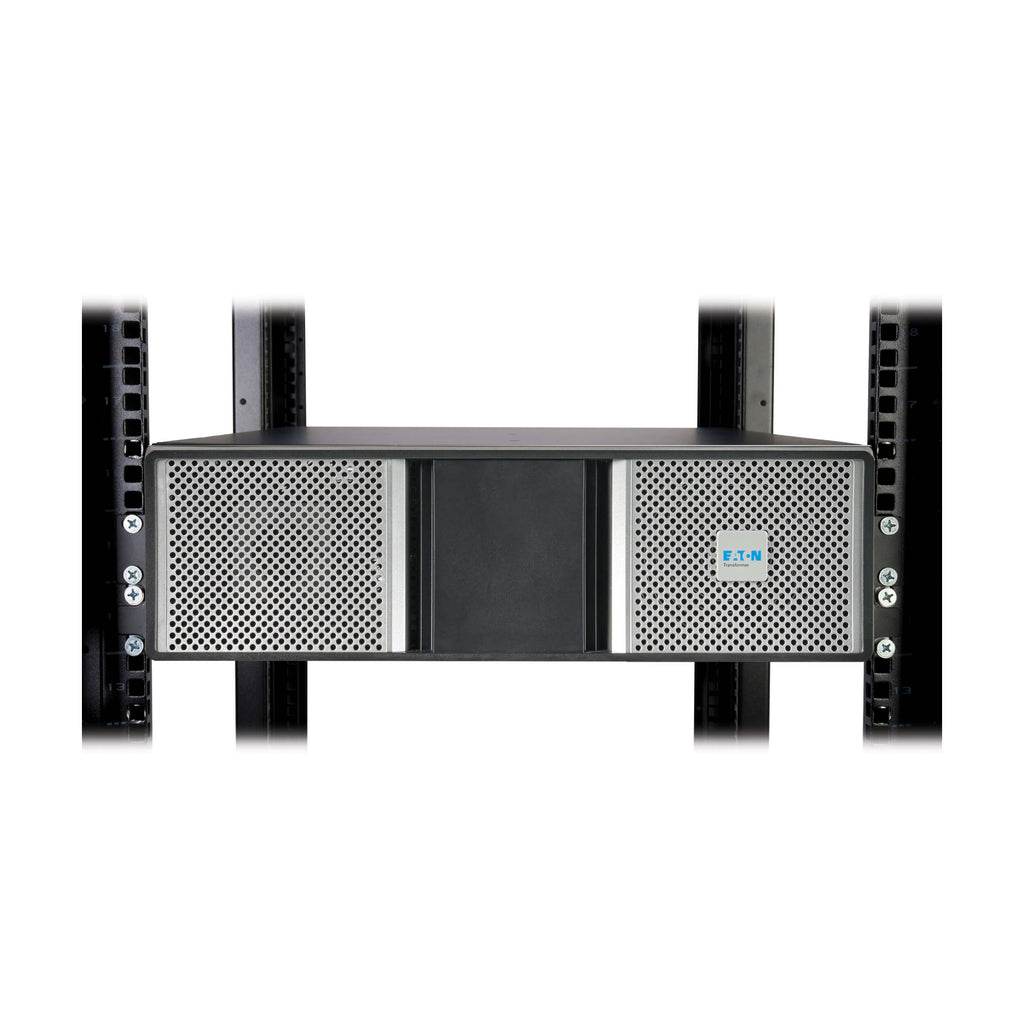

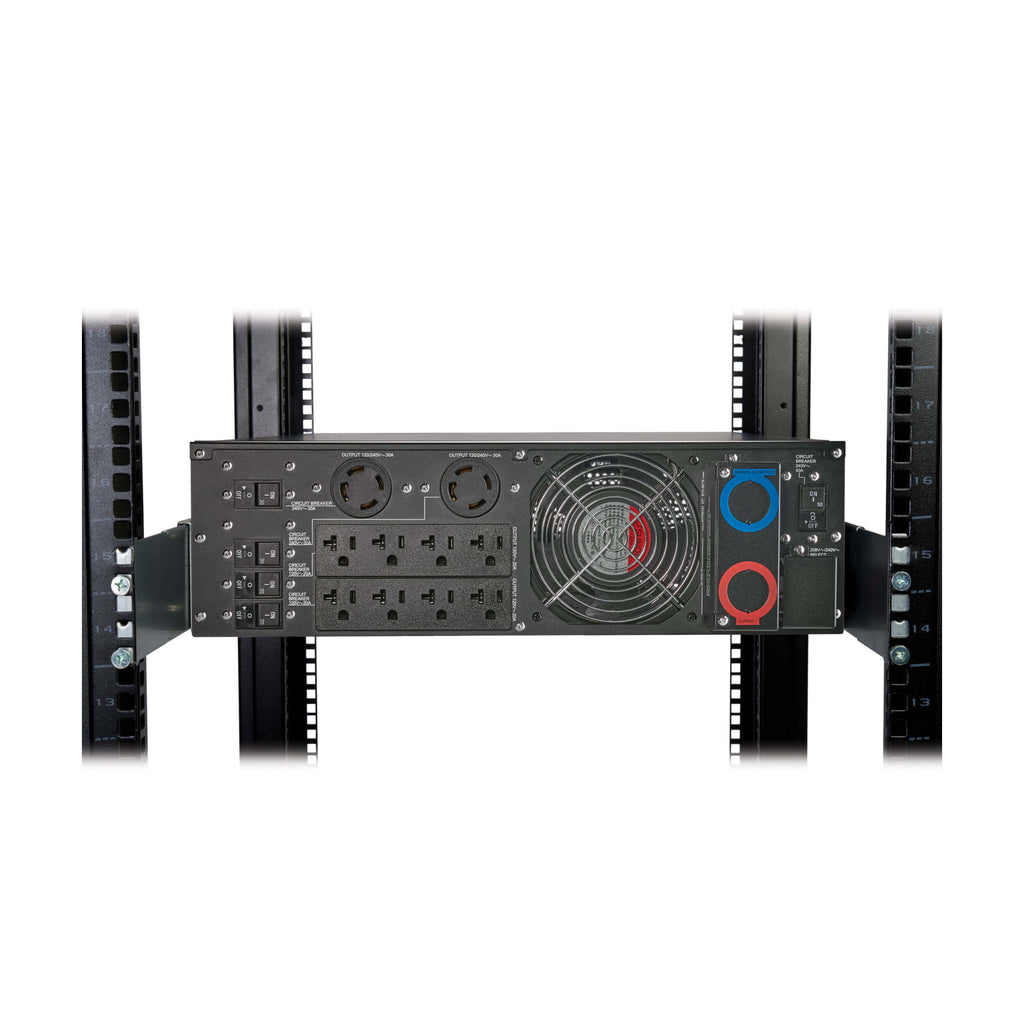

| Rack Height | 3U |
| Form Factor | Rackmount / Tower |
| Dimensions (H × W × D) | 5.12 × 17.30 × 27.40 in |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Relative Humidity | 0–95% (non-condensing) |
| Certifications | cUL Listed, NOM (Mexico) |
| Compliance | CE (Europe), ENERGY STAR, RoHS |
| Compatibility | Eaton 9PX8KG2, 9PX11KG2 UPS Systems |
| Warranty | 3-Year Limited Warranty |
| Included Accessories | Hardwire cable, cable glands (x2), joining bracket, rack/tower mounting hardware, manuals |
