Description
The Eaton 9PXG2 11kVA UPS delivers enterprise-grade power protection with true online double-conversion technology, ensuring continuous, clean power for mission-critical IT and infrastructure environments. Designed for high-efficiency performance with up to 97% efficiency, this UPS minimizes energy costs while maintaining maximum uptime.
Engineered for flexibility, this model supports both rack and tower deployments in a compact 7U form factor and includes a maintenance bypass for simplified servicing without downtime. With a full suite of output receptacles and hardwired input connectivity, it provides scalable and adaptable power distribution for demanding applications.
The integrated Gigabit Network Card enables advanced remote monitoring and management through Eaton’s Brightlayer Data Centers suite, enhancing operational visibility and control. Combined with ABM+ battery management technology, hot-swappable batteries, and extended runtime capability, the 9PXG2 ensures long-term reliability, reduced maintenance costs, and optimal battery lifecycle performance.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Product Series | 9PXG2 |
| Form Factor | Rack/Tower Convertible |
| Rack Size | 7U |
| UPS Topology | Online Double-Conversion |
| Power Capacity | 11 kVA / 11 kW |
| Input Voltage | 200–240V (208V default) |
| Output Voltage | 120/240V |
| Output Power Factor | 1.0 |
| Output Waveform | Pure Sine Wave |
| Output Voltage Regulation | ±1% steady-state |
| Output Frequency | 50/60 Hz |
| Input Connection | Hardwired |
| Input Frequency Range | 50–70 Hz (60 Hz), 40–60 Hz (50 Hz) |
| Input Power Factor | >0.99 typical |
| Receptacles | 18x 5-20R, 3x L6-30R |
| Efficiency | Up to 97% |
| Battery Type | Sealed Lead-Acid |
| Battery Management | ABM+ predictive battery analytics |

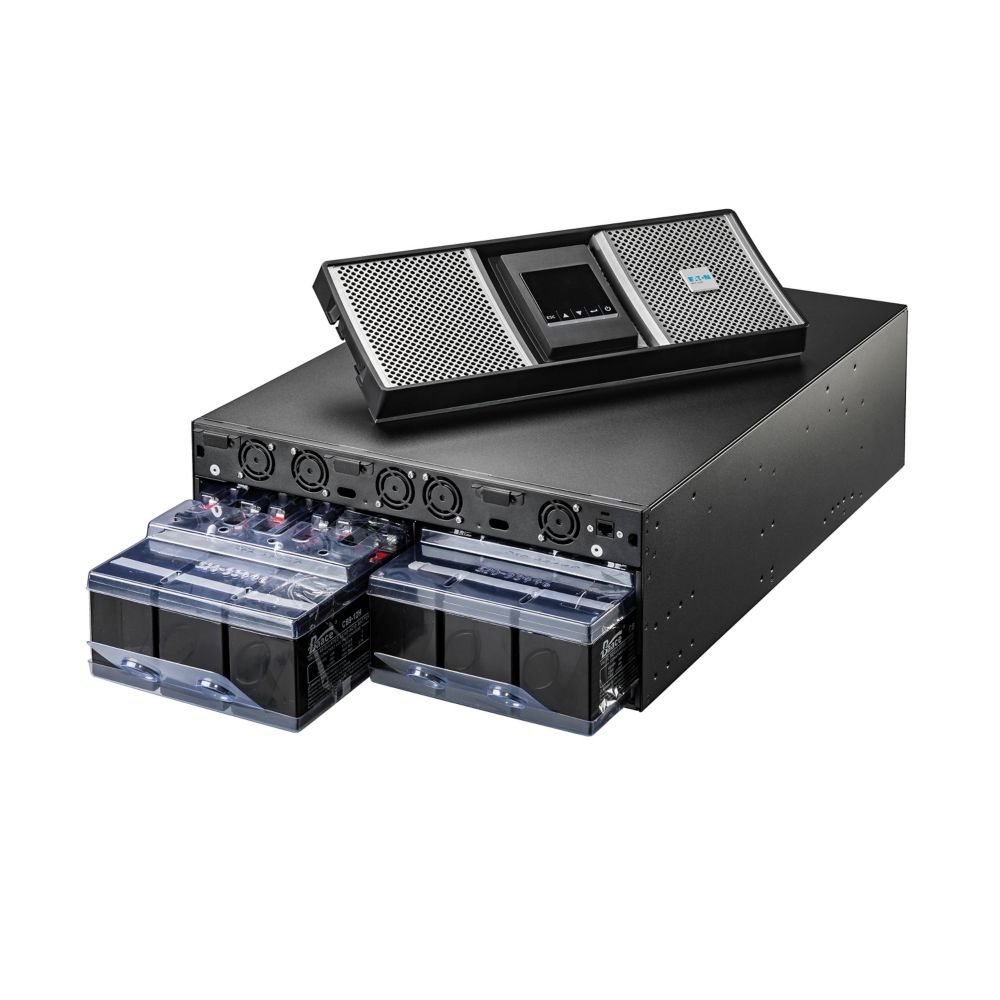

| Battery Replacement | Hot-swappable |
| Extended Battery Support | Up to 12 EBMs (9PXEBM240RTG2) |
| Communications | Gigabit Network Card (NETWORK-M3) included |
| Expansion Slots | 2 Mini-Slot ports |
| Interface | Graphical LCD display with programmable controls |
| Software Compatibility | Brightlayer Data Centers suite |
| Surge Protection | Included |
| Internal Bypass | Yes |
| Maintenance Bypass | Included |
| Noise Level | ≤54 dB at full load |
| Operating Temperature | 0°C to 40°C |
| Humidity Range | 0–95% non-condensing |
| Altitude | Up to 3000 meters |
| Dimensions (H x W x D) | 12 x 17.3 x 32.6 in |
| Weight | 315 lb |
| Certifications | cULus Listed, NOM, IEC 62040-2 |
| Compliance | FCC Part 15, CISPR22 Class A, CE Marked |
| Energy Efficiency | ENERGY STAR certified |
| Warranty | 3-Year Factory Warranty |
| Included Accessories | Maintenance bypass, transformer, network card, rack kit, cables, tower stands |
