Description
The Eaton 9PXG2 11kVA UPS delivers enterprise-grade power protection for critical IT infrastructure, edge deployments, and data center environments. Designed with online double-conversion topology, it ensures continuous, clean, and reliable power with zero transfer time, protecting sensitive equipment from outages, voltage fluctuations, and power anomalies.
This model features a built-in step-down transformer, maintenance bypass, and a cybersecure Gigabit network card for advanced remote management. With a unity power factor (1.0), the system provides maximum usable power capacity, making it ideal for high-density loads. Eaton’s ABM+ battery management technology extends battery life and provides predictive replacement analytics, minimizing downtime and maintenance costs.
Engineered for flexibility, the 9PXG2 supports both rack and tower configurations and allows scalable runtime with up to 12 external battery modules. High efficiency operation of up to 97% reduces energy consumption and cooling requirements, helping lower total cost of ownership. With robust connectivity, intelligent monitoring, and industry-leading reliability, this UPS is built to support mission-critical operations with confidence.
| Specification | Details |
|---|---|
| Product Type | Online Double-Conversion UPS |
| Form Factor | Rack/Tower Convertible (7U) |
| Power Capacity | 11 kVA / 11 kW |
| Input Voltage | 200–240V (208V default) |
| Output Voltage | 120/240V |
| Output Power Factor | 1.0 |
| Output Waveform | True Sine Wave |
| Output Frequency | 50/60 Hz |
| Output Voltage Regulation | ±1% steady-state |
| Input Connection | Hardwired |
| Input Frequency Range | 40–70 Hz |
| Input Power Factor | >0.99 typical |
| Outlets | 8x 5-20R, 4x L6-30R, 2x L14-30R, Hardwired Output |
| Topology | Online / Double-Conversion |
| Efficiency | Up to 97% |
| Battery Type | Sealed Lead-Acid |
| Battery Management | ABM+ predictive battery analytics |

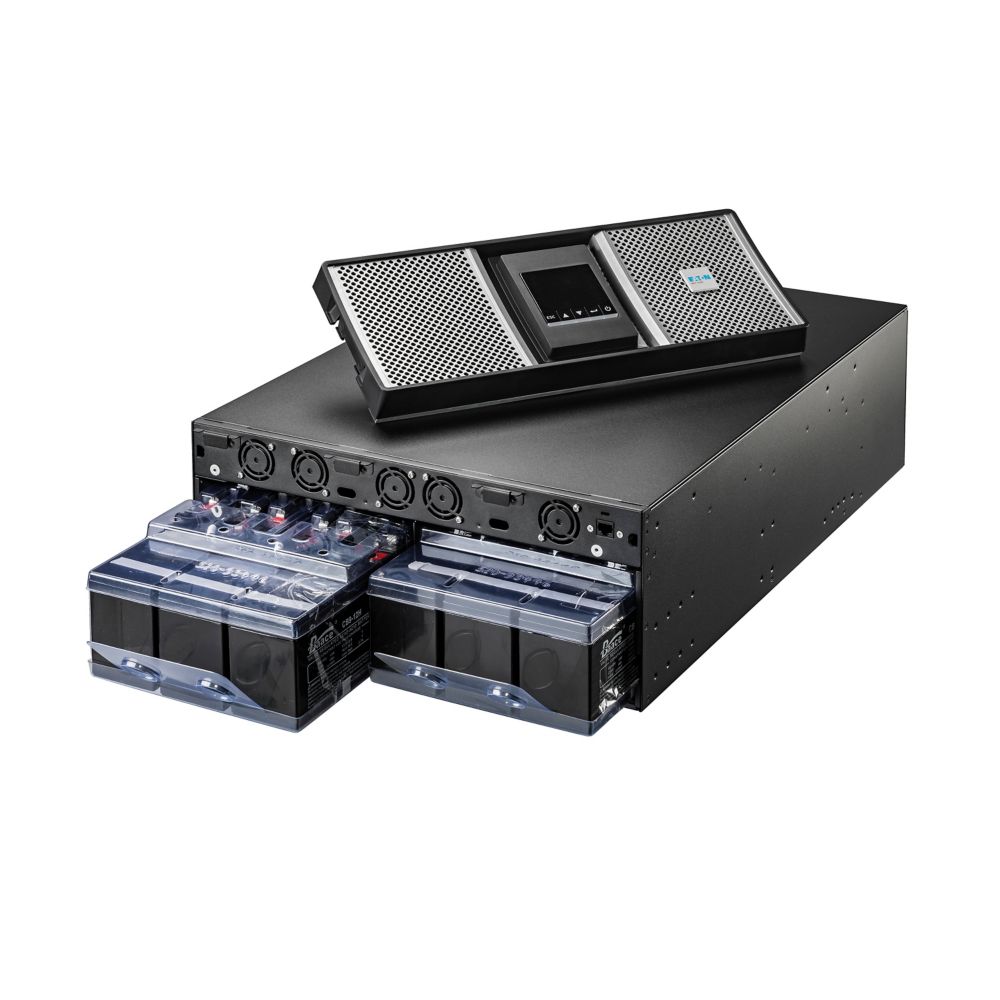

| Battery Replacement | Hot-swappable internal batteries |
| Extended Battery Support | Up to 12 EBMs (9PXEBM240RTG2) |
| Replacement Battery | EBP-2003 (2 required) |
| Network Management | Included Gigabit Network Card (NETWORK-M3) |
| Communication Ports | 2x Mini-Slot Expansion Ports |
| User Interface | Graphical LCD with LED indicators |
| Software Compatibility | Brightlayer Data Centers Suite |
| Surge Protection | Yes |
| Internal Bypass | Yes |
| Maintenance Bypass | Included (MBP11K208G2) |
| Transformer | Included (120V step-down transformer) |
| Noise Level | ≤54 dB at full load |
| Operating Temperature | 0° to 40°C |
| Humidity Range | 0–95% non-condensing |
| Altitude | Up to 3000 m |
| BTU Rating | 1160 BTU/hr (online mode) |
| Dimensions (HxWxD) | 12 x 17.3 x 32.6 in |
| Weight | 392 lb |
| Certifications | cULus Listed, NOM, ENERGY STAR |
| Compliance | FCC Part 15 Class A, CISPR22 Class A |
| Warranty | 3-Year Factory Warranty (parts, electronics, batteries) |
| Package Contents | UPS unit, transformer, maintenance bypass, network card, cables, mounting hardware, tower stands, quick start guide |
