Description

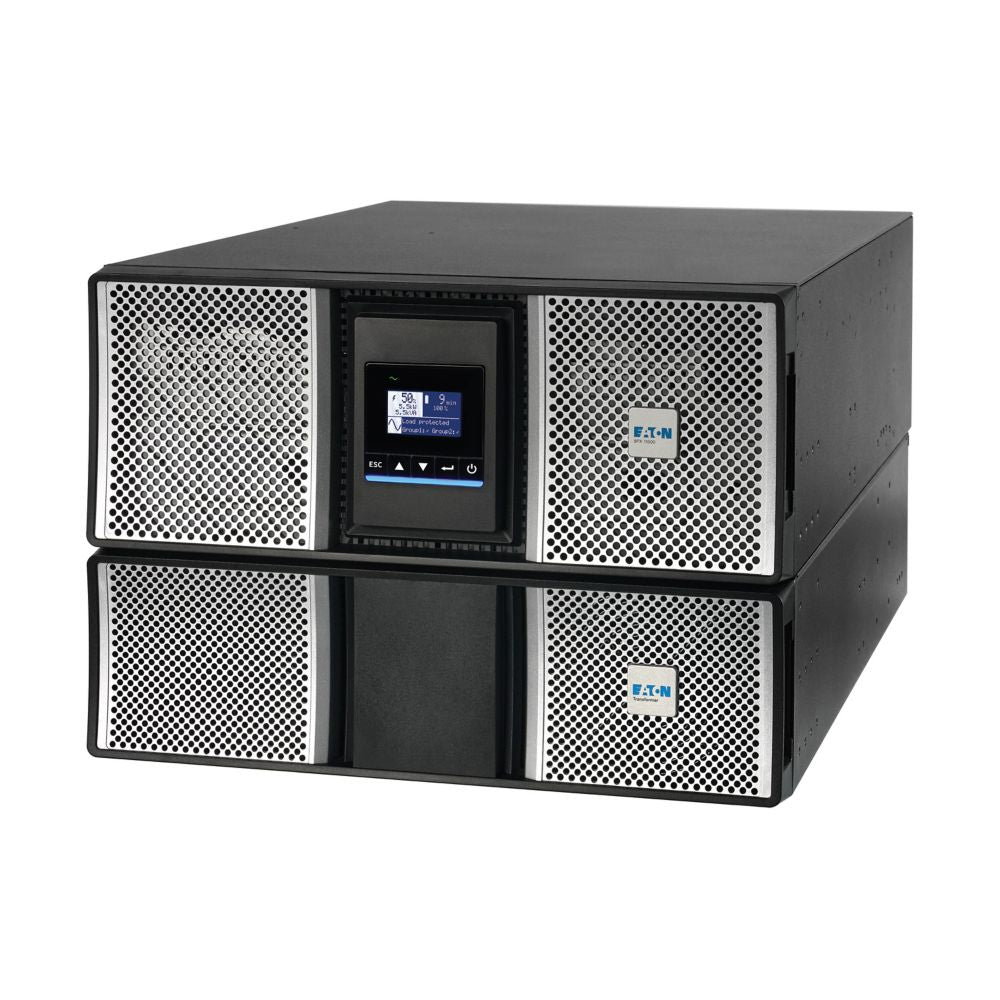

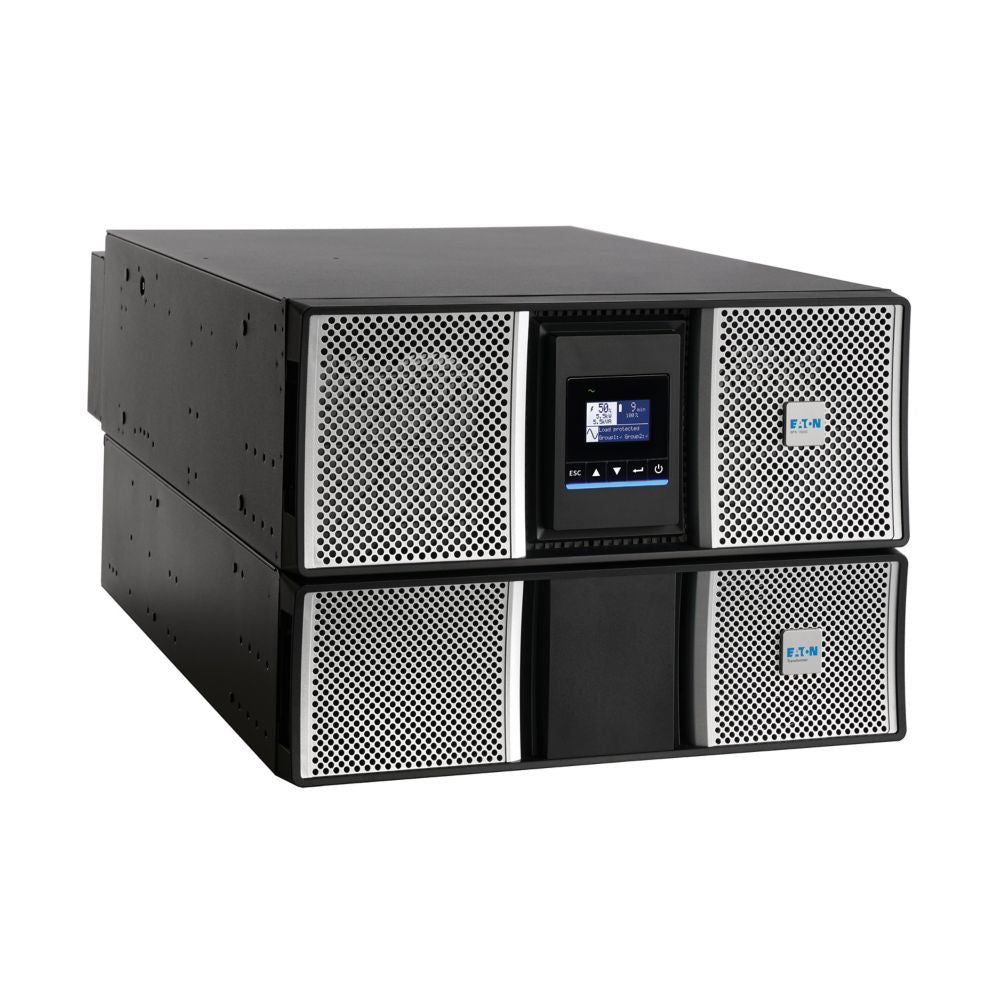

The Eaton 9PXG2 11kVA UPS is a high-performance, enterprise-grade power protection solution engineered for mission-critical IT, edge computing, and industrial environments. Delivering true online double-conversion technology, it provides continuous, clean sine wave output with zero transfer time, ensuring maximum uptime for sensitive equipment.
This configuration includes a 120/240V step-down transformer, enabling flexible deployment across mixed voltage environments. With a unity power factor (1.0), the system delivers full 11kW usable power, maximizing capacity without oversizing infrastructure. Hardwired input and output options, along with multiple receptacle types, support complex load requirements and scalable power distribution.
Equipped with Eaton’s ABM+ battery management technology, the UPS optimizes battery lifespan and predicts replacement needs based on real-world usage conditions. Hot-swappable batteries and support for up to 12 extended battery modules allow for seamless scalability and maintenance without downtime.
The included NETWORK-M3 Gigabit Network Card enables secure remote monitoring and integration with Eaton’s Brightlayer Data Centers suite, providing real-time insights and control. Designed for efficiency, the 9PXG2 achieves up to 97% efficiency, reducing operational costs while maintaining superior protection.
| Category | Specification |
|---|---|
| Form Factor | Rack/Tower convertible (7U total with transformer) |
| Topology | Online Double-Conversion |
| Capacity | 11kVA / 11kW |
| Output Voltage | 120/240V |
| Output Waveform | Pure sine wave |
| Output Power Factor | 1.0 |
| Output Voltage Regulation | ±1% steady-state |
| Output Frequency | 50/60 Hz |
| Input Voltage | 200–240V (208V default) |
| Input Connection | Hardwired |
| Input Frequency Range | 50–70 Hz (60 Hz) / 40–60 Hz (50 Hz) |
| Input Power Factor | Greater than 0.99 |

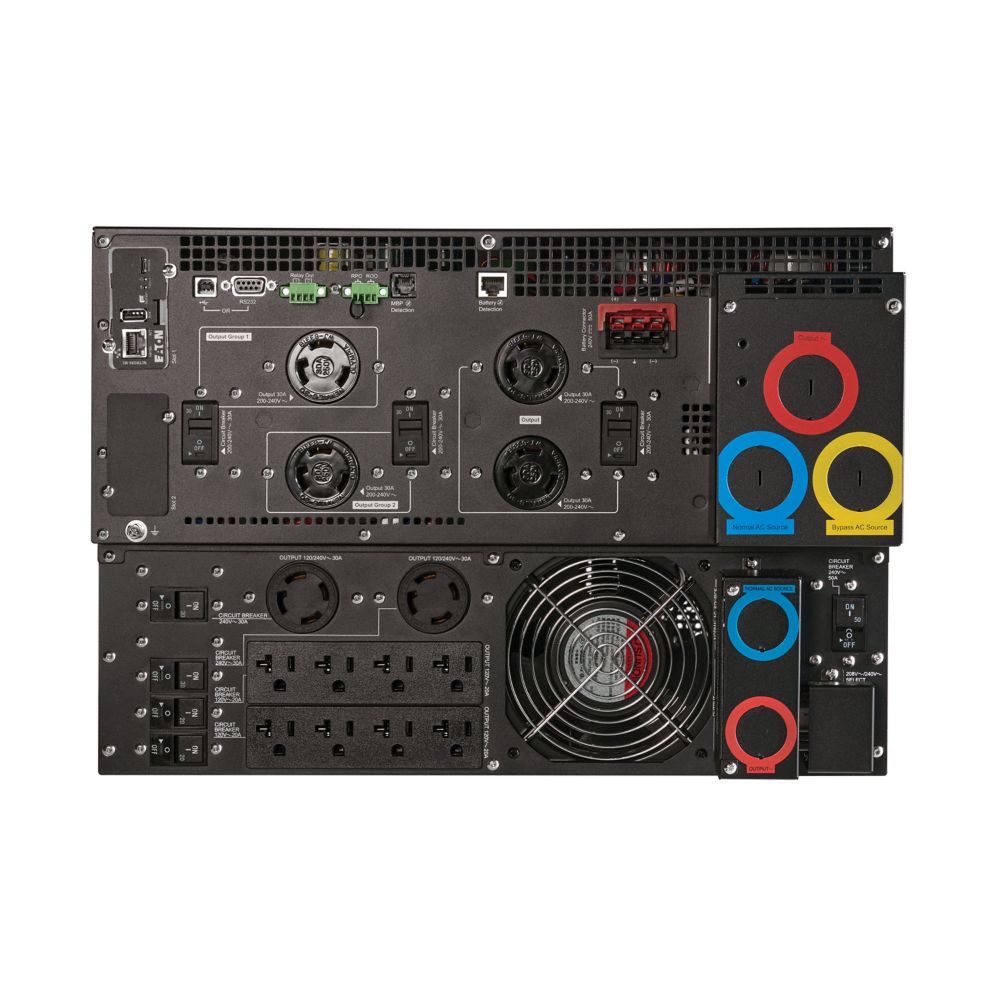

| Receptacles | (8) 5-20R, (4) L6-30R, (2) L14-30R, Hardwired output |
| Battery Type | Sealed lead-acid |
| Battery Management | ABM+ predictive battery technology |

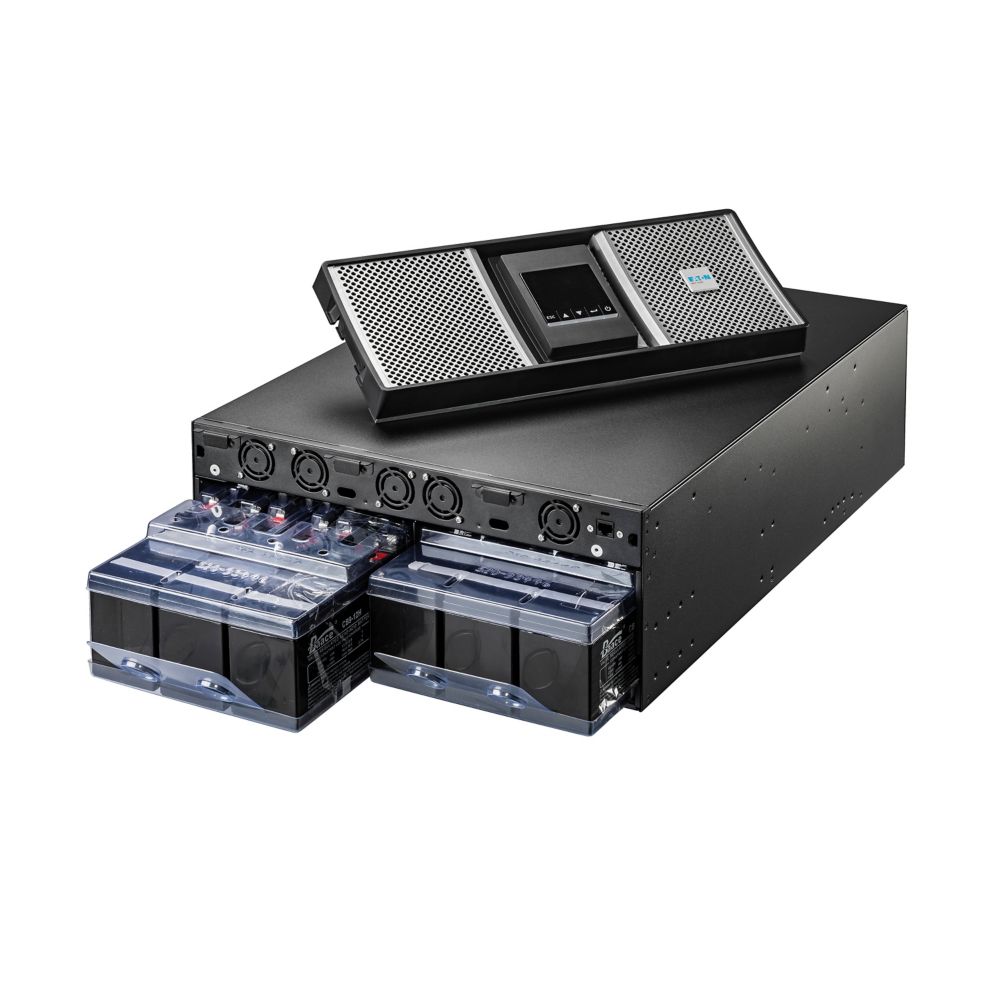

| Battery Replacement | Hot-swappable internal batteries |
| Extended Battery Support | Up to 12 EBMs (9PXEBM240RTG2) |
| Replacement Battery | EBP-2003 (2 required) |
| Efficiency | Up to 97% |
| Communications | NETWORK-M3 Gigabit Network Card included |
| Expansion Slots | 2 Mini-Slot ports |
| Interface | Graphical LCD, LED indicators, 5-button menu |
| Software Compatibility | Brightlayer Data Centers suite |
| Surge Protection | Included |
| Internal Bypass | Included |
| Noise Level | ≤54 dB at full load |
| Operating Temperature | 0°C to 40°C |
| Humidity | 0–95% non-condensing |
| Altitude | Up to 3000 meters |
| BTU Rating | 1160 (Online), 1767 (Battery), 188 (High Efficiency) BTU/hr |
| Dimensions (HxWxD) | 12 x 17.3 x 28.6 inches |
| Weight | 377 lb |

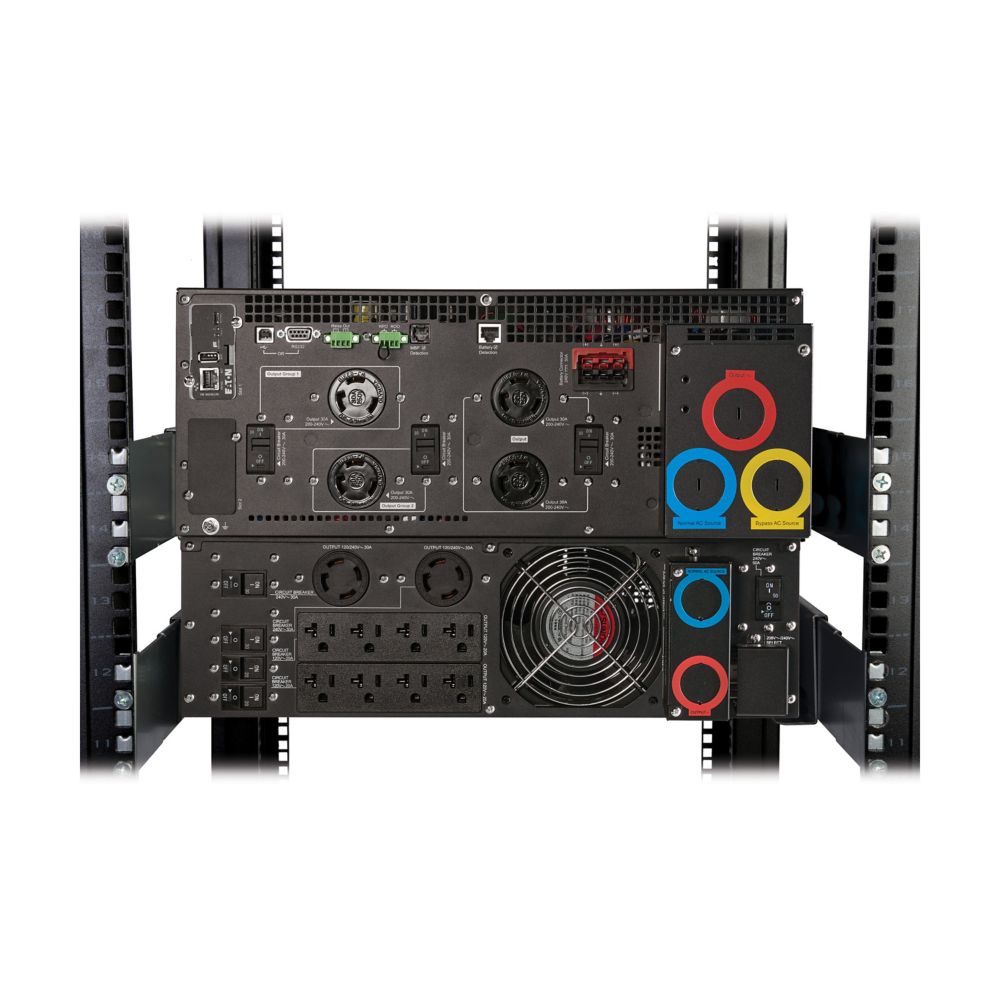

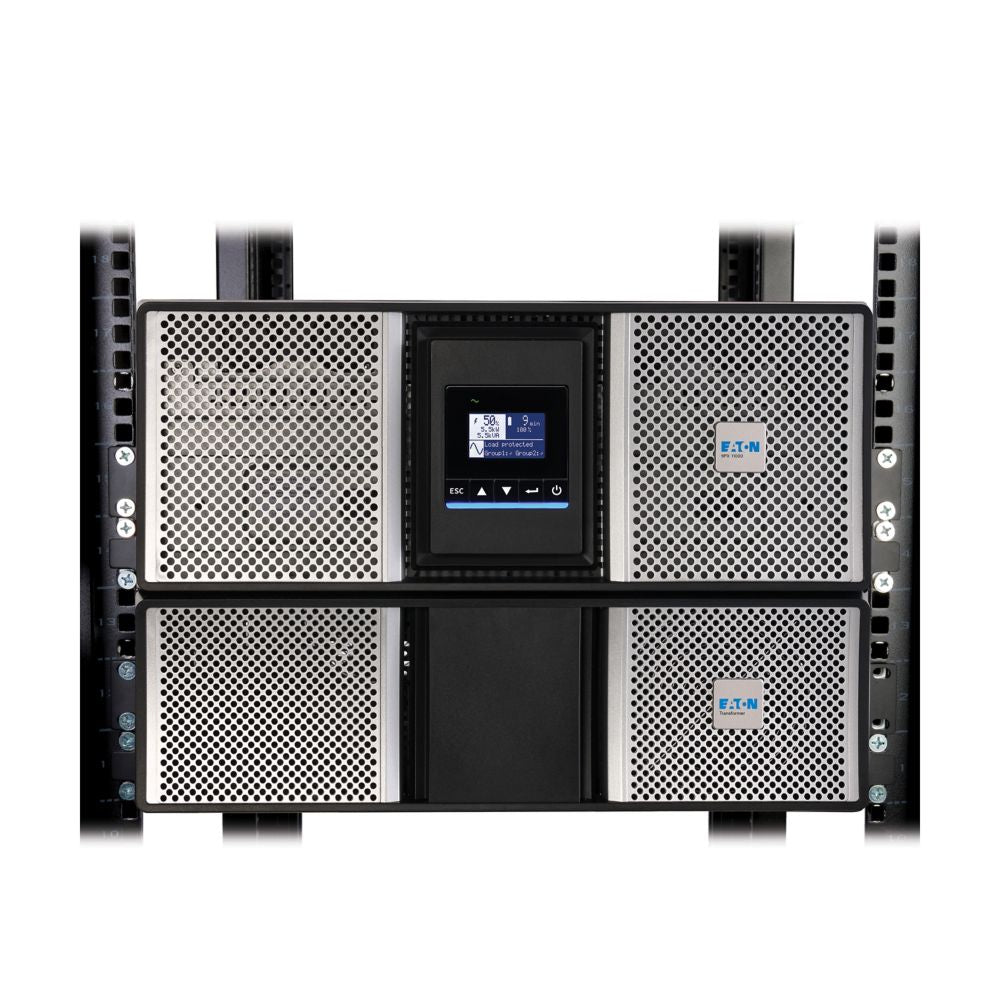

| Rack Mount Kit | Included |
| Certifications | cULus Listed, NOM, IEC 62040-2, ENERGY STAR |
| Compliance | CE Marked, FCC Part 15 Class A, CISPR22 Class A |
| Warranty | 3-Year factory warranty (parts, electronics, batteries) |
| Included Components | UPS unit, step-down transformer, NETWORK-M3 card, cables, rack kit, tower stands, quick start guide |
