Description
The Eaton 9PX11KG2 is a high-efficiency online double-conversion UPS engineered for critical power protection in IT, industrial, and commercial environments. Delivering 11,000 VA / 11,000 W of clean, reliable power, it ensures consistent uptime for mission-critical equipment. With its true sine wave output and 1.0 power factor, the 9PX11KG2 provides maximum usable power. Designed for flexibility, it features a 4U rack/tower convertible form factor, hardwired input and outputs, and four L6-30R outlets.
Equipped with Eaton’s ABM+ battery management and hot-swappable sealed lead-acid batteries, this UPS optimizes battery life and simplifies maintenance. The included NETWORK-M3 Gigabit Network Card enables seamless remote monitoring and integration with Eaton’s Brightlayer Data Centers suite. Energy Star-certified and 97% efficient, the 9PX11KG2 minimizes energy costs while ensuring compliance with key international standards, including IEC 62040-2, FCC Part 15, and cULus.
Ideal for data centers, edge networks, and critical infrastructure applications, the Eaton 9PX11KG2 delivers intelligent power protection, robust scalability, and advanced network connectivity.
| Category | Specification |
|---|---|
| Model / Part Number | Eaton 9PX11KG2 |
| Topology | Online / Double-conversion |
| Power Rating | 11,000 VA / 11,000 W |
| Output Power Factor | 1.0 |
| Output Voltage | 208V (Selectable: 200/208/220/230/240/250V) |
| Output Frequency | 50/60 Hz |
| Output Waveform | True sine wave |
| Voltage Regulation | ±1% steady-state |

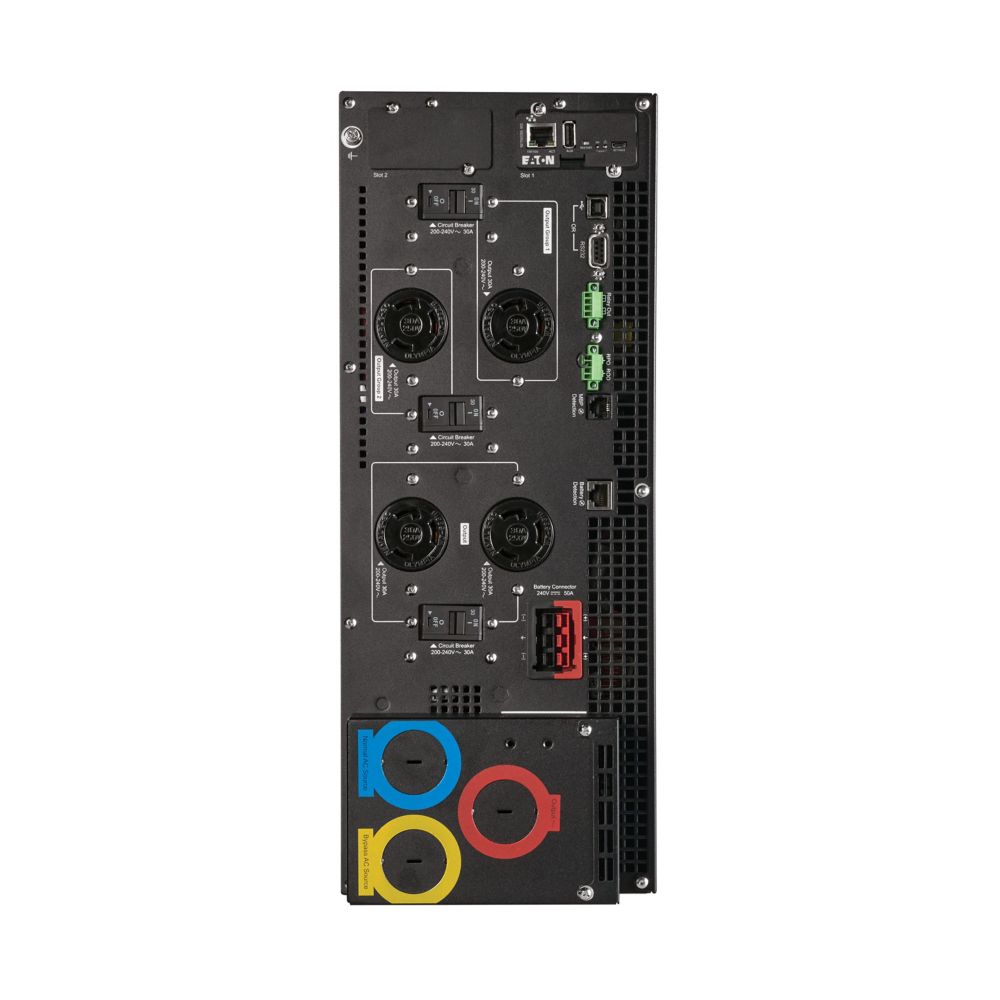

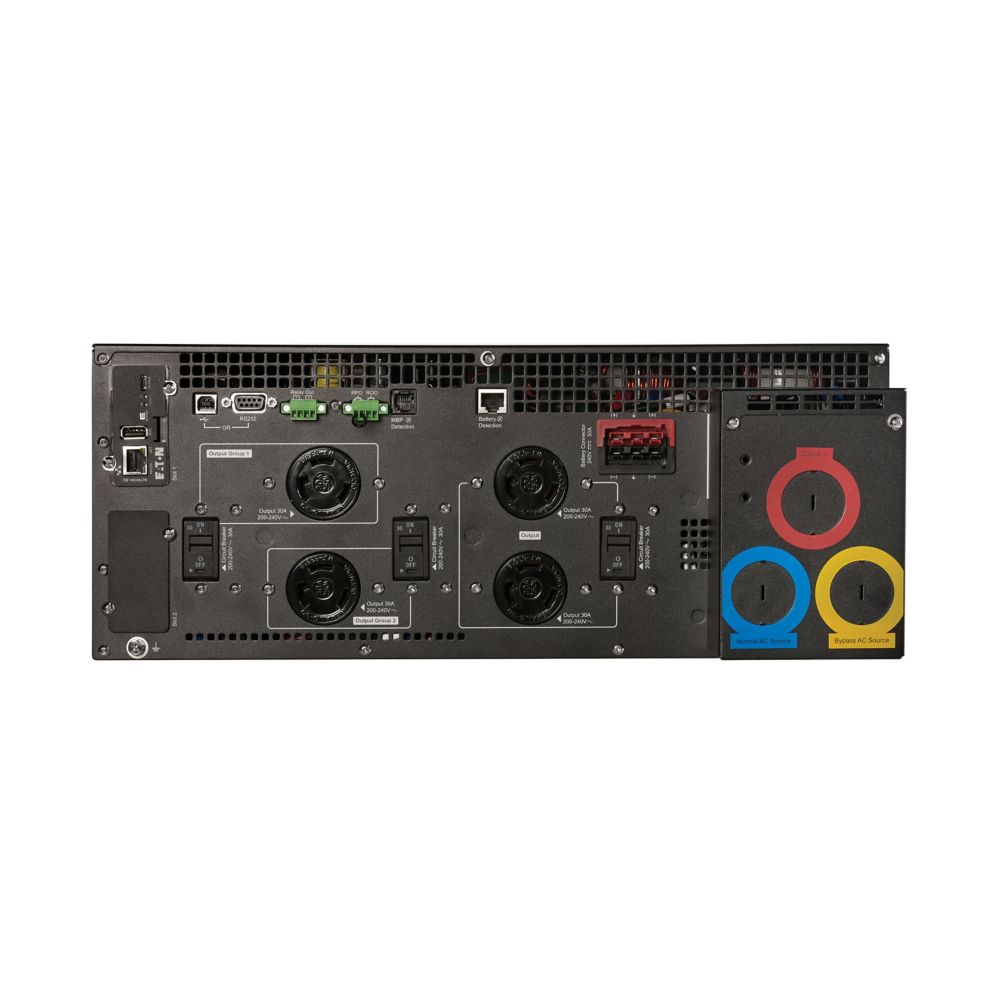

| Output Connections | (4) L6-30R, Hardwired |
| Input Voltage | 208V nominal (Selectable: 200/208/220/230/240V) |
| Input Connection | Hardwired |
| Input Frequency Range | 60 Hz: 50–70 Hz / 50 Hz: 40–60 Hz |
| Input Power Factor | >0.99 typical |
| Battery Type | Sealed lead-acid (VRLA) |
| Battery Management | ABM+ predictive analytics for optimized replacement |
| Battery Replacement | Hot-swappable; supports up to 12 EBMs (9PXEBM240RTG2) |
| Replacement Battery | EBP-2003 (2 per UPS) |

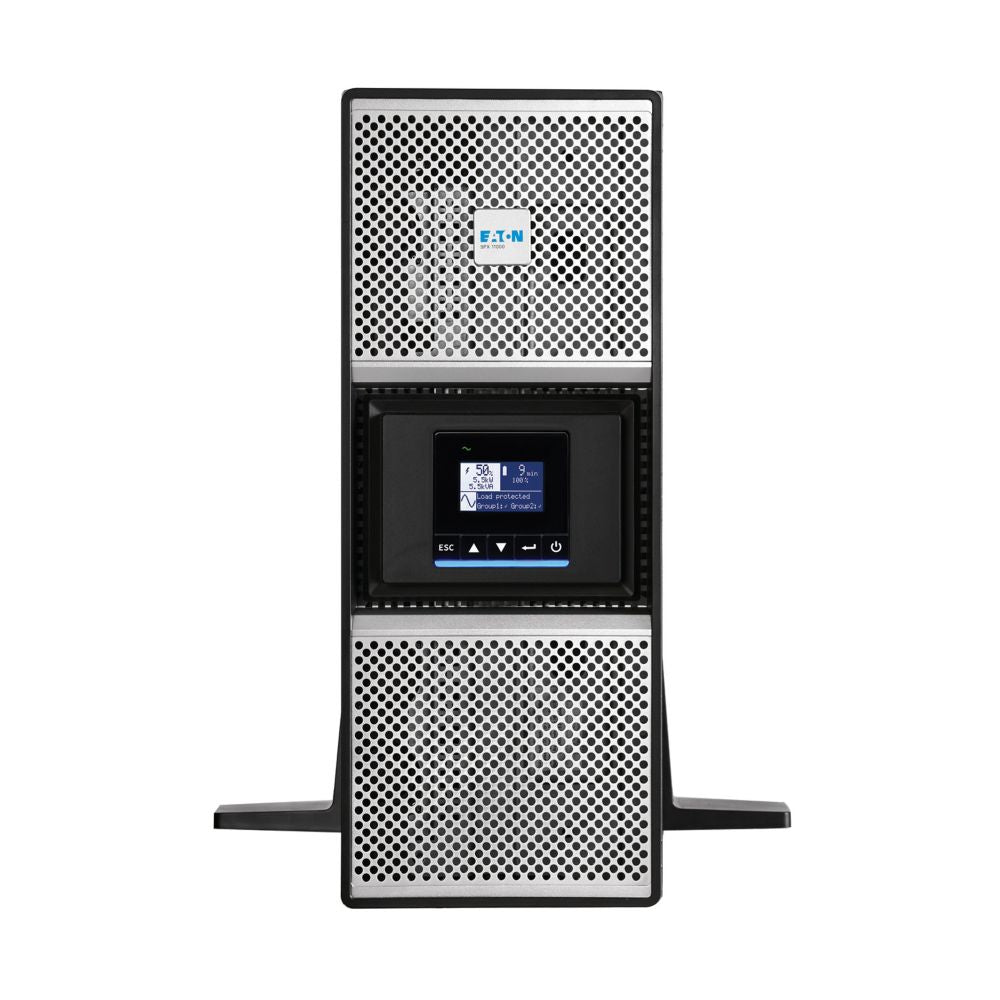

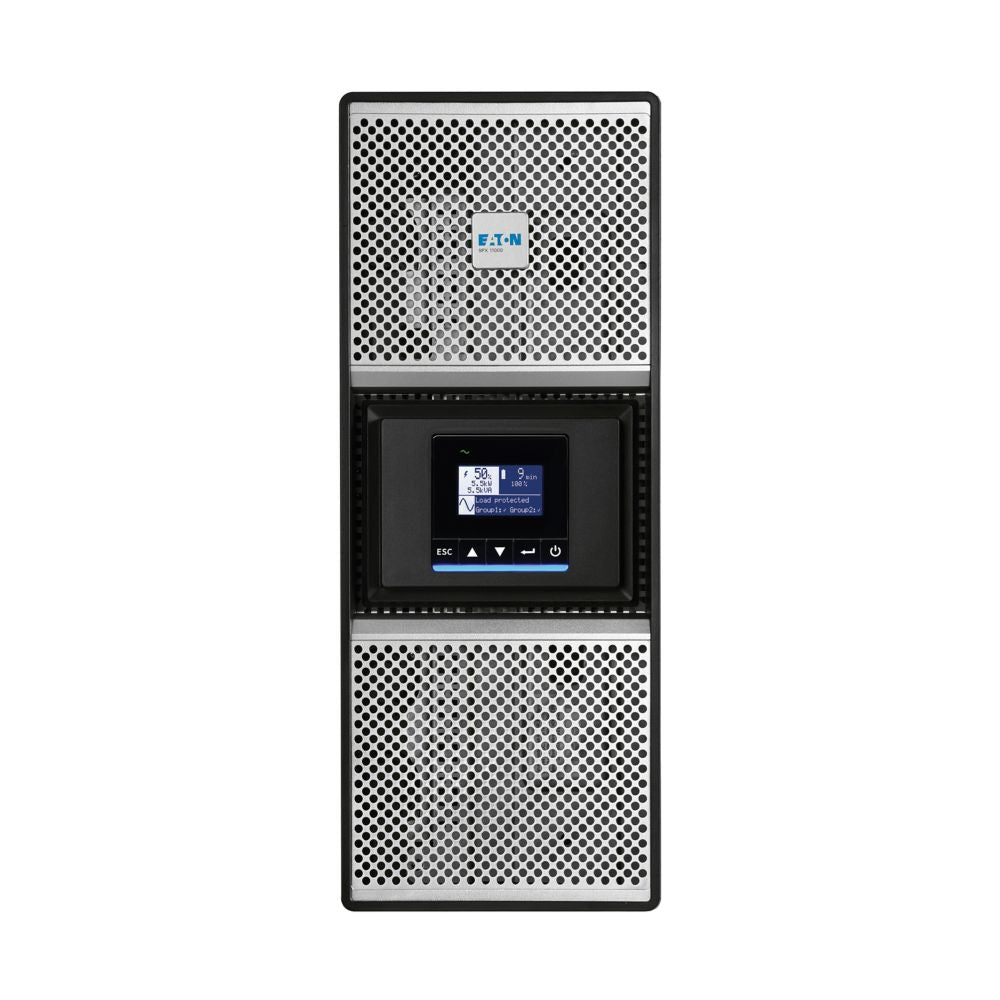

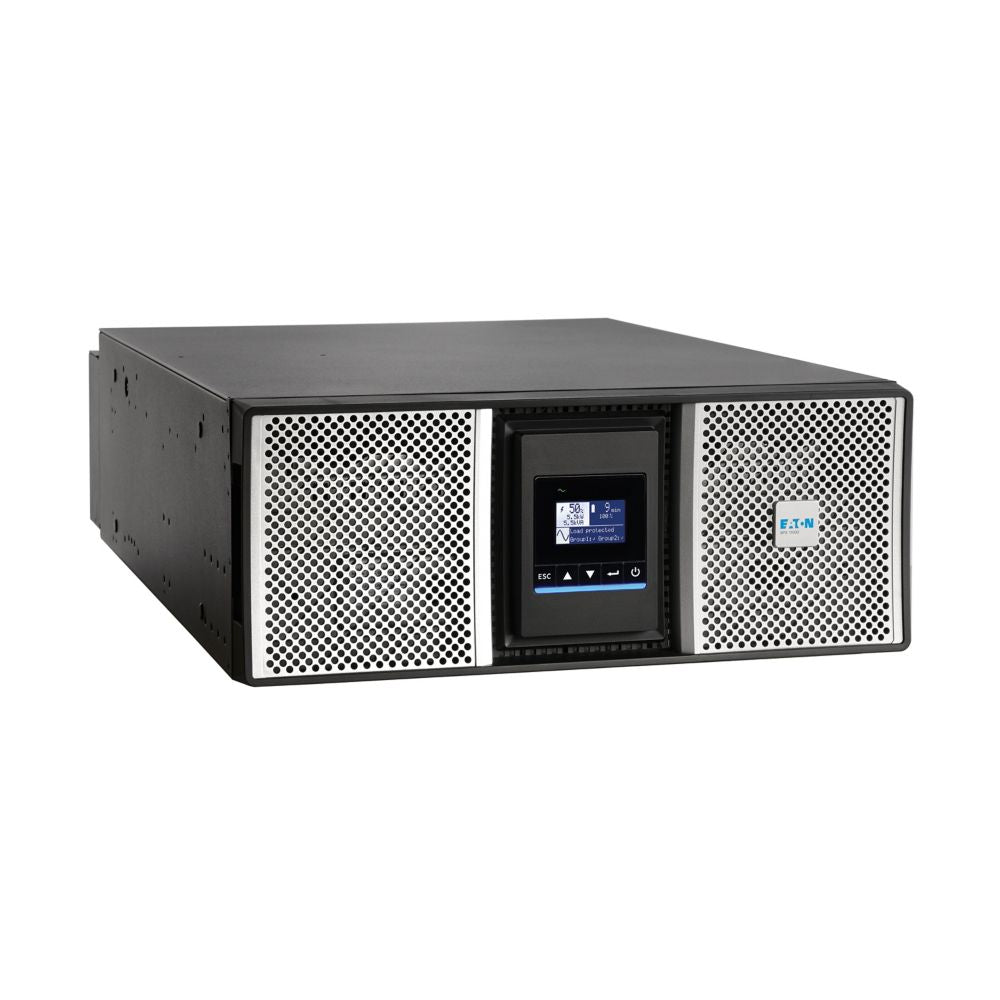

| Form Factor | Rack/Tower convertible |

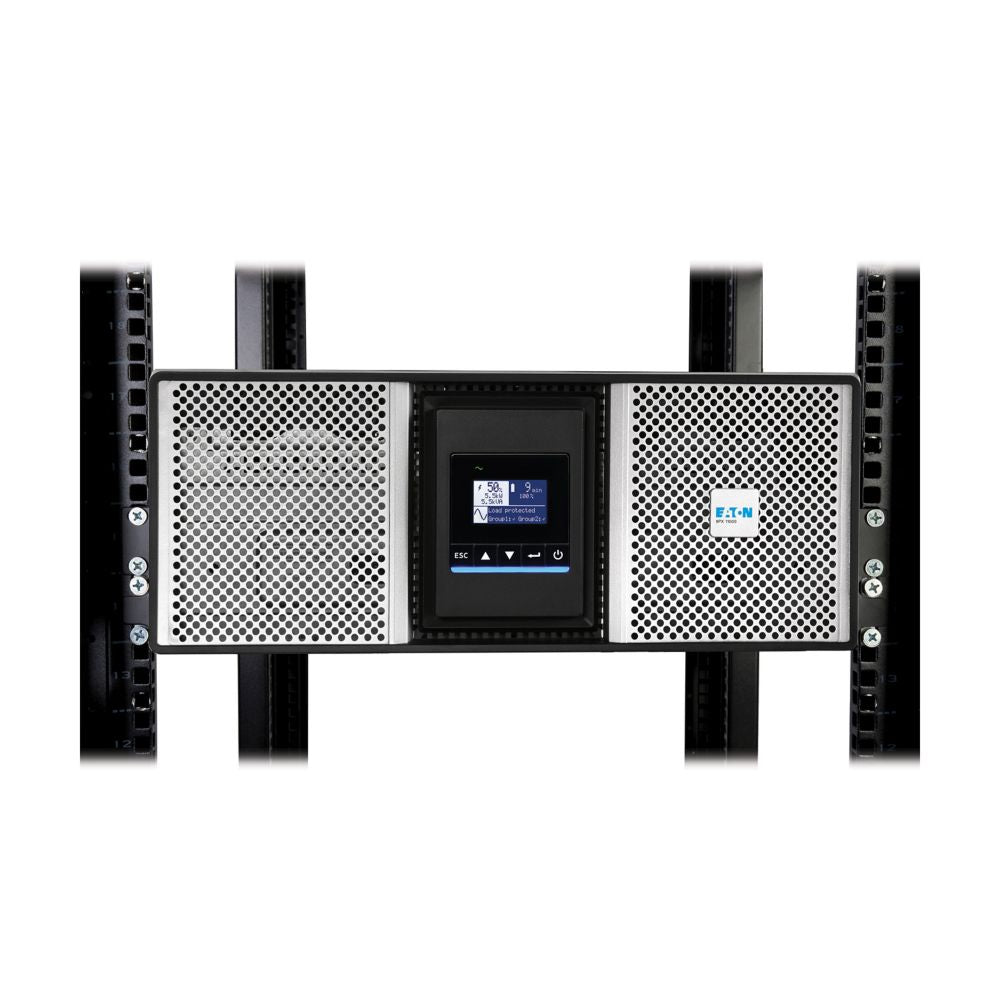

| Rack Height | 4U |
| Efficiency (Max Load) | 97% |
| Noise Level | <43 dB at 1 meter |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 0–95% non-condensing |
| Altitude | Up to 3000 m |
| BTU Rating | 1160 BTU/hr (Online), 1767 BTU/hr (Battery), 188 BTU/hr (High Efficiency) |
| Communication Interface | Ethernet (Gigabit), USB, RS-232 |
| Expansion Slots | (2) Mini-Slot ports (1 × NETWORK-M3 card included) |
| Software Support | Brightlayer Data Centers suite |
| Display Interface | Graphical LCD with 5-button control and LED indicators |
| Special Features | ENERGY STAR certified, Seismic certified (OSHPD), CE, FCC, cULus, NOM |
| Surge Protection | Yes |
| Internal Bypass | Yes |
| Dimensions (W × D × H) | 17.32 × 28.5 × 6.85 in |
| Weight | 173.72 lb |
| Warranty | 3-year limited (parts, electronics, batteries, technical support) |
| Extended Service Plans | 5-Year Depot Exchange (9SW5Y-11000UC) / 5-Year On-Site (WFLN75XX-11000UC) |
