Description
The Eaton 9PXG2 11kVA UPS is a high-performance, double-conversion online power protection solution engineered for mission-critical IT, edge, and data center environments. Delivering a unity power factor (1.0), this UPS ensures maximum usable power for connected equipment while maintaining consistent, clean energy output with true sine wave technology.
Designed for flexibility and scalability, the 9PXG2 supports both rack and tower deployment in a compact 4U form factor. It features hardwired input, multiple L6-30R output receptacles, and an integrated maintenance bypass for seamless servicing without downtime. The included Gigabit Network Card enables advanced remote management and integration with Eaton’s Brightlayer Data Centers suite for real-time monitoring and control.
With ABM+ battery management technology, hot-swappable batteries, and support for extended battery modules, the 9PXG2 reduces maintenance costs and maximizes uptime. Its high efficiency of up to 97% helps lower operating expenses while maintaining enterprise-grade reliability.
| Specification | Details |
|---|---|
| Product Type | Online Double-Conversion UPS |

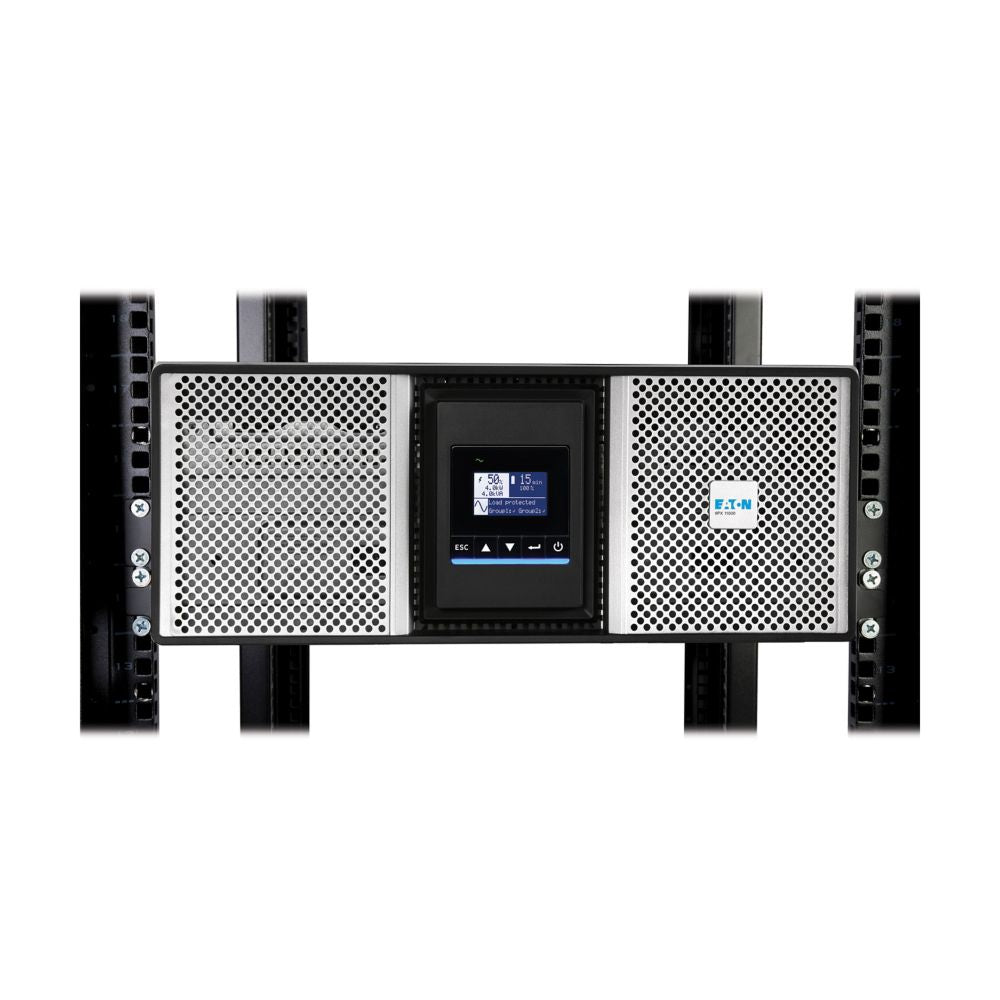

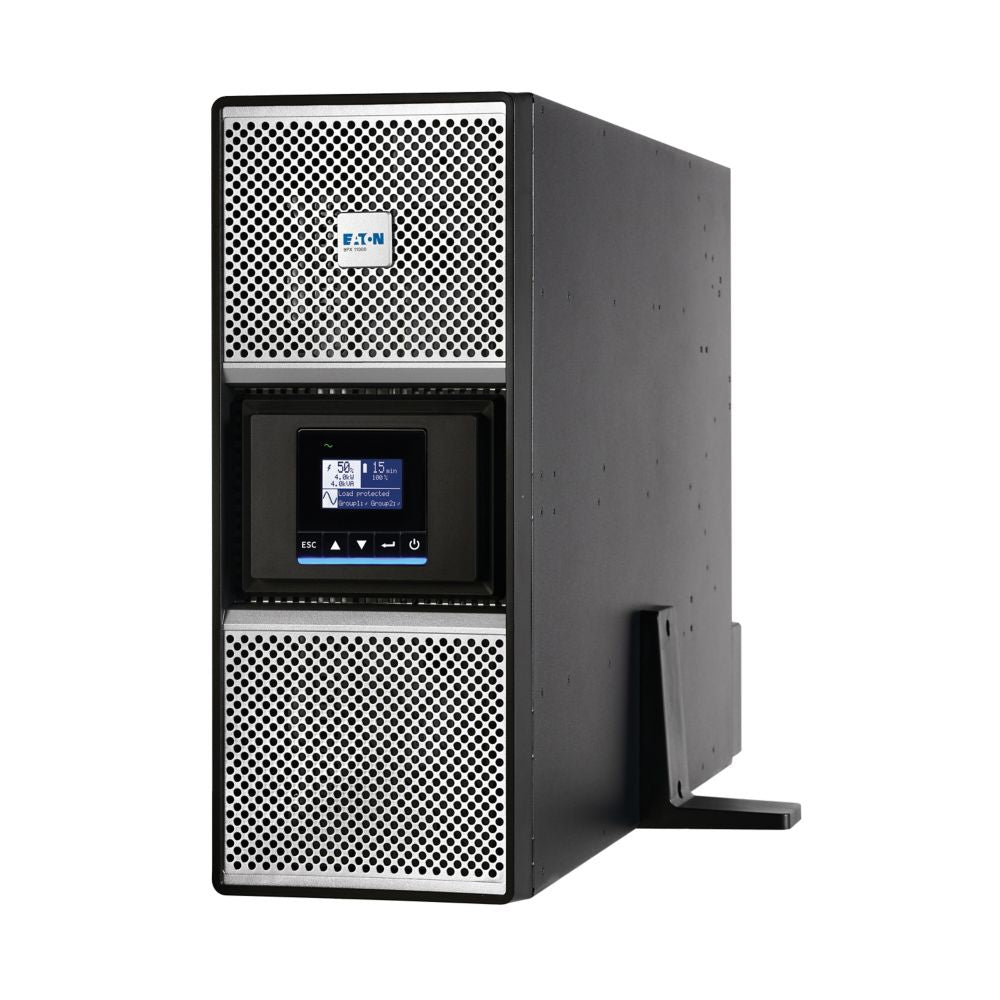

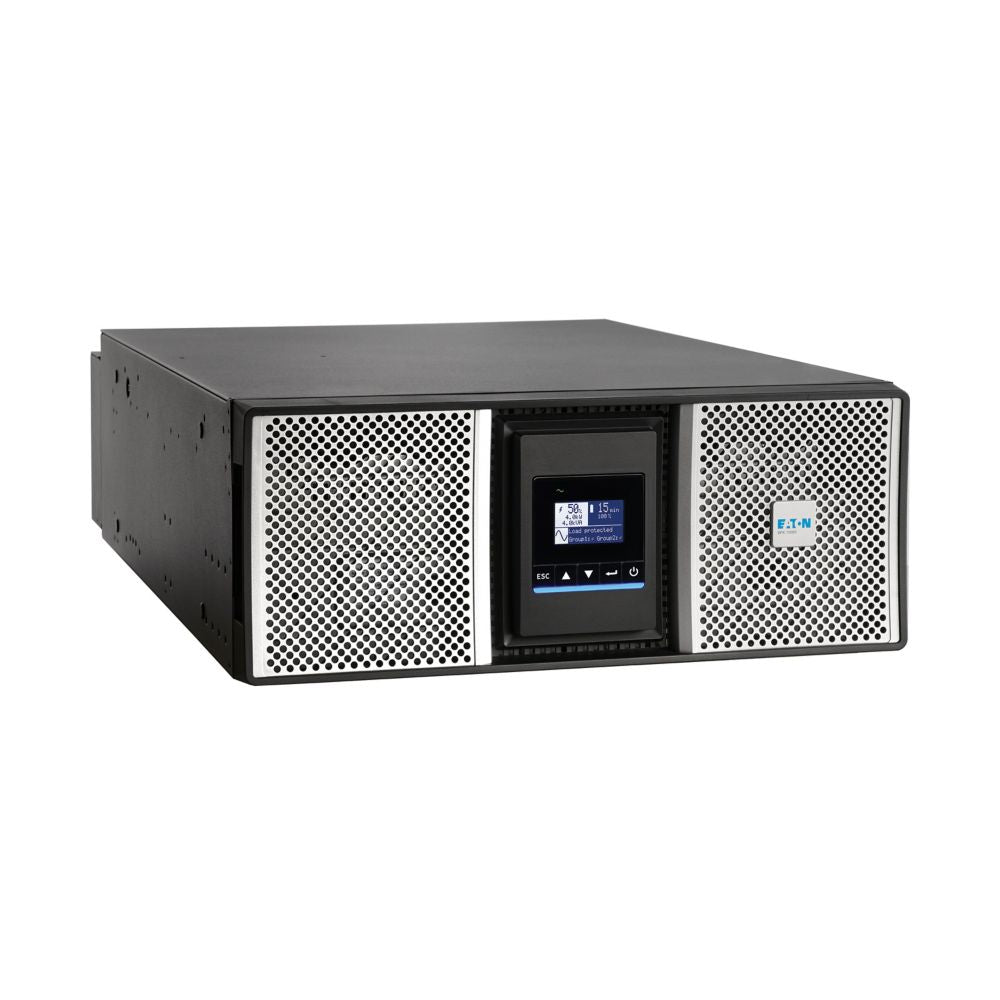

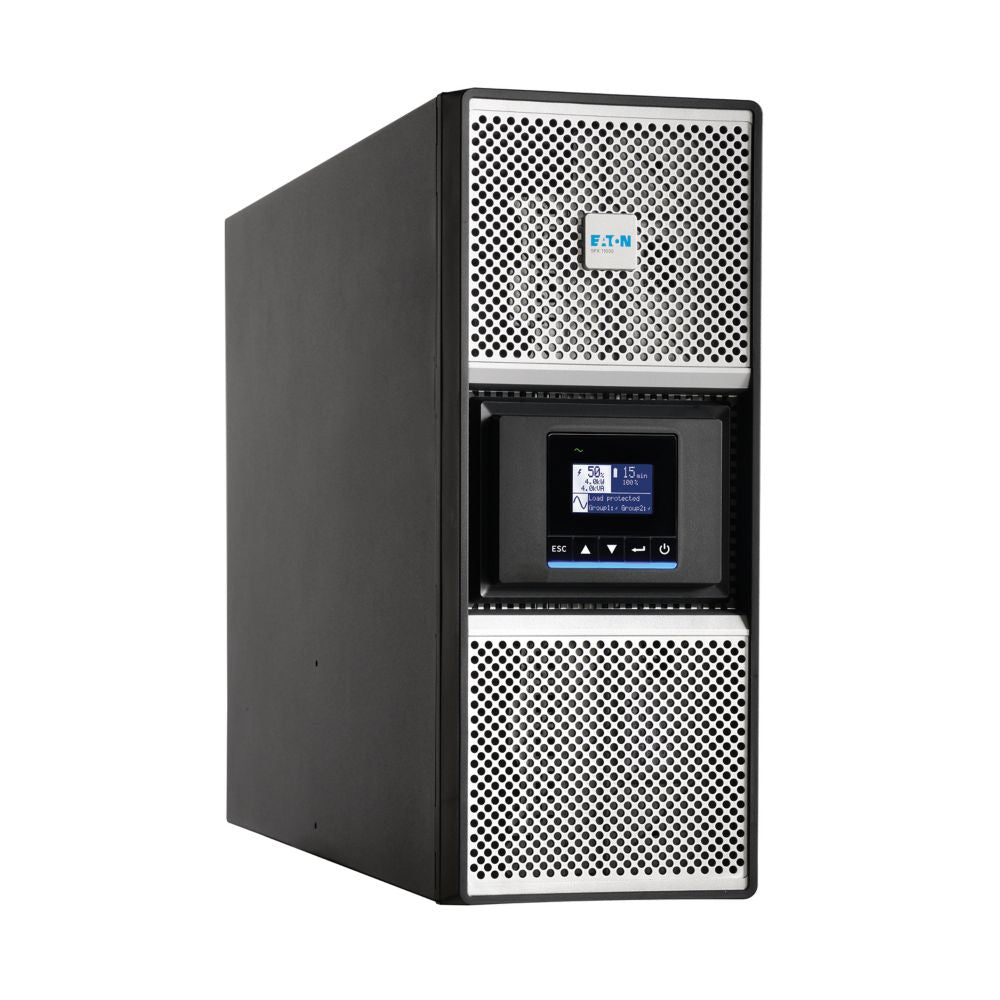

| Form Factor | Rack/Tower (4U) |
| Power Capacity | 11 kVA / 11 kW |
| Output Voltage | 208V (adjustable: 200/208/220/230/240/250V) |

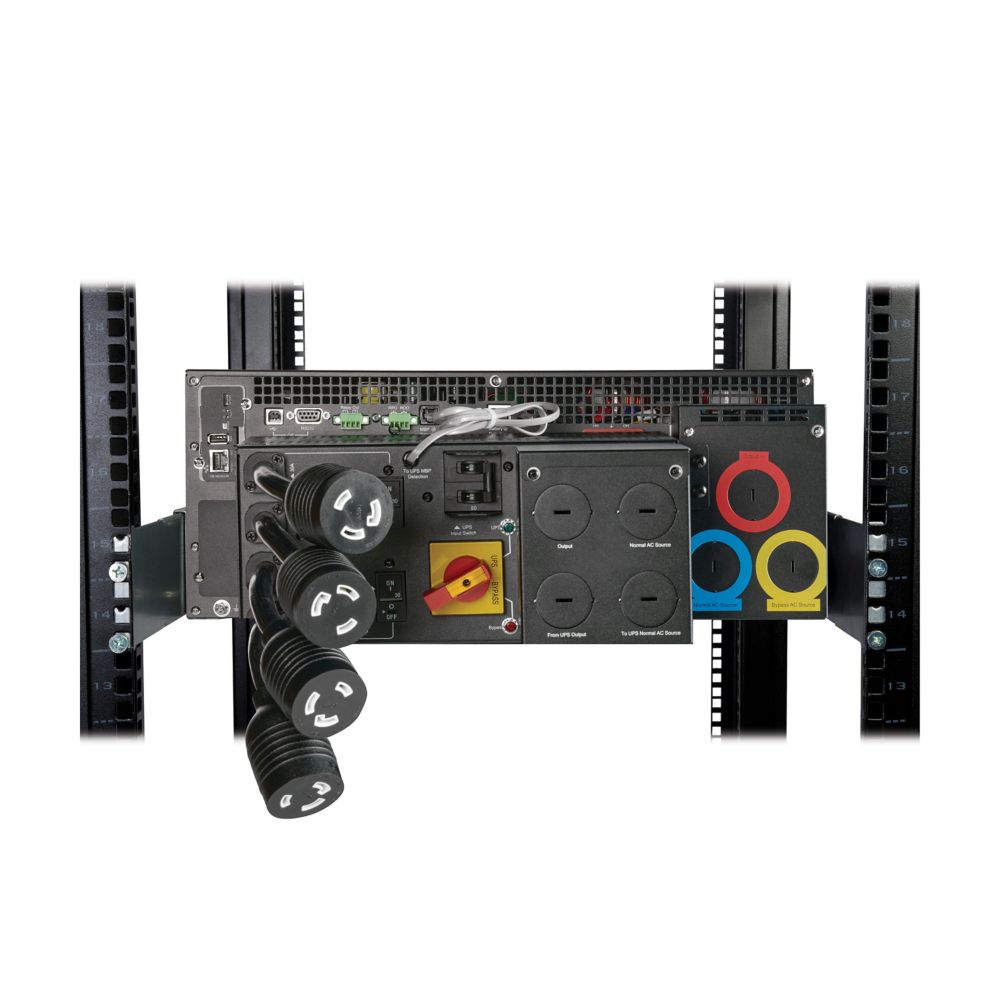

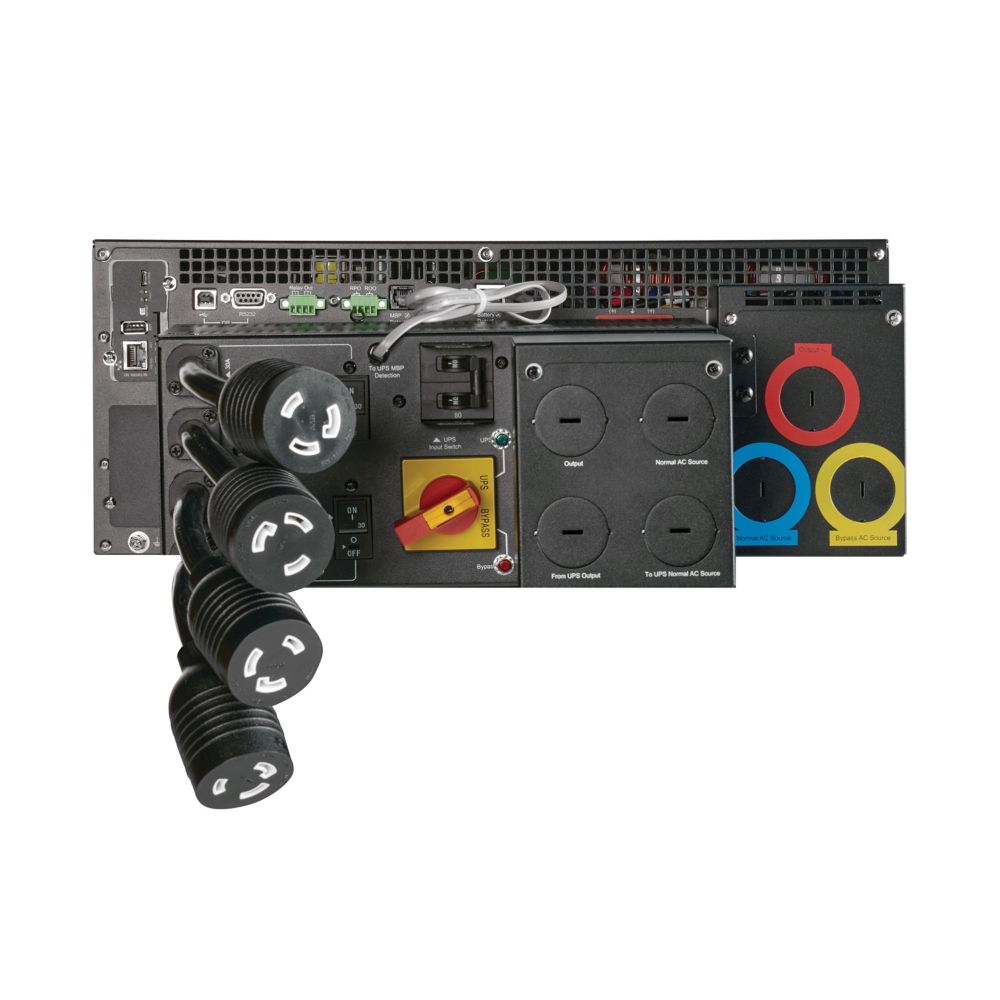

| Output Connections | (4) L6-30R, Hardwired |
| Input Connection | Hardwired |
| Topology | Double-conversion online |
| Output Waveform | True sine wave |
| Output Frequency | 50/60 Hz |
| Output Voltage Regulation | ±1% steady-state |
| Input Voltage | 208V default |
| Input Frequency Range | 50–70 Hz (60 Hz), 40–60 Hz (50 Hz) |
| Input Power Factor | >0.99 typical |
| Efficiency | Up to 97% |
| Battery Type | Internal, hot-swappable |
| Battery Management | ABM+ predictive battery analytics |
| Extended Battery Support | Up to 12 EBMs (9PXEBM240RTG2) |
| Replacement Battery | EBP-2003 (2 required) |
| Surge Protection | Yes |
| Internal Bypass | Yes |
| Maintenance Bypass | Included (MBP11K208G2) |
| Network Management | Gigabit Network Card (NETWORK-M3) included |
| Expansion Slots | 2 Mini-Slot ports |
| User Interface | Graphical LCD display, LED indicators |
| Software Compatibility | Brightlayer Data Centers suite |
| Noise Level | ≤54 dB at full load |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 0–95% non-condensing |
| Altitude | Up to 3000 m |
| Dimensions (H x W x D) | 6.8" x 17.3" x 32.6" |
| Weight | 188.7 lb |
| Certifications | cULus, NOM, IEC 62040-2, ENERGY STAR |
| Compliance Standards | CE, FCC Part 15 Class A, CISPR22 Class A |
| Warranty | 3-Year Factory Warranty |
| Included Accessories | Maintenance bypass, network card, cables, rack kit, tower stands |
