Description
The Eaton 9PX3K3UNP1G2 9PX G2 UPS delivers premium, high-efficiency power protection for mission-critical IT environments, edge networks, and enterprise infrastructures. With a 3000VA/3000W unity power factor, it provides maximum power availability and scalability in a compact 6U rack/tower design. Featuring online double-conversion topology, the 9PX G2 ensures pure sine wave output and continuous, clean power during blackouts, surges, or voltage fluctuations.
Integrated ABM+ predictive battery management extends battery lifespan by up to 50% and provides analytics for accurate replacement timing. The UPS includes a NETWORK-M3 Gigabit network card for cybersecure remote management compliant with UL 2900-1 and IEC 62443-4-2, and supports firmware upgrades without downtime. With an ENERGY STAR®-qualified efficiency up to 98.3%, the 9PX G2 optimizes energy usage while reducing heat output.
Flexible installation options support both rack and tower configurations. The included PowerPass Distribution Module (9PXPPDM1G2) allows 208V-to-120V step-down conversion and maintenance bypass operation. Add up to 12 external battery modules (9PXEBM180RTG2) for extended runtime to keep systems online during long outages.
| Category | Details |
|---|---|
| Model Number | 9PX3K3UNP1G2 |
| Topology | Online Double-Conversion |
| Power Capacity | 3000VA / 3000W |
| Power Factor | 1.0 |
| Input Voltage | 200V, 208V, 220V, 230V, 240V AC |

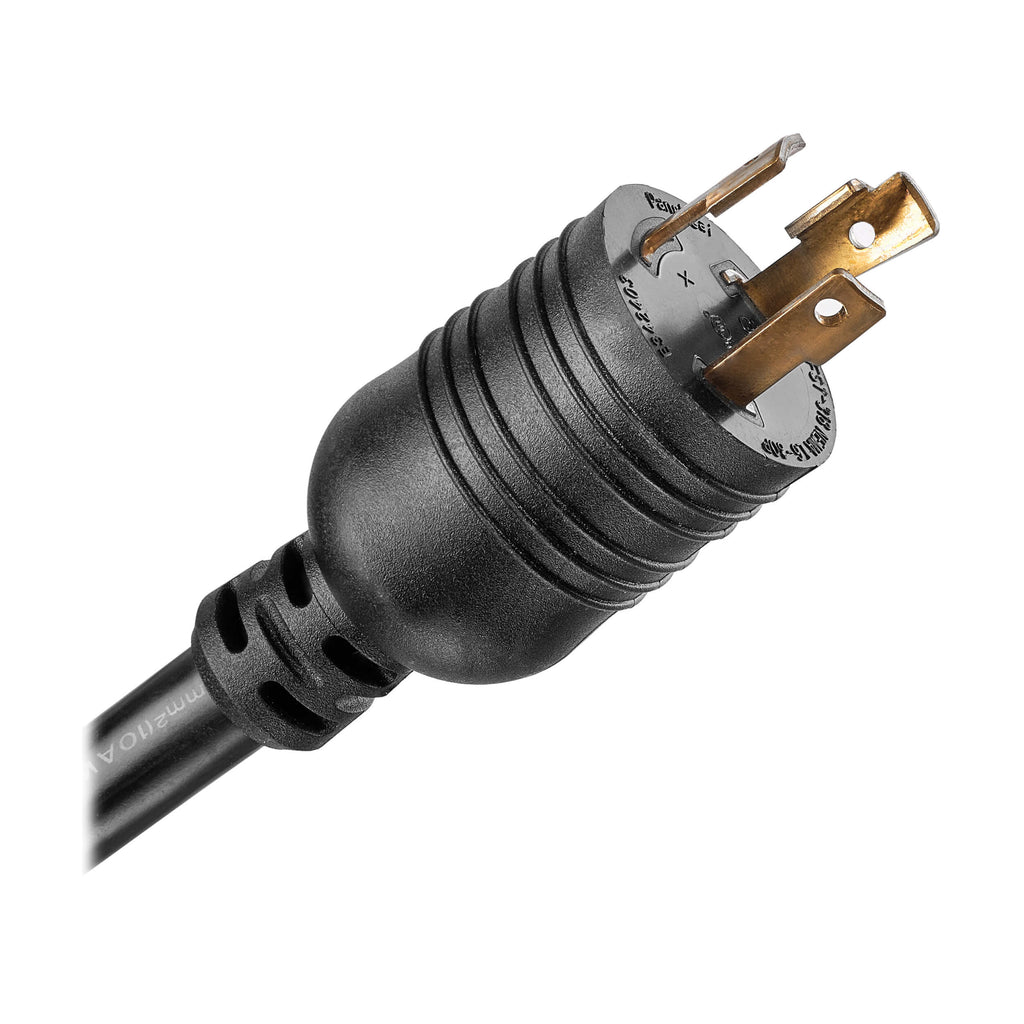

| Input Connection | NEMA L6-30P |
| Input Cord Length | 6.5 ft (2.0 m) |
| Output Voltage | 120V, 200V, 208V, 220V, 230V, 240V, 250V |
| Output Receptacles | (6) 5-20R, (1) L6-30R, (1) L14-30R |
| Waveform | Pure Sine Wave |
| Efficiency (AC Mode) | 96.1% (Standard) / 98.3% (Economy Mode) |
| Runtime (Full Load) | 7.5 minutes (3000W) |
| Runtime (Half Load) | 18.5 minutes (1500W) |
| Battery Type | Valve-Regulated Lead-Acid (VRLA) |
| Expandable Runtime | Up to 12 EBMs (9PXEBM180RTG2) |
| Battery Management | ABM+ predictive analytics, 3-stage charging |
| Display | High-contrast color LCD with rotatable interface |
| Network Management | Pre-installed NETWORK-M3 Gigabit card (UL 2900-1, IEC 62443-4-2 compliant) |
| Communications | RS-232, USB, Network (pre-installed card) |
| Form Factor | 6U Rackmount / Tower convertible |
| Dimensions (H × W × D) | 10.2 × 17.3 × 27 in |
| Weight | 203 lbs (92.08 kg) |
| Cooling | Fan-cooled |
| Operating Temperature | 0°C – 40°C (32°F – 104°F) |
| Certifications | ENERGY STAR, FCC Class A, CE, RoHS, cUL, NOM, EN 62040-2 |
| Warranty | 3-year limited warranty |
| Included Accessories | PowerPass Distribution Module (9PXPPDM1G2), NETWORK-M3 card, USB & RS-232 cables, rack/tower hardware, Quick Start Guide |
