Description

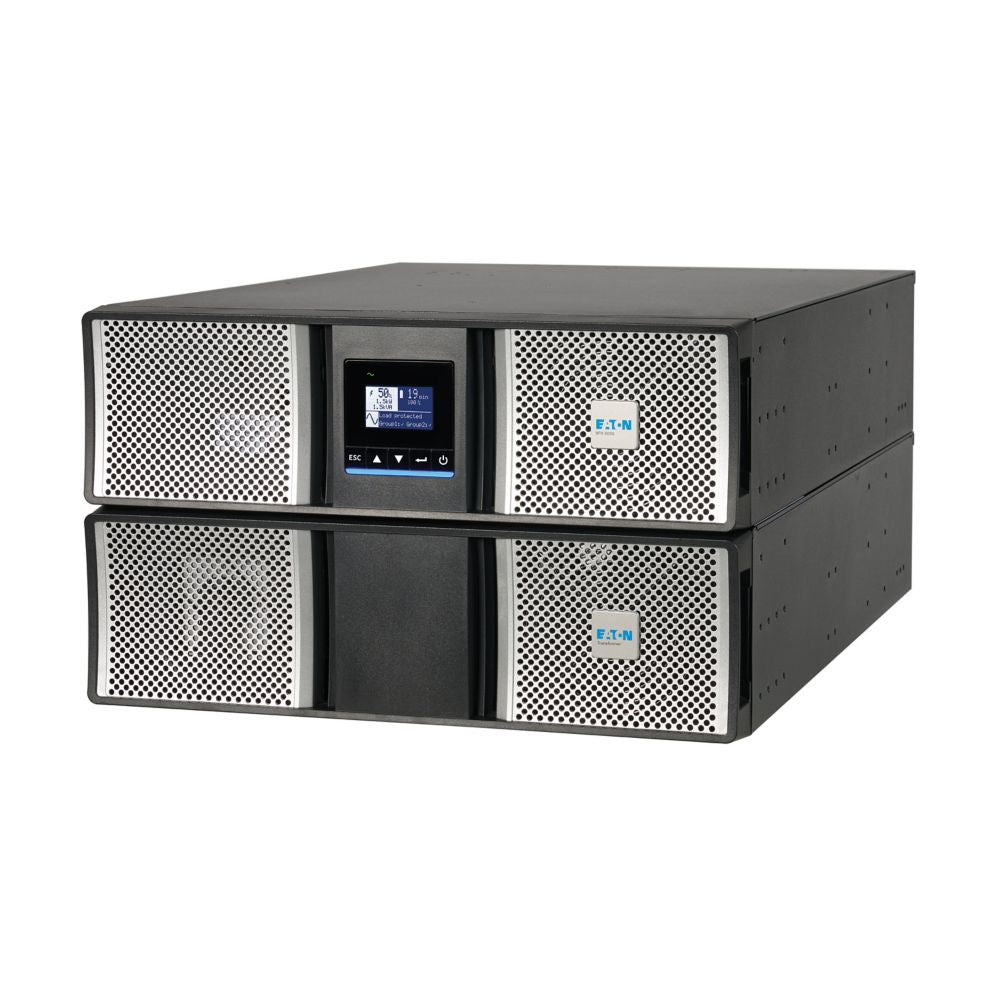

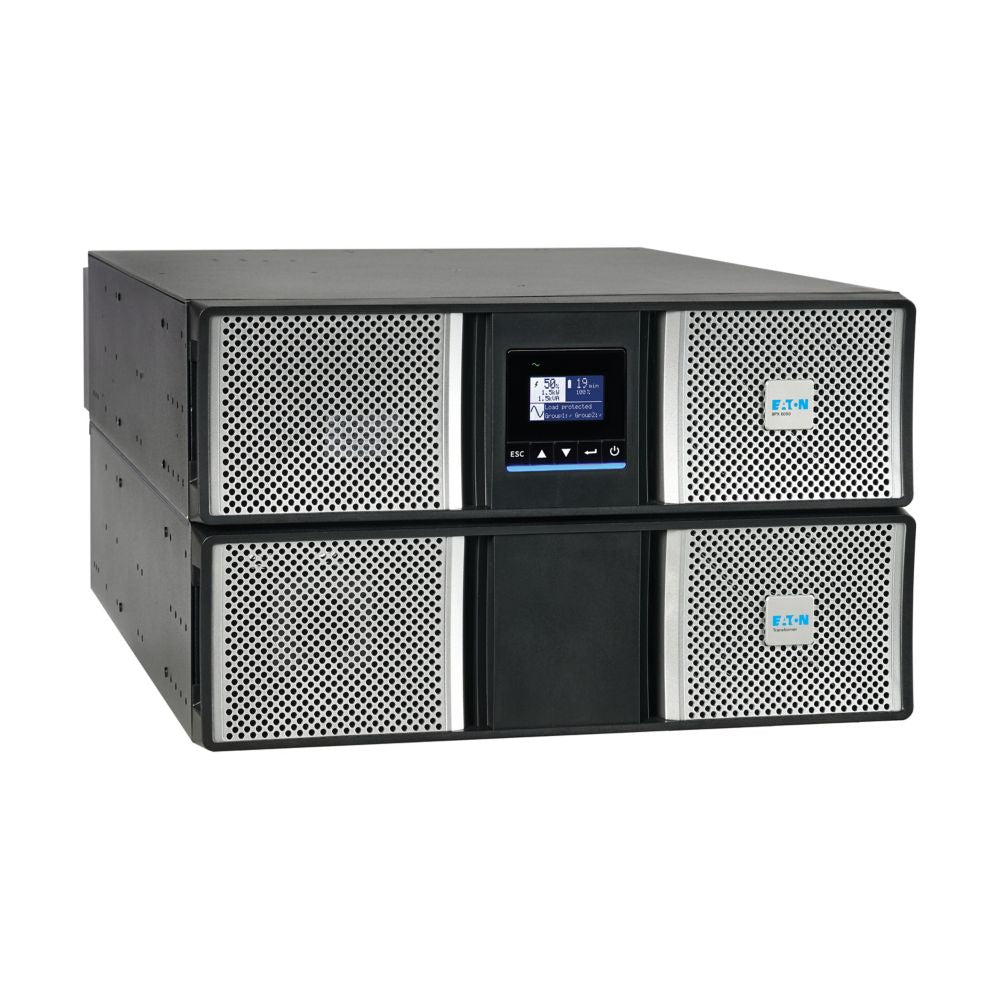

The Eaton 9PXG2 3000VA Online Double-Conversion UPS (9PX3K3UNTF5G2) delivers enterprise-grade power protection for critical IT infrastructure, edge environments, and network closets. Designed with a unity power factor (1.0), it provides full 3000W capacity to support modern high-density equipment while maintaining consistent, clean power output.
With true online double-conversion topology, this UPS ensures zero transfer time to battery and isolates connected equipment from power disturbances, surges, and voltage fluctuations. The included NETWORK-M3 Gigabit card enables secure remote management and seamless integration with Eaton’s Brightlayer Data Centers software suite.
Engineered for flexibility, this model supports both L6-30P plug and hardwired input configurations and includes a step-down transformer for 120V output applications. Its scalable battery architecture supports up to 12 extended battery modules (EBMs), ensuring extended runtime for business continuity.
Advanced ABM+ battery management technology enhances battery lifespan and predicts replacement timing based on real-world conditions. With hot-swappable batteries, internal bypass, and high efficiency up to 96%, the 9PXG2 reduces downtime while optimizing operational costs.
| Specification | Details |
|---|---|
| Power Capacity | 3000VA / 3000W |
| Topology | Online Double-Conversion |
| Input Voltage | 200–240V (208V default) |
| Output Voltage | 120/240V |
| Output Waveform | True Sine Wave |
| Output Power Factor | 1.0 |
| Output Voltage Regulation | ±1% steady-state |
| Output Frequency | 50/60 Hz |

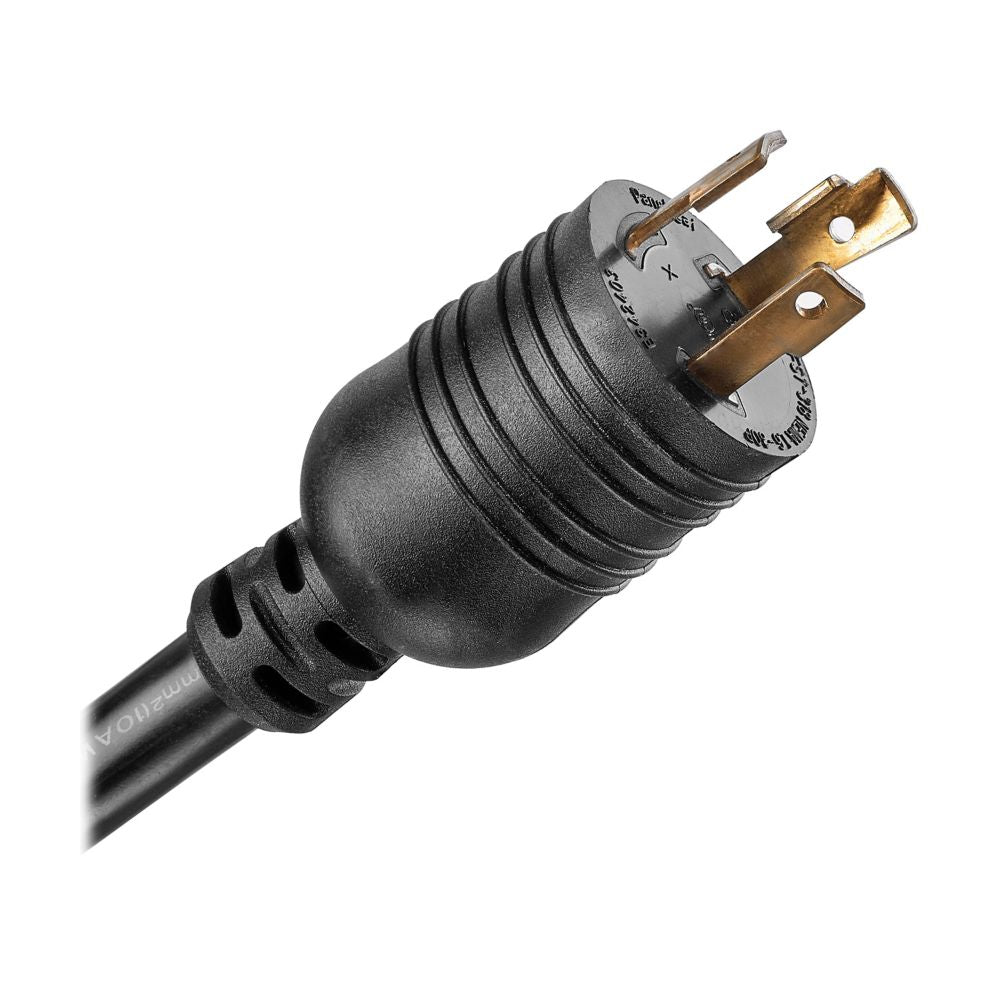

| Input Connection | L6-30P or Hardwired |
| Input Cord Length | 10 ft |
| Input Power Factor | >0.99 typical |
| Input Frequency Range | 50–70 Hz (60 Hz), 40–60 Hz (50 Hz) |

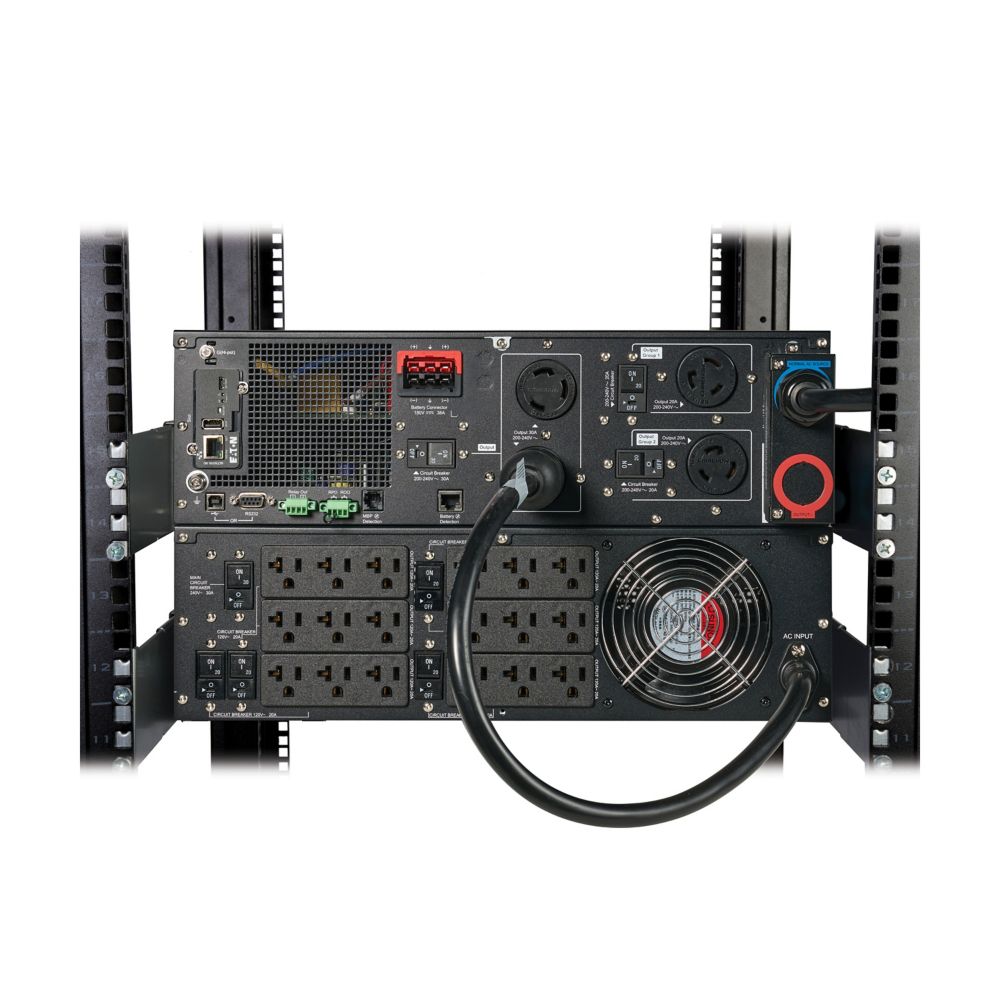

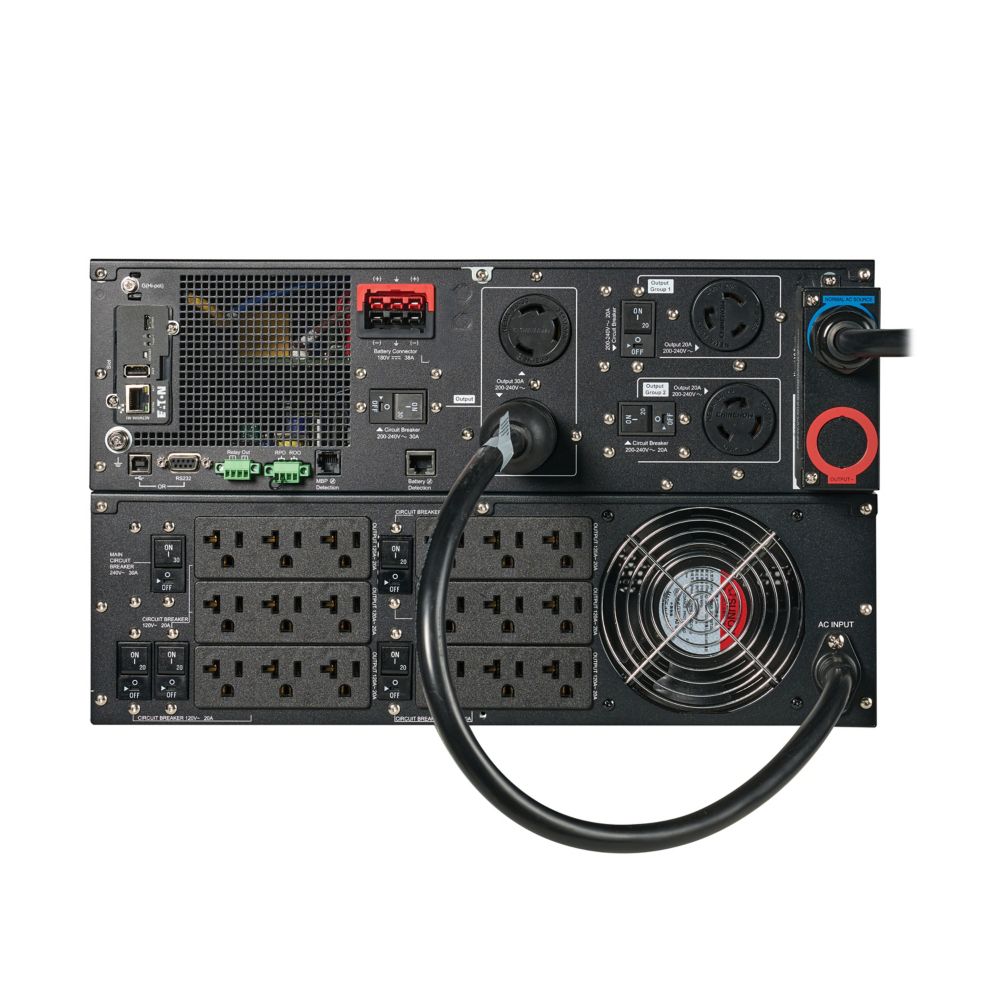

| Receptacles | 18x 5-20R, 2x L6-20R, 1x L6-30R, Hardwired |
| Battery Type | Sealed Lead-Acid |
| Battery Management | ABM+ predictive battery management |
| Battery Replacement | Hot-swappable (EBP-1805) |
| Extended Battery Support | Up to 12 EBMs (9PXEBM180RTG2) |
| Efficiency | Up to 96% |
| Surge Protection | Included |
| Internal Bypass | Included |
| Network Management | NETWORK-M3 Gigabit card included |
| Communication Ports | Ethernet, USB, RS-232 |
| Expansion Slot | 1 Mini-Slot |
| User Interface | LCD graphical display with programmable controls |
| Software Compatibility | Brightlayer Data Centers |

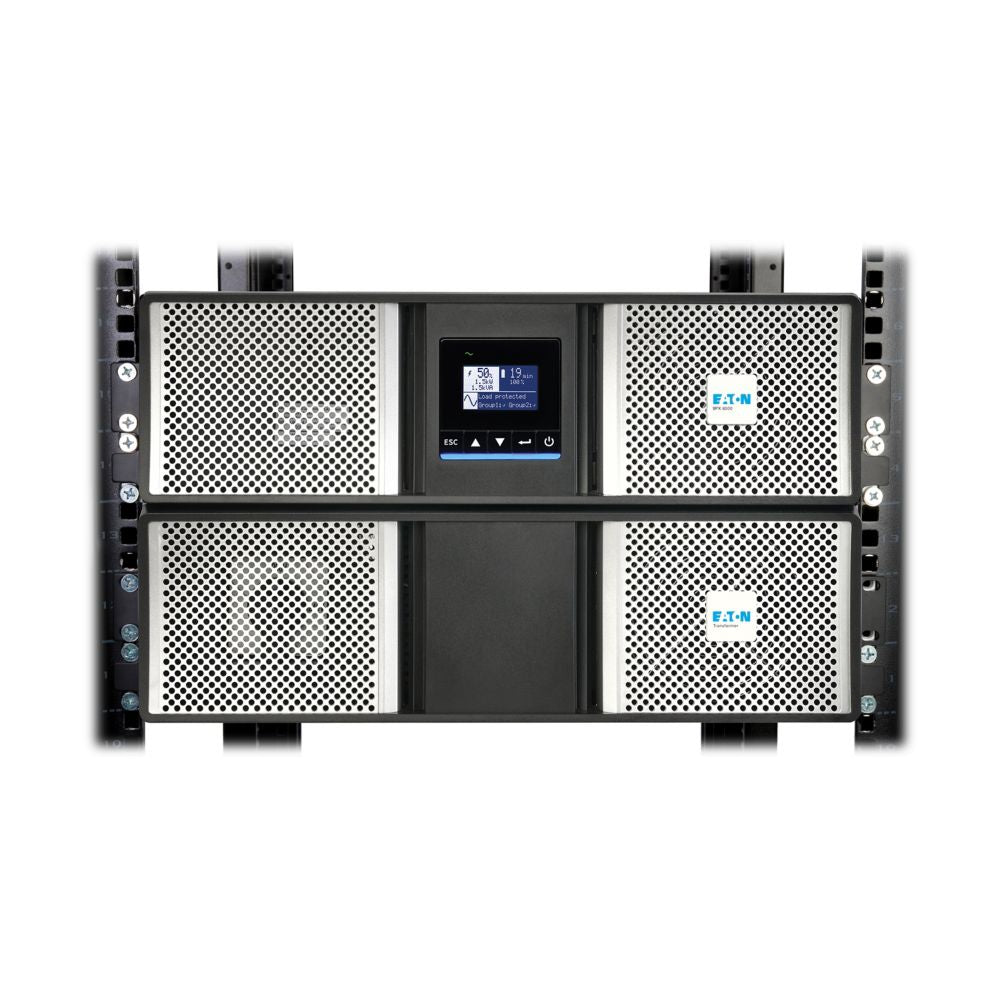

| Rack Form Factor | 6U Rack/Tower convertible |
| Rack Mount Kit | Included |
| Dimensions (L x W x H) | 27 x 17.3 x 10.2 in |
| Weight | 203 lb |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 0–95% non-condensing |
| Noise Level | <43 dB at 1 meter |
| Altitude | Up to 3000 meters |
| BTU Rating | 415 BTU/hr (Online), 471 BTU/hr (Battery), 177 BTU/hr (High Efficiency) |
| Certifications | cULus Listed, NOM, ENERGY STAR |
| Compliance | CISPR22 Class A / FCC Part 15 Class A |
| Warranty | 3-Year Factory Warranty (parts, electronics, batteries) |
| Included Accessories | Transformer, network card, cables, mounting hardware, tower stands |
