Description

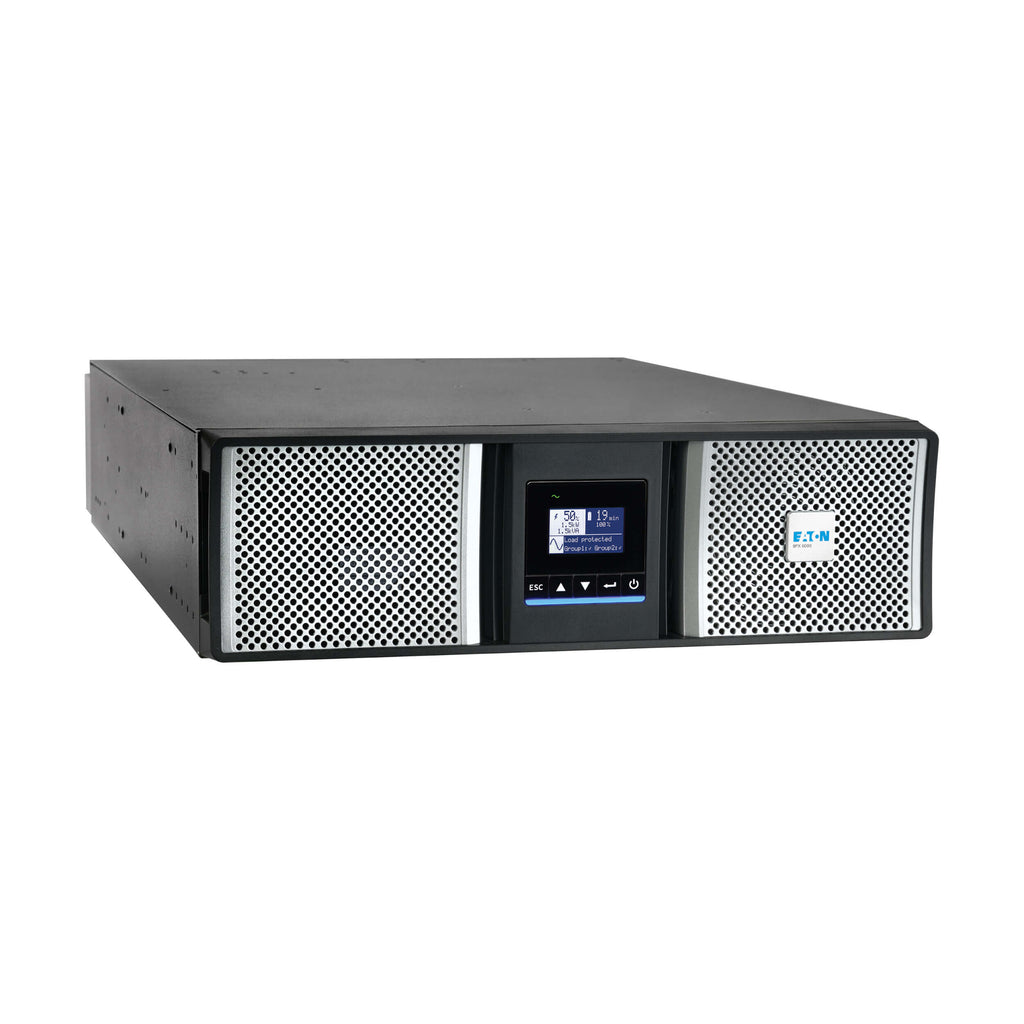

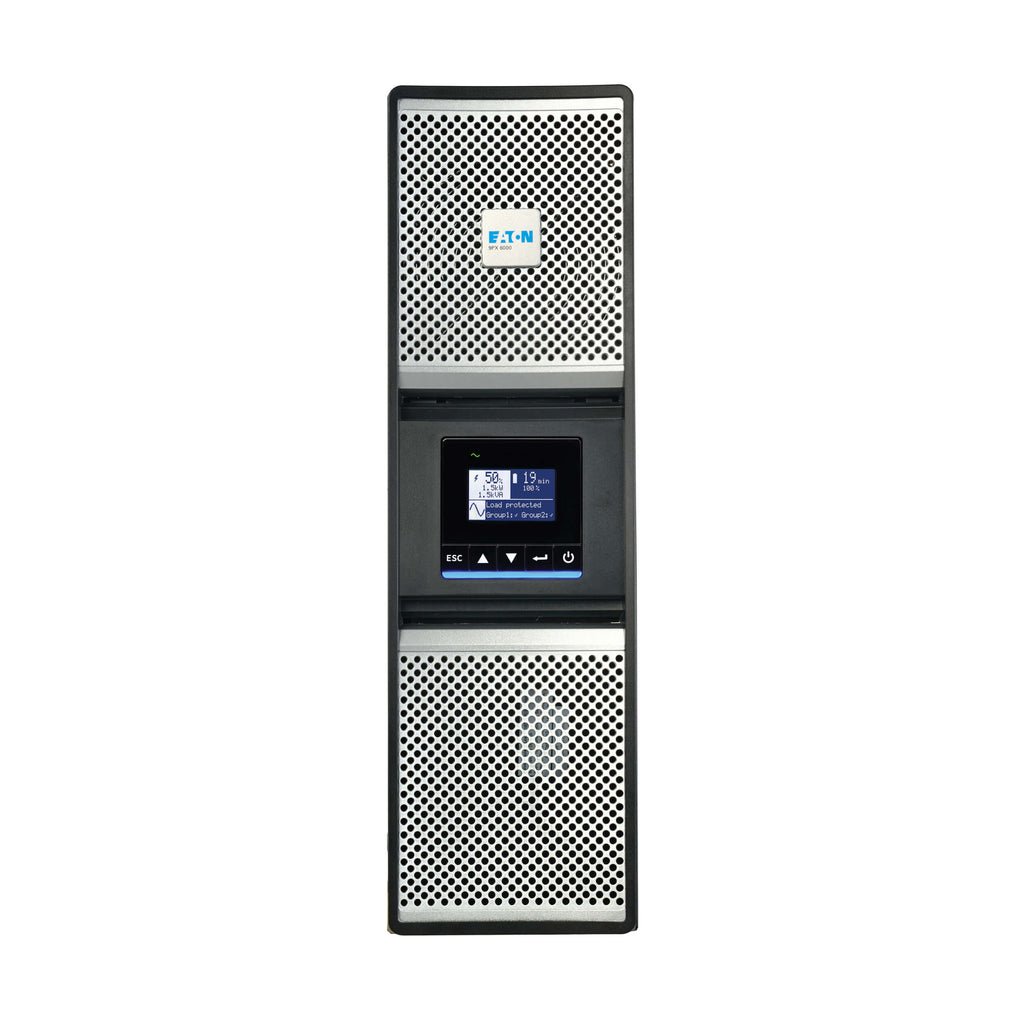

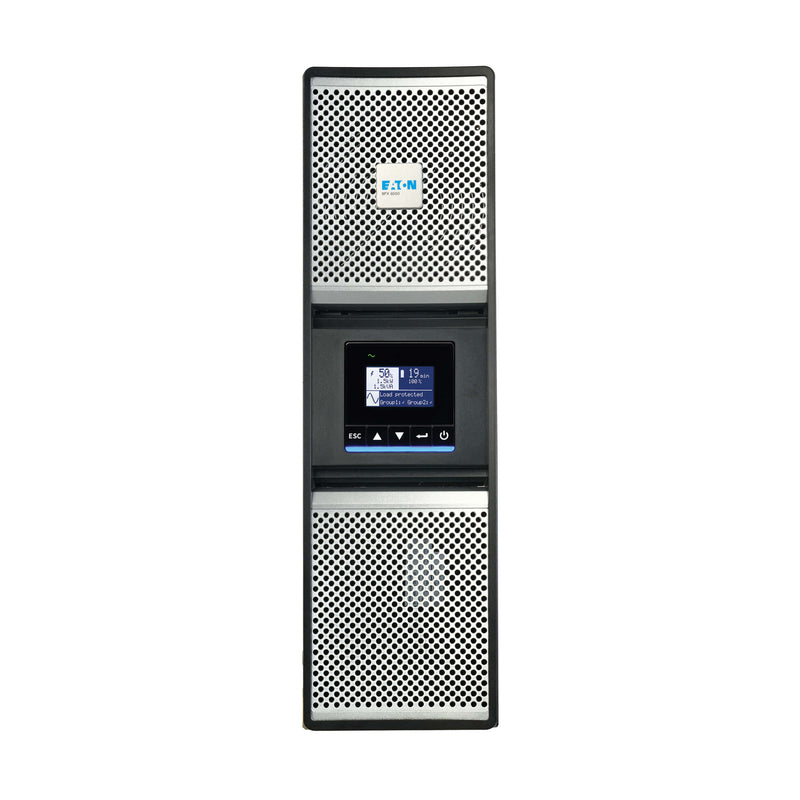

The Eaton 9PX3K3UG2 delivers premium online double-conversion power protection for mission-critical IT and edge applications. Designed for reliability and efficiency, this 3U rack/tower UPS provides 3000VA/3000W of pure sine-wave output to safeguard servers, storage, and network equipment from power disruptions. Featuring ABM+ battery management technology, it extends battery life up to 50% and provides predictive replacement analytics to prevent unexpected downtime.
The NETWORK-M3 cybersecure network card enables full remote configuration, firmware upgrades, and monitoring that meets UL 2900-1 and IEC 62443-4-2 cybersecurity standards. With ENERGY STAR-qualified efficiency up to 98.3%, the 9PX3K3UG2 helps reduce operating costs and environmental impact. Expandable runtime, hot-swappable batteries, and versatile installation options make it ideal for virtualization, HCI, and generative AI workloads.
| Category | Specification |
|---|---|
| Model | Eaton 9PX3K3UG2 |

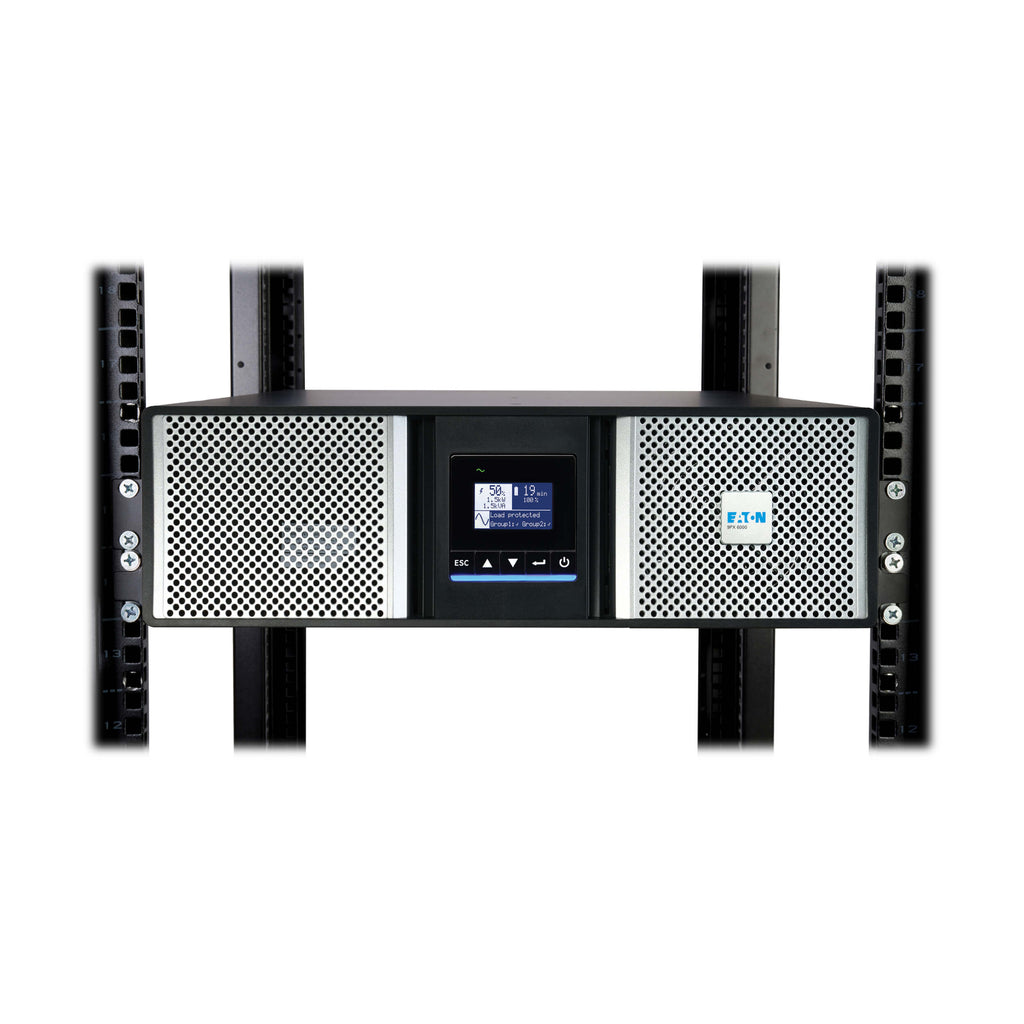

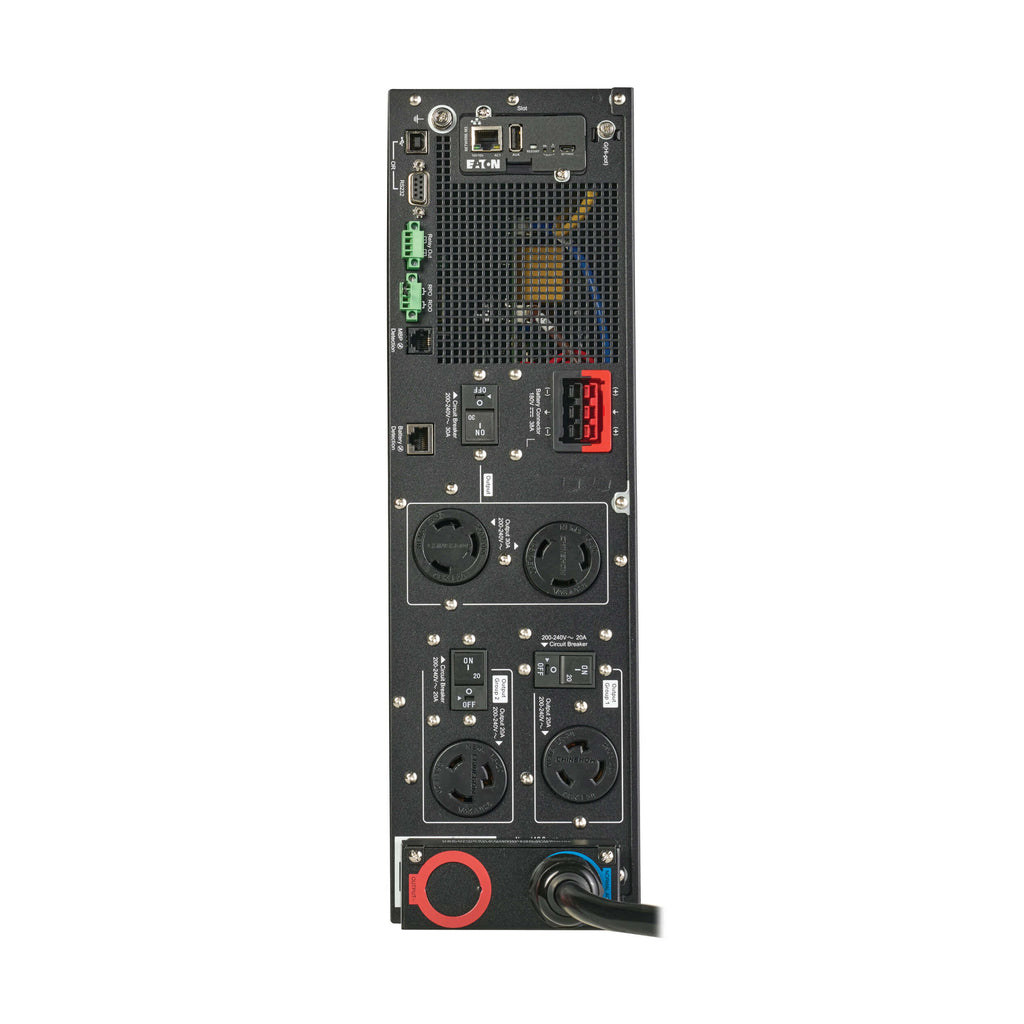

| Form Factor | Rackmount / Tower (3U) |
| Topology | Online Double-Conversion |
| Capacity | 3000VA / 3000W |
| Power Factor | 1.0 |
| Input Voltage | 200V / 208V / 220V / 230V / 240V AC |

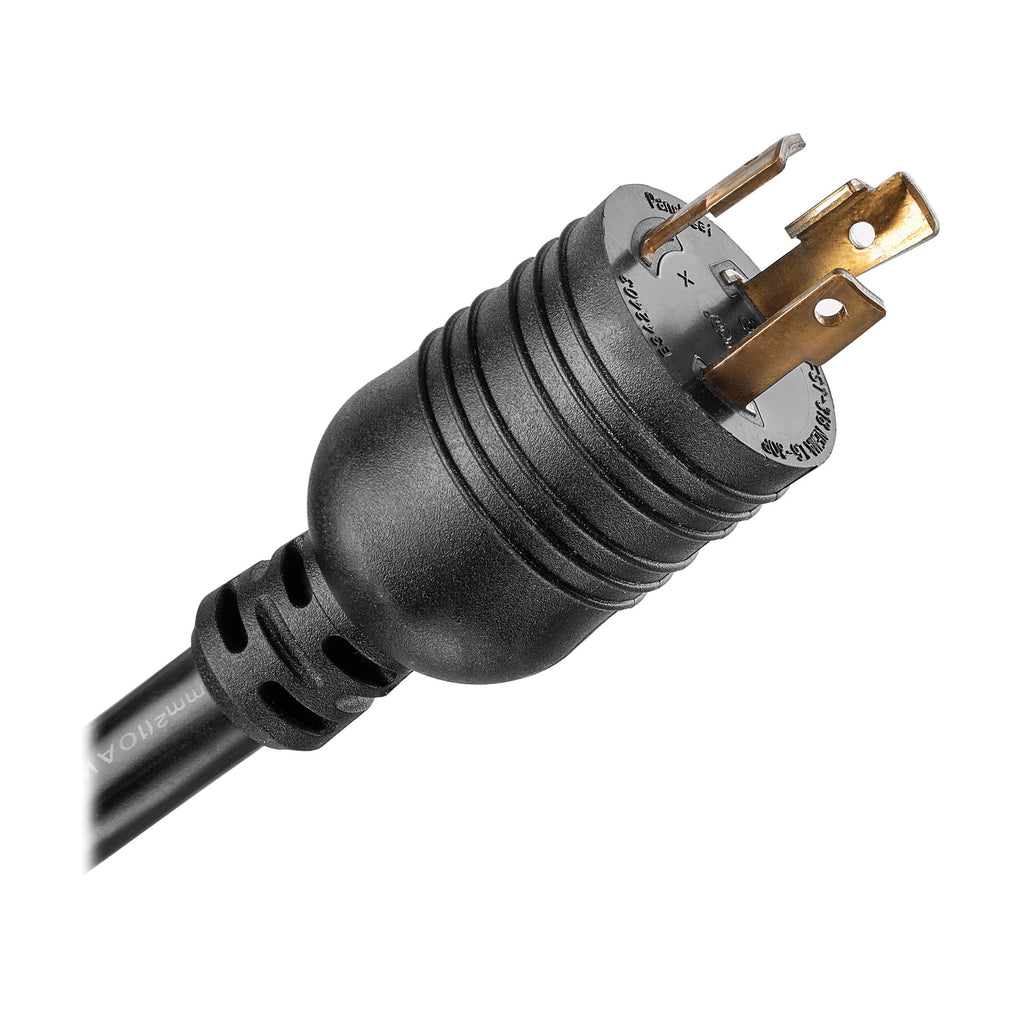

| Input Connection | NEMA L6-30P or Hardwired |
| Input Cord Length | 10 ft (3.1 m) |
| Output Voltage | 200V / 208V / 220V / 230V / 240V / 250V AC |

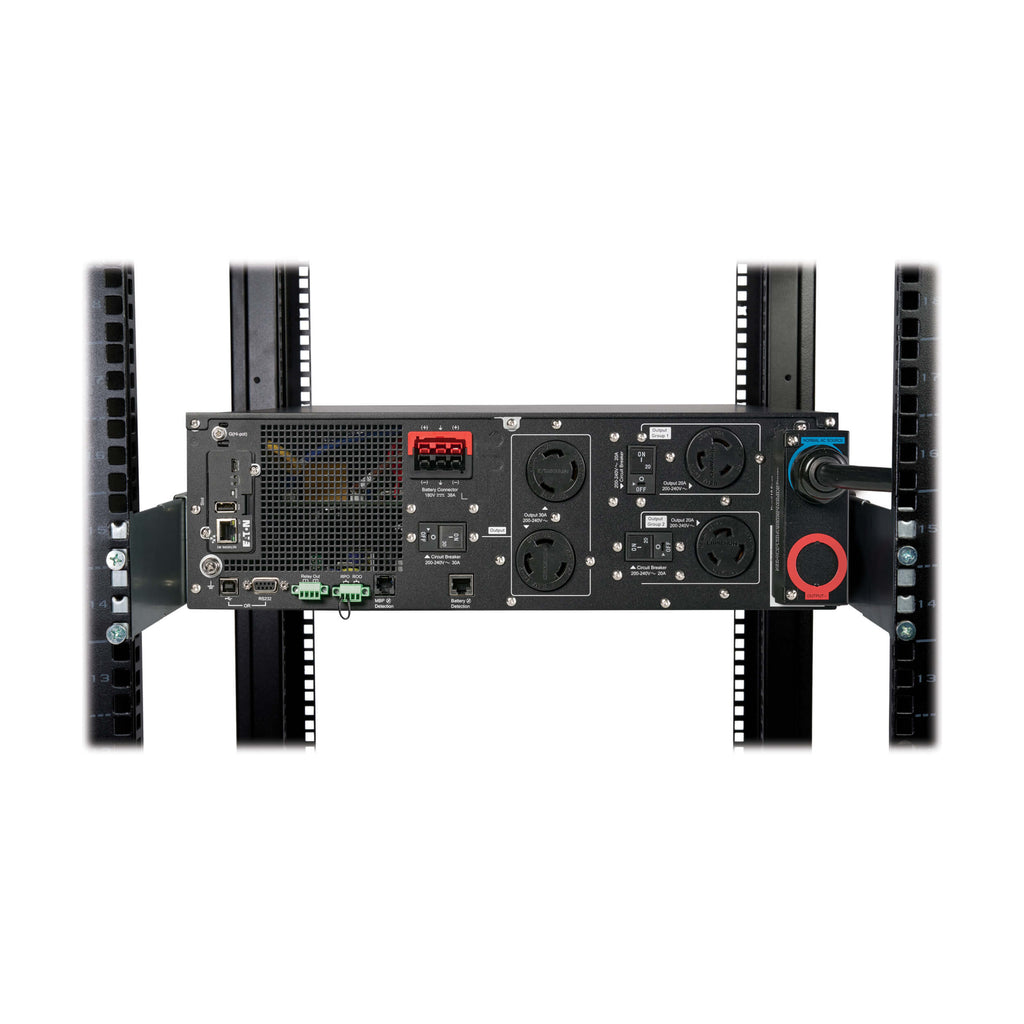

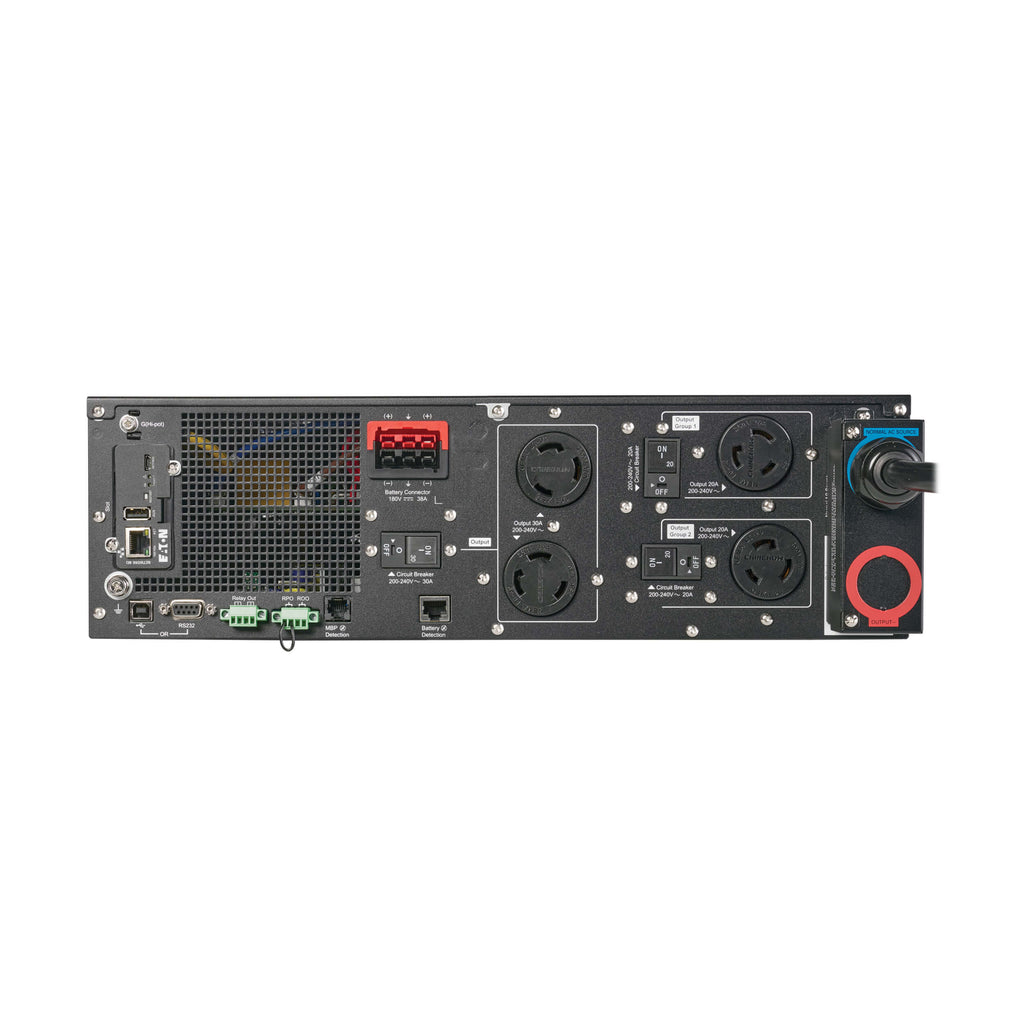

| Output Connections | (2) L6-20R, (2) L6-30R, Hardwired |
| Output Waveform | Pure Sine Wave |
| Efficiency | Up to 98.3% (Economy Mode) |
| Battery Type | VRLA, Hot-swappable, User-replaceable |
| Runtime (Full Load) | 7.5 minutes (3000W) |
| Runtime (Half Load) | 18.5 minutes (1500W) |
| Battery Expansion | Supports up to 12 × 9PXEBM180RTG2 modules |
| Recharge Time | <3 hours to 90% capacity |
| Battery Management | ABM+ technology with predictive analytics |
| Network Interface | NETWORK-M3 Gigabit card (pre-installed) |
| Communications | USB, RS-232 |
| Display | High-visibility LCD with rotatable interface |
| Cooling Method | Fan-cooled |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 0–95% non-condensing |
| Noise Suppression | EMI / RFI filtering |
| Compliance | ENERGY STAR, CE, FCC Class A, RoHS, NOM, cUL, EN 62040-2 |
| Dimensions (H × W × D) | 5.1 × 17.3 × 27.0 in (130 × 440 × 686 mm) |
| Weight | 98.3 lb (44.6 kg) |
| Warranty | 3-year limited warranty |
| Extended Battery Module | 9PXEBM180RTG2 (sold separately) |
