Description
The Eaton 9PX5KP1G2 9PX G2 UPS delivers advanced, energy-efficient power protection for mission-critical IT and edge network environments. Offering 5000VA/5000W of pure sine wave output, this online double-conversion UPS ensures continuous, clean power to sensitive equipment during blackouts, brownouts, and voltage fluctuations.
With unity power factor efficiency, ENERGY STAR® qualification, and advanced ABM+ battery management, the 9PX5KP1G2 maximizes performance while minimizing energy and maintenance costs. It includes the NETWORK-M3 cybersecure Gigabit network card for 24/7 remote management and the 9PXPPDM1G2 PowerPass Distribution Module, enabling step-down voltage and maintenance bypass capability.
Designed for flexible installation, it can be rack-mounted (6U) or used as a tower and supports up to 12 extended battery modules (9PXEBM180RTG2) for prolonged runtime. Its intuitive color LCD display and rotatable interface make monitoring and operation easy, even in complex network setups.
| Category | Details |
|---|---|
| Model Number | 9PX5KP1G2 |
| Type | On-Line Double-Conversion UPS |
| Form Factor | Rackmount / Tower (6U) |
| Power Capacity | 5000 VA / 5000 W |
| Power Factor | 1.0 (Unity) |
| Input Voltage | 200V / 208V / 220V / 230V / 240V AC |

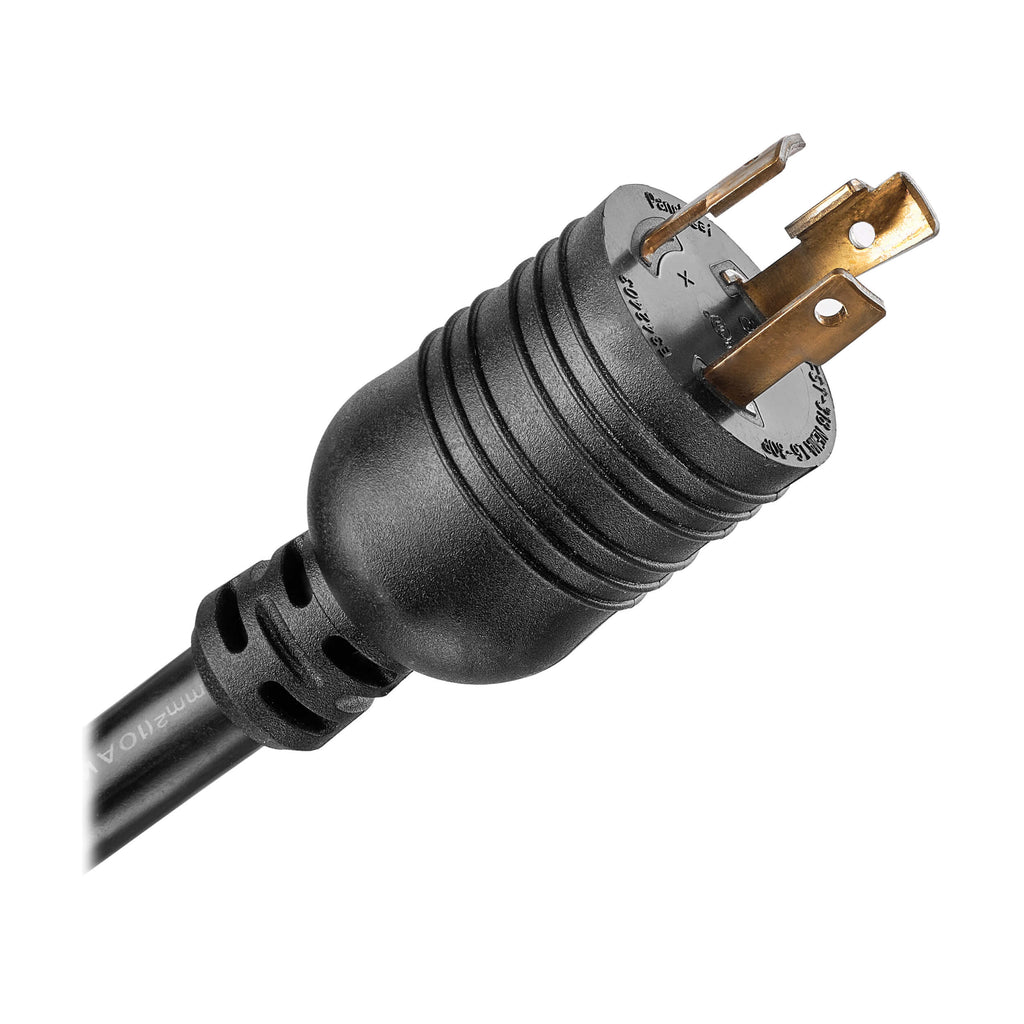

| Input Plug Type | NEMA L6-30P |
| Input Cord Length | 6.5 ft (2.0 m) |
| Output Voltage | 100V–240V selectable |
| Output Receptacles | (6) 5-20R, (1) L6-30R, (1) L14-30R |
| Output Waveform | Pure Sine Wave |
| Frequency Compatibility | 50/60 Hz |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Runtime (Full Load) | 3.5 min @ 5000W |
| Runtime (Half Load) | 9.4 min @ 2500W |
| Expandable Runtime | Up to 12 EBMs (Model: 9PXEBM180RTG2) |
| Battery Recharge Time | <3 hours to 90% |
| Battery Management | ABM+ Predictive Battery Analytics, 3-Stage Charging |
| User Interface | Rotatable Color LCD Display, LED Status Bar |
| Network Management | NETWORK-M3 Gigabit Card (UL 2900-1, IEC 62443-4-2 compliant) |
| Communications | RS-232, USB, Network Card |
| Cooling | Fan-Cooled |
| Efficiency (Online Mode) | 96.3% |
| Efficiency (Eco Mode) | 98.9% |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 0–95% non-condensing |
| Noise Suppression | EMI/RFI Protection, 0 ms Response Time |
| Dimensions (H × W × D) | 10.2 × 17.3 × 27.0 in |
| Weight | 203 lb (92.08 kg) |
| Certifications | ENERGY STAR, CE, FCC Part 15 Class A, cUL, NOM, RoHS |
| Warranty | 3-Year Limited Warranty |
| Included Accessories | NETWORK-M3 Card, PowerPass Distribution Module (9PXPPDM1G2), USB/RS-232 Cables, Rack/Tower Mounting Kit, Quick Start Guide |
