Description
The Eaton 9PXG2 5000VA Online Double-Conversion UPS delivers enterprise-grade power protection for critical IT infrastructure, edge environments, and network closets. Designed for maximum uptime and efficiency, this 5kVA/5kW system provides continuous, clean sine wave power with zero transfer time, ensuring uninterrupted operation for sensitive equipment.
With a unity power factor (1.0), the 9PXG2 maximizes usable capacity, allowing you to support more equipment without oversizing. Its flexible input options (L6-30P or hardwired) and versatile output configuration make it ideal for diverse deployment scenarios. The included Gigabit Network Card enables secure remote monitoring and management through Eaton’s Brightlayer platform.
Advanced ABM+ battery management extends battery life and predicts replacement needs based on real usage, reducing maintenance costs and downtime. Hot-swappable batteries and scalable extended battery modules (EBMs) ensure continuous uptime and easy serviceability. Built for both rack and tower installations, the 6U form factor provides deployment flexibility for modern data centers and distributed IT environments.
| Category | Specification |
|---|---|
| Product Type | Online Double-Conversion UPS |
| VA Rating | 5000 VA |
| Wattage | 5000 W |
| Topology | Double-conversion (online) |
| Output Voltage | 120/240V |
| Output Waveform | Pure sine wave |
| Output Power Factor | 1.0 |
| Output Voltage Regulation | ±1% steady-state |
| Output Frequency | 50/60 Hz |
| Input Voltage | 200/208/220/230/240V (208V default) |

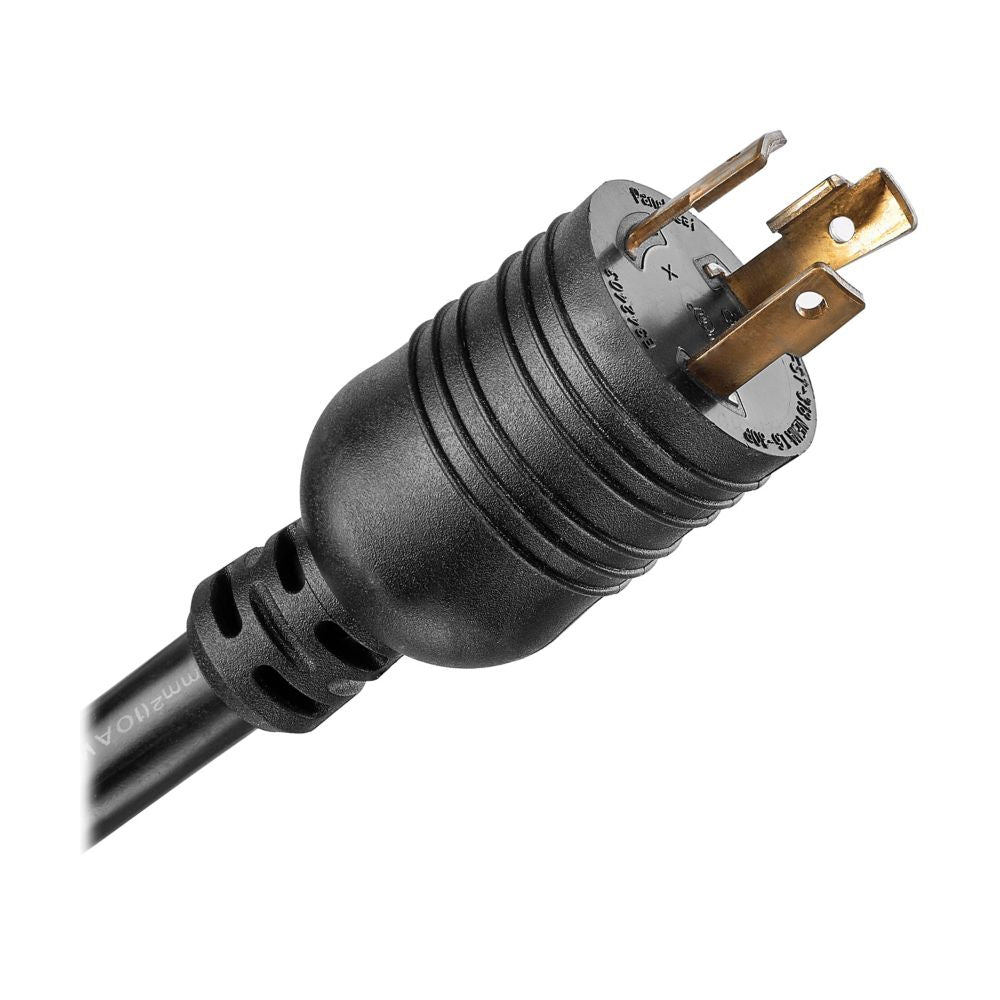

| Input Connection | L6-30P or hardwired |
| Input Frequency Range | 40–70 Hz |
| Input Power Factor | >0.99 |

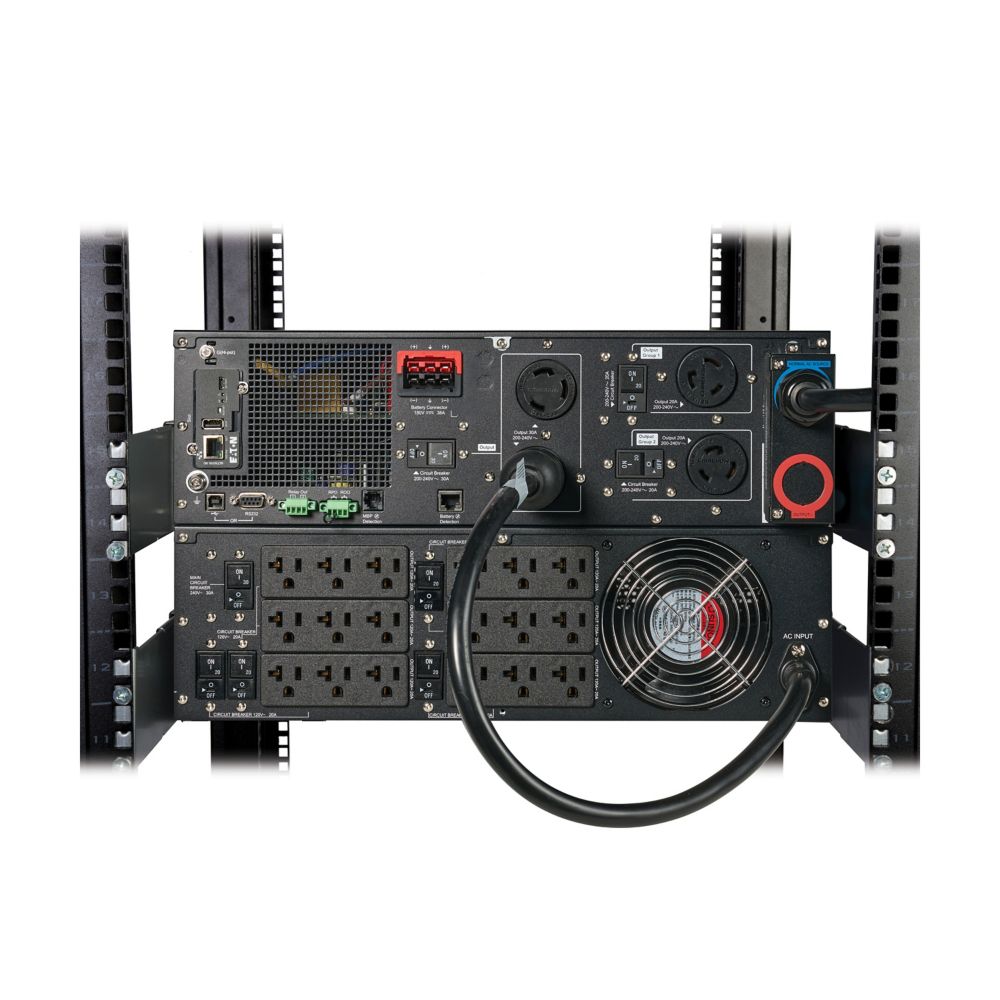

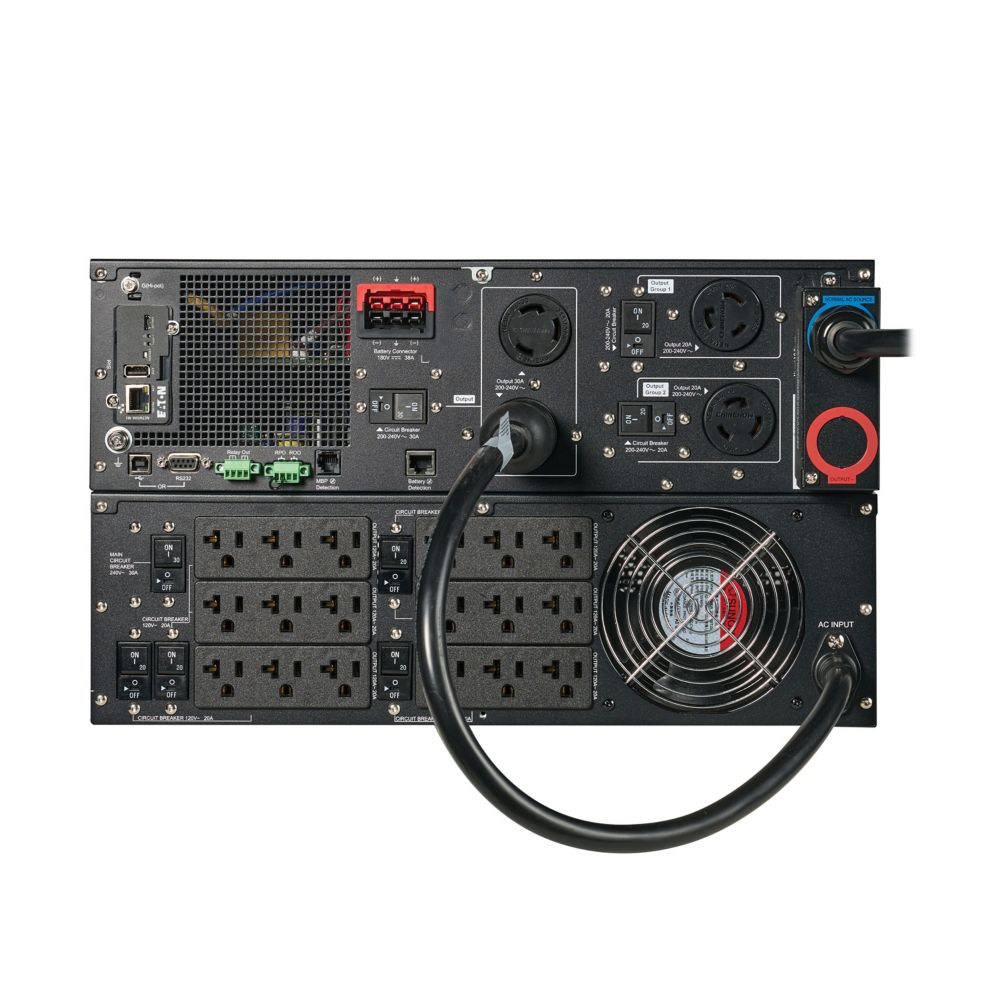

| Receptacles | (18) 5-20R, (2) L6-20R, (1) L6-30R, hardwired output |
| Battery Type | Sealed lead-acid |
| Battery Management | ABM+ predictive battery technology |

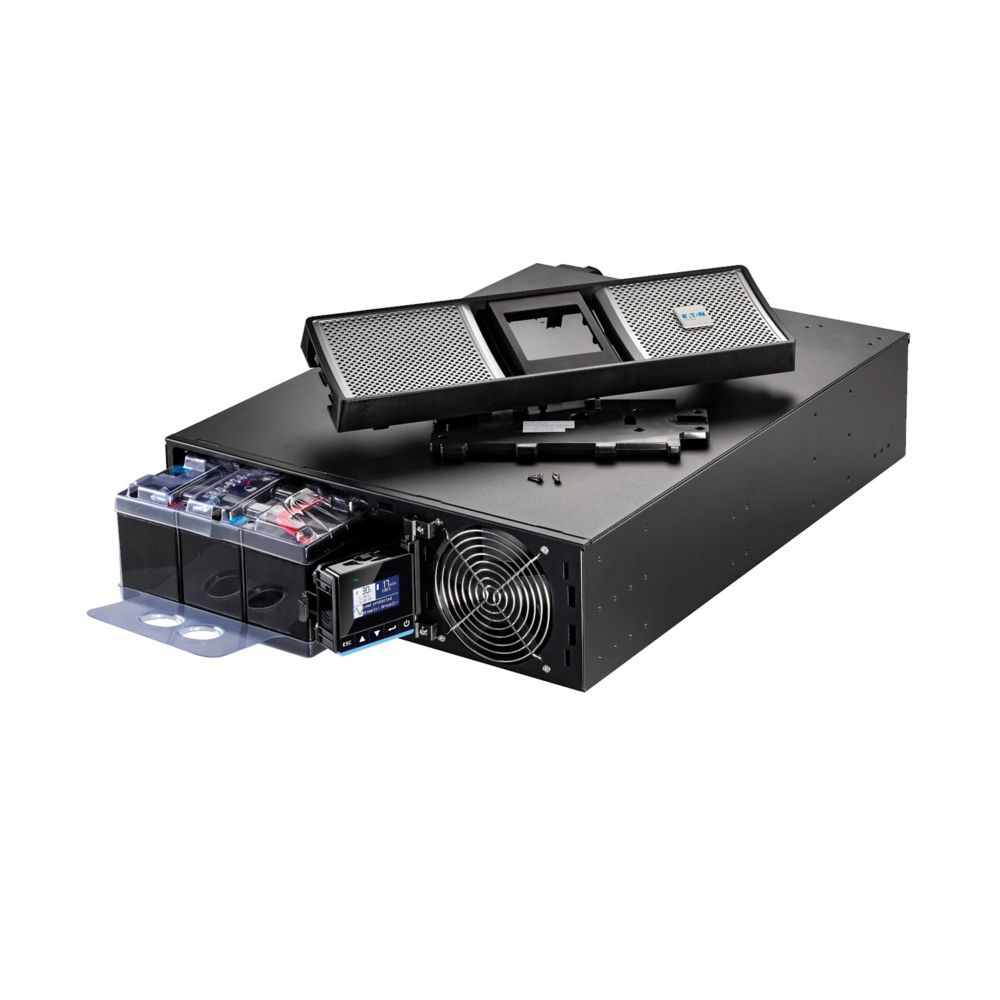

| Battery Replacement | Hot-swappable; supports EBMs |
| Extended Battery Modules | Up to 12 (9PXEBM180RTG2) |
| Replacement Battery | EBP-1805 |
| Network Management | Gigabit Network Card (NETWORK-M3) included |
| Communication Ports | USB, RS-232, Ethernet |

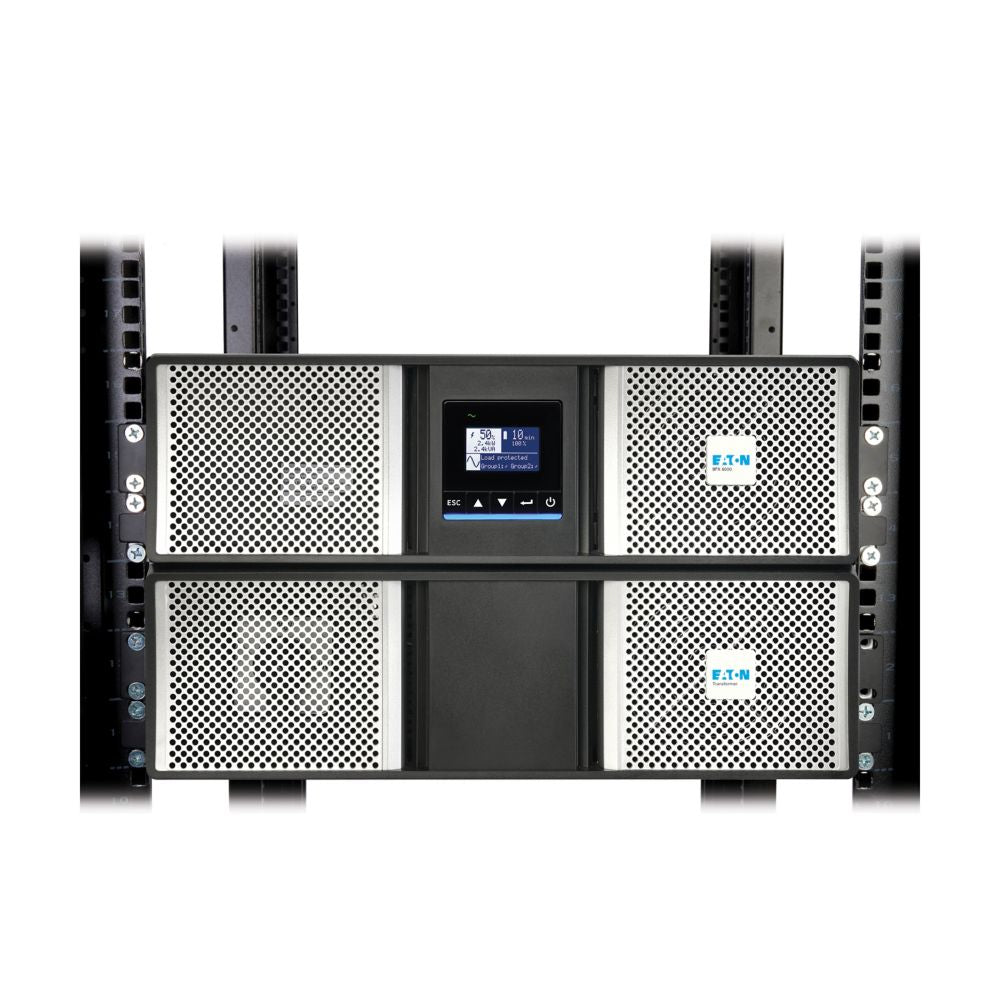

| User Interface | Graphical LCD display with programmable menu |
| Software Compatibility | Eaton Brightlayer Data Centers suite |
| Efficiency | Up to 96% |
| Surge Protection | Included |
| Internal Bypass | Yes |
| Noise Level | <43 dB at 1 meter |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 0–95% non-condensing |
| Altitude | Up to 3000 m |
| BTU Rating | 655 BTU/hr (online), 190 BTU/hr (high efficiency) |

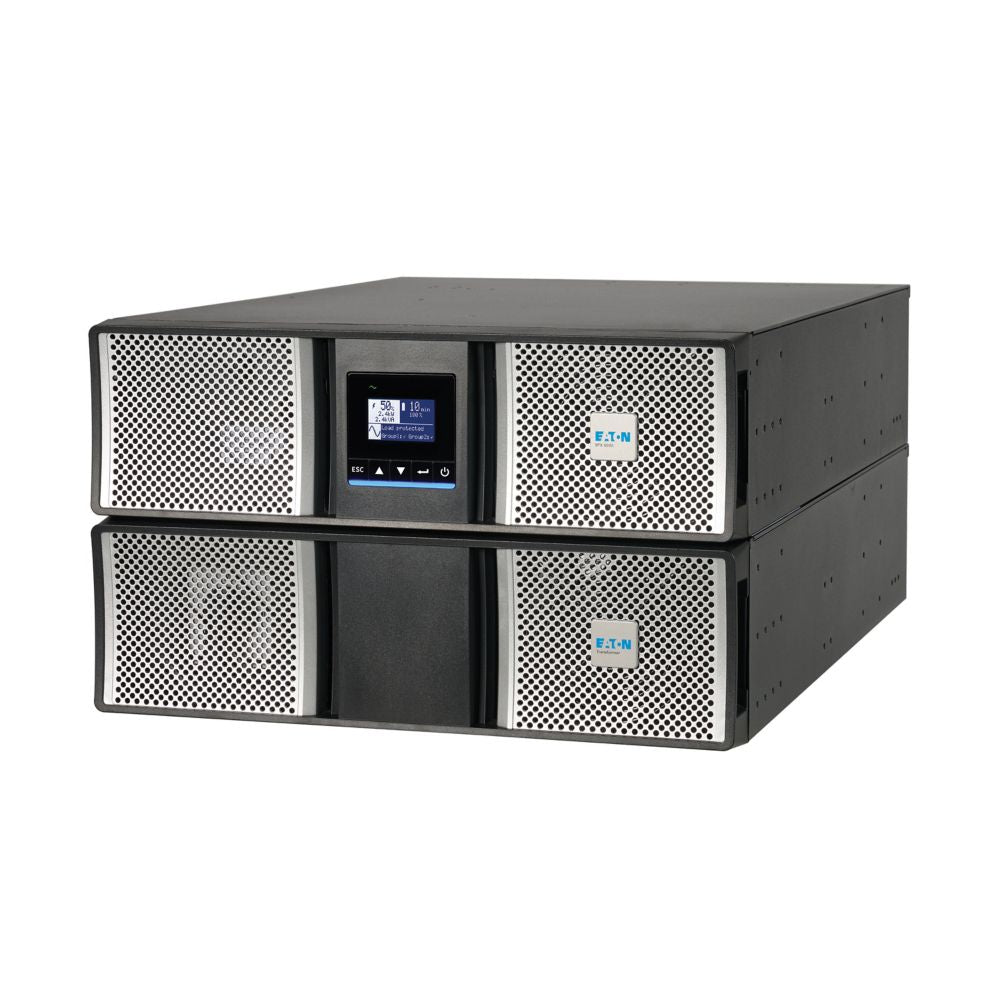

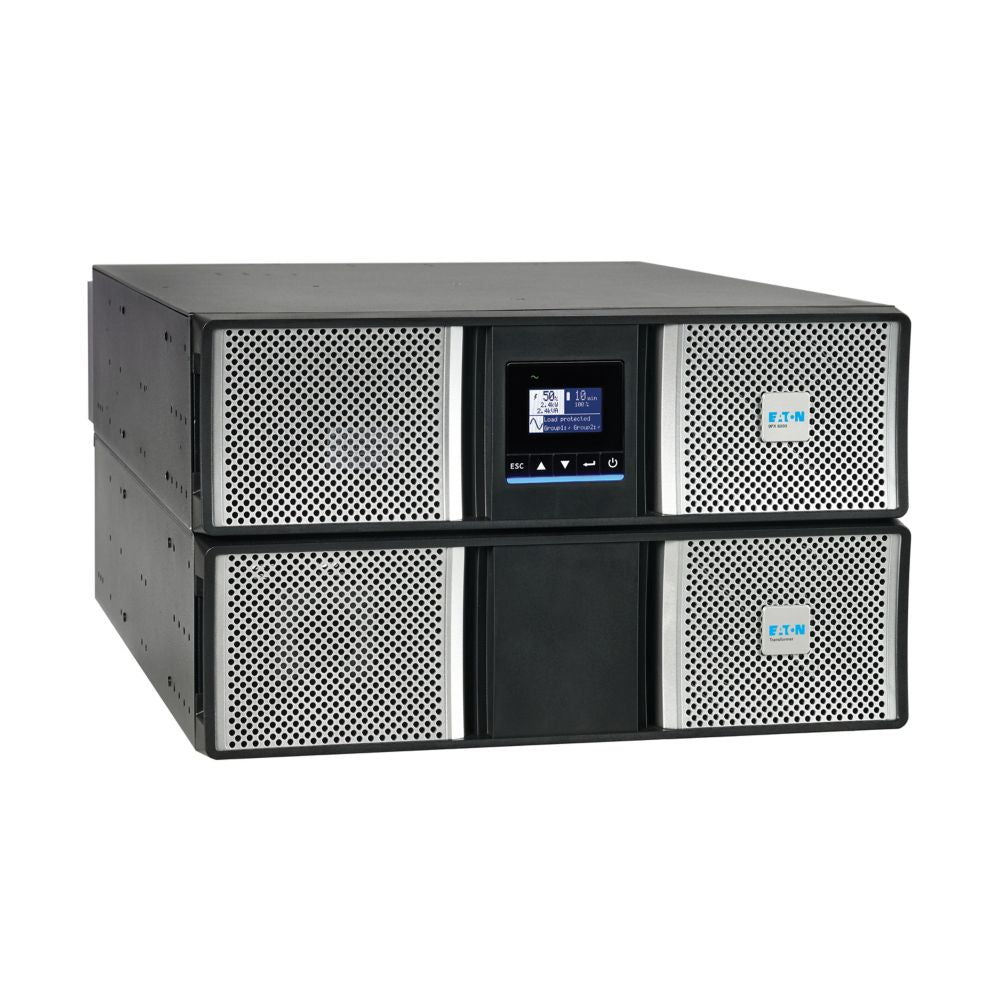

| Form Factor | Rack/Tower convertible |
| Rack Size | 6U |
| Dimensions (H x W x D) | 10.2 x 17.3 x 27 in |
| Weight | 203 lb |
| Included Accessories | Step-down transformer, network card, cables, rack kit, tower stands |
| Certifications | cULus Listed, NOM, IEC 62040-2:2006 Cat C2 |
| Compliance | FCC Part 15, CISPR22 Class A, CE Marked |
| Energy Efficiency | ENERGY STAR certified |
| Warranty | 3-year factory warranty (parts, electronics, batteries) |
