Description
The Eaton 9PX5KG2 delivers powerful, efficient, and secure backup power for mission-critical IT and edge network applications. With 5kVA/5kW of pure sine-wave output and online double-conversion technology, it ensures maximum uptime and clean, stable power for servers, PoE switches, and advanced IT infrastructure. Featuring ABM+ battery management, it extends battery life by up to 50% while offering predictive replacement analytics to reduce downtime and cost.
A pre-installed NETWORK-M3 Gigabit network card enables full remote management and cybersecurity compliance (UL 2900-1, IEC 62443-4-2), allowing safe firmware updates and intelligent system monitoring without downtime. With ENERGY STAR® efficiency up to 98.9%, the 9PX5KG2 minimizes energy costs and carbon footprint. Compatible with Brightlayer™ software, it supports virtualization, HCI, and AI workloads.

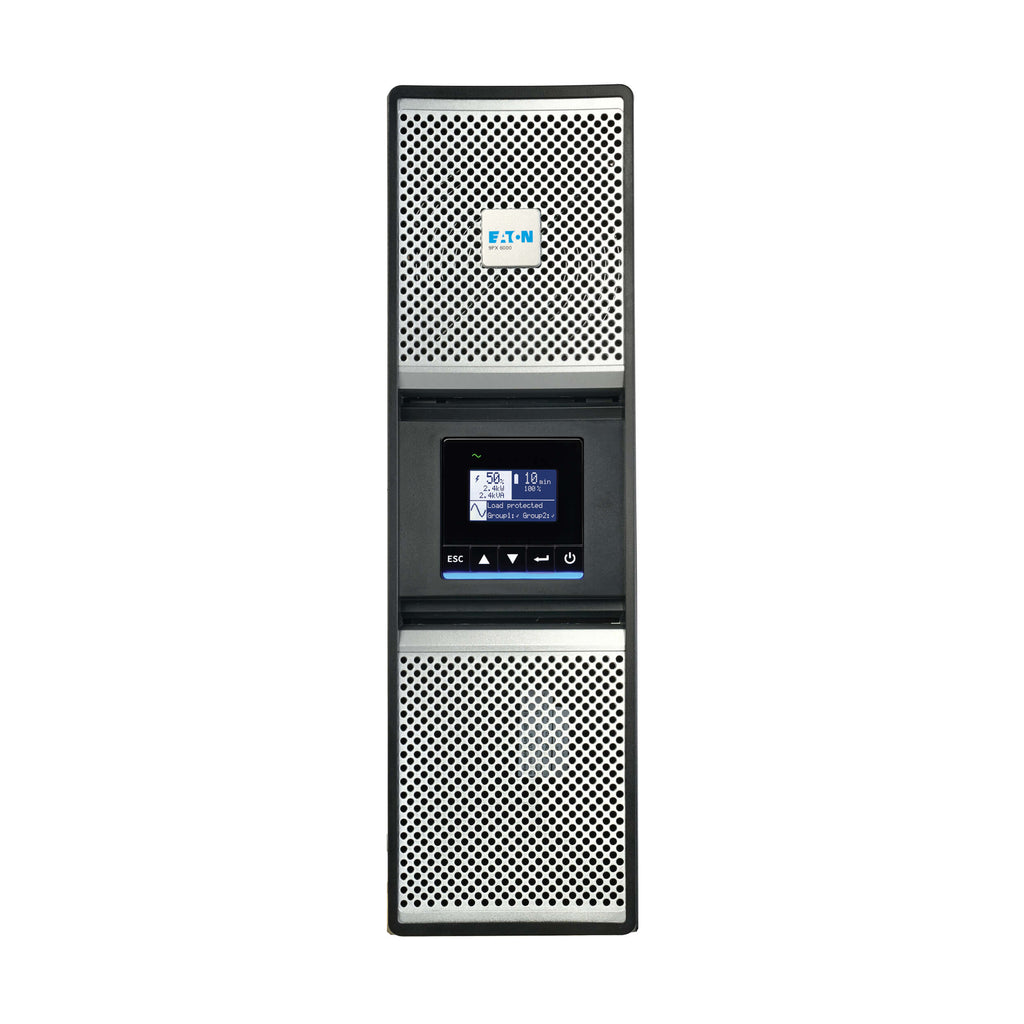

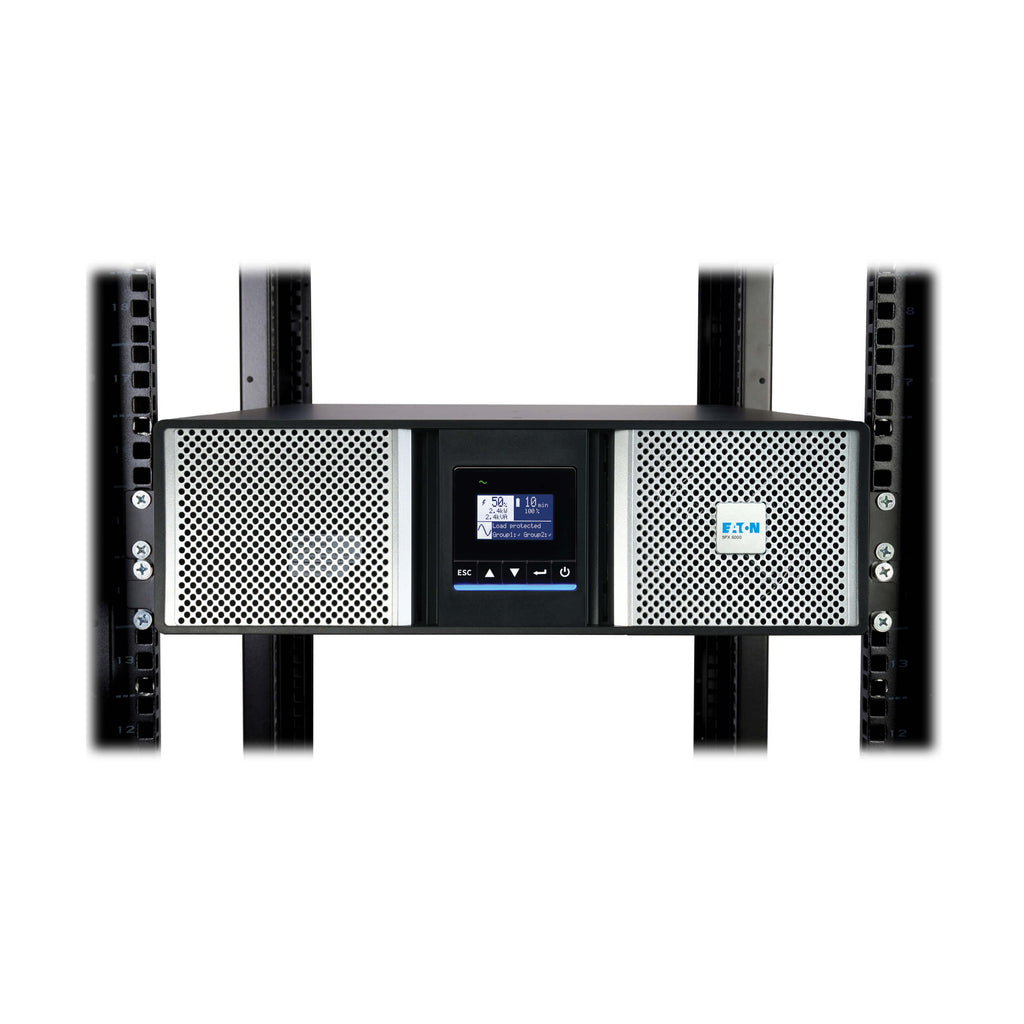

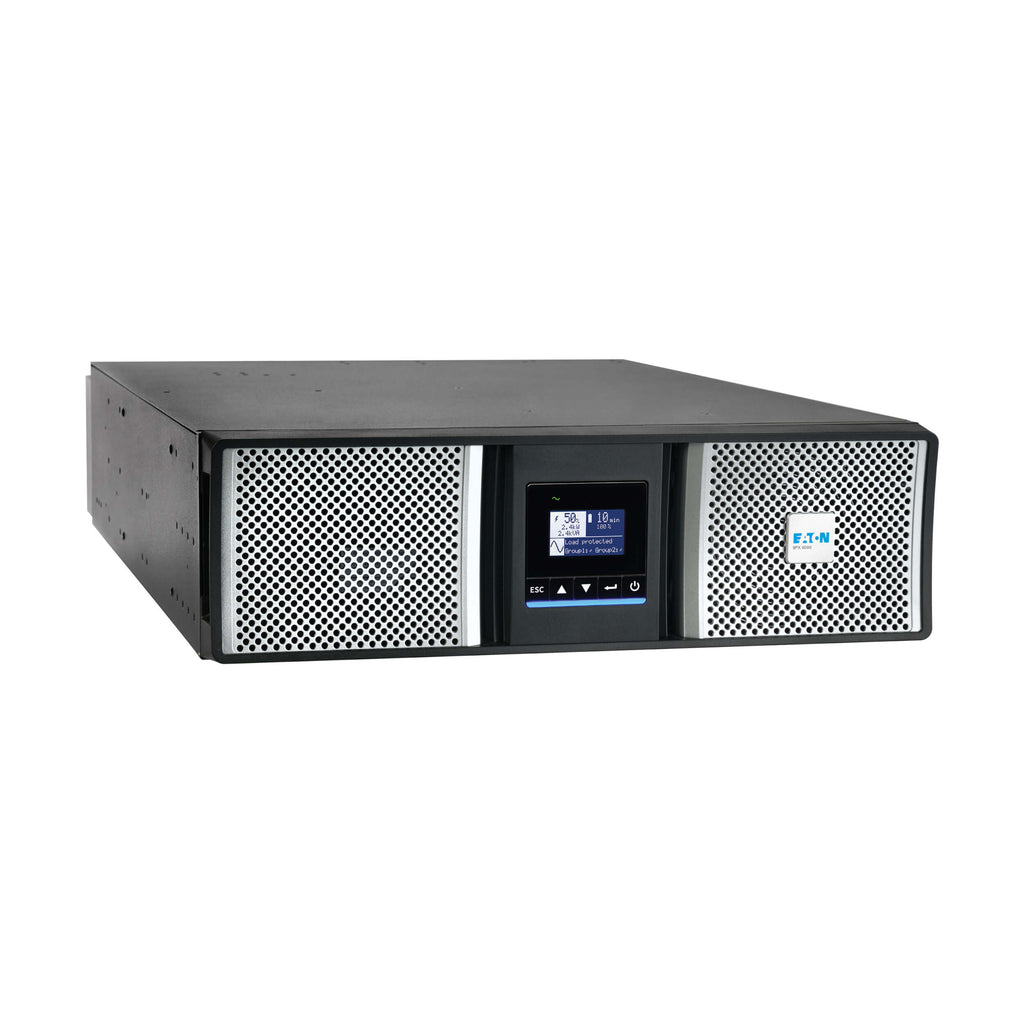

Designed for versatile deployment, this 3U rack/tower UPS features hot-swappable batteries, an intuitive color LCD interface, and expandable runtime via up to 12 external battery modules (9PXEBM180RTG2).
| Category | Details |
|---|---|
| Model Number | 9PX5KG2 |
| Topology | Online Double-Conversion |
| Power Capacity | 5000 VA / 5000 W |
| Input Voltage | 200V / 208V / 220V / 230V / 240V AC |

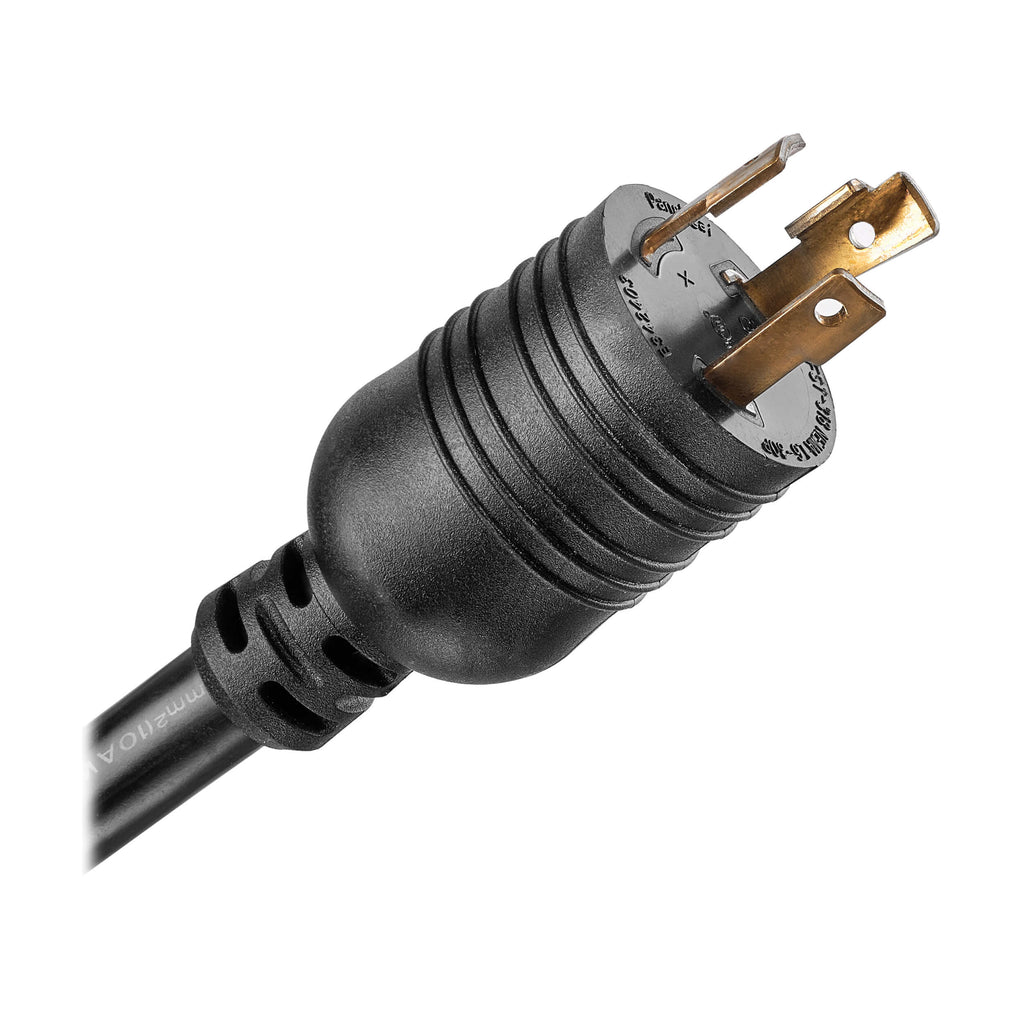

| Input Connection | NEMA L6-30P or Hardwired |
| Output Voltage | 200V / 208V / 220V / 230V / 240V / 250V |

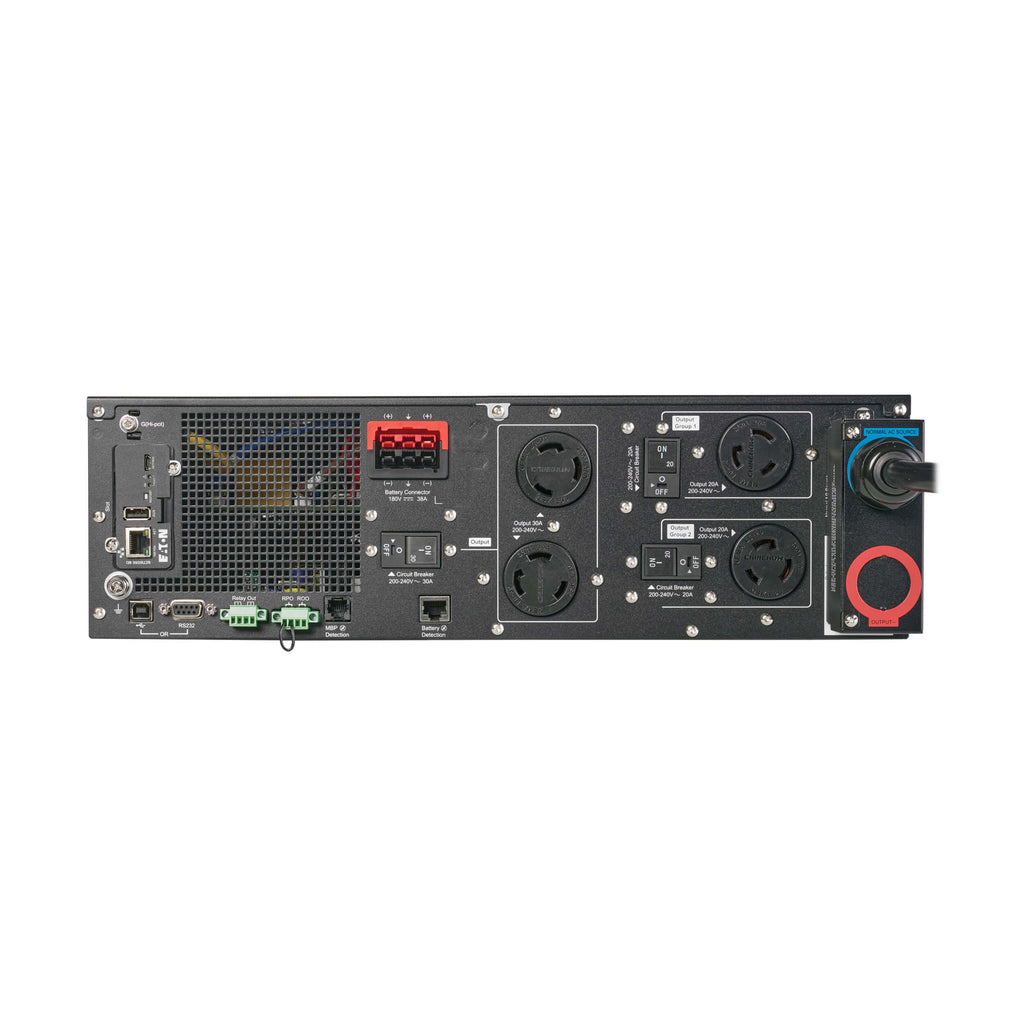

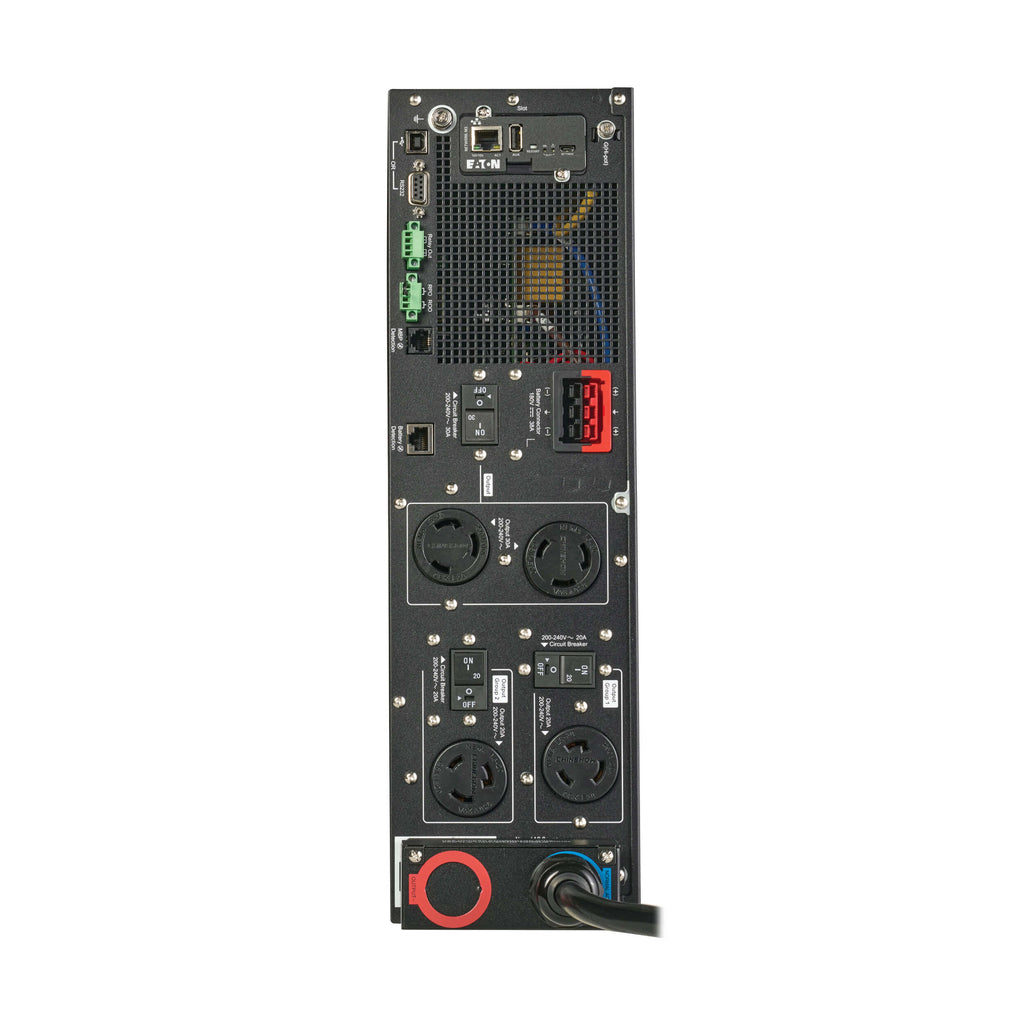

| Output Receptacles | (2) L6-20R, (2) L6-30R, Hardwired |
| Power Factor | 1.0 (Unity) |
| Frequency | 50 / 60 Hz |
| Waveform | Pure Sine Wave |
| Efficiency | 96.3% (Online), 98.9% (Economy Mode) |
| Battery Type | Valve-Regulated Lead Acid (VRLA), Hot-Swappable |
| Runtime | 3.5 min (Full Load), 9.4 min (Half Load) |
| Expandable Runtime | Up to 12 Extended Battery Modules (9PXEBM180RTG2) |
| Recharge Time | 90% in <3 hours |
| Battery Management | ABM+ Predictive Battery Replacement Analytics |

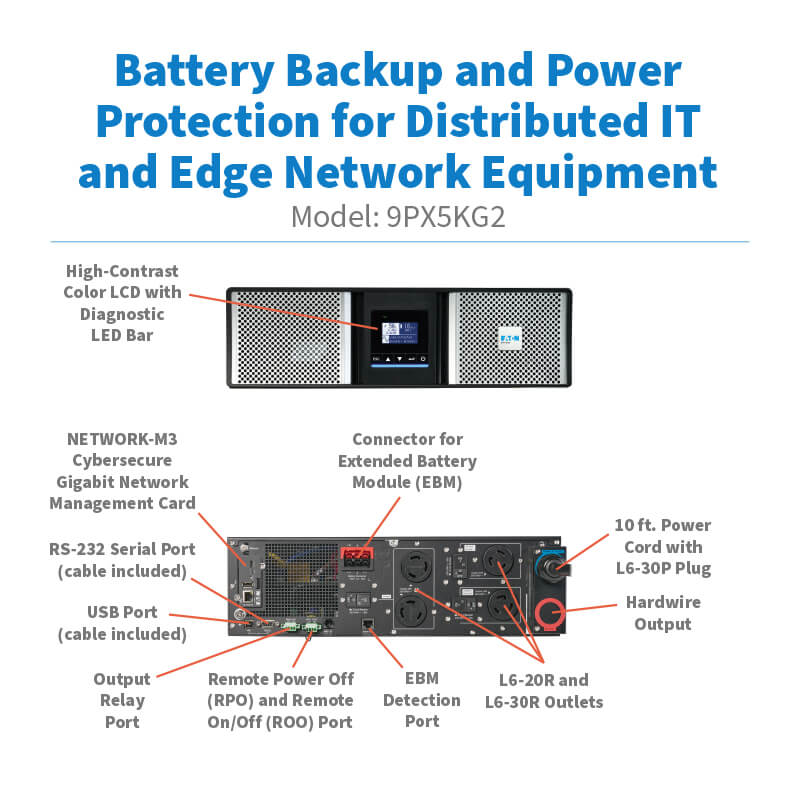

| Communications | Pre-installed NETWORK-M3 Card, RS-232, USB |
| Display | Rotatable Color LCD with LED Status Bar |
| Mounting Options | 3U Rackmount / Tower (4-Post, 19-in Rack; Tower Stands Included) |
| Dimensions (H×W×D) | 5.1 × 17.3 × 27 in (130 × 440 × 686 mm) |
| Weight | 98.3 lb (44.6 kg) |
| Certifications | ENERGY STAR®, CE, FCC Class A, RoHS, NOM, cUL, EN 62040-2 |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Warranty | 3-Year Limited Warranty |
| Software Support | Eaton Brightlayer™ Intelligent Power Manager |
