Description
The Eaton 9PXG2 6000VA UPS (9PX6KP1G2) delivers enterprise-grade power protection for critical IT, network, and edge infrastructure. Built with true online double-conversion topology, it ensures continuous, clean power with zero transfer time, protecting sensitive equipment from outages, surges, and power anomalies.
Designed for flexibility, this 6U rack/tower UPS supports both rack-mounted and tower deployments, making it ideal for data centers, server rooms, and distributed environments. It features a high-efficiency design of up to 96% at full load, reducing energy consumption and operating costs while maintaining optimal performance.
The integrated NETWORK-M3 Gigabit card enables secure remote monitoring and management through Eaton’s Brightlayer Data Centers suite, while the included PowerPass Distribution Module (PPDM) provides maintenance bypass capability for seamless servicing without downtime.
With Eaton’s ABM+ battery management technology, the UPS extends battery life and predicts replacement timing based on real-world conditions. Hot-swappable batteries and support for up to 12 extended battery modules ensure scalable runtime for evolving power requirements.
| Specification | Details |
|---|---|
| Product Type | Online Double-Conversion UPS |
| Capacity | 6000VA / 5400W |
| Input Voltage | 200–240V (208V default) |
| Output Voltage | 120/240V |

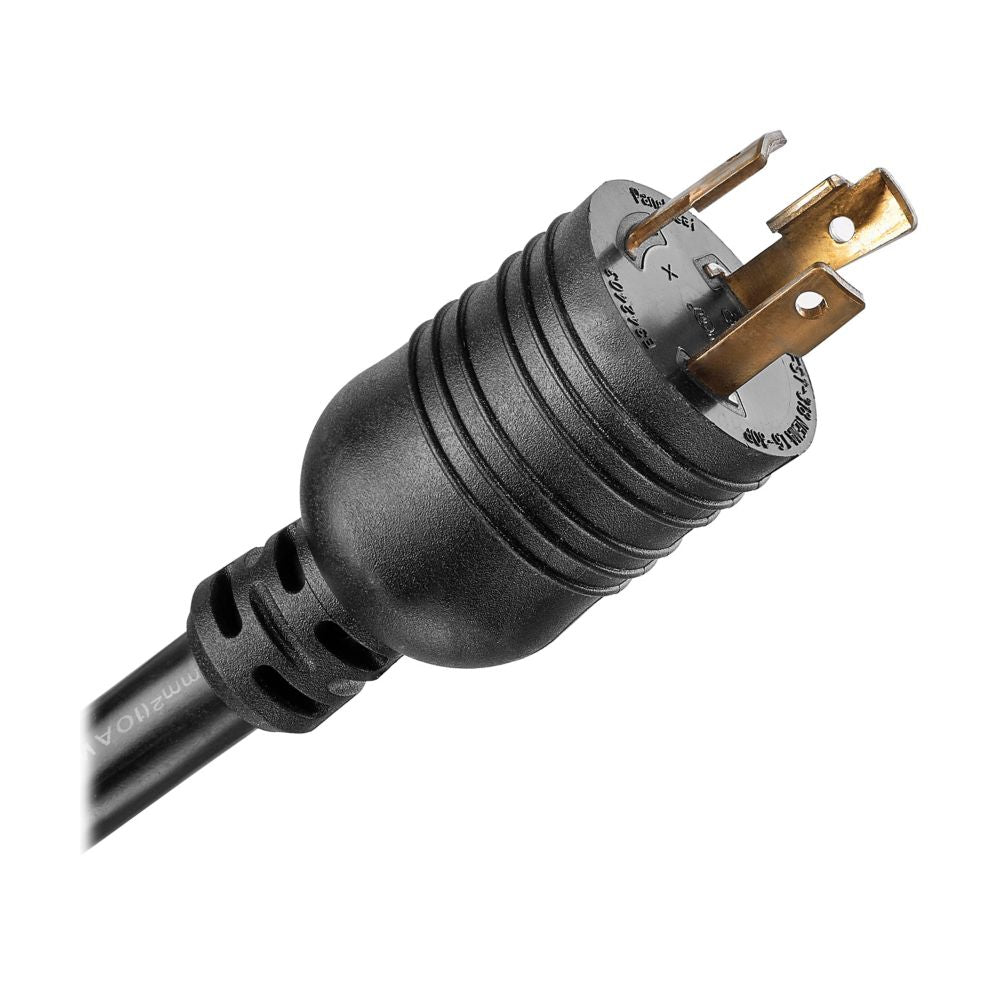

| Input Connection | L6-30P |
| Input Cord Length | 6.5 ft |

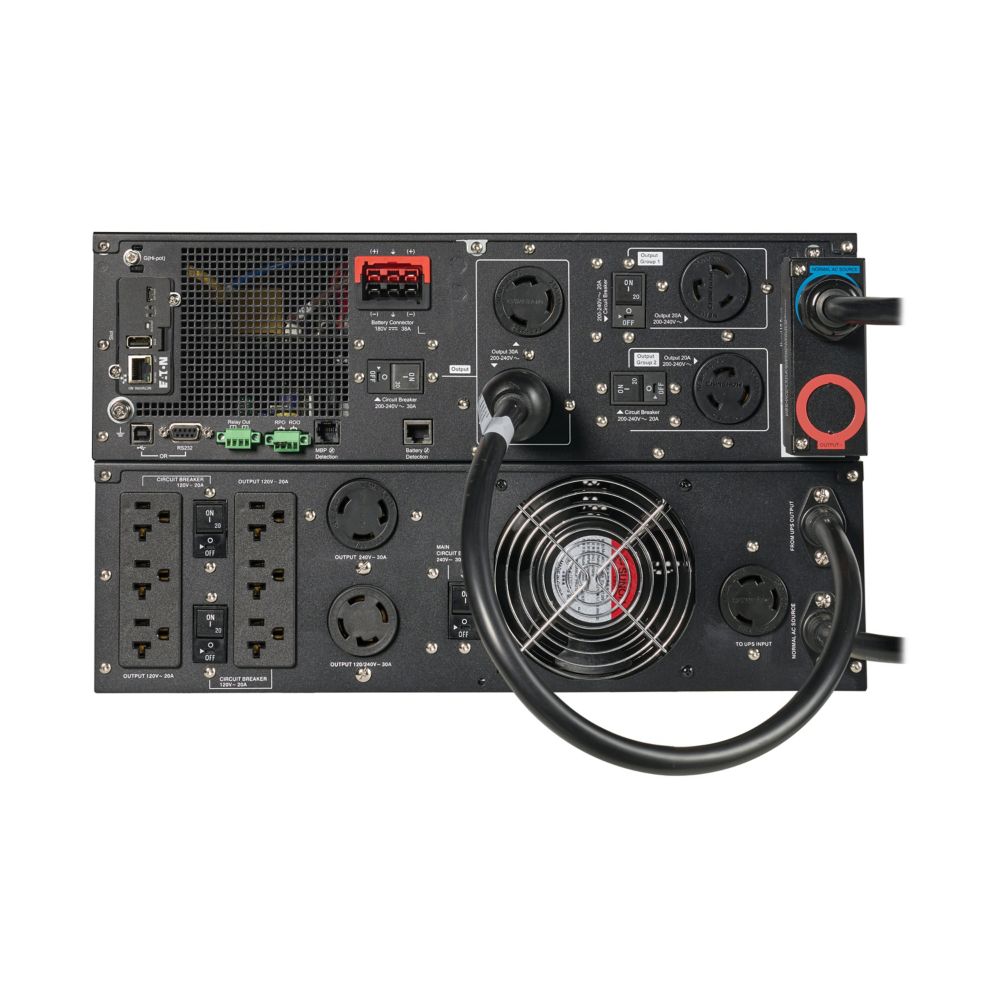

| Output Receptacles | 6x 5-20R, 1x L6-30R, 1x L14-30R |
| Topology | Online / Double-Conversion |
| Output Waveform | True Sine Wave |
| Output Frequency | 50/60 Hz |
| Output Voltage Regulation | ±1% steady-state |
| Output Power Factor | 0.9 |
| Efficiency | Up to 96% at full load |
| Battery Type | Sealed Lead-Acid |
| Battery Management | ABM+ predictive battery technology |

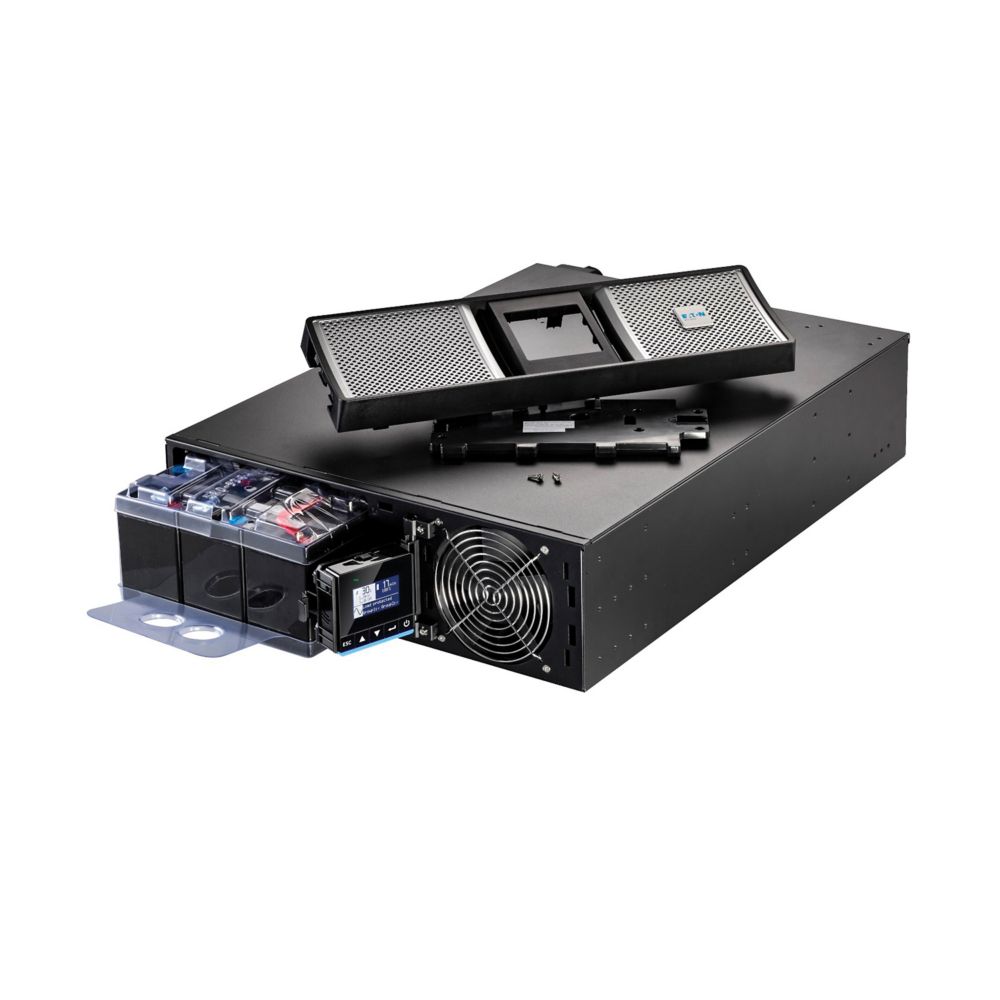

| Battery Replacement | Hot-swappable batteries |
| Extended Battery Support | Up to 12 EBMs (9PXEBM180RTG2) |
| Replacement Battery | EBP-1805 |
| Network Management | NETWORK-M3 Gigabit Network Card included |
| Communication Ports | Ethernet, USB, RS-232 |
| Software Compatibility | Brightlayer Data Centers suite |
| User Interface | LCD display with 5-button menu and LED indicators |
| Rack Size | 6U |
| Form Factor | Rack/Tower Convertible |
| Dimensions (L x W x H) | 27 x 17.3 x 10.2 in |
| Weight | 203 lb |
| Noise Level | <43 dB at 1 meter |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 0–95% non-condensing |
| Altitude | Up to 3000 m |
| BTU Rating | 767 BTU/hr (online), 1155 BTU/hr (battery), 205 BTU/hr (high efficiency) |
| Surge Protection | Yes |
| Internal Bypass | Yes |
| Maintenance Bypass | Included via PowerPass Distribution Module |
| Included Accessories | Network card, USB cable, RS-232 cable, rack kit, tower stands |
| Certifications | IEC 62040-2:2006 Cat C2, cULus Listed, NOM |
| Compliance | CE Marked, FCC Part 15, CISPR22 Class A |
| Energy Efficiency | ENERGY STAR certified |
| Warranty | 3-year factory warranty (parts, electronics, batteries) |
