Description
The Eaton 9PXG2 6000VA UPS (9PX6KTF5G2) delivers enterprise-grade power protection for critical IT, networking, and edge infrastructure. Built with online double-conversion topology, it provides continuous clean power with zero transfer time, ensuring uptime for sensitive equipment in data centers, server rooms, and distributed environments.
With a 5400W capacity and support for 200–240V input and 120/208V output, this UPS is engineered for flexible deployment. It supports both L6-30P plug and hardwired input configurations, along with a wide range of output receptacles for versatile load distribution. The included Gigabit Network Card enables secure remote monitoring and management, while Eaton’s ABM+ battery technology extends battery lifespan and delivers predictive replacement insights.
Designed for scalability and efficiency, the 9PXG2 supports up to 12 extended battery modules for longer runtime and achieves up to 96% efficiency at full load. Its rack/tower convertible form factor and integrated maintenance bypass make it ideal for mission-critical environments requiring reliability, flexibility, and advanced power management.
| Category | Specification |
|---|---|
| Manufacturer | Eaton |
| Product Series | 9PX G2 |
| Model | 9PX6KTF5G2 |
| UPS Topology | Online Double-Conversion |
| Power Capacity | 6000VA / 5400W |
| Output Voltage | 120/208V |
| Input Voltage | 200–240V (208V default) |

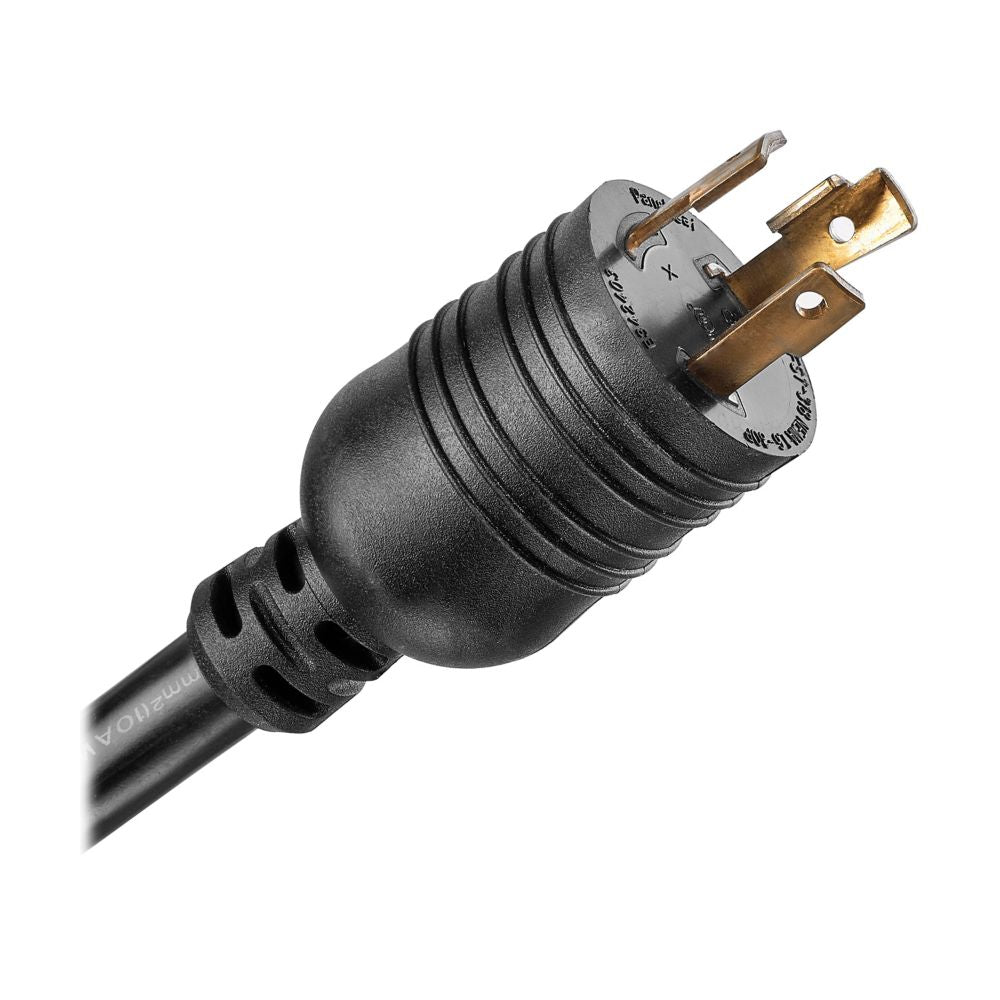

| Input Connection | L6-30P or Hardwired |

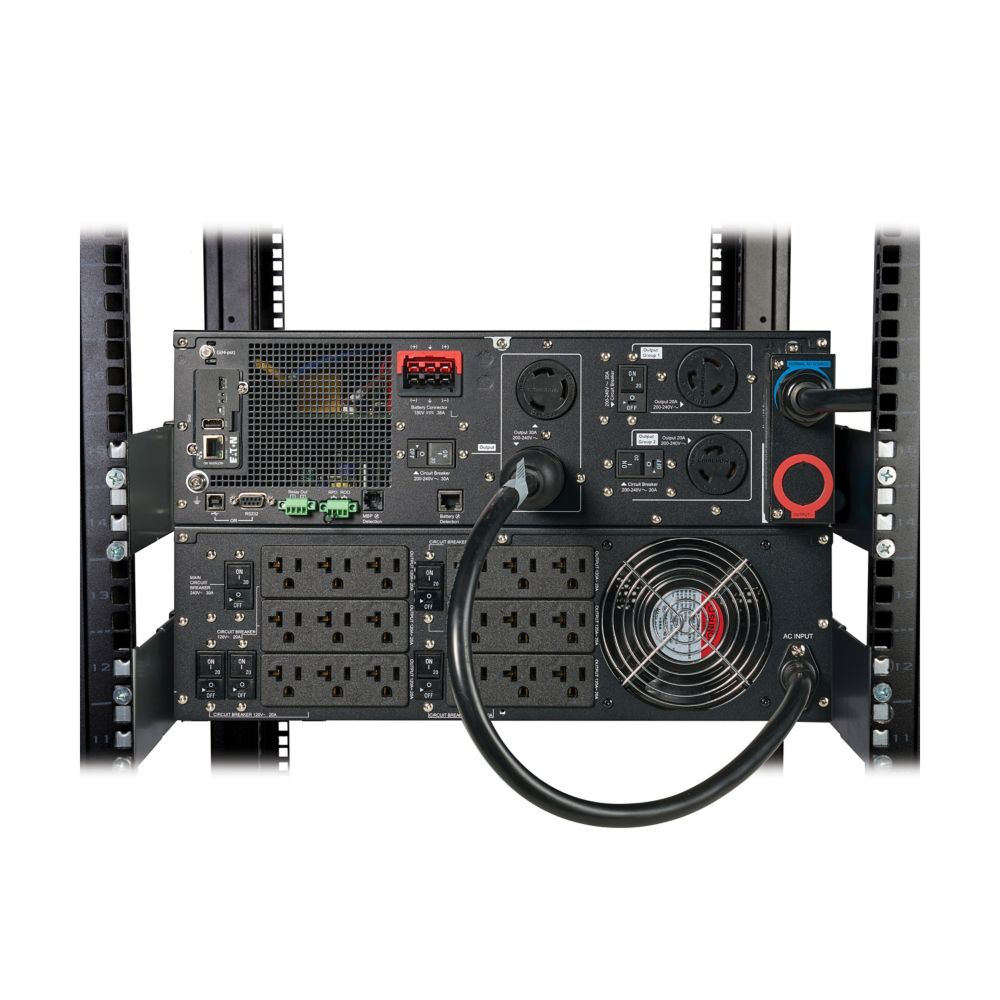

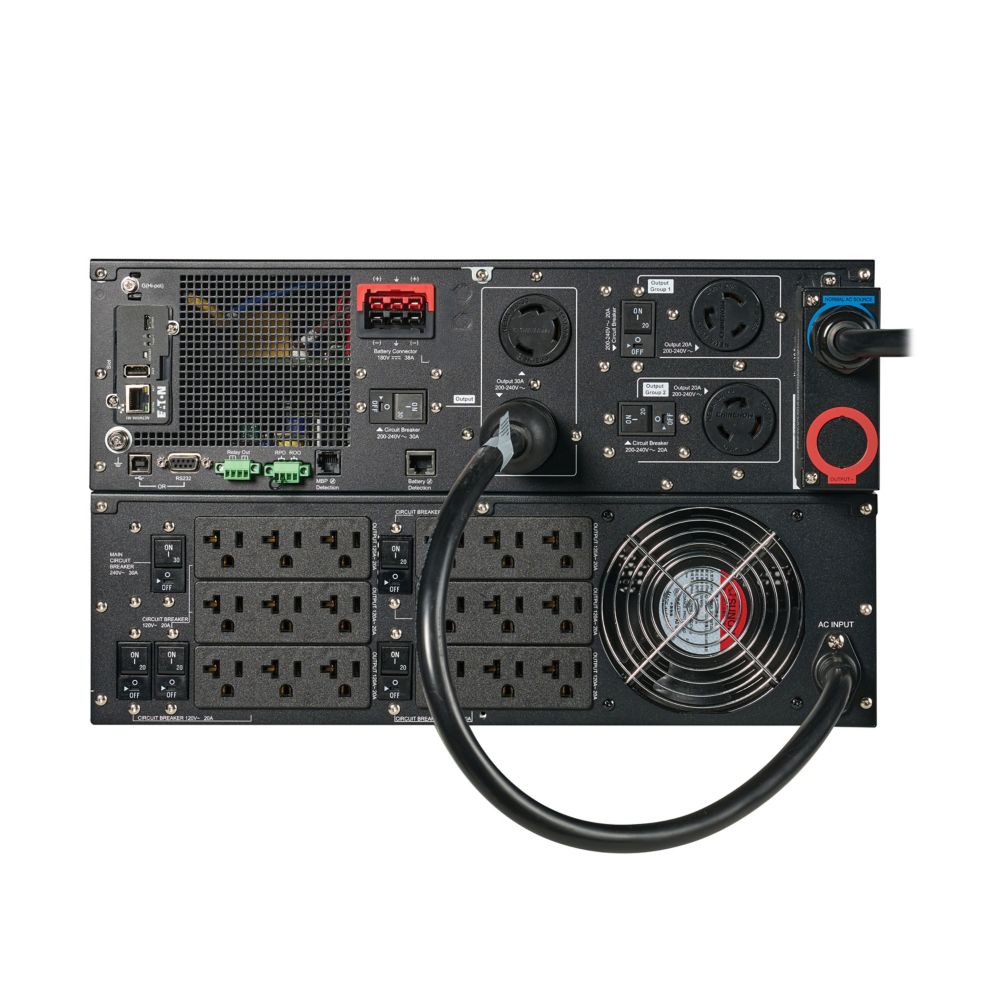

| Output Receptacles | 18x 5-20R, 2x L6-20R, 1x L6-30R, Hardwired Output |
| Output Waveform | True Sine Wave |
| Output Frequency | 50/60 Hz |
| Output Voltage Regulation | ±1% steady-state |
| Output Power Factor | Up to 1.0 (hardwired) |
| Input Power Factor | >0.99 typical |
| Efficiency | Up to 96% at full load |
| Battery Type | Sealed Lead-Acid |
| Battery Management | ABM+ predictive battery management technology |

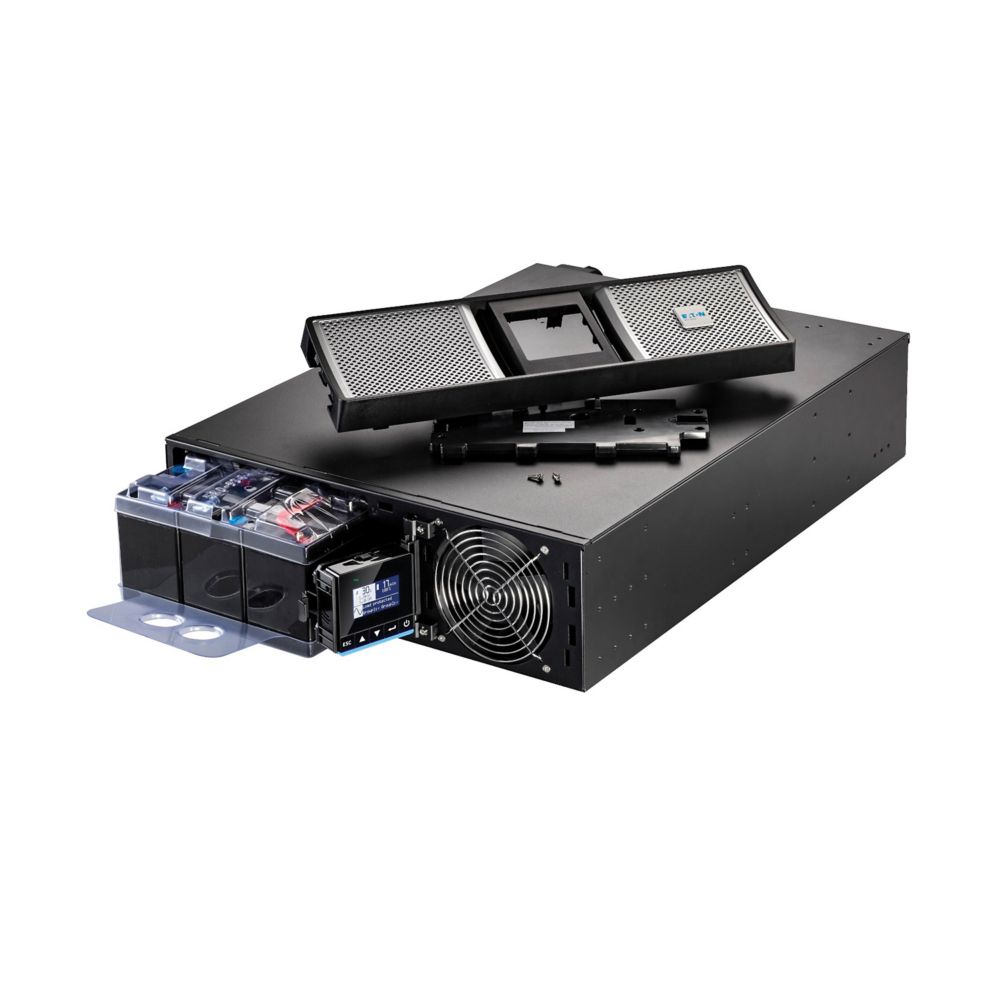

| Battery Replacement | Hot-swappable internal batteries |
| Extended Battery Support | Up to 12 EBMs (9PXEBM180RTG2) |
| Replacement Battery | EBP-1805 |
| Network Management | Gigabit Network Card (NETWORK-M3) included |
| Communication Ports | USB, RS-232, Ethernet |
| Expansion Slots | 1 Mini-Slot |
| Software Compatibility | Brightlayer Data Centers suite |
| User Interface | Graphical LCD display with LED indicators |
| Form Factor | Rack/Tower Convertible |
| Rack Size | 6U |
| Dimensions (L x W x H) | 27 x 17.3 x 10.2 inches |
| Weight | 203 lb |
| Noise Level | <43 dB at 1 meter |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 0–95% non-condensing |
| Altitude | Up to 3000 meters |
| BTU Rating | 767 BTU/hr (Online), 1155 BTU/hr (Battery), 205 BTU/hr (High Efficiency) |
| Surge Protection | Yes |
| Internal Bypass | Yes |
| Included Accessories | Transformer, Network Card, USB & RS-232 cables, mounting hardware, tower stands |
| Compliance | CISPR22 Class A, FCC Part 15, CE Marked |
| Certifications | cULus Listed, IEC 62040-2 Cat C2, NOM, ENERGY STAR |
| Warranty | 3-Year Factory Warranty (Parts, Electronics, Batteries) |
