Description

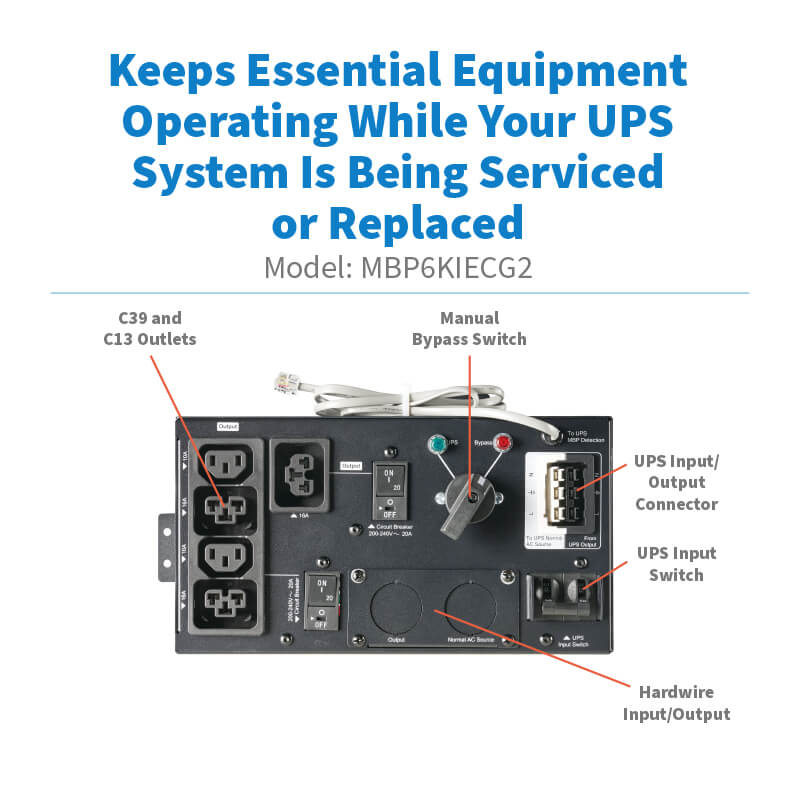

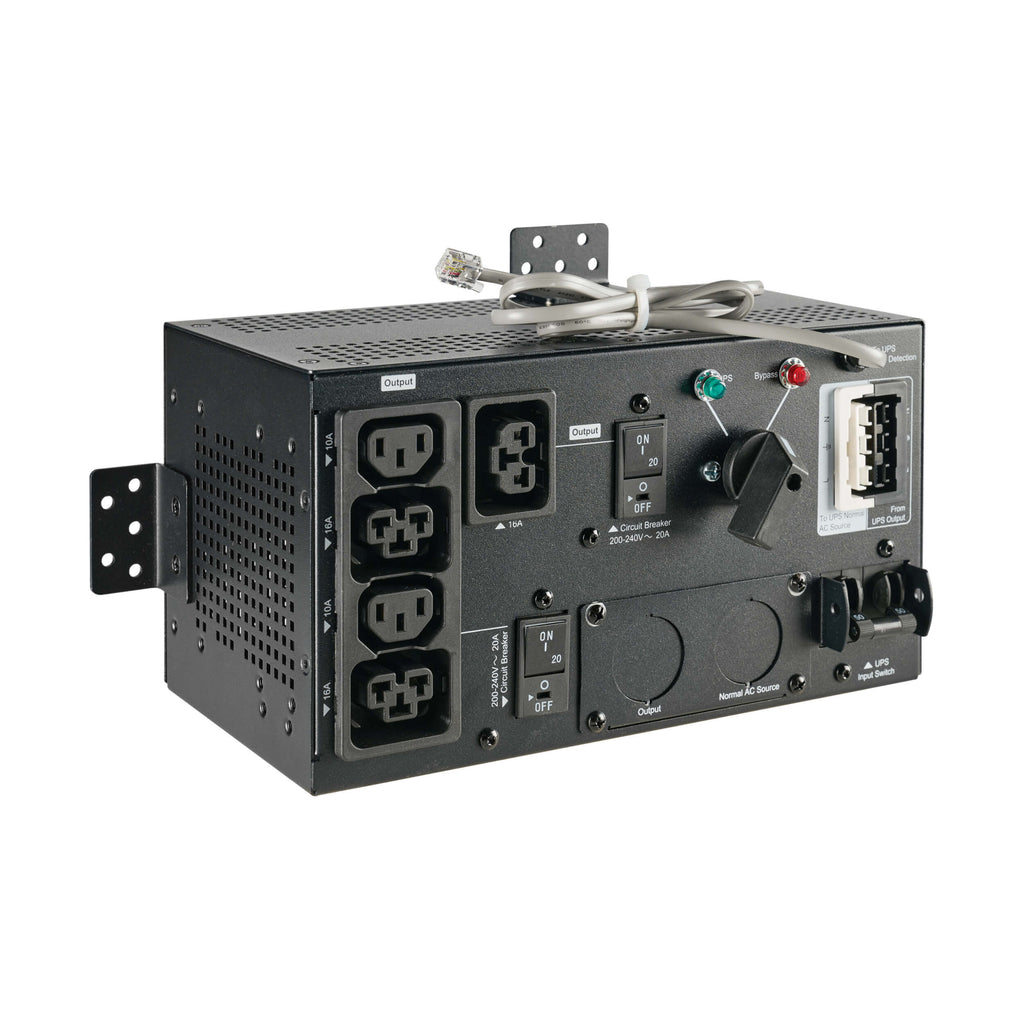

The Eaton MBP6KIECG2 Maintenance Bypass Panel is designed for seamless power continuity during UPS maintenance or replacement. Compatible with Eaton’s 9PX G2 UPS systems, including models 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6KIECG2, and 9PX6K-L, this unit allows technicians to isolate the UPS without shutting down critical connected equipment. Featuring a hardwired input and a versatile mix of two C13 and three C39 combo outlets, it supports multiple connection options for maximum flexibility. Engineered for 0U rack, wall, or tower mounting, it’s ideal for space-constrained environments that demand reliable, uninterrupted power.
| Category | Details |
|---|---|
| Model Number | MBP6KIECG2 |
| Type | Maintenance Bypass Panel |
| Accessory Class | UPS Accessories |
| Compatible UPS Models | Eaton 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6KIECG2, 9PX6K-L |
| Input Connection Type | Hardwire |
| Input Plug Type | Hard-wire; NEMA L6-30P |
| Output Capacity | 6000 VA / 6000 W (6 kVA / 6 kW) |

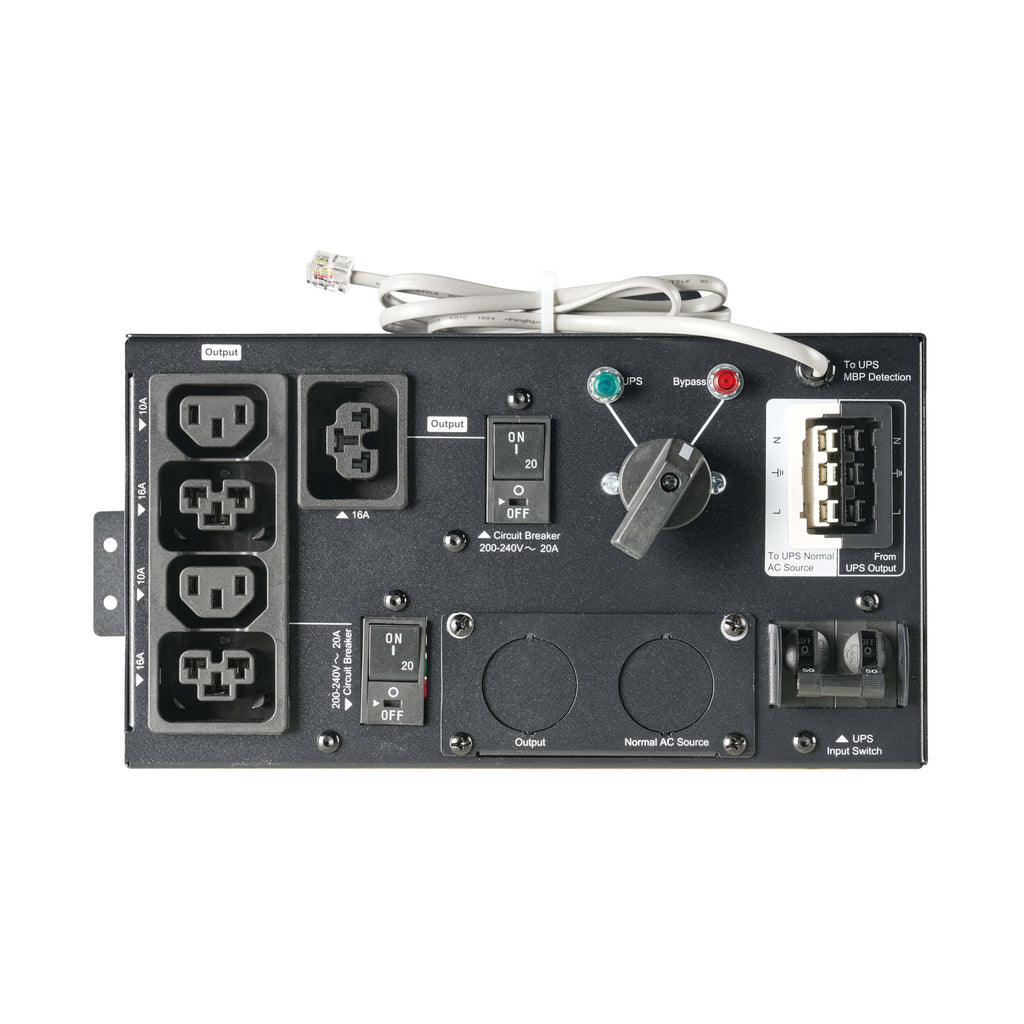

| Output Receptacles | (2) C13; (3) C39 (P-Lock compatible) |
| Nominal Output Voltage | 208V / 220V / 230V / 240V |
| Frequency Compatibility | 50 / 60 Hz |
| Output Waveform | Pure Sine Wave |

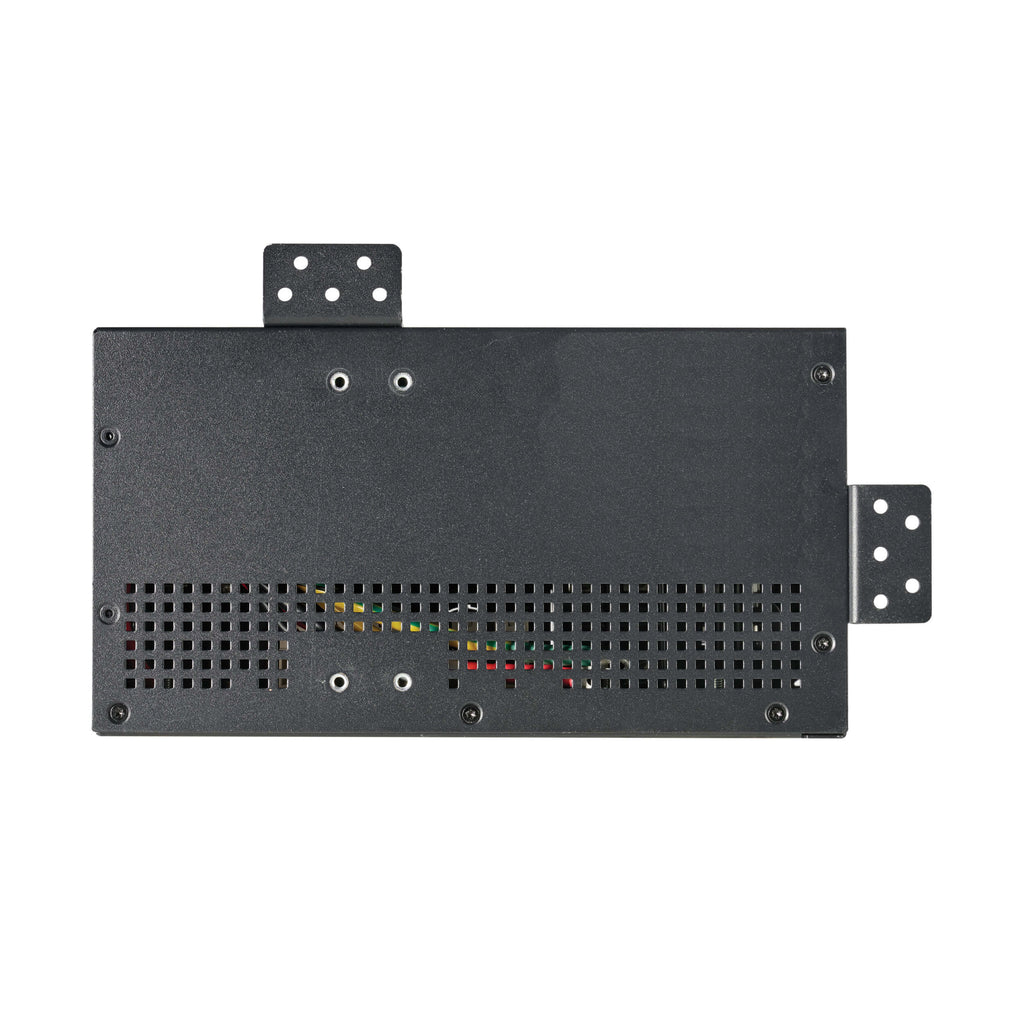

| Mounting Options | 0U Rackmount, Tower, Wall-Mount |
| Dimensions (H × W × D) | 5.12 × 9.41 × 4.92 in |
| Operating Temperature | 32°–104°F (0°–40°C) |
| Relative Humidity | 0–95% (non-condensing) |
| Certifications | cUL Listed, NOM (Mexico) |
| Compliance | RoHS |
| Warranty | 3-Year Limited Warranty |
| UPC | 786689876067 |
