Description
The Eaton 9PXG2 8000VA/8000W UPS delivers enterprise-grade power protection for mission-critical IT, network, and edge environments. Built with online double-conversion technology, it ensures continuous, clean power with zero transfer time, protecting sensitive equipment from outages, voltage fluctuations, and power anomalies.
Designed for flexibility, this model supports both rack and tower deployments in a 7U form factor and includes a maintenance bypass for uninterrupted service during maintenance. With a true unity power factor (1.0), it provides maximum usable power to support high-density loads.
Advanced battery management with ABM+ technology extends battery life and provides predictive replacement analytics, while hot-swappable batteries and scalable extended battery modules ensure uptime continuity. The included Gigabit Network Card enables secure remote monitoring and integration with Eaton Brightlayer Data Centers software.
With high efficiency, low noise output, and comprehensive connectivity, the 9PXG2 is ideal for data centers, enterprise IT infrastructure, and critical applications requiring reliable and scalable backup power.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Product Series | 9PXG2 |
| UPS Topology | Online Double-Conversion |
| Power Capacity | 8000VA / 8000W |
| Output Voltage | 120/240V |
| Input Voltage | 208V default (200–240V selectable) |
| Output Connections | (18) 5-20R, (3) L6-30R |
| Input Connection | Hardwired |
| Output Waveform | True Sine Wave |
| Output Frequency | 50/60 Hz |
| Output Voltage Regulation | ±1% steady-state |
| Output Power Factor | 1.0 |
| Efficiency (Max Load) | Up to 96.5% |
| Battery Type | Sealed Lead-Acid |
| Battery Management | ABM+ predictive battery analytics |

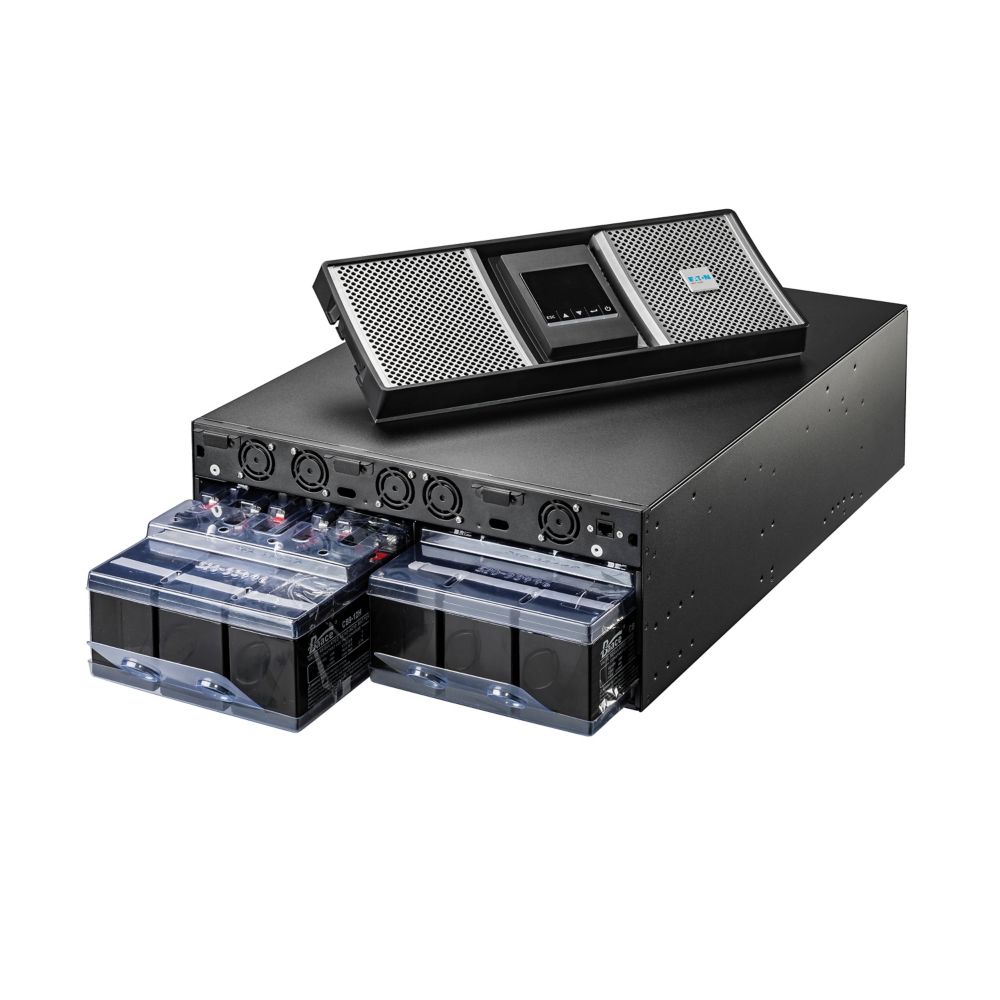

| Battery Replacement | Hot-swappable internal batteries |
| Extended Battery Support | Up to 12 EBMs (9PXEBM240RTG2) |
| Network Interface | Gigabit Network Card (NETWORK-M3 included) |
| Communication Ports | (2) Mini-Slot expansion ports |
| User Interface | Graphical LCD display, programmable menu |
| Software Compatibility | Eaton Brightlayer Data Centers suite |
| Form Factor | Rack/Tower Convertible |
| Rack Height | 7U |
| Dimensions (H x W x D) | 12 x 17.3 x 32.6 in |
| Weight | 315 lb |
| Noise Level | ≤44 dB at full load |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity Range | 0–95% non-condensing |
| Altitude | Up to 3000 m |
| Surge Protection | Included |
| Internal Bypass | Yes |
| Maintenance Bypass | Included (MBP11K208G2) |
| Certifications | cULus Listed, IEC 62040-2, NOM |
| Compliance Standards | FCC Part 15, CISPR22 Class A, CE Marked |
| Energy Efficiency | ENERGY STAR certified |
| Included Accessories | Transformer (9PXTFMR5G2), maintenance bypass, network card, cables, rack hardware, tower stands |
| Warranty | 3-Year Factory Warranty (parts, electronics, batteries, technical support) |
