Description

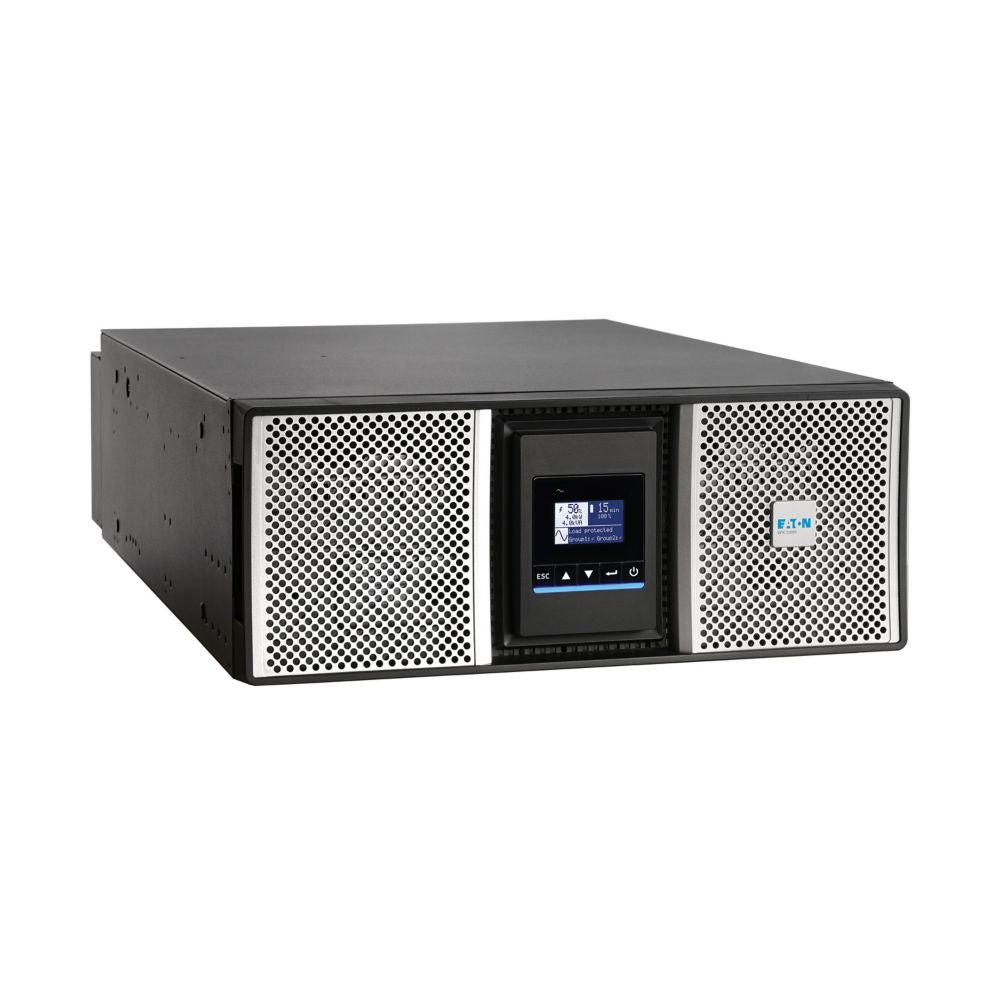

The Eaton 9PXG2 8000VA/8000W UPS delivers enterprise-grade power protection with true online double-conversion technology, ensuring continuous, clean, and reliable power for mission-critical IT infrastructure. Designed for high-performance environments, this 208V UPS provides a unity power factor and true sine wave output to support modern servers, storage, and networking equipment with maximum efficiency and uptime.
Built for flexibility and scalability, the 9PXG2 supports rack or tower deployment and includes a maintenance bypass for seamless servicing without downtime. The integrated Gigabit Network Card enables secure remote monitoring and management, while Eaton’s ABM+ battery technology extends battery life and provides predictive analytics for proactive maintenance.
With hot-swappable batteries, expandable runtime through external battery modules, and industry-leading efficiency, the Eaton 9PXG2 is an ideal solution for data centers, edge environments, and distributed IT deployments that demand reliability, efficiency, and advanced control.
| Specification | Details |
|---|---|
| Power Capacity | 8000VA / 8000W |
| Voltage Output | 208V (default), selectable 200/208/220/230/240/250V |
| Topology | Online Double-Conversion |
| Output Waveform | True Sine Wave |
| Output Power Factor | 1.0 (220–240V), 0.95 (208V) |

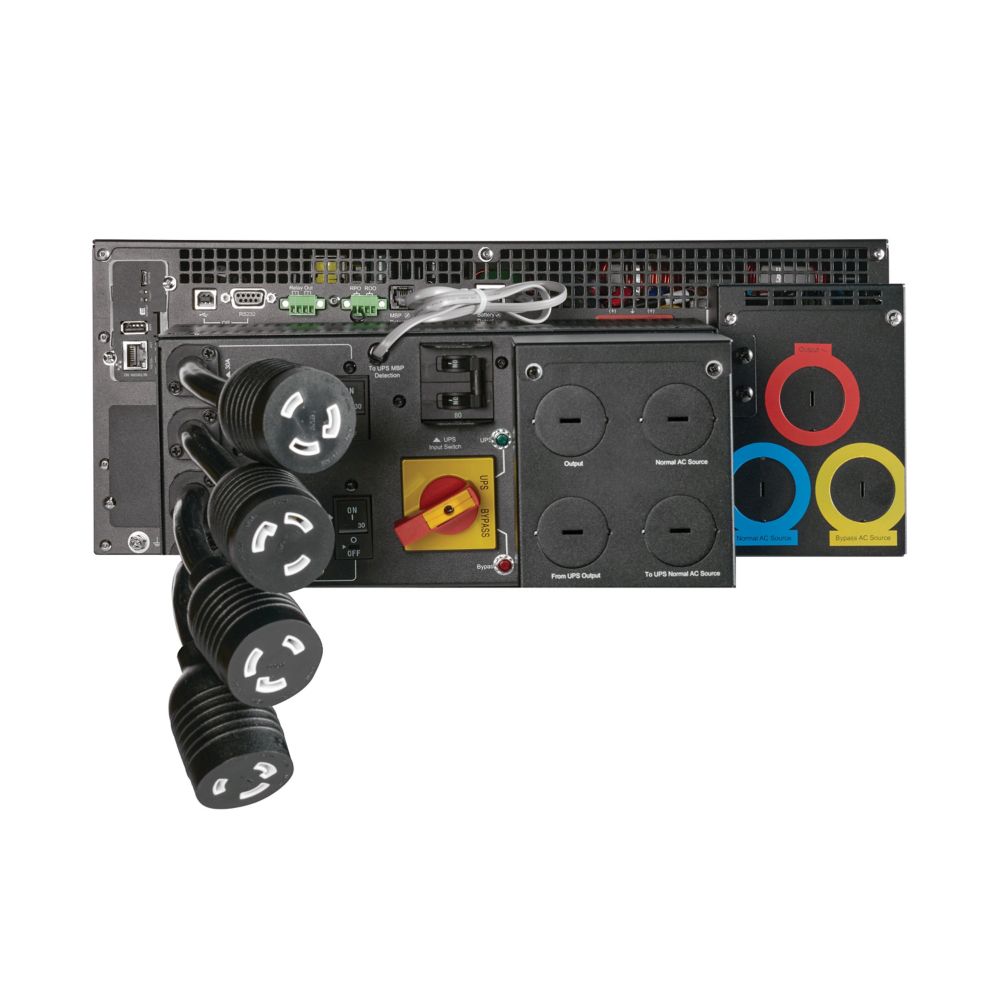

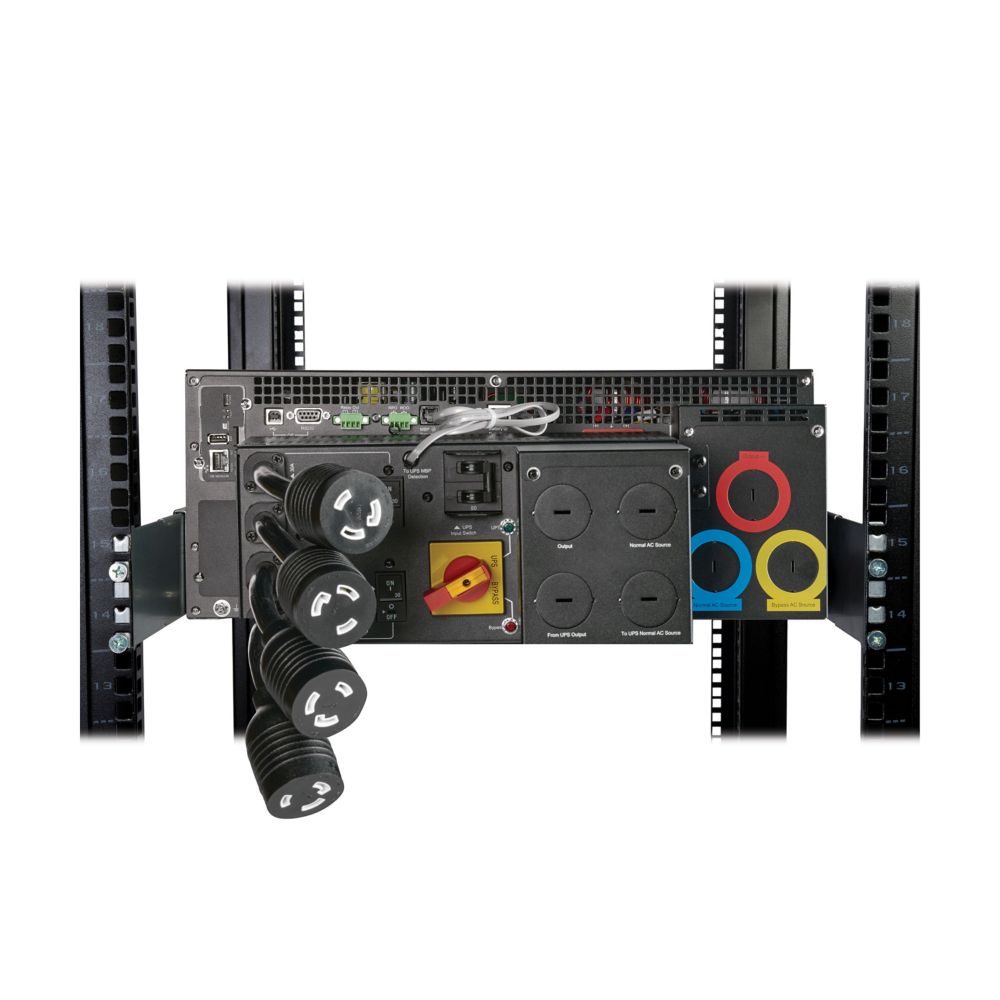

| Output Connections | (4) L6-30R, Hardwired |
| Input Connection | Hardwired |
| Input Voltage | 208V default (200–240V selectable) |
| Input Frequency Range | 50–70 Hz (60 Hz), 40–60 Hz (50 Hz) |
| Input Power Factor | Greater than 0.99 |
| Efficiency | Up to 96.5% at maximum load |
| Battery Technology | ABM+ advanced battery management |
| Battery Type | Hot-swappable internal batteries |
| Extended Runtime | Supports up to 12 EBMs (9PXEBM240RTG2) |
| Replacement Battery | EBP-2003 (quantity 2 required) |
| Network Management | NETWORK-M3 Gigabit Network Card included |
| Expansion Slots | 2 Mini-Slot expansion ports |
| User Interface | Graphical LCD display with 5-button control |
| Software Compatibility | Brightlayer Data Centers suite |

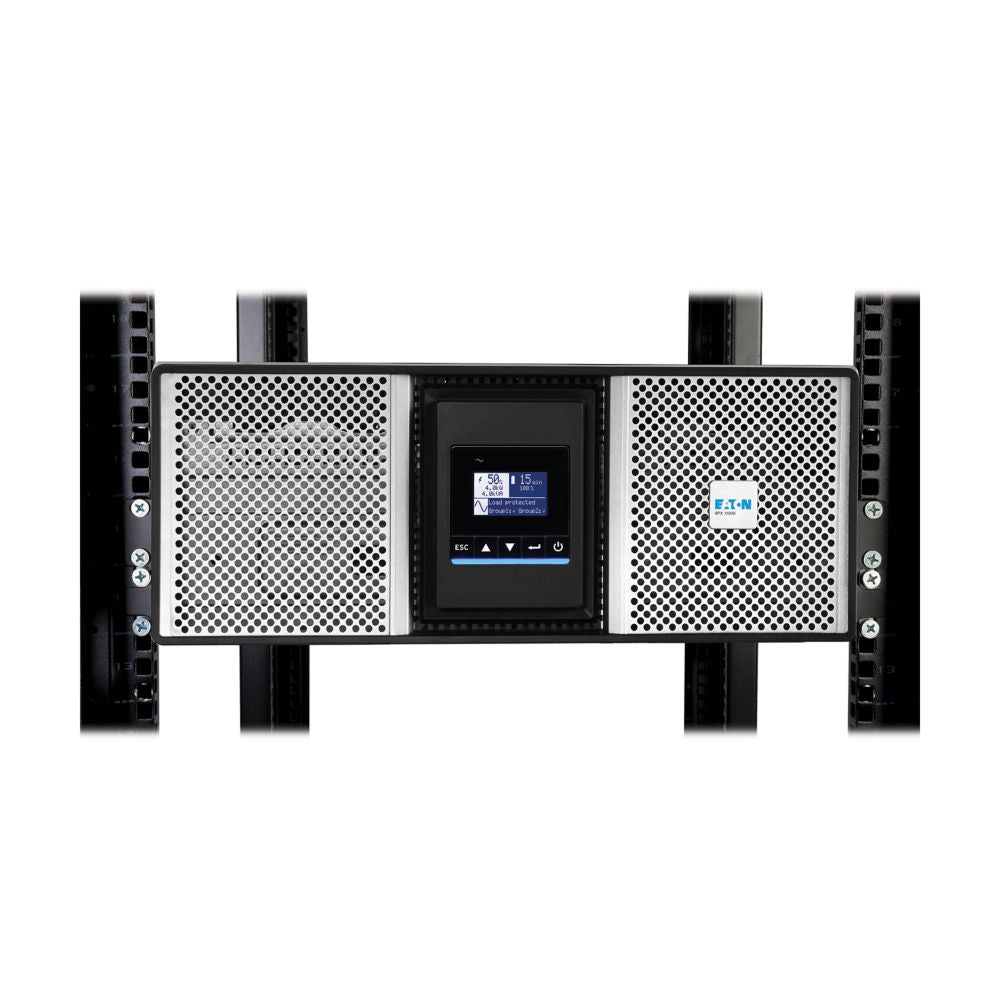

| Rack Size | 4U |

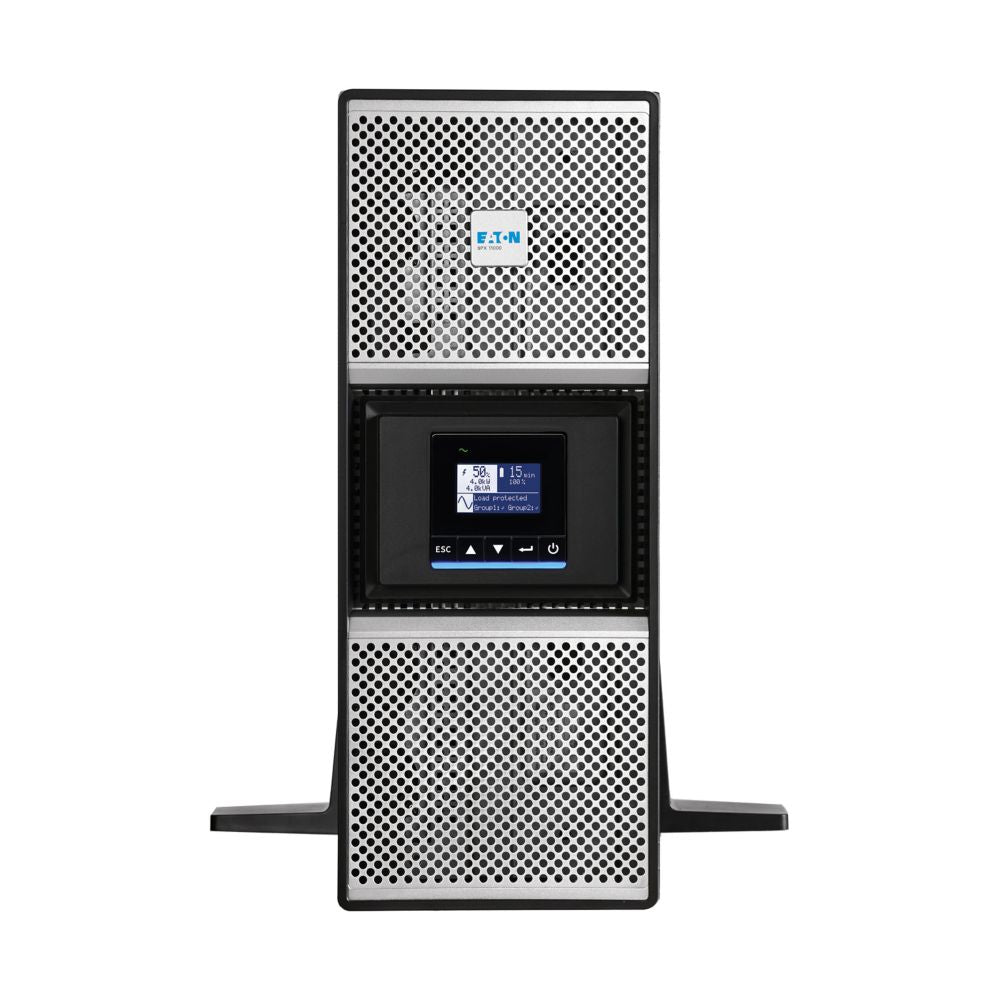

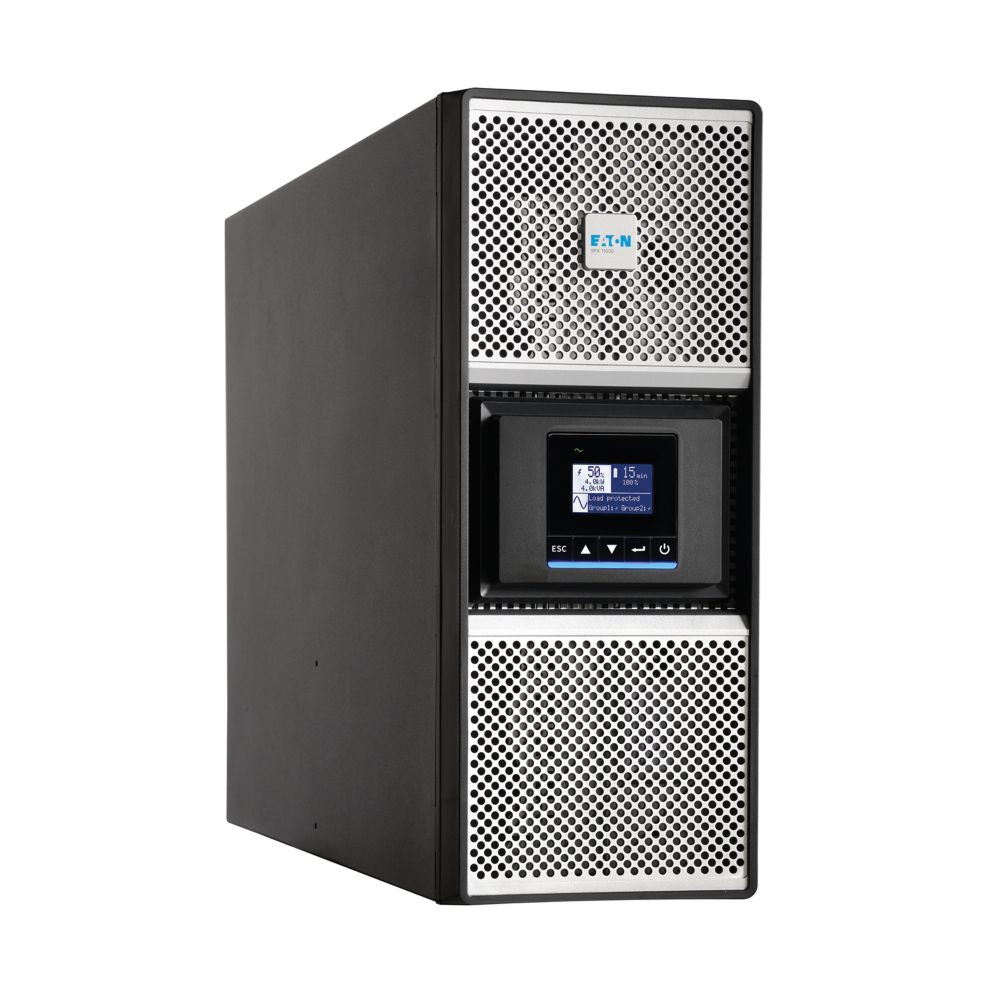

| Form Factor | Rack/Tower convertible |
| Dimensions (H x W x D) | 6.8 in x 17.3 in x 32.6 in |
| Weight | 188.7 lb |
| Noise Level | ≤44 dB at full load |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity Range | 0–95% non-condensing |
| Altitude | Up to 3000 meters |
| BTU Rating | 815 BTU/hr (Online), 1137 BTU/hr (Battery) |
| Surge Protection | Integrated |
| Bypass | Internal and external maintenance bypass included |
| Certifications | cULus Listed, IEC 62040-2:2006 Cat C2, NOM, ENERGY STAR |
| Compliance | FCC Part 15 Class A, CISPR22 Class A, CE Marked |
| Included Accessories | Maintenance bypass (MBP11K208G2), network card, cables, rack kit, tower stands |
| Warranty | 3-year factory warranty (parts, electronics, batteries) |
