Description

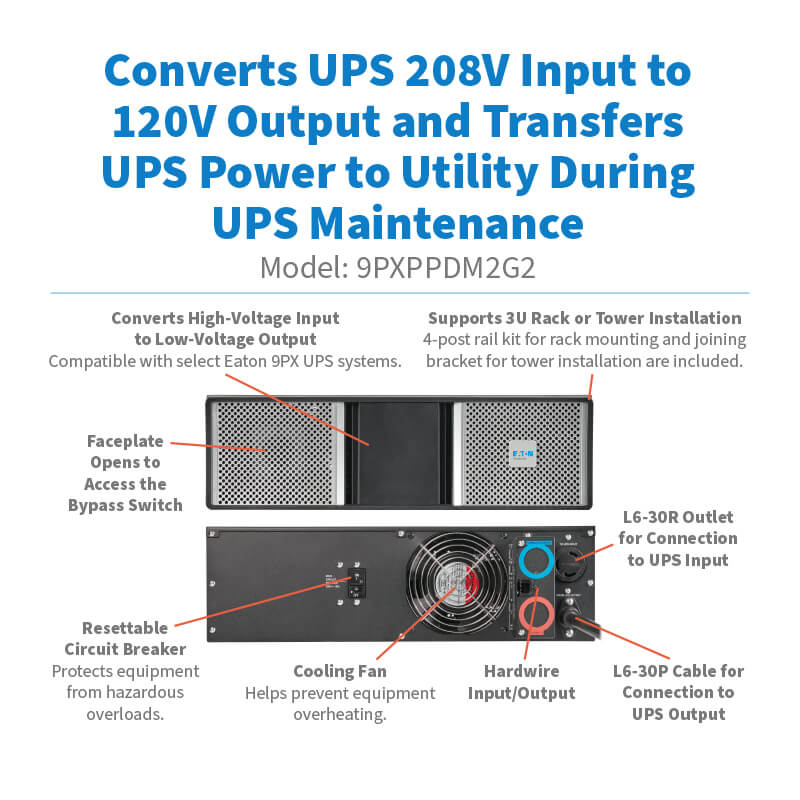

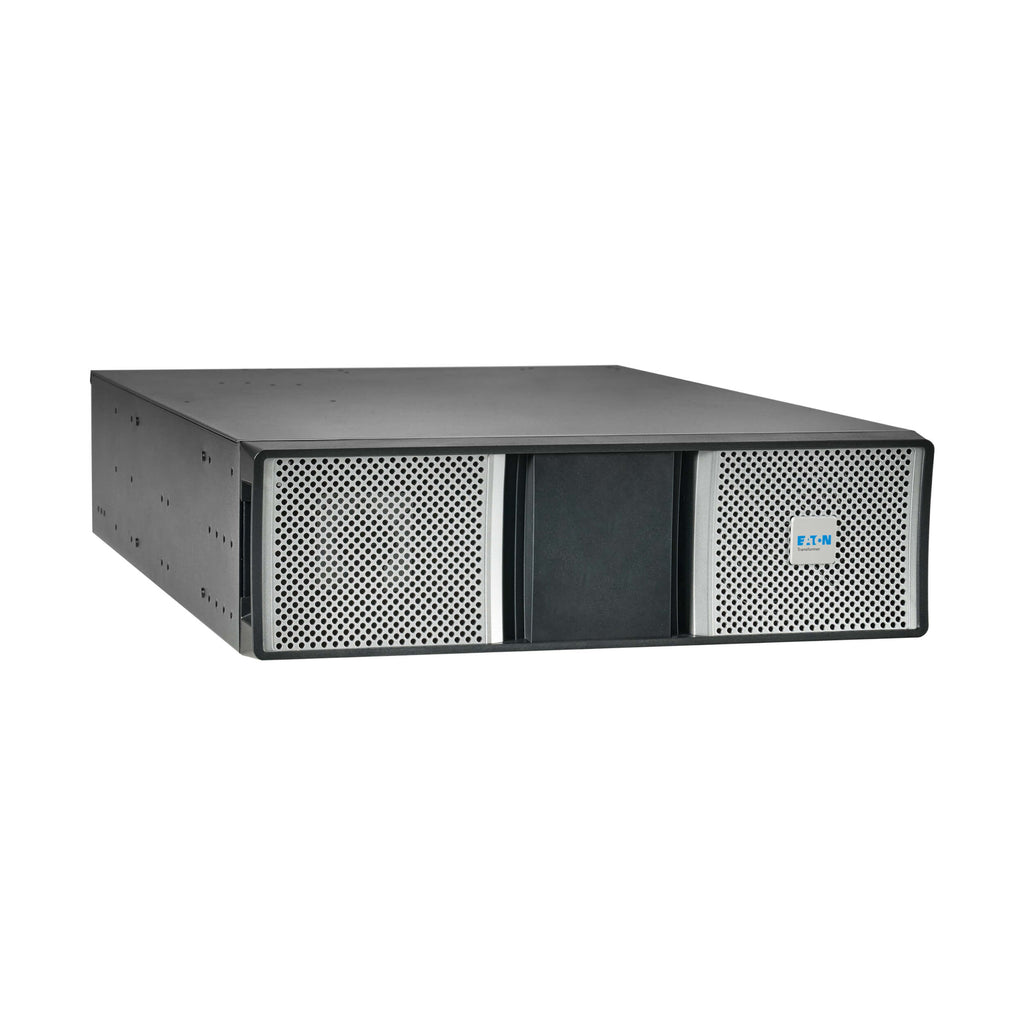

The Eaton 9PXPPDM2G2 PowerPass Distribution Module enables seamless power distribution and maintenance flexibility for Eaton 9PX G2 UPS systems. Designed to convert a 208V high-voltage UPS input into a 120V low-voltage output, this unit provides a reliable power source for sensitive equipment while maintaining system uptime during maintenance or replacement. With hardwired input/output connections and resettable 30A circuit breakers, it ensures safe and efficient operation. Its built-in maintenance bypass allows connected equipment to remain energized even when the UPS is offline. The 3U module supports both rack and tower configurations, providing installation versatility for enterprise or data center environments.
| Category | Details |
|---|---|
| Model Number | 9PXPPDM2G2 |
| Accessory Type | PowerPass Distribution Module |
| Accessory Class | UPS Accessory |
| Input Voltage | 208V (Single-phase, hardwired input) |
| Output Voltage | 100V / 110V / 120V / 208V / 220V / 230V / 240V |
| Output Capacity | 6kVA / 6kW |
| Output Frequency | 50 / 60 Hz |
| Waveform Type | Pure Sine Wave |
| Output Connection | Hardwire |
| Compatible UPS Models | Eaton 9PX5KG2, 9PX6KG2, 9PX6K-L, 9PX3K3UG2 |
| Maintenance Bypass | Yes (Front-panel switch for UPS servicing without load downtime) |

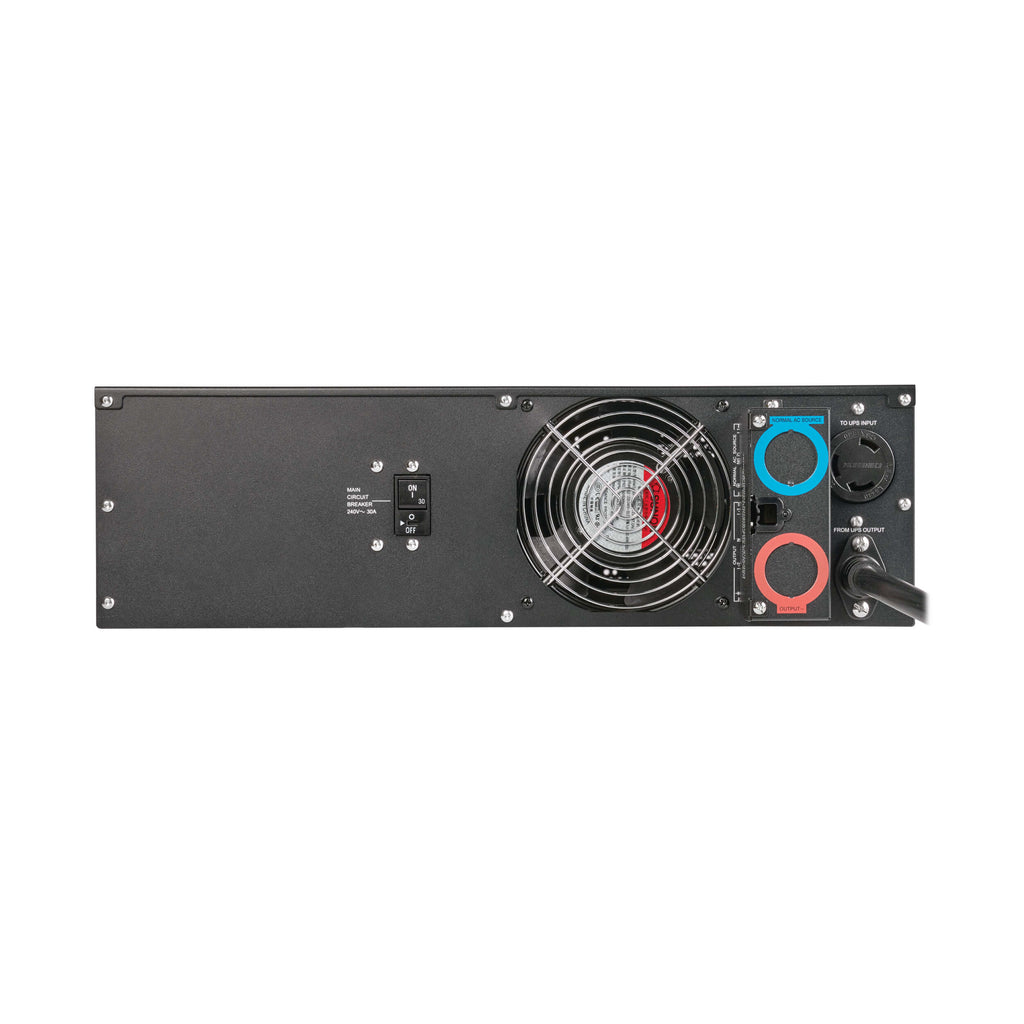

| Circuit Protection | Resettable 30A breakers |

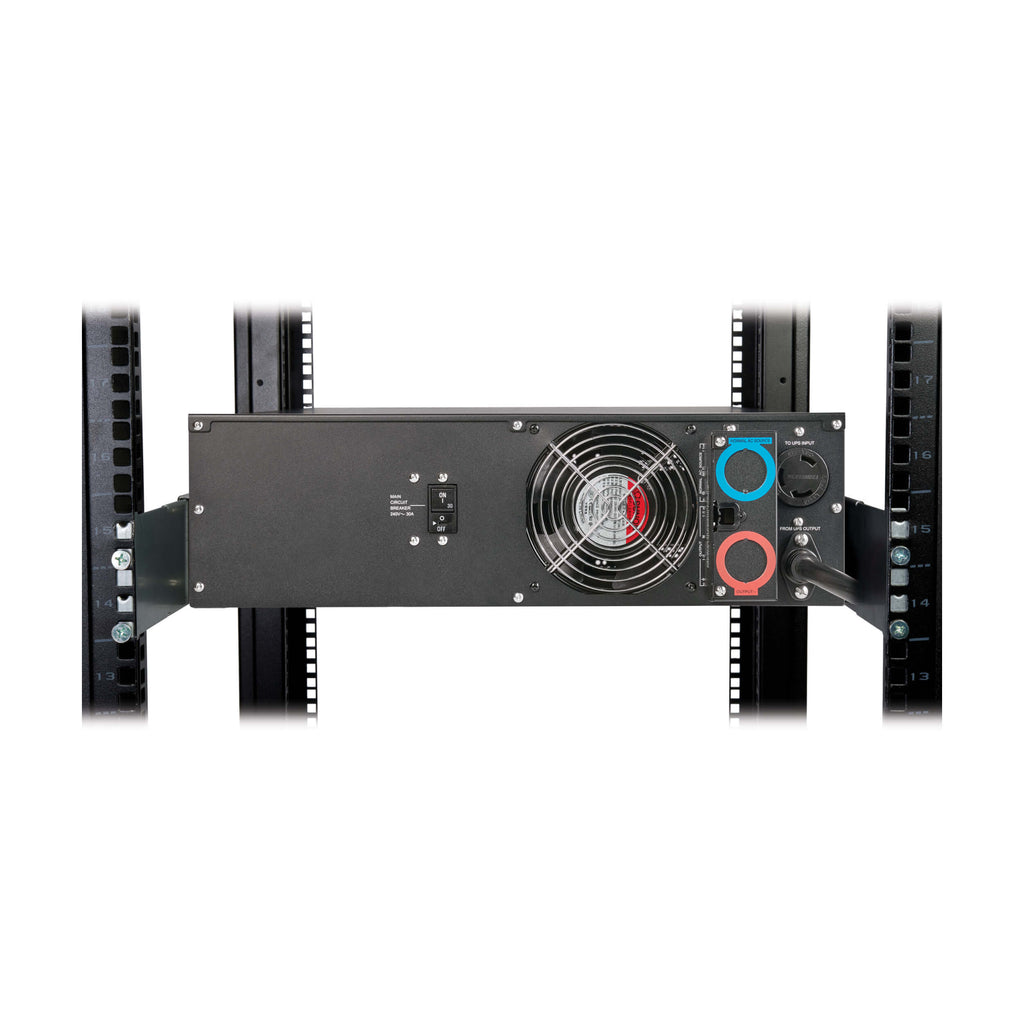

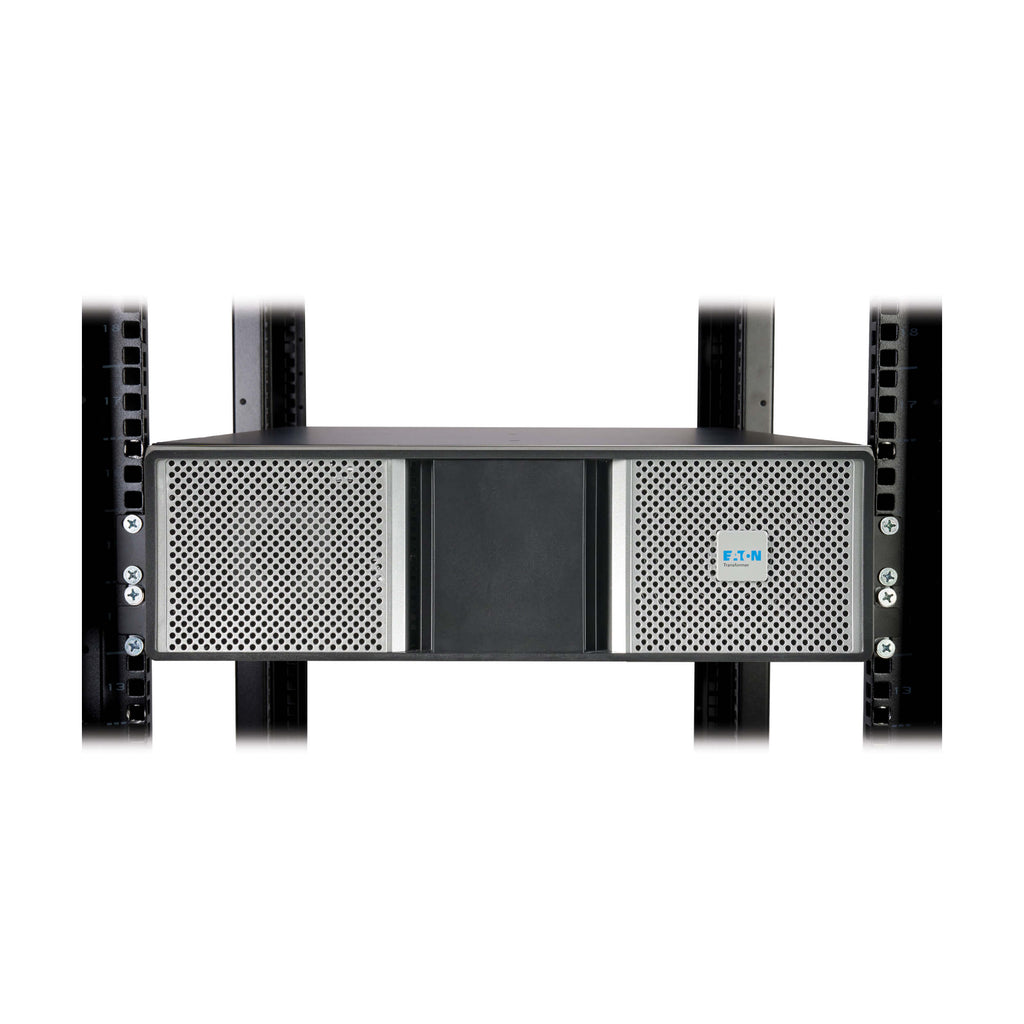

| Form Factor | Rackmount / Tower |
| Rack Height | 3U |
| Dimensions (H × W × D) | 5.1 × 17.3 × 26.93 in |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 0–95% non-condensing |
| Certifications | cUL Listed, NOM (Mexico) |
| Compliance | CE, ENERGY STAR, RoHS |
| Warranty | 3-year limited warranty |
| Included Accessories | Cable glands, joining bracket and hardware, rack-mounting hardware, user’s guide |
