Description

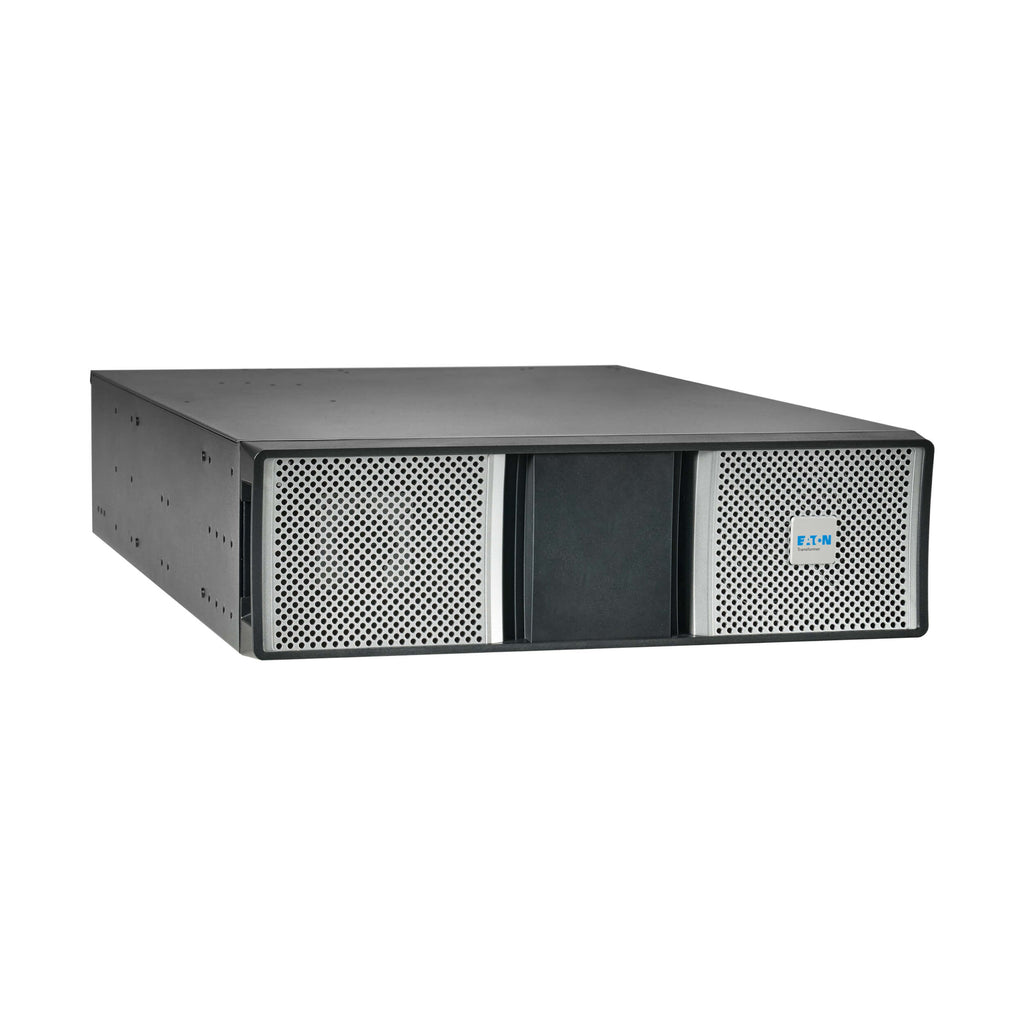

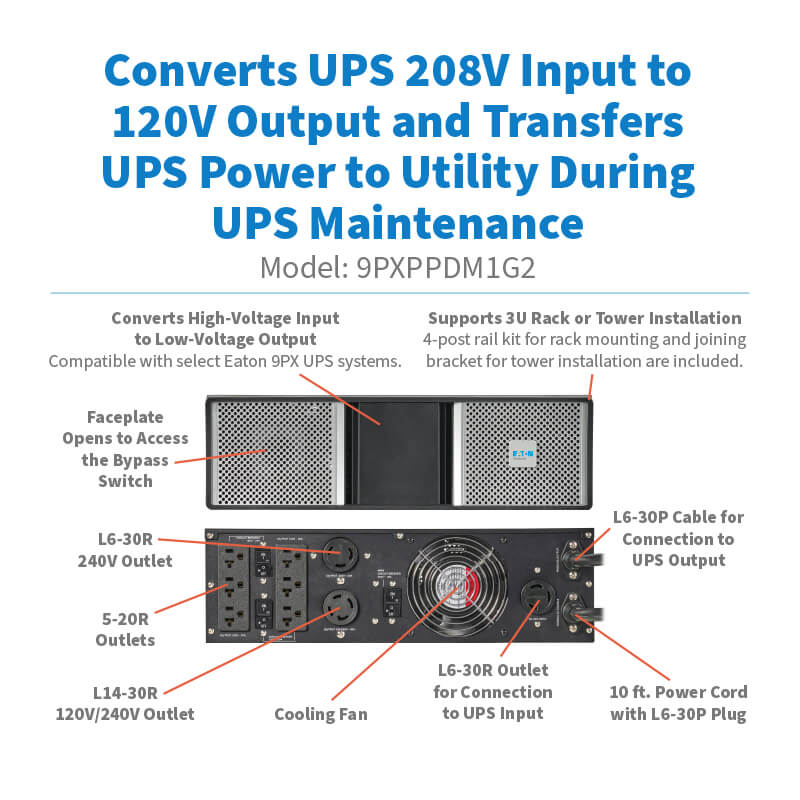

The Eaton 9PXPPDM1G2 PowerPass Distribution Module provides efficient power conversion and maintenance flexibility for Eaton 9PX G2 UPS systems ranging from 3kVA to 6kVA. Designed to convert 208V high-voltage input into 120V low-voltage output, it allows you to power low-voltage AC components without disruption. Featuring a front-panel maintenance bypass switch, the unit enables UPS servicing or replacement without shutting down connected equipment—ensuring continuous uptime and system reliability. The 9PXPPDM1G2 includes eight total outlets (six NEMA 5-20R, one L14-30R, one L6-30R), resettable circuit breakers, and flexible installation options for rack or tower configurations.
| Category | Details |
|---|---|
| Model Number | 9PXPPDM1G2 |
| Accessory Type | PowerPass Distribution Module |
| Compatible UPS Models | Eaton 9PX5KG2, 9PX6KG2, 9PX6K-L, 9PX3K3UG2 |

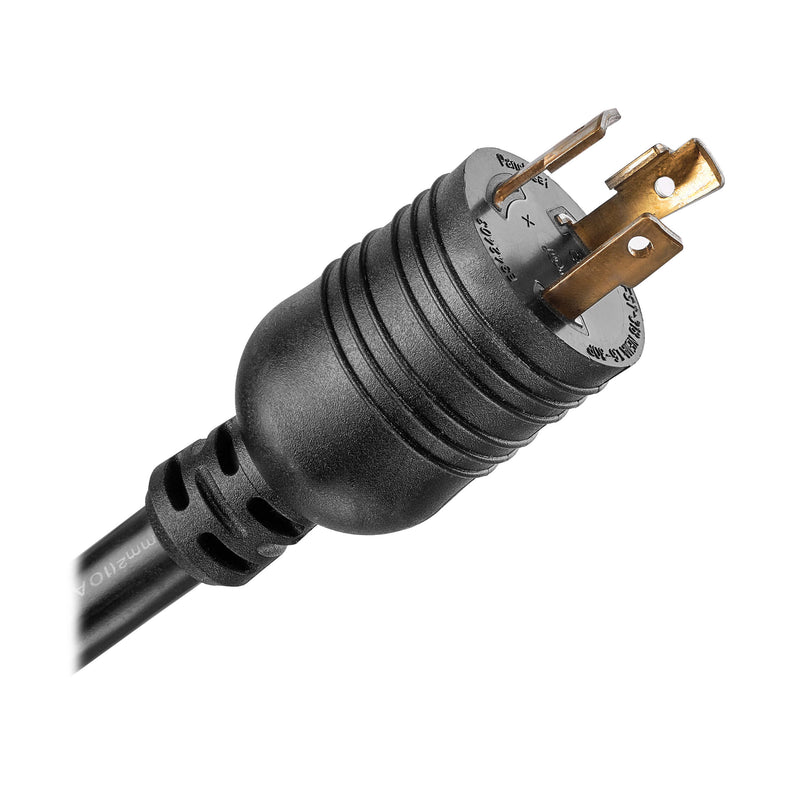

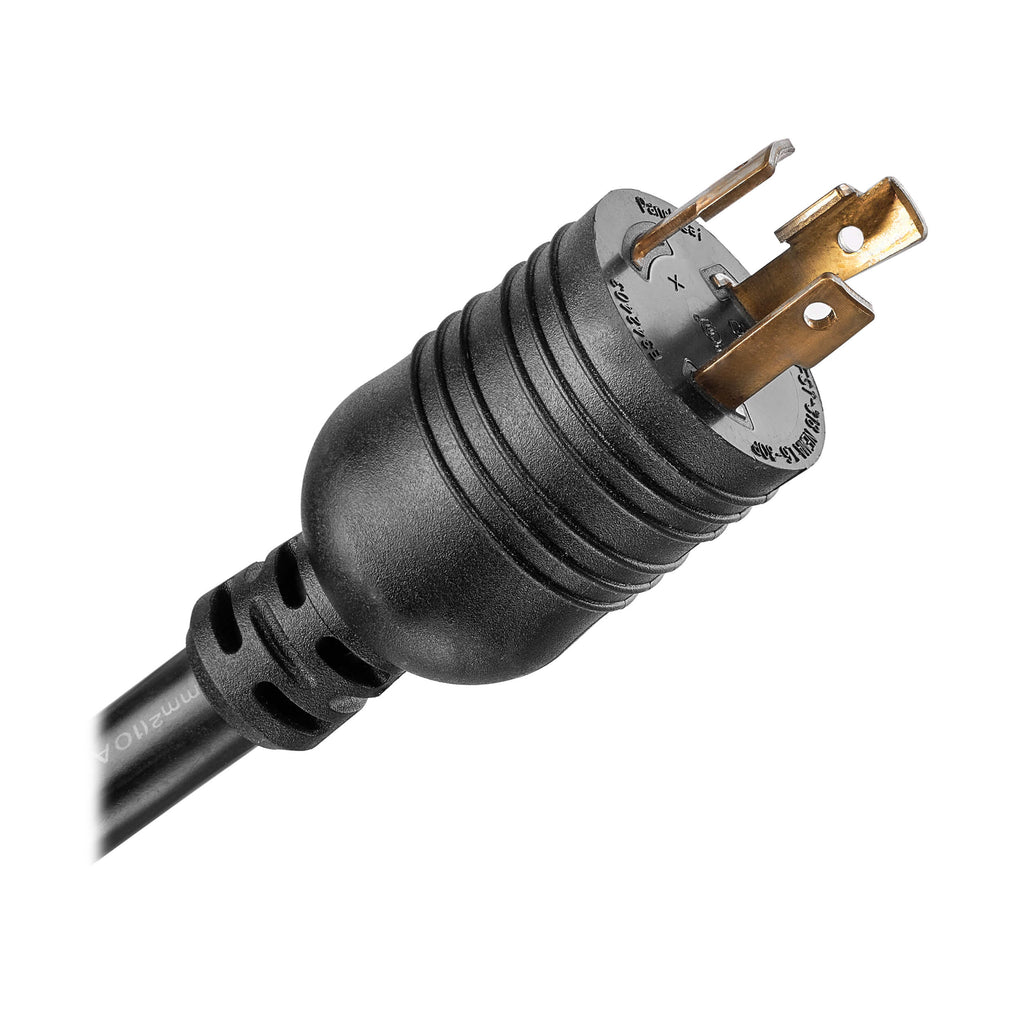

| Input Voltage / Plug Type | 208V AC / NEMA L6-30P |
| Input Phase | Single-Phase |
| Input Cord Length | 6.5 ft (2.0 m) |
| Output Capacity | 6 kVA / 6 kW |
| Nominal Output Voltage(s) | 100V, 110V, 120V, 208V, 220V, 230V, 240V |

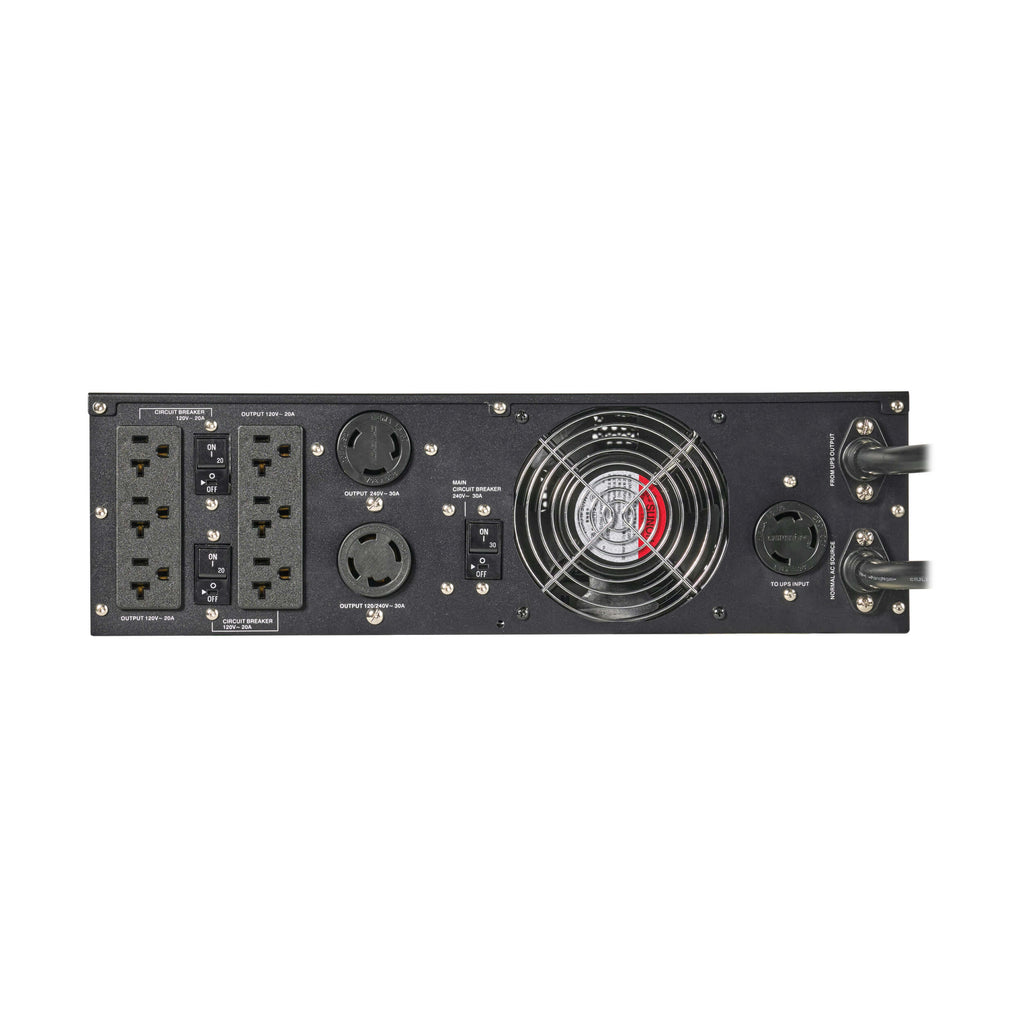

| Output Receptacles | (6) NEMA 5-20R, (1) L14-30R, (1) L6-30R |
| Circuit Protection | Resettable 30A Circuit Breakers |
| Maintenance Bypass | Front-panel bypass switch for UPS service or replacement |
| Output Frequency | 50 / 60 Hz |
| Output Waveform (Battery Mode) | Pure Sine Wave |

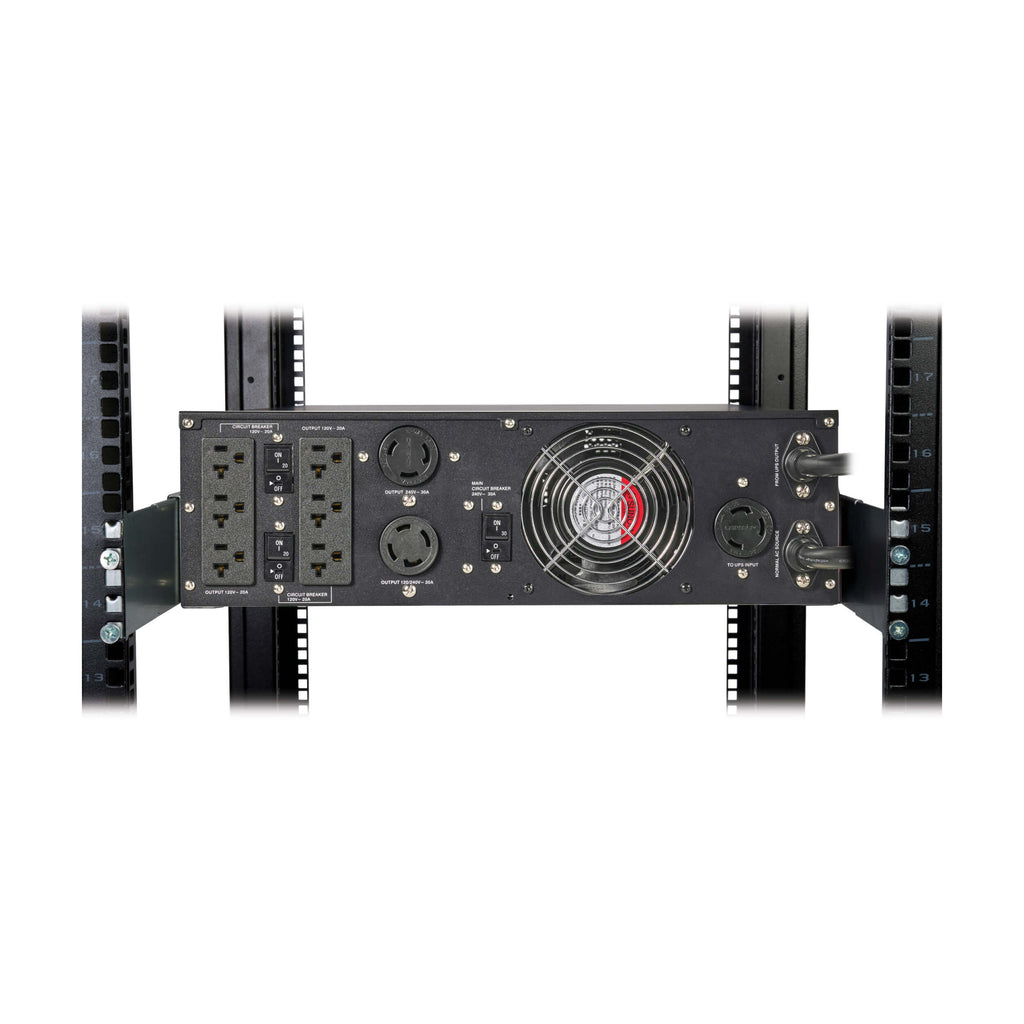

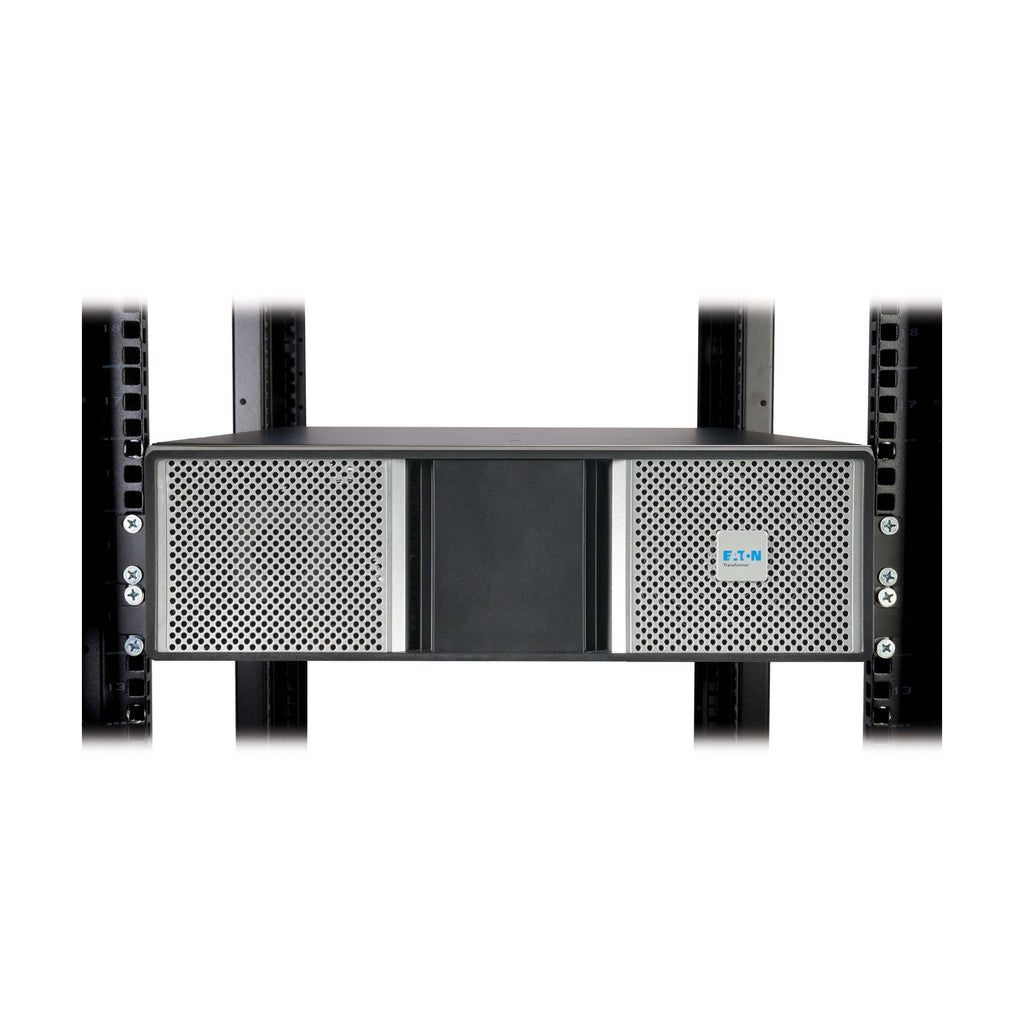

| Mounting Options | 3U Rackmount or Tower (kit included) |
| Dimensions (H x W x D) | 5.10 x 17.30 x 25.04 in |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity Range | 0–95% non-condensing |
| Certifications | cUL Listed, NOM (Mexico), CE (Europe), ENERGY STAR Qualified, RoHS Compliant |
| Warranty | 3-year limited warranty |
