Description

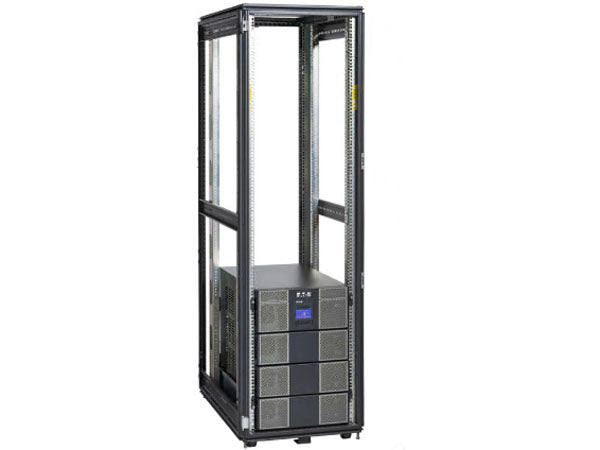

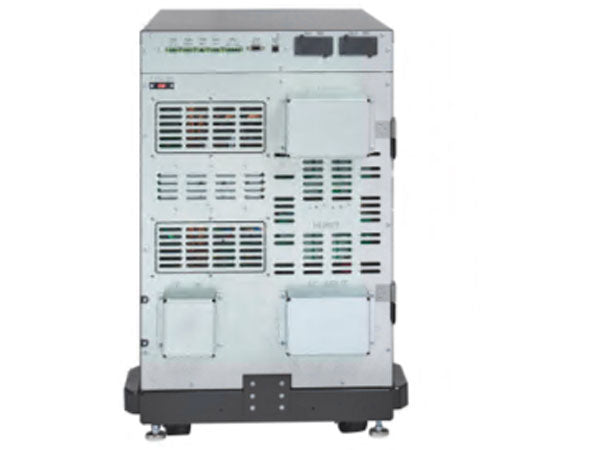

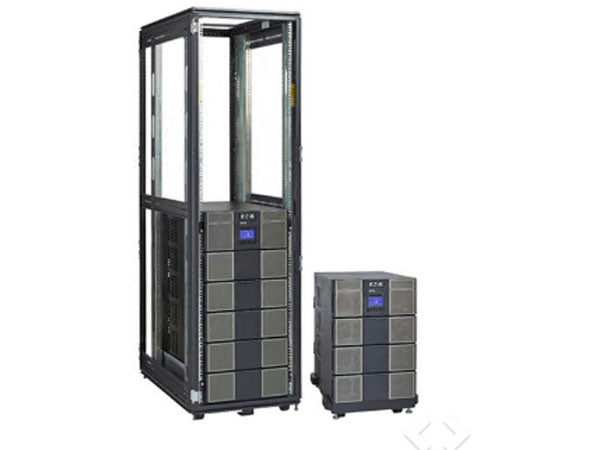

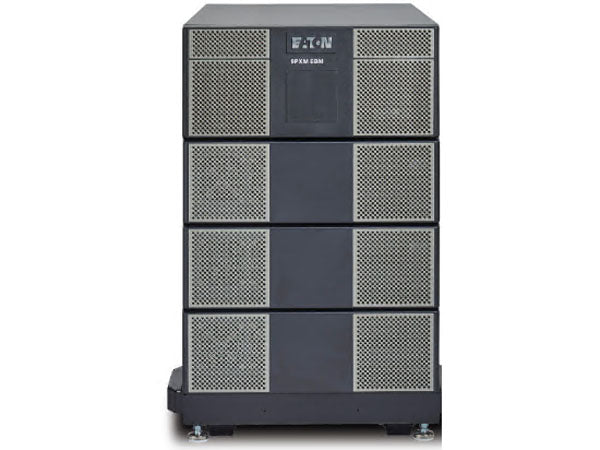

The Eaton 9PXM Modular Power Array Cabinet is a high-density, scalable power infrastructure solution designed for modern IT environments, edge deployments, and distributed networks. Built with a 21U rack-mountable form factor, this 12-slot cabinet supports modular UPS power arrays, enabling flexible configuration and seamless expansion as power demands grow.
Engineered for uptime and operational efficiency, the 9PXM cabinet features hot-swappable UPS power modules and batteries, allowing maintenance and upgrades without system downtime. Integrated Advanced Battery Management (ABM) technology optimizes battery performance and extends service life, reducing total cost of ownership. With internal bypass functionality and automatic shutdown capabilities, this cabinet ensures continuous power protection for critical systems.
The unit offers multiple output receptacle configurations to support a wide range of equipment, making it ideal for data centers, network closets, and mission-critical infrastructure. Its compact yet powerful design, combined with enterprise-grade reliability, makes it a dependable backbone for scalable power delivery.
| Specification | Details |
|---|---|
| Product Type | Power array cabinet (rack-mountable / external) |
| Rack Height | 21U |
| Supported Power Modules | Up to 12 modules |
| Input Connection | Hardwired |
| Output Connections | 4 × NEMA 5-20R; 2 × NEMA L14-30R; 6 × NEMA L6-30R |
| Power Factor | 0.9 |
| Expansion Slots | 2 expansion slots |
| Key Features | Advanced Battery Management (ABM), internal bypass, automatic shutdown, hot-swappable batteries, hot-swappable UPS modules |
| Compliance | FCC, cULus |
| TAA Compliance | Yes |
| Country of Origin | United States |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 5% to 95% non-condensing |
| Enclosure Color | Black and silver |
| Dimensions (W × D × H) | 17.5 in × 34.5 in × 36.5 in |
