Description

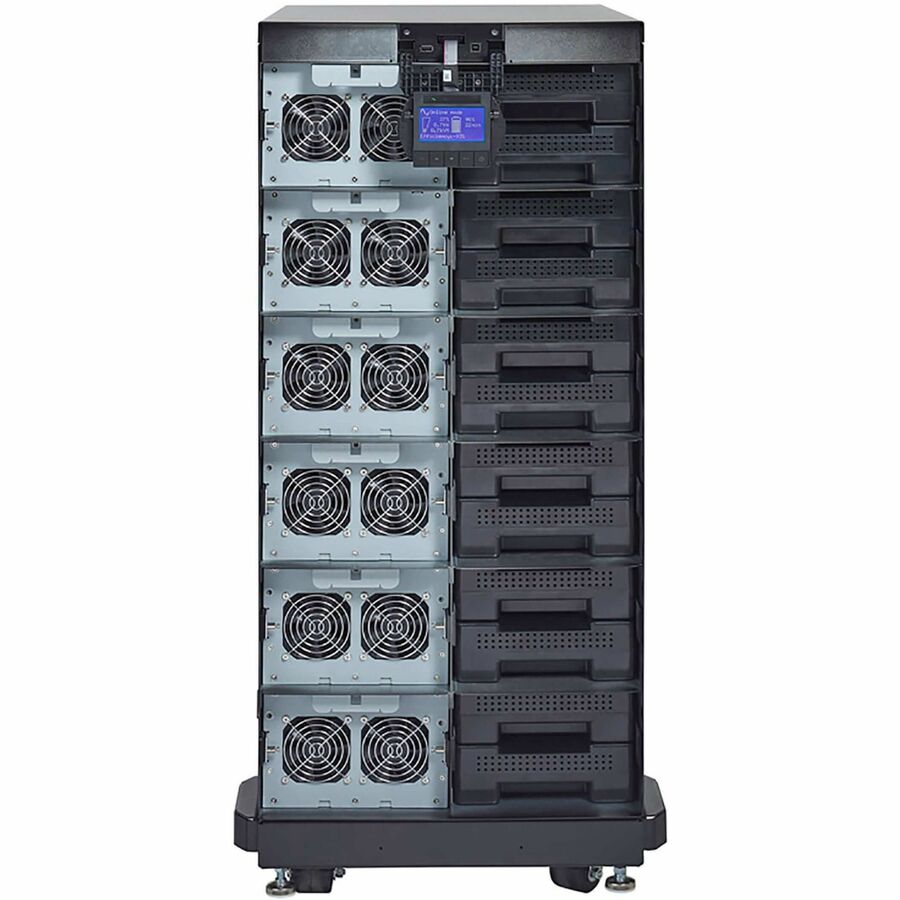

The Eaton 9PXM Modular UPS Power Array Cabinet is a scalable, high-density power infrastructure solution engineered for mission-critical environments. Designed to support up to 12 power modules, this cabinet enables flexible capacity expansion and redundancy within a compact 21U footprint. Its modular architecture allows organizations to adapt to evolving power demands without replacing existing infrastructure.
Built for reliability and serviceability, the 9PXM cabinet features hot-swappable battery support and integrated I/O expansion capabilities, minimizing downtime during maintenance or upgrades. With hardwired connectivity and multiple NEMA L5-30R receptacles, it ensures dependable power distribution for enterprise IT systems, data centers, and edge deployments.

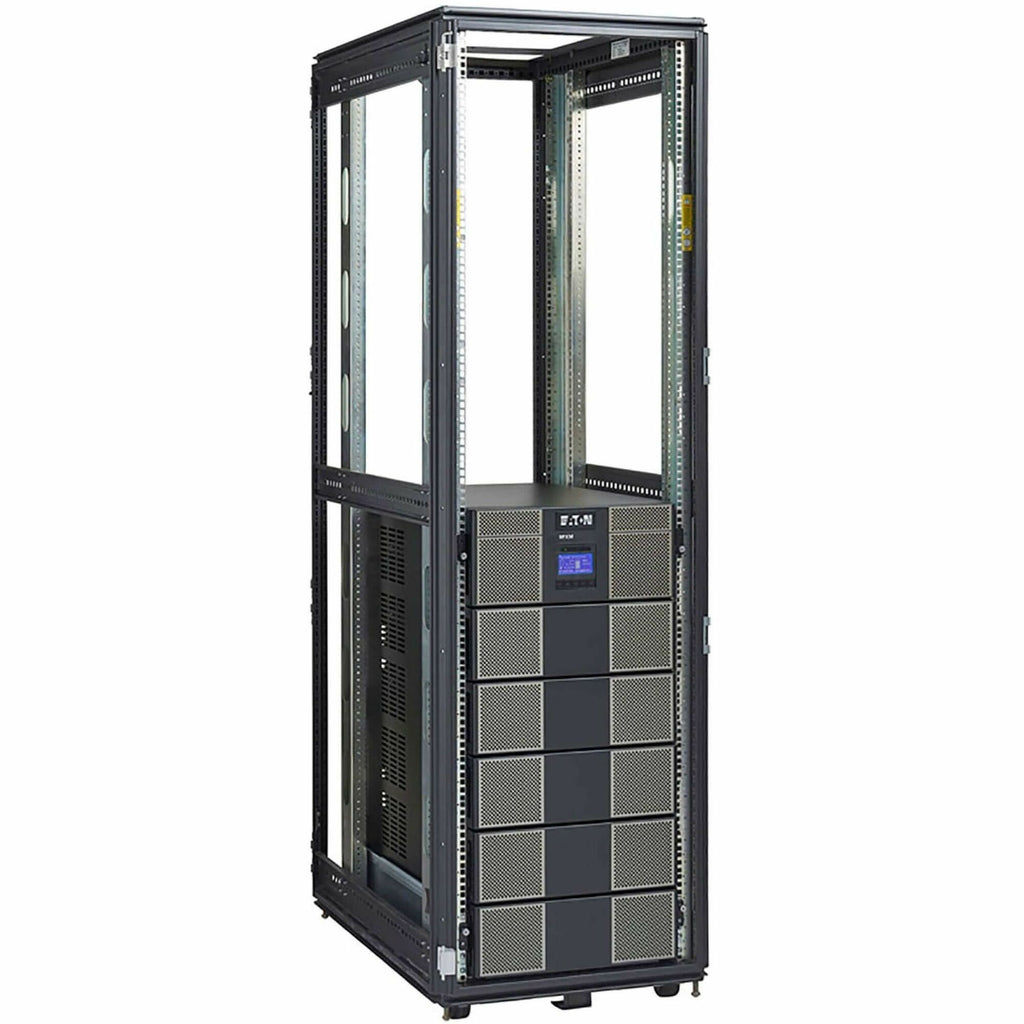

This rack-mountable or external cabinet integrates seamlessly with Eaton 9PXM UPS systems, delivering a future-ready power platform that prioritizes uptime, efficiency, and scalability.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Product Type | Power Array Cabinet |
| Model Compatibility | Eaton 9PXM UPS |
| Module Capacity | Supports up to 12 power modules |
| Expansion Slots | 2 I/O expansion slots |
| Receptacle Type | Hardwired |
| Receptacle Details | 4 × NEMA L5-30R |
| Battery Type | Lead-acid batteries |
| Battery Features | Hot-swappable battery modules |
| Form Factor | Rack-mountable or external |
| Rack Height | 21U |
| Color | Black and silver |
| Dimensions (H × W × D) | 36.5 × 17.5 × 34.5 inches |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Scalability | Modular, expandable architecture |
| Application | Data centers, enterprise IT, edge infrastructure |
| Condition | New and factory fresh |
| Weight | 1 lb (shipping weight) |
