Description

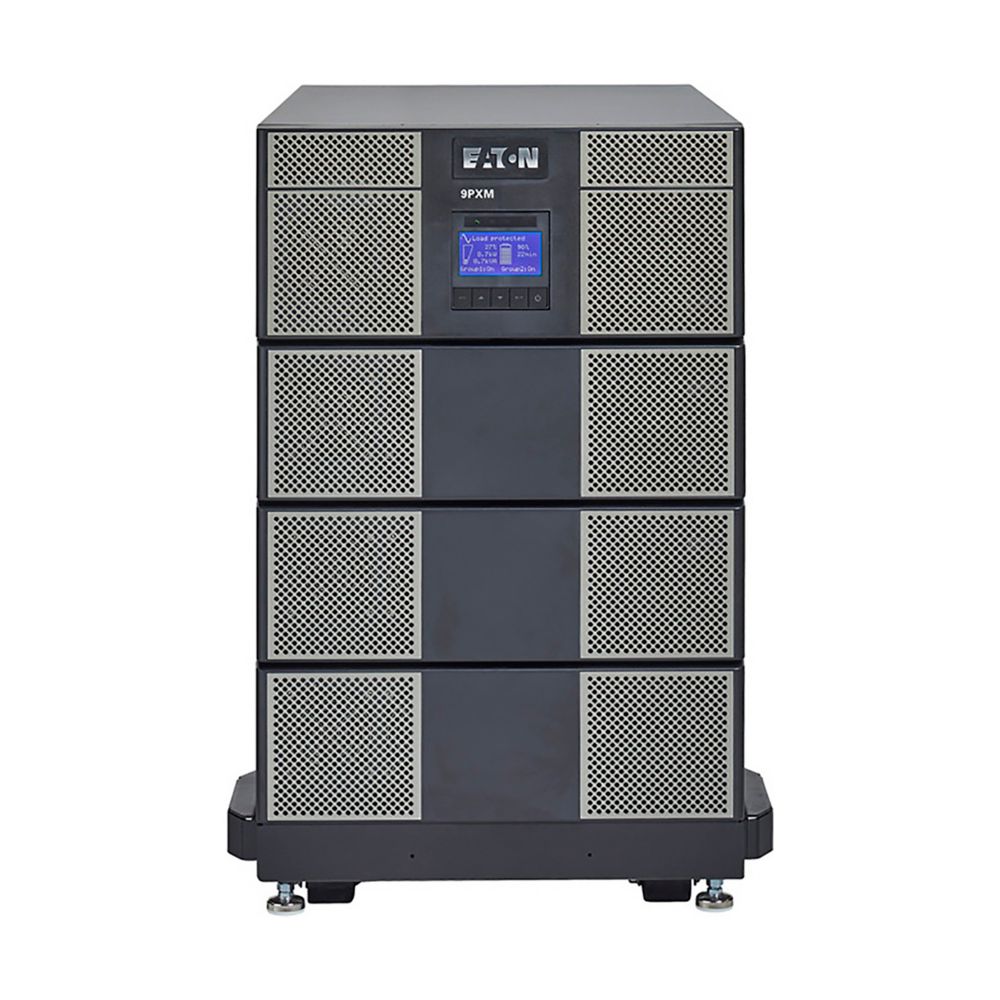

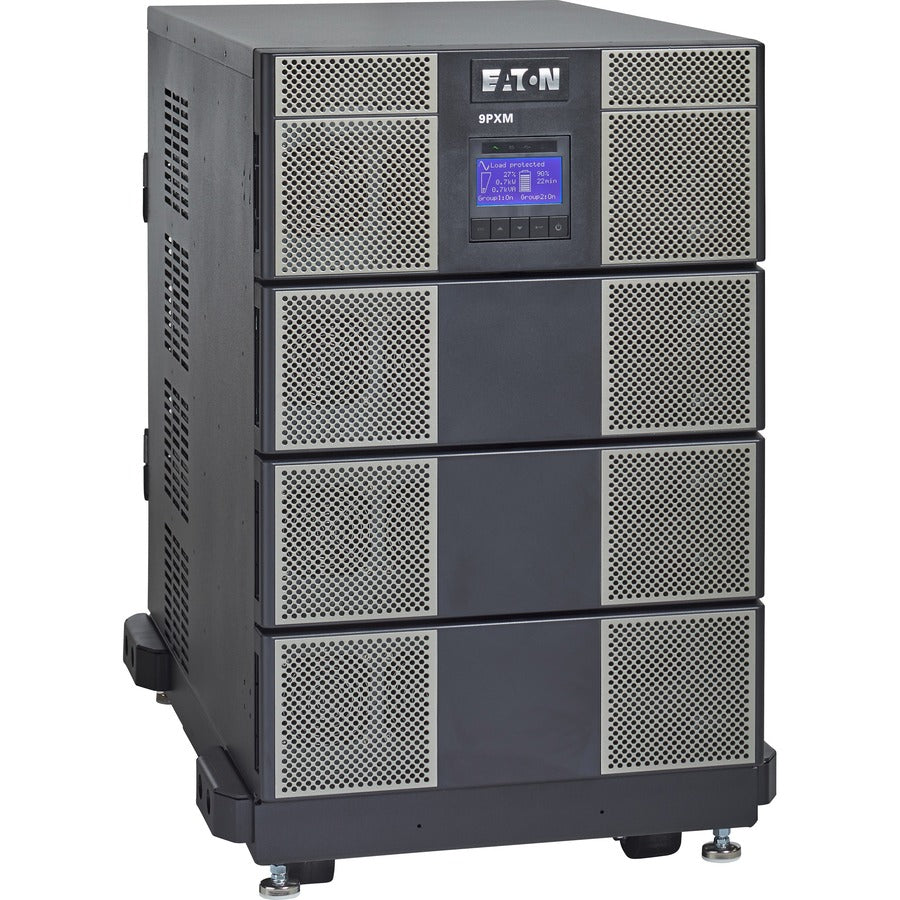

The Eaton 9PXM8S12K UPS is a high-performance, modular backup power solution offering 12 kVA capacity, scalable to 16 kVA. Designed for demanding IT and data center environments, it features online/double-conversion technology for maximum uptime and efficiency. With hardwired input and output connections, flexible voltage configurations, and support for extended battery modules, the 9PXM is built to ensure business continuity. Housed in a 14U Rack/Tower convertible form factor, it supports hot-swappable batteries, intelligent power management software, and optional communication cards for seamless integration.
| Category | Details |
|---|---|
| Product Name | Eaton 9PXM UPS |
| Catalog Number | 9PXM8S12K |
| UPC | 743172091543 |
| Topology | Online/Double-conversion |
| Power Rating | 12 kVA / 10.8 kW |
| Scalability | Up to 16 kVA |
| Input Connection | Hardwired |
| Input Voltage Range | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
| Input Frequency | 50–70 Hz |
| Output Voltage | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
| Output Frequency | 60 Hz |
| Output Connection | Hardwired |
| Output Power Factor | 0.9 |
| Output Waveform | True sine wave |
| Battery Type | Hot-swappable internal + optional EBMs |
| Battery Management | ABM 3-stage charging technology |
| Extended Battery Support | Yes |

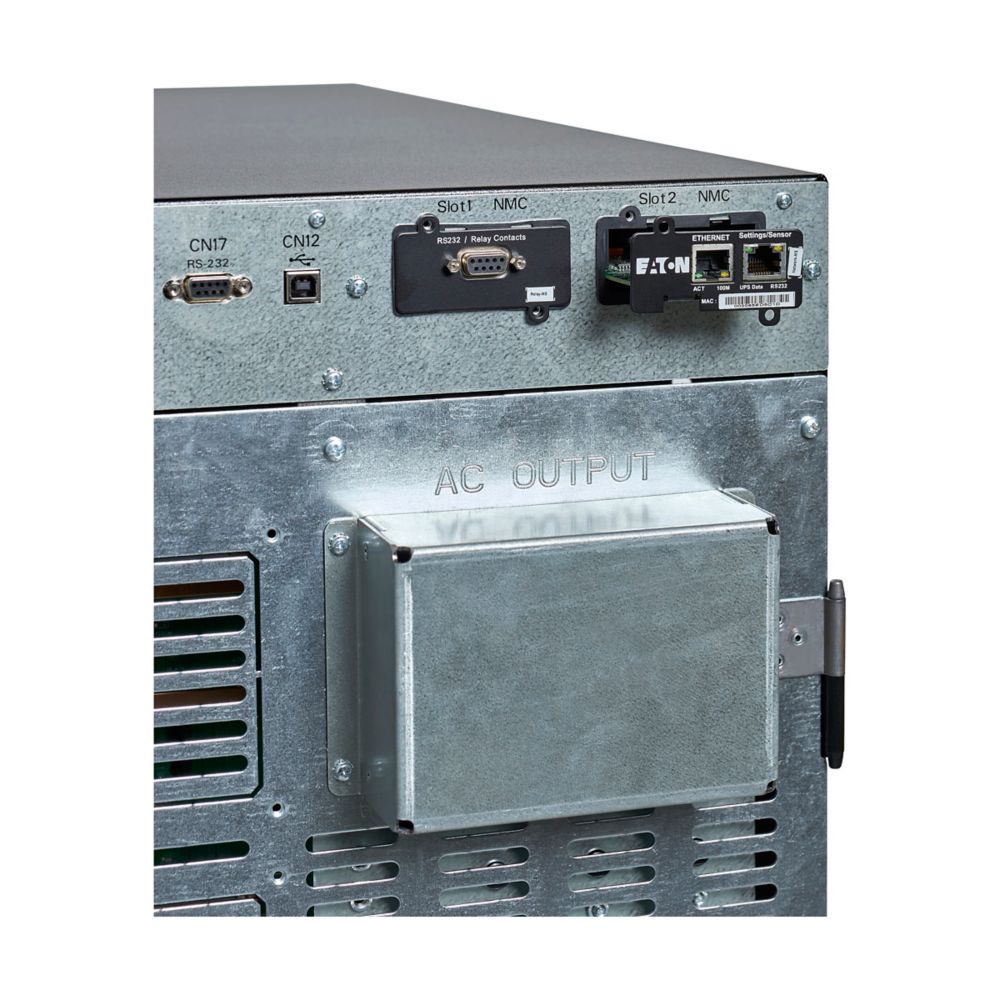

| Communication Slots | 2 Mini-Slot ports |
| Software Compatibility | Intelligent Power Software Suite |

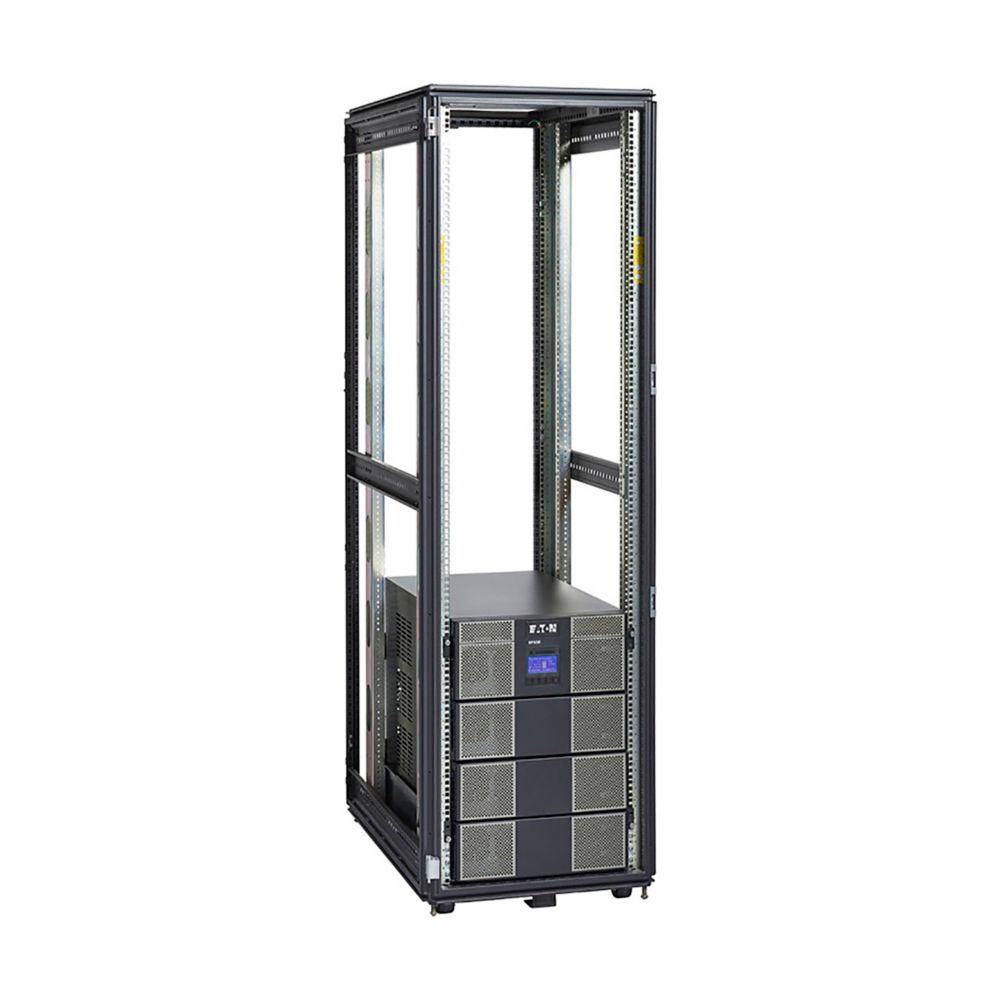

| Form Factor | Rack/Tower Convertible |
| Rack Size | 14U |
| Color | Black/Silver |
| Internal Bypass | Yes |
| Auto Shutdown | Yes |
| Hot Swap Power | Yes |
| Operating Temp | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 5-95% non-condensing |
| Certifications | TAA Compliant, FCC, IEC Rated, cULus Listed |
| Dimensions (L x W x H) | 34.5 in x 17.5 in x 25 in |
| Weight | 437 lb |
| Warranty | 2-Year Standard (parts, batteries, support); Optional 5-Year Extended Plans |
