Description

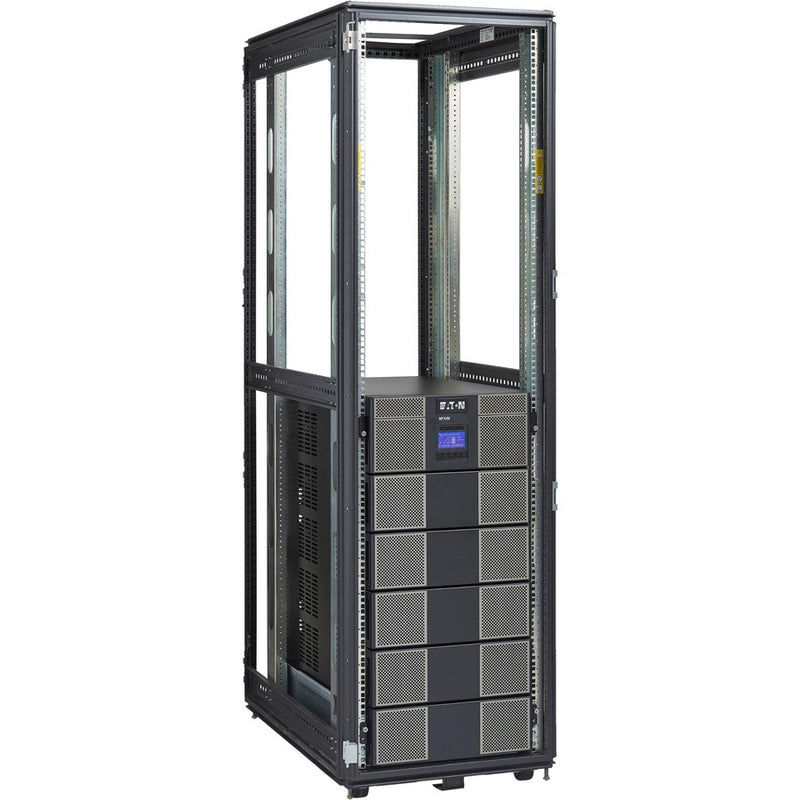

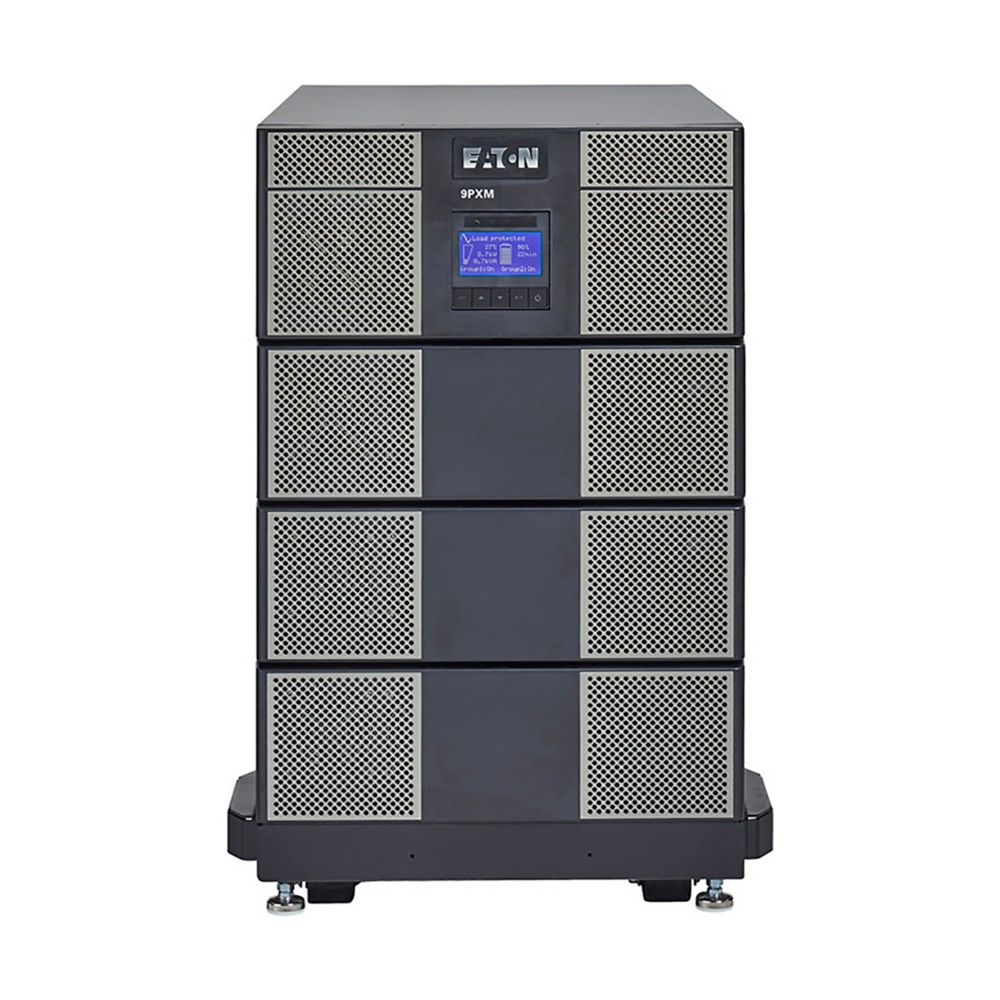

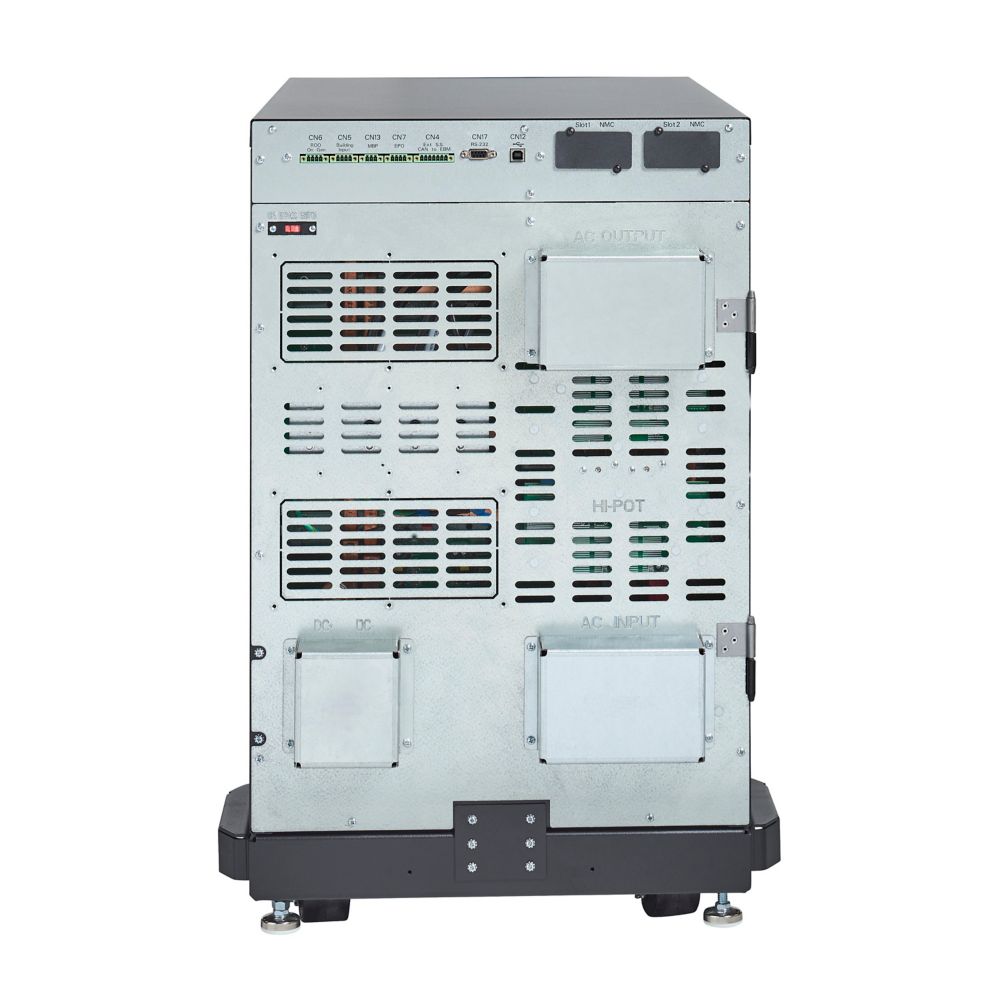

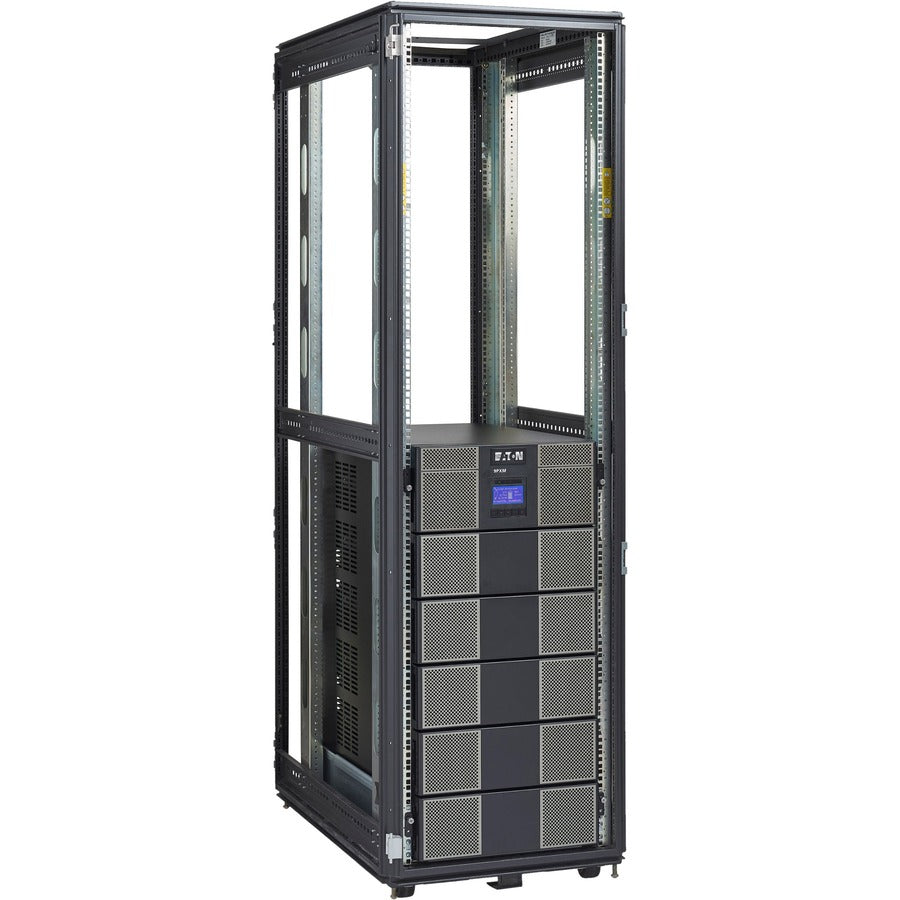

The Eaton 9PXM8S16K is a high-performance 16 kVA double-conversion online UPS designed to provide reliable power protection for critical IT and data center applications. This modular UPS supports hardwired input and output, and features ABM battery management technology that extends battery life by 50%. With a flexible rack/tower convertible design in a 14U form factor, the 9PXM ensures maximum uptime and ease of maintenance through hot-swappable power and battery modules. TAA and FCC compliant with scalable extended battery support, it is ideal for organizations requiring high availability and energy-efficient operation.
| Specification | Details |
|---|---|
| Catalog Number | 9PXM8S16K |
| Power Rating | 16 kVA / 14.4 kW |
| Input Connection | Hardwired |
| Output Connection | Hardwired |
| Nominal Input Voltage | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
| Nominal Output Voltage | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
| Frequency | 60 Hz (Input Range: 50–70 Hz) |
| Power Factor | >0.99 (Input), 0.9 (Output) |
| Topology | Online / Double-conversion |
| Output Waveform | True sine wave |
| Form Factor | Rack/Tower (14U) |

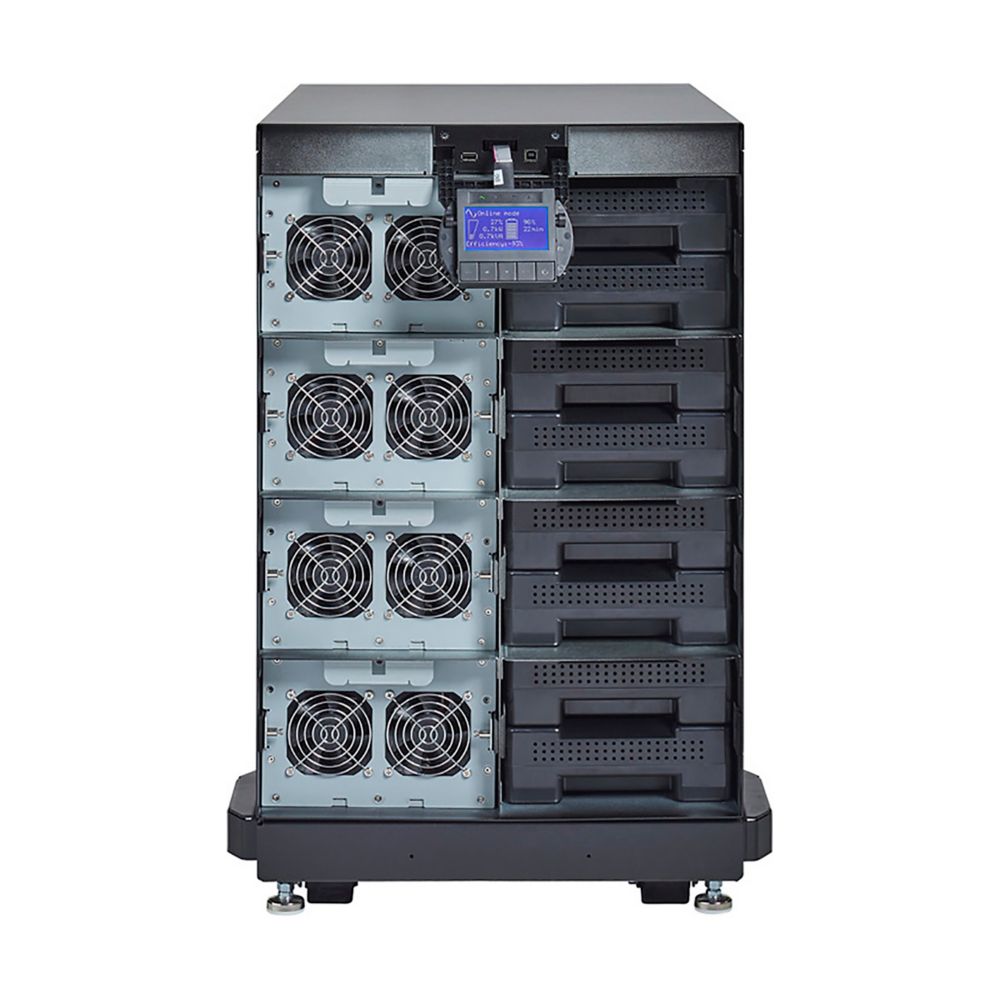

| Hot-Swappable Modules | Yes (Power and Battery) |
| Battery Type | Internal; Supports EBMs |
| Battery Management | ABM 3-stage charging technology |
| Bypass | Internal bypass |

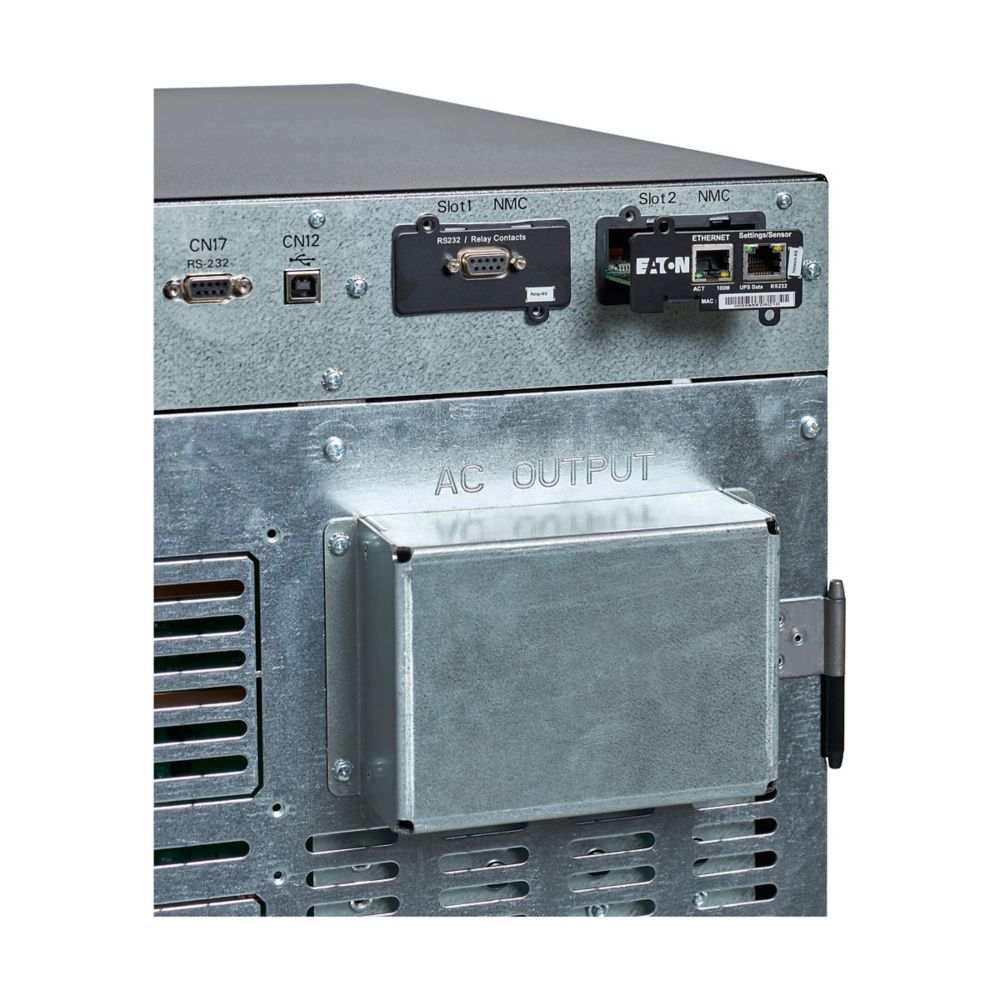

| Expansion Slots | 2 Mini-Slot (MS) ports |
| Software Support | Intelligent Power Software Suite |
| Communications Options | Gigabit Network, Modbus, Relay cards |
| Color | Black/Silver |
| Dimensions (W x D x H) | 17.5 x 34.5 x 25 in |
| Weight | 471 lb |
| Certifications | TAA, FCC, IEC Rated, cULus Listed |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Humidity Range | 5–95% non-condensing |
| Warranty | 2-Year Factory (Parts, Electronics, Batteries) |
| Extended Support Plans | 5-Year Depot & On-Site Plans Available |
