Description

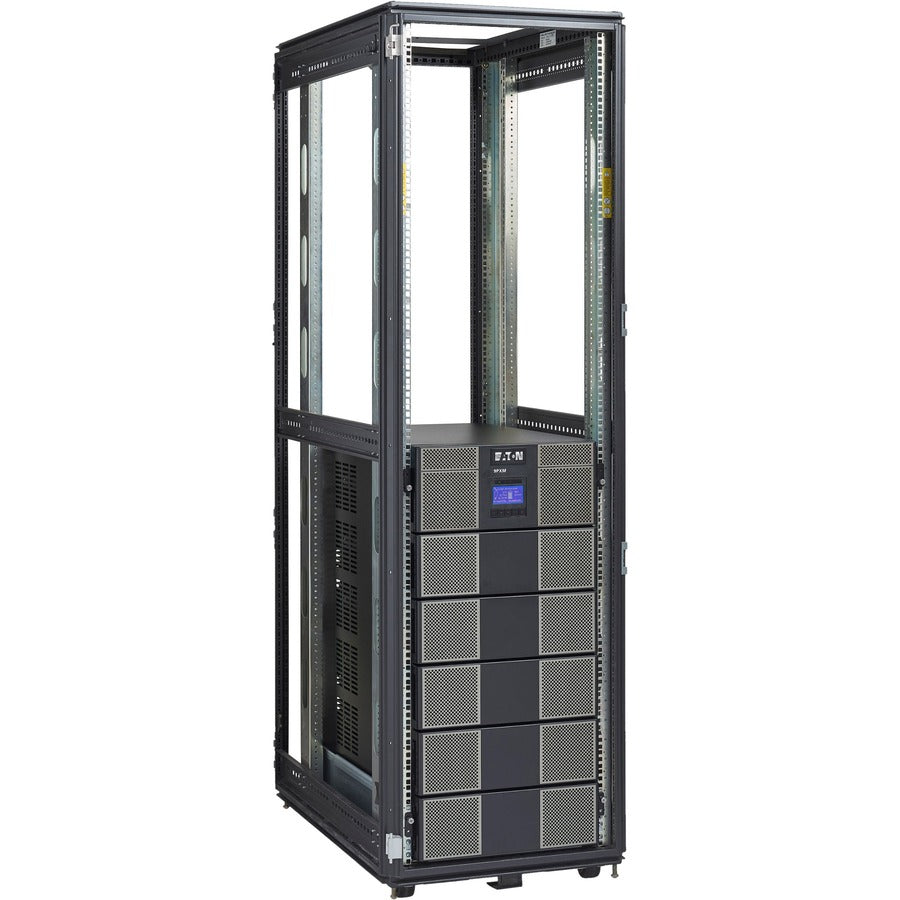

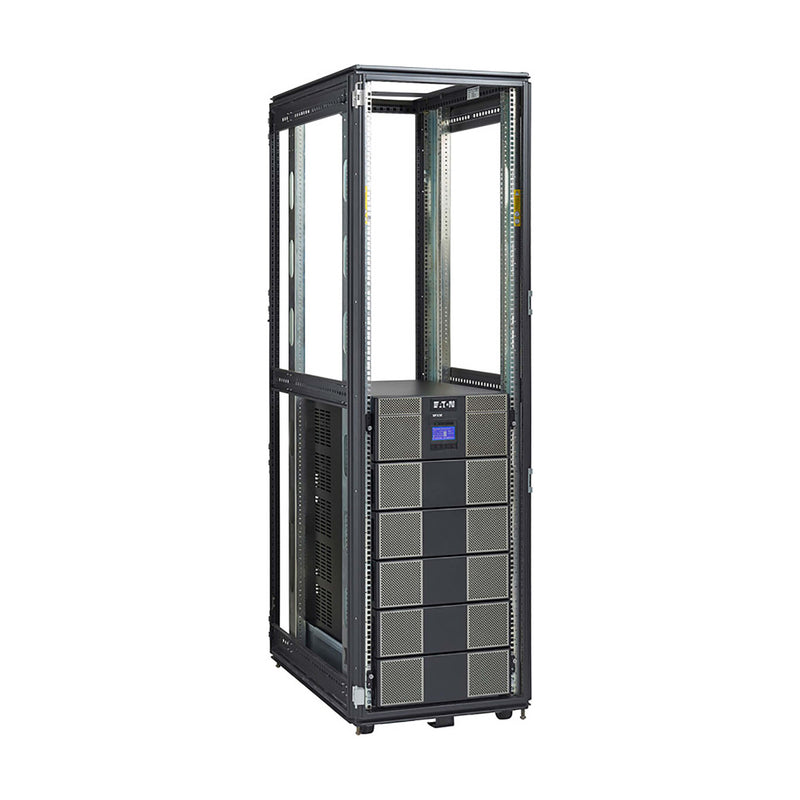

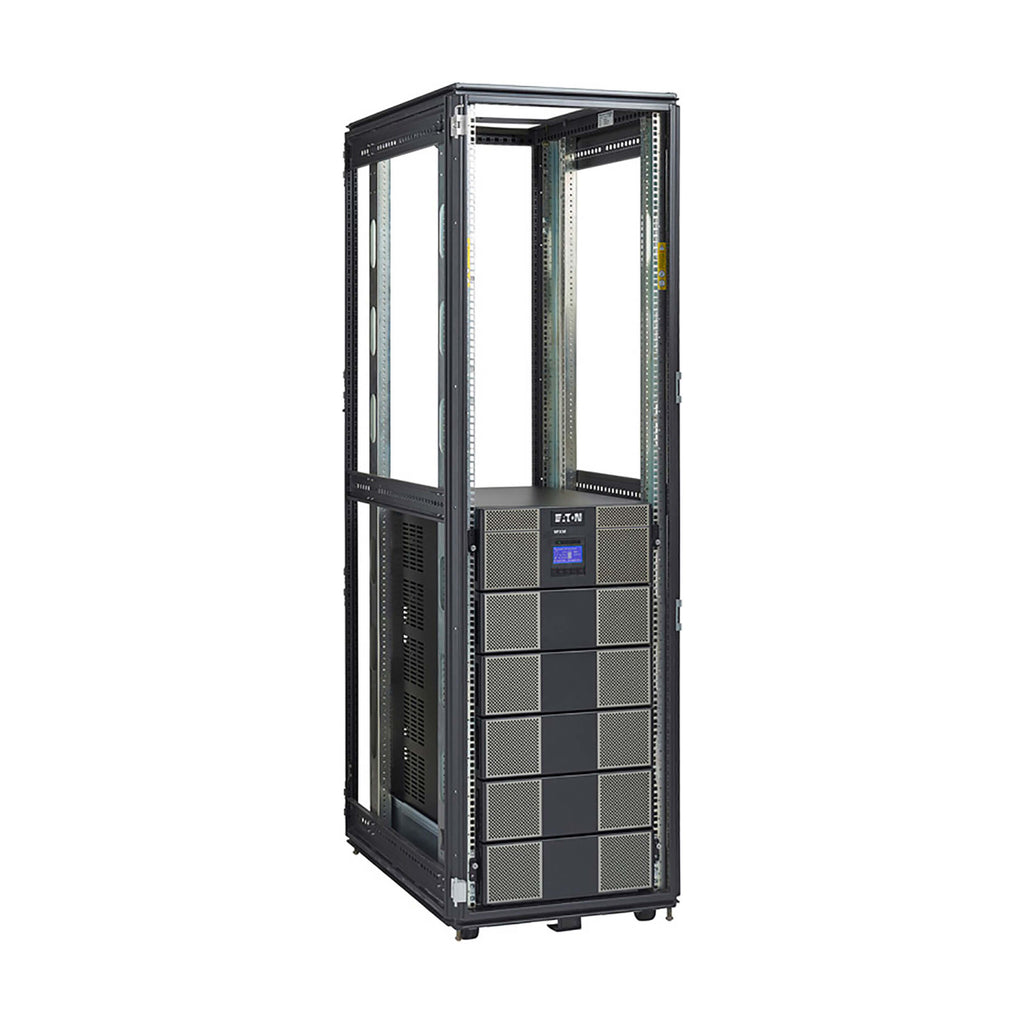

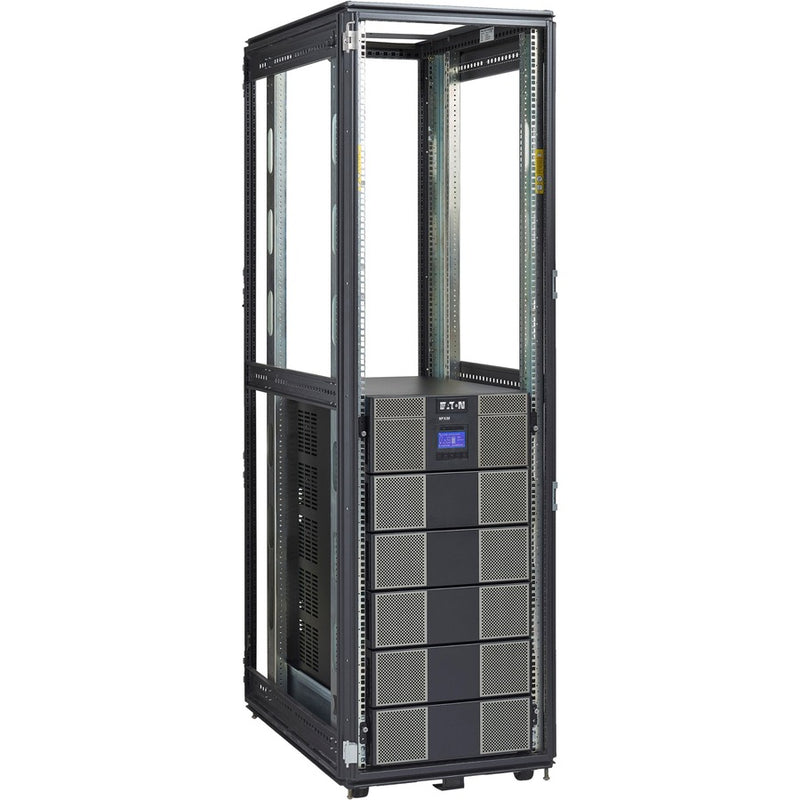

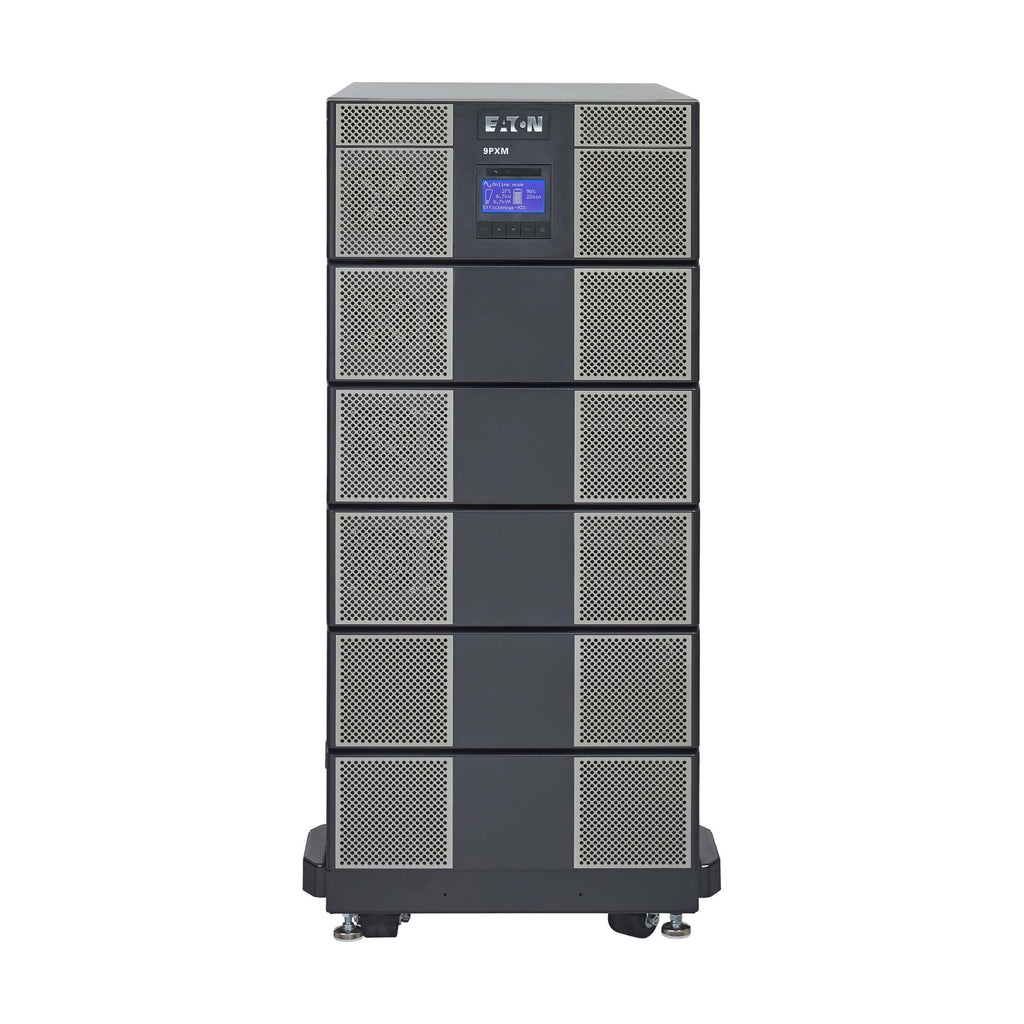

The Eaton 9PXM12S16K-PD is a scalable 16kVA/14.4kW online double-conversion UPS system designed for high-availability, mission-critical applications in edge data centers, colocation facilities, and industrial or commercial environments. This modular UPS provides N+1 redundancy, eliminating single points of failure with four 4kVA hot-swappable power modules and eight battery modules. It includes a 21U rack/tower convertible chassis and features a variety of NEMA outlets, including 5-20R, L6-30R, L6-20R, and L14-30R.
Equipped with Eaton's ABM® technology to extend battery life by 50% and the NETWORK-M3 card for full remote access and secure firmware updates, the 9PXM12S16K-PD ensures clean, reliable, and manageable power for enterprise workloads. TAA compliance makes it ideal for government procurement.
| Specification | Details |
|---|---|
| Model Number | 9PXM12S16K-PD |
| Topology | Online, Double-Conversion |
| Power Capacity | 16kVA / 14.4kW |
| Scalability | Up to 20kVA (via additional power modules) |
| Form Factor | Rackmount / Tower (21U) |
| Input Voltage | 208–240V (Hardwired Input) |
| Output Voltage | 110V–240V (Selectable), Pure Sine Wave |
| Outlets | (8) 5-20R, (2) L6-30R, (2) L6-20R, (2) L14-30R |
| Battery Type | Valve Regulated Lead Acid (VRLA), Hot-swappable |
| Runtime (Full Load) | ~6 minutes at 14.4kW |
| Runtime (Half Load) | ~17 minutes at 7.2kW |
| Battery Management | ABM® 3-stage charging |
| Cooling | Fan cooled |

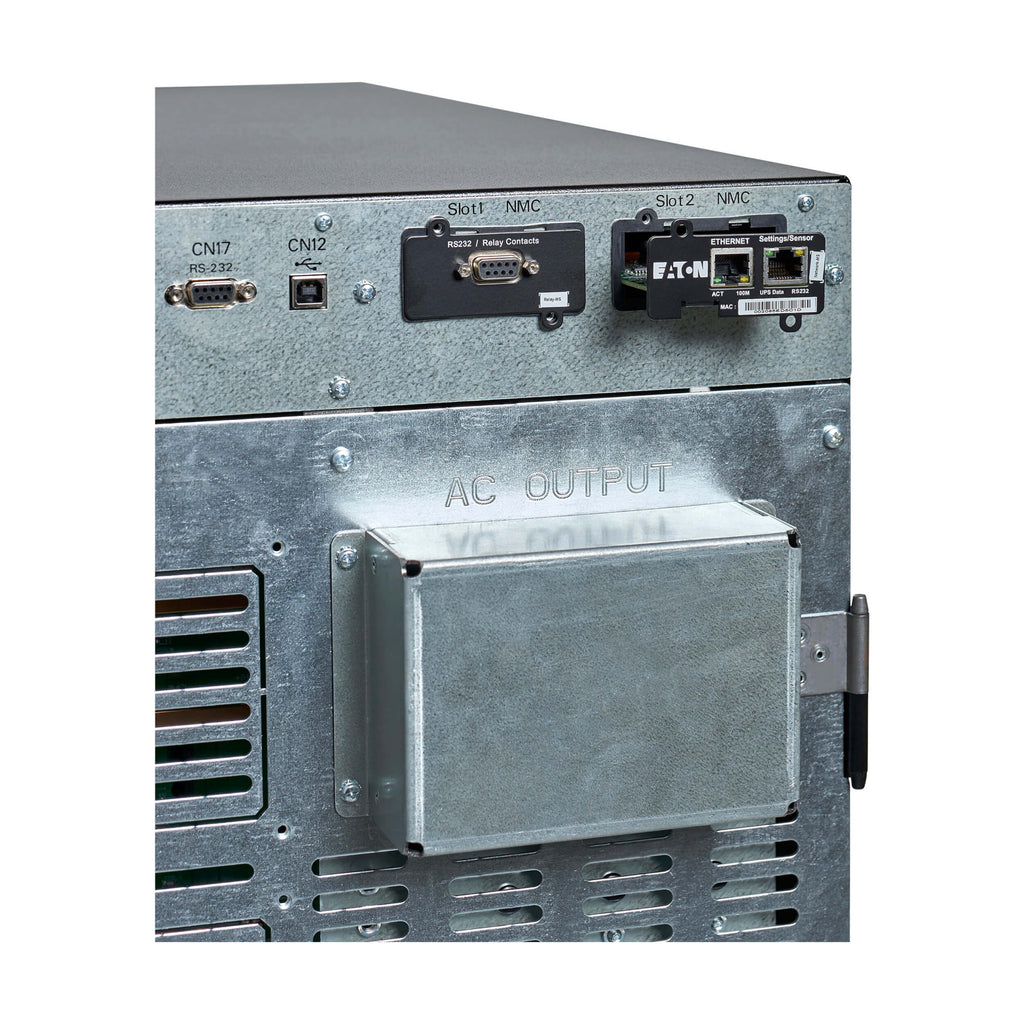

| Communication Ports | USB, RS-232, NETWORK-M3, EPO, ROO |
| Network Management | NETWORK-M3 (Gigabit), IEC 62443-4-2 and UL 2900-1 Compliant |
| Certifications | UL, CE, FCC, TAA, RoHS, EN/IEC Standards |
| Environment | 0°–40°C, 5–95% RH (non-condensing) |
| Efficiency (Line Mode) | 94% |
| Dimensions (H x W x D) | 36.5 x 17.5 x 34.5 in (927 x 445 x 889 mm) |
| Weight | 586 lbs / 265.81 kg |
| Warranty | 2-year limited; optional 5-year service plans available |
