Description

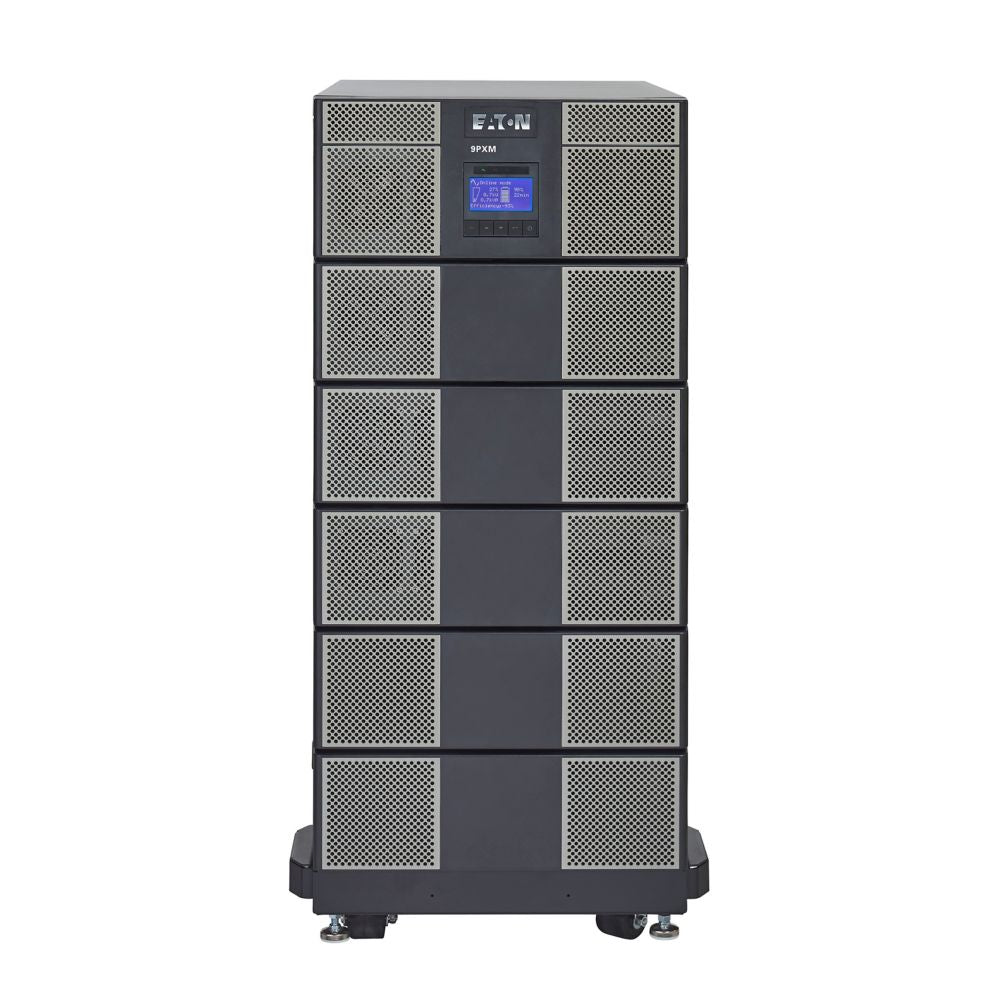

The Eaton 9PXM12S16K is a modular, scalable UPS system offering 16 kVA power capacity, upgradeable to 20 kVA with N+1 redundancy. Designed for flexibility and high efficiency, it features a true online double-conversion topology, hardwired input/output, and hot-swappable internal batteries. Its 21U rack/tower convertible form factor makes it ideal for growing data centers, server rooms, and critical IT infrastructure. With ABM® battery technology, extended runtime options, and intelligent software compatibility, this TAA-compliant UPS delivers reliable, mission-critical power protection.
| Specification | Details |
|---|---|
| Model Number | 9PXM12S16K |
| Power Rating | 16 kVA / 14.4 kW |
| Scalability | Up to 20 kVA (N+1 redundancy) |

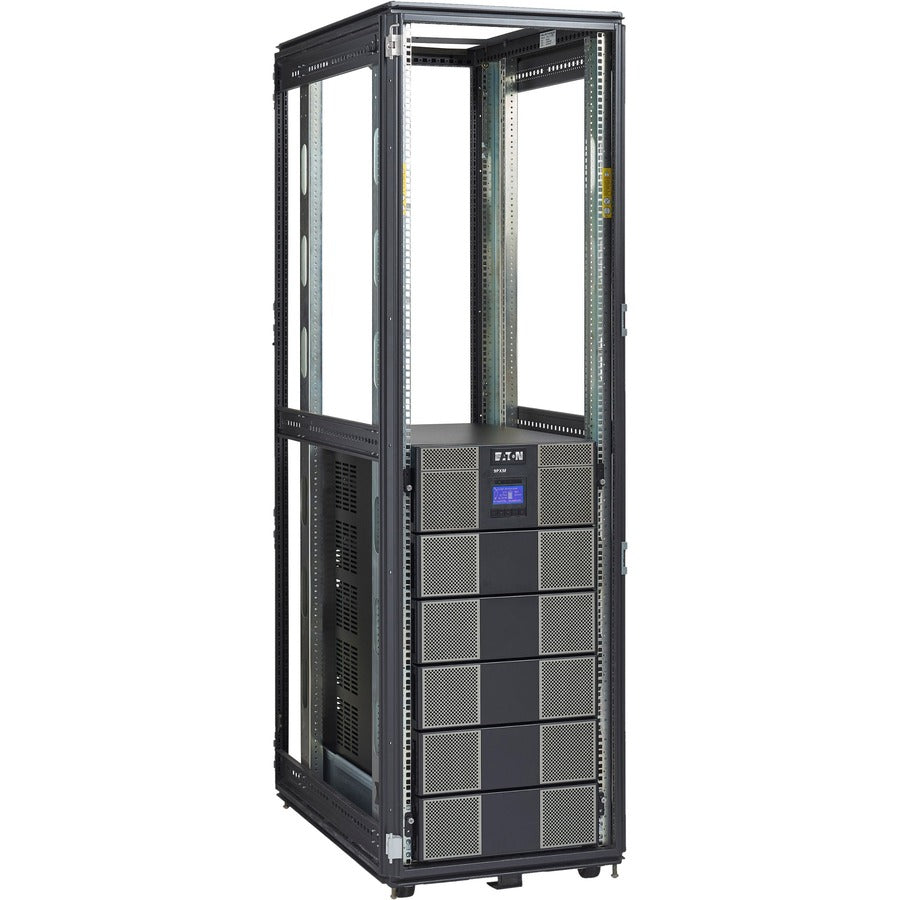

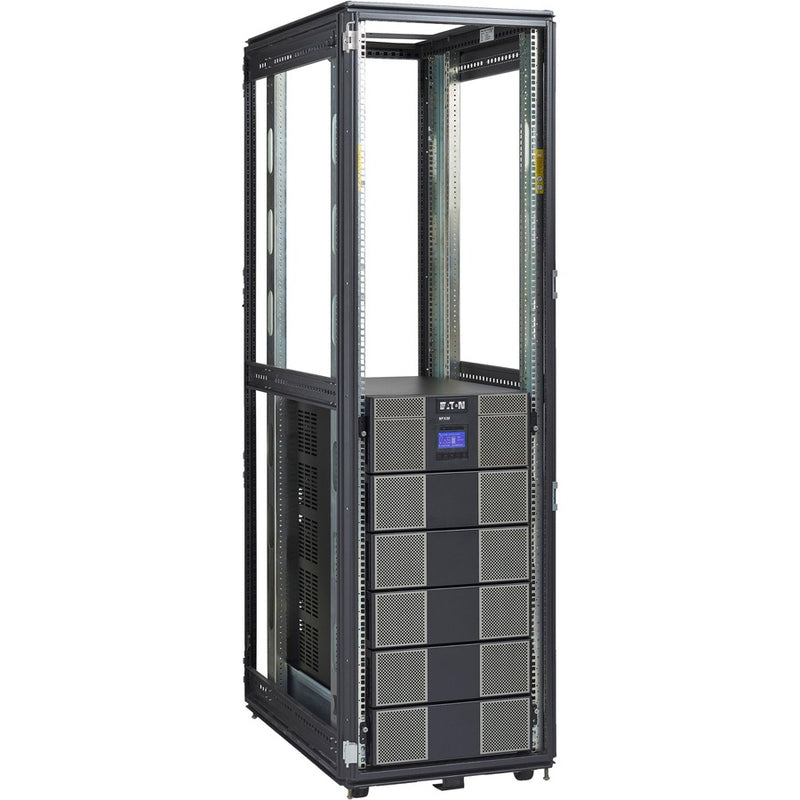

| Form Factor | Rack/Tower Convertible, 21U |
| Input Connection | Hardwired |
| Output Connection | Hardwired |
| Input Voltage Options | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
| Output Voltage Options | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
| Output Waveform | True Sine Wave |
| Frequency | 60 Hz (50–70 Hz input range) |
| Power Factor | Input: >0.99 |
| Battery Type | Hot-swappable internal batteries, EBM-compatible |
| Battery Management | ABM 3-stage charging technology |
| Internal Bypass | Yes |
| Auto Shutdown Function | Yes |
| Color | Black/Silver |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 5–95% non-condensing |

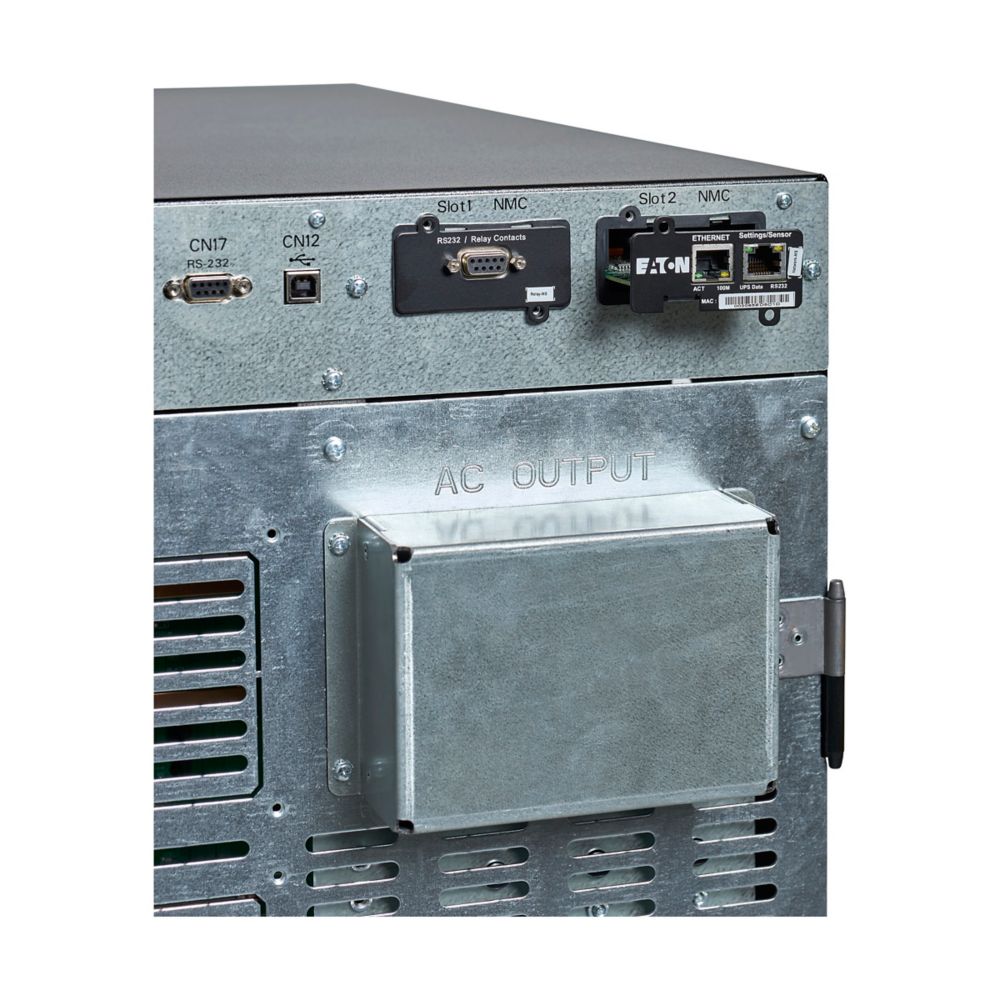

| Expansion Slots | (2) Mini-Slot MS ports (NETWORK-M2, MODBUS-MS, RELAY-MS) |
| Software Compatibility | Intelligent Power Software Suite |
| Dimensions (HxWxD) | 36.5 x 17.5 x 34.5 in |
| Weight | 586 lb |
| Certifications | TAA Compliant, FCC, IEC Rated, cULus Listed |
| Standard Warranty | 2 Years – Parts, Electronics, Batteries, Tech Support |
| Optional Service Plans | 5-Year Depot or On-Site Support Available |
