Description
The Eaton 9PXM12S20K-PD is a high-performance, modular, and scalable 20kVA/18kW UPS system designed for mission-critical environments such as edge data centers, colocation facilities, and industrial or commercial installations. Featuring true online double-conversion technology and N+1 redundancy, this 21U rack/tower UPS ensures uninterrupted sine wave power through blackouts, surges, and line noise.

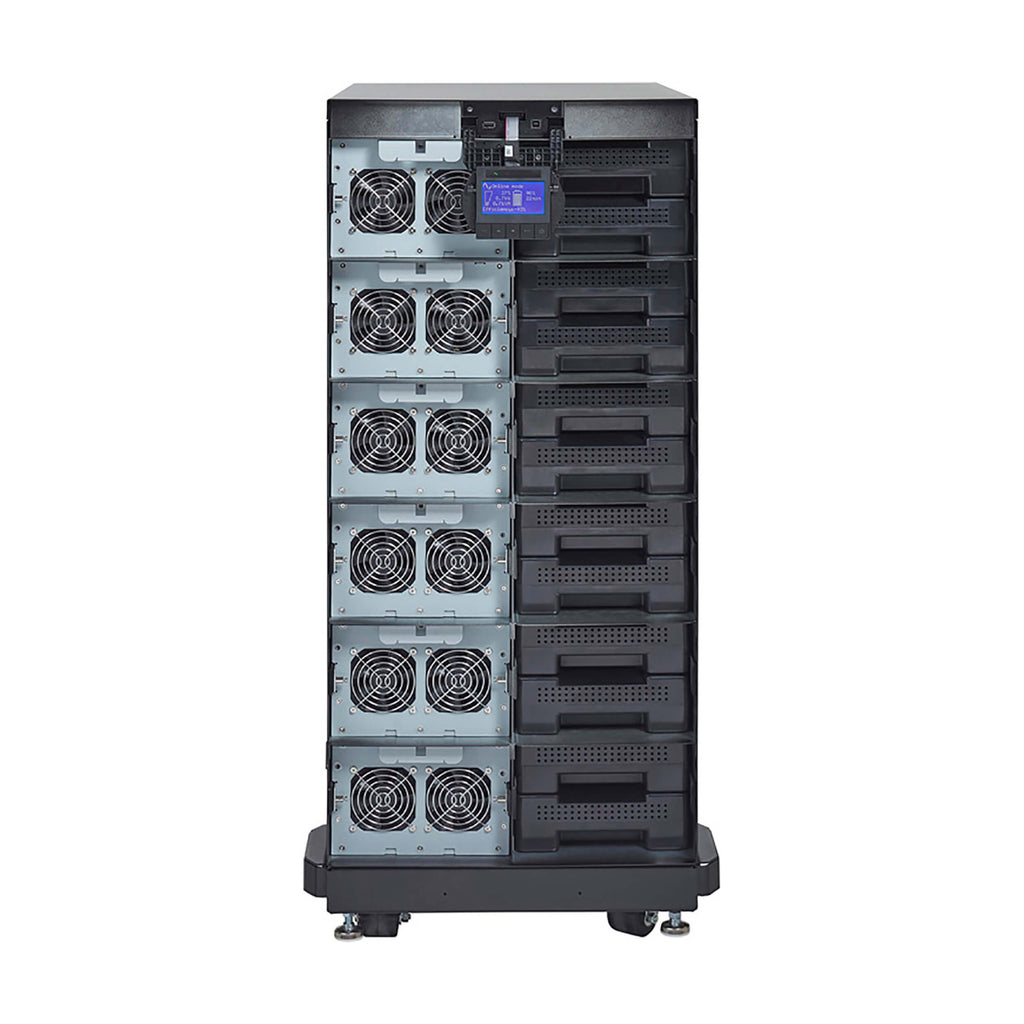

Equipped with 5x hot-swappable 4kVA power modules (scalable to 6 for full 20kVA N+1), 10x VRLA battery modules, and a cybersecure Gigabit NETWORK-M3 card, the 9PXM12S20K-PD offers remote management, advanced battery diagnostics, and support for environmental monitoring.
With 8x 5-20R, 2x L6-30R, 2x L6-20R, and 2x L14-30R outlets, this unit protects critical loads and supports seamless integration into existing infrastructure. TAA-compliant for federal deployments.
| Specification | Details |
|---|---|
| Model | 9PXM12S20K-PD |
| Form Factor | Rack/Tower (21U) |
| Power Capacity | 20kVA / 18kW |
| Power Modules Installed | 5x 4kVA (Scalable to 6) |
| Output Voltage | 208–240V (Pure Sine Wave) |
| Input Type | Hardwired |
| Output Receptacles | 8x 5-20R, 2x L6-30R, 2x L6-20R, 2x L14-30R |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Runtime @ Full Load | 6 minutes (18kW) |
| Runtime @ Half Load | 14 minutes (9kW) |
| Scalability | Power and battery modules are hot-swappable |
| Efficiency (Online / Eco) | 94% / 97% |
| Network Management | NETWORK-M3 Gigabit card (UL 2900-1, IEC 62443-4-2 compliant) |

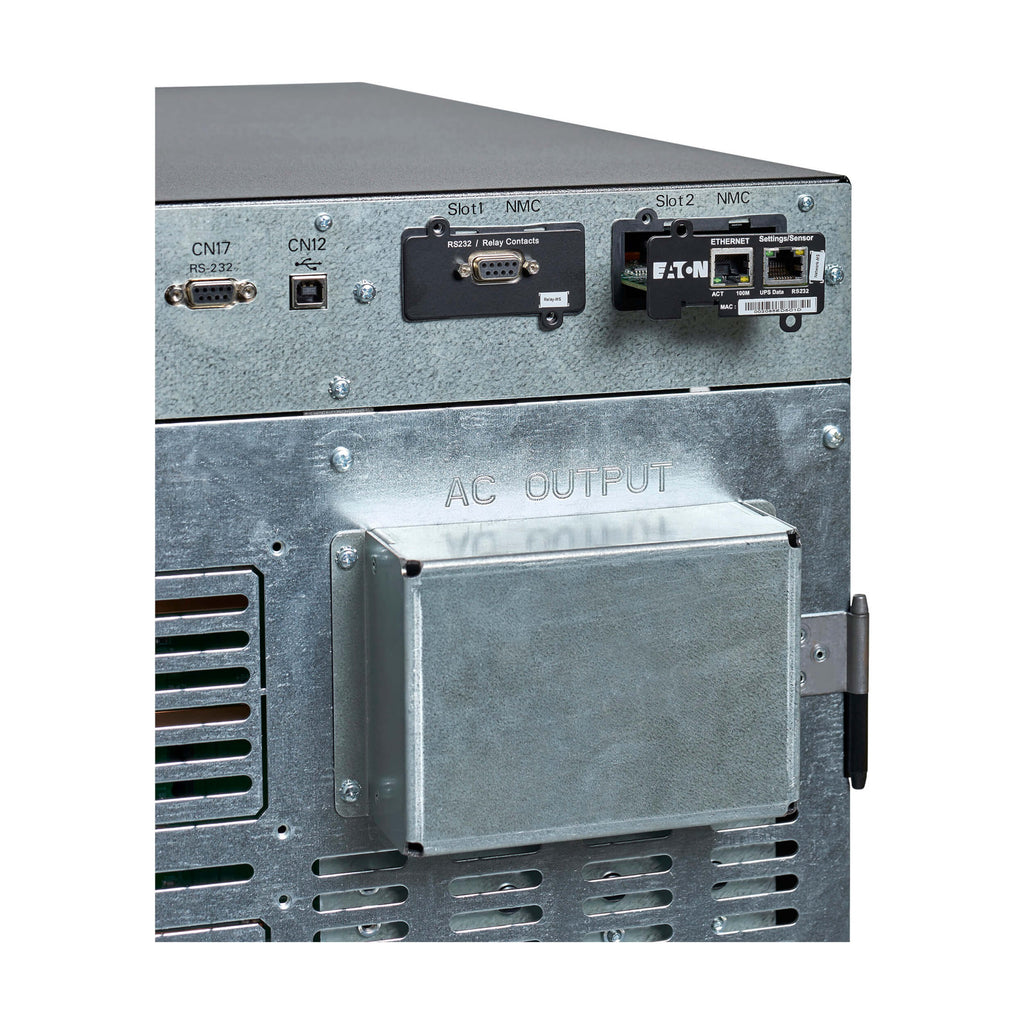

| Communication Ports | RS-232, USB, EPO, ROO |
| LCD Display | Graphical LCD with alarms and indicators |
| Cooling | Internal fans |
| Weight | 690 lbs / 313 kg |
| Dimensions (H x W x D) | 36.5 x 17.5 x 34.5 in (927 x 445 x 889 mm) |
| Certifications | UL, cUL, CE, FCC, TAA-compliant |
| Warranty | 2-year limited warranty |
