Description

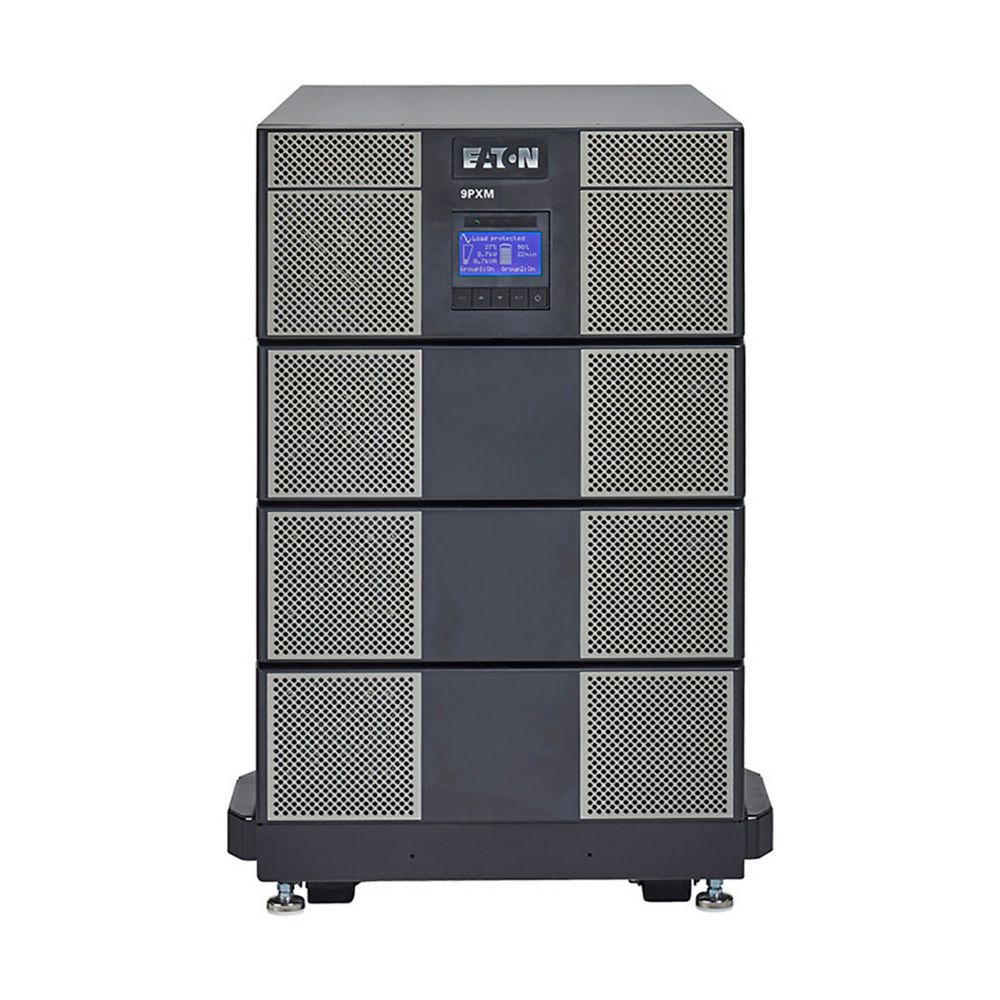

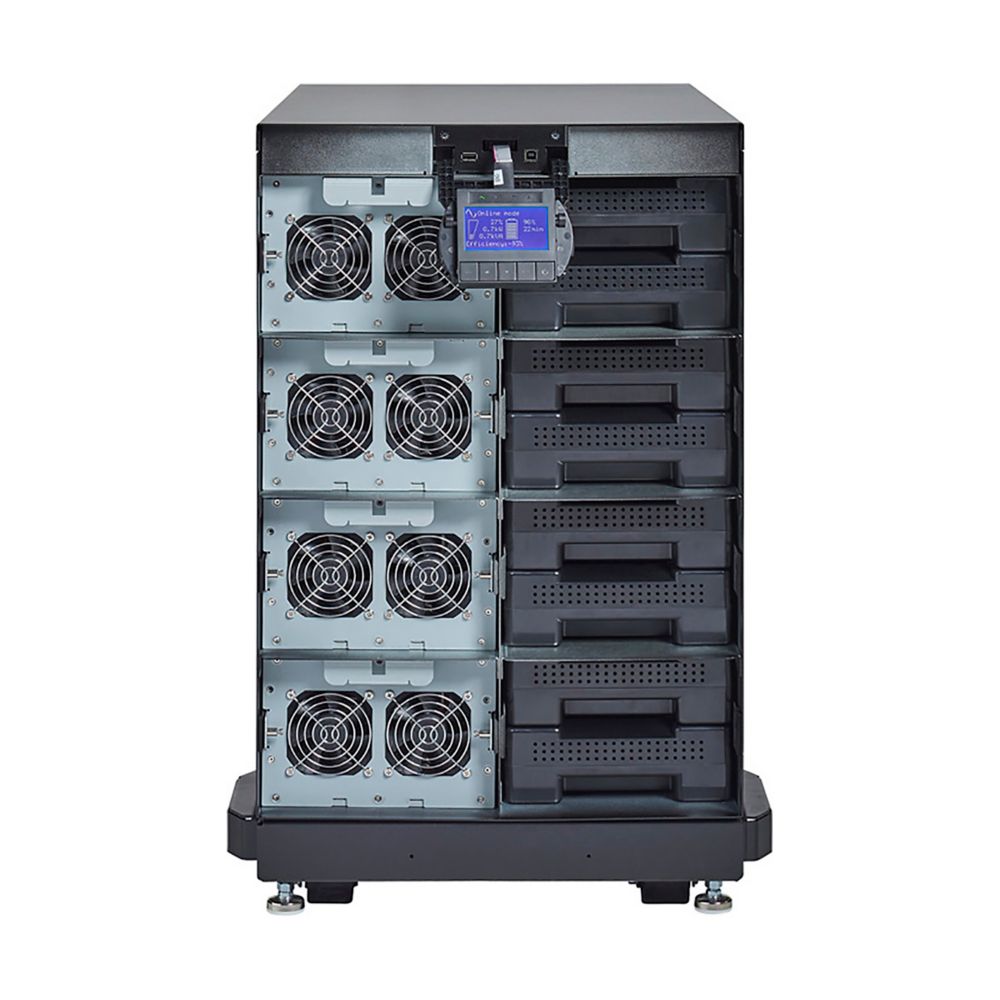

The Eaton 9PXM08AAXXX is a modular and scalable UPS frame supporting 4 to 16 kVA configurations. Designed for enterprise, colocation, and edge environments, this 14U rack/tower convertible UPS frame features hardwired input/output connections, hot-swappable battery modules, and advanced battery management (ABM) technology to extend service life and simplify maintenance. With built-in internal bypass, dual Mini-Slot ports for communication cards, and compatibility with Eaton’s Intelligent Power Software Suite, the 9PXM offers flexible, reliable power protection in a compact footprint.
| Specification | Details |
|---|---|
| Product Name | Eaton 9PXM UPS |
| Catalog Number | 9PXM08AAXXX |

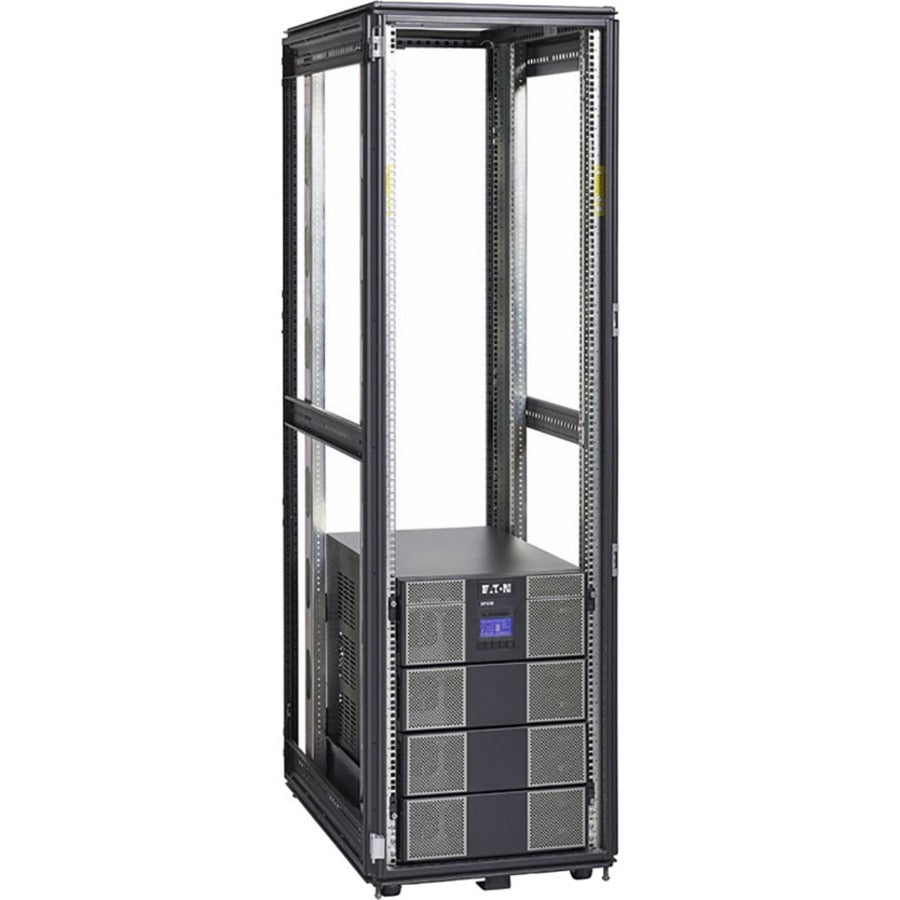

| Form Factor | Rack/Tower, 14U |
| Power Rating | 4–16 kVA |
| Input Connection | Hardwired |
| Input Voltage | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
| Input Frequency Range | 50–70 Hz (60 Hz nominal) |
| Input Power Factor | >0.99 typical |
| Output Connection | Hardwired |
| Output Frequency | 60 Hz |
| Output Power Factor | 0.9 |
| Waveform | True sine wave |
| UPS Topology | Online/Double-conversion |
| Battery Type | Hot-swappable internal and external EBMs |
| Battery Management | ABM 3-stage charging |
| Extended Battery Support | Yes |
| Internal Bypass | Yes |
| Auto Shutdown Function | Yes |
| Hot Swap Power Modules | Yes |
| Expansion Slots | 2 Mini-Slot ports (optional cards: NETWORK-M2, MODBUS-MS, RELAY-MS) |
| Software Compatibility | Eaton Intelligent Power Software Suite |
| Temperature Range | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 5–95% non-condensing |
| Color | Black/Silver |
| Product Dimensions (L x W x H) | 34.5 in x 17.5 in x 25 in |
| Weight | 125 lb |
| Certifications | IEC Rated, cULus Listed |
| Compliance | TAA, FCC |
