Description

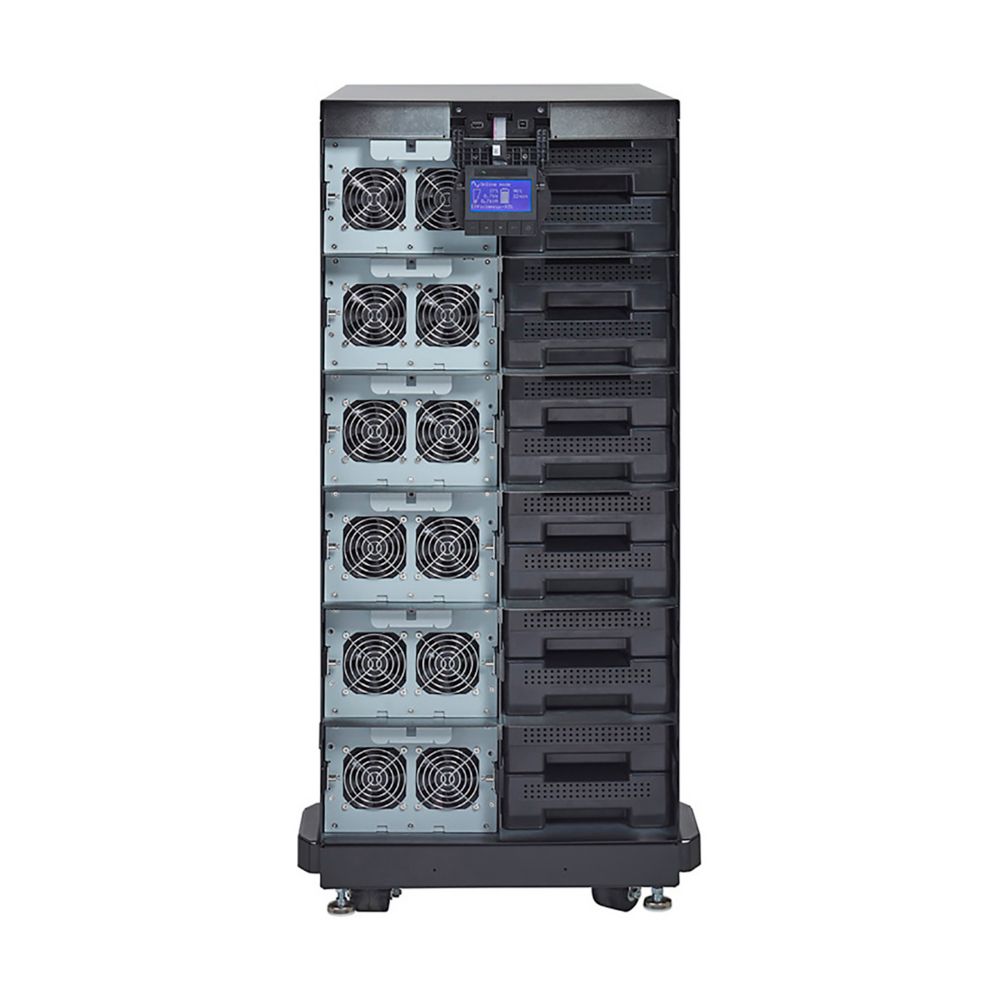

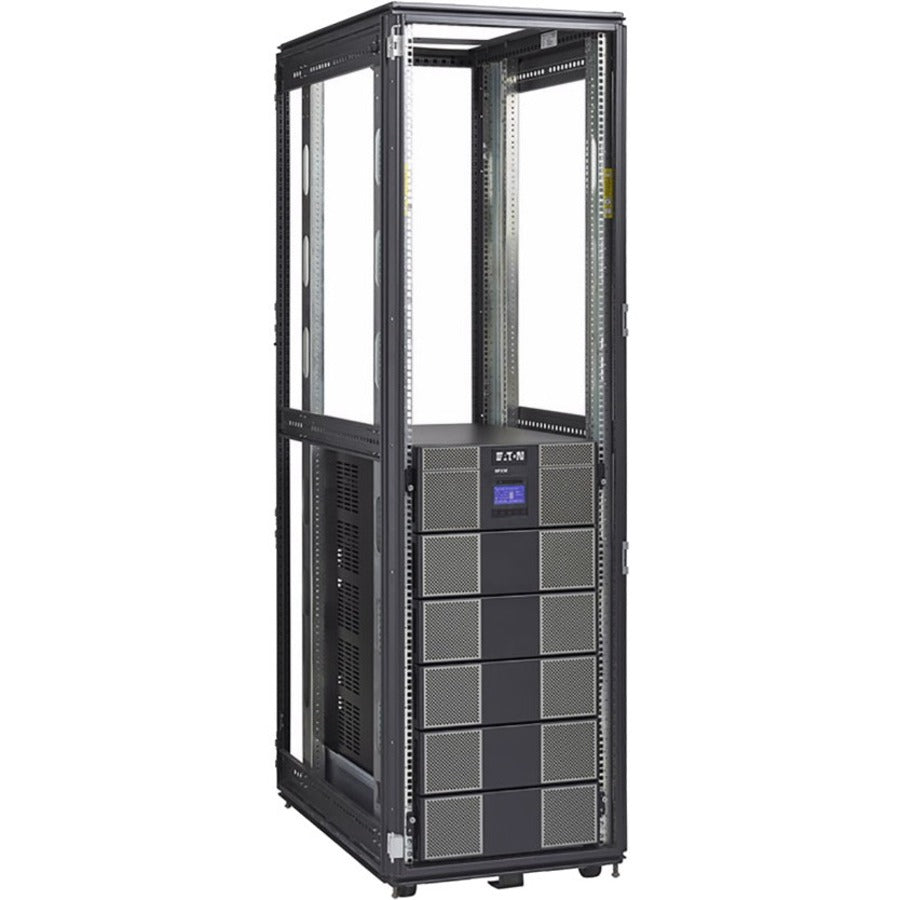

The Eaton 9PXM12AAAAA UPS frame is a flexible and scalable power protection solution designed for critical IT and data center applications. Supporting 4–20 kVA N+1 scalable power in a 21U rack/tower convertible form factor, it features hardwired input/output and online double-conversion technology to ensure uninterrupted clean power. With ABM technology for extended battery life, hot-swappable components, and advanced connectivity options, this freestanding black/silver unit is ideal for mission-critical systems requiring continuous uptime.
| Category | Details |
|---|---|
| Product Name | Eaton 9PXM UPS |
| Catalog Number | 9PXM12AAAAA |
| Form Factor | Rack/Tower Convertible (Freestanding) |
| Power Capacity | 4–20 kVA (N+1 scalable) |
| Input Connection | Hardwired |
| Input Voltage Range | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
| Output Connection | Hardwired |
| Output Frequency | 60 Hz |
| Output Power Factor | 0.9 |
| Waveform | True sine wave |
| Topology | Online / Double-conversion |
| Battery | Hot-swappable internal batteries and EBMs |
| Battery Management | ABM 3-stage charging (extends battery life by 50%) |
| Extended Battery Capable | Yes |
| Internal Bypass | Yes |
| Auto Shutdown | Yes |
| Hot Swap Power | Yes |
| Expansion Slots | 2x Mini-Slot (MS) ports (Gigabit Network, Modbus, Relay card optional) |
| Software Compatibility | Eaton Intelligent Power Software Suite |
| Operating Temp | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 5–95% non-condensing |
| Color | Black/Silver |
| Unit Dimensions (HxWxD) | 36.5 x 17.5 x 34.5 in |
| Weight | 170 lb |
| Certifications | TAA Compliant, FCC, IEC Rated, cULus Listed |
| UPC | 743172091390 |
