Description

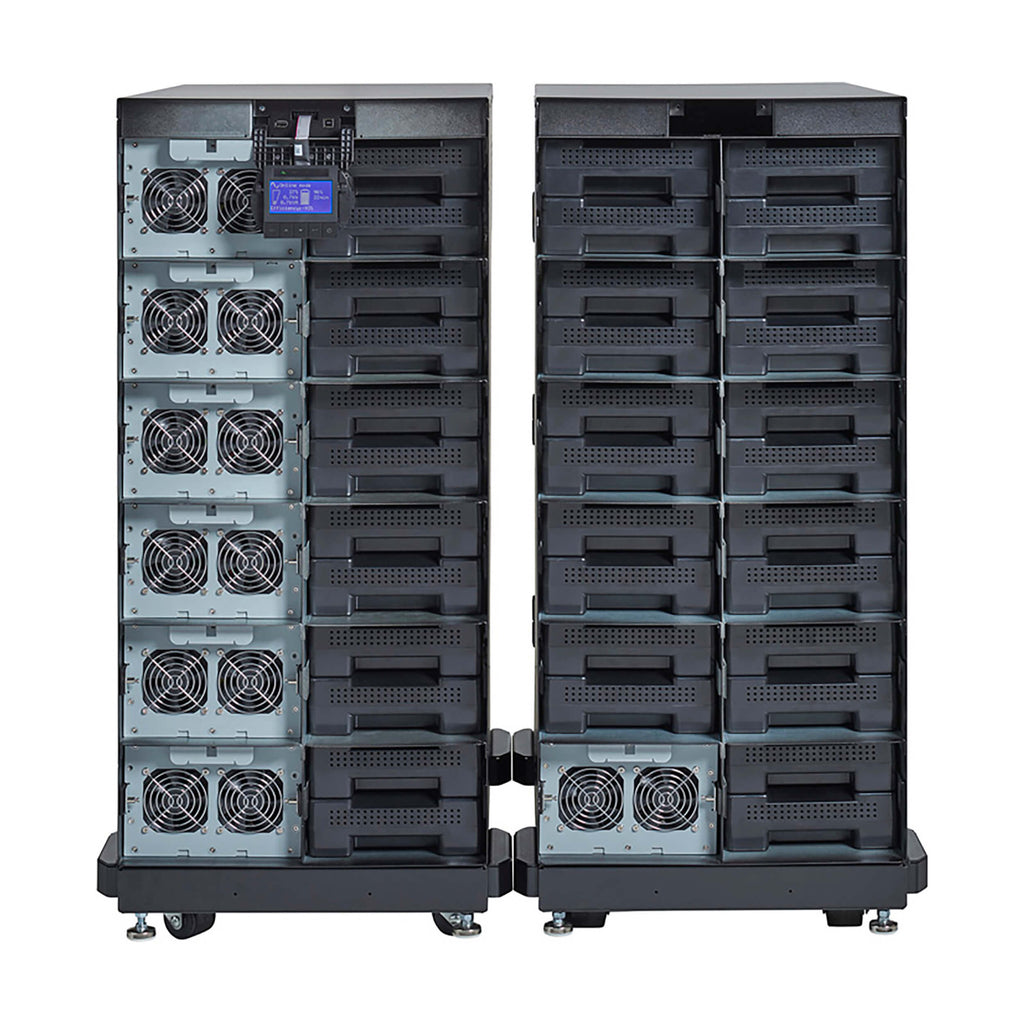

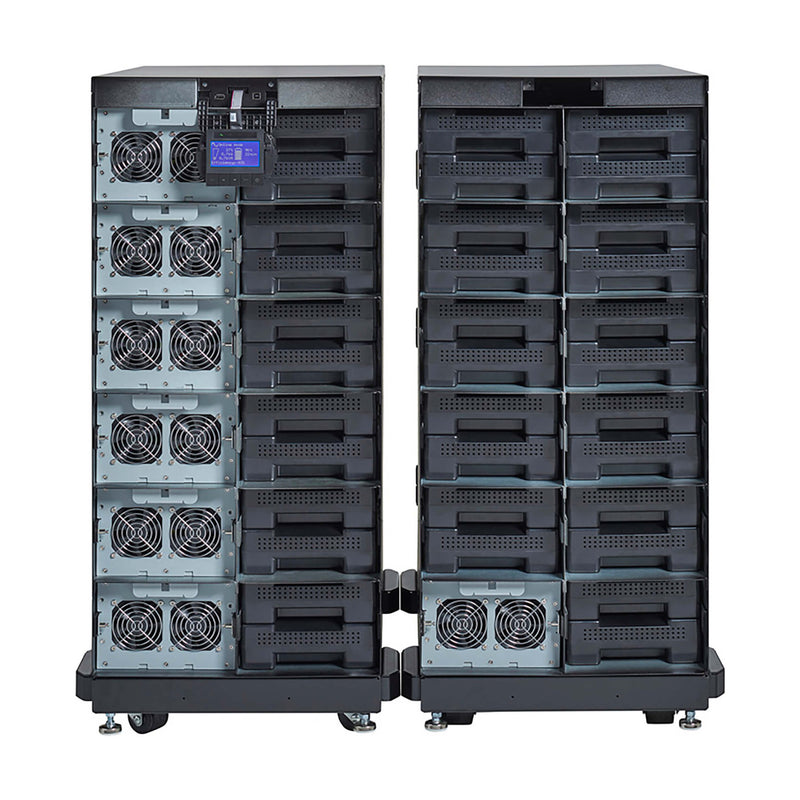

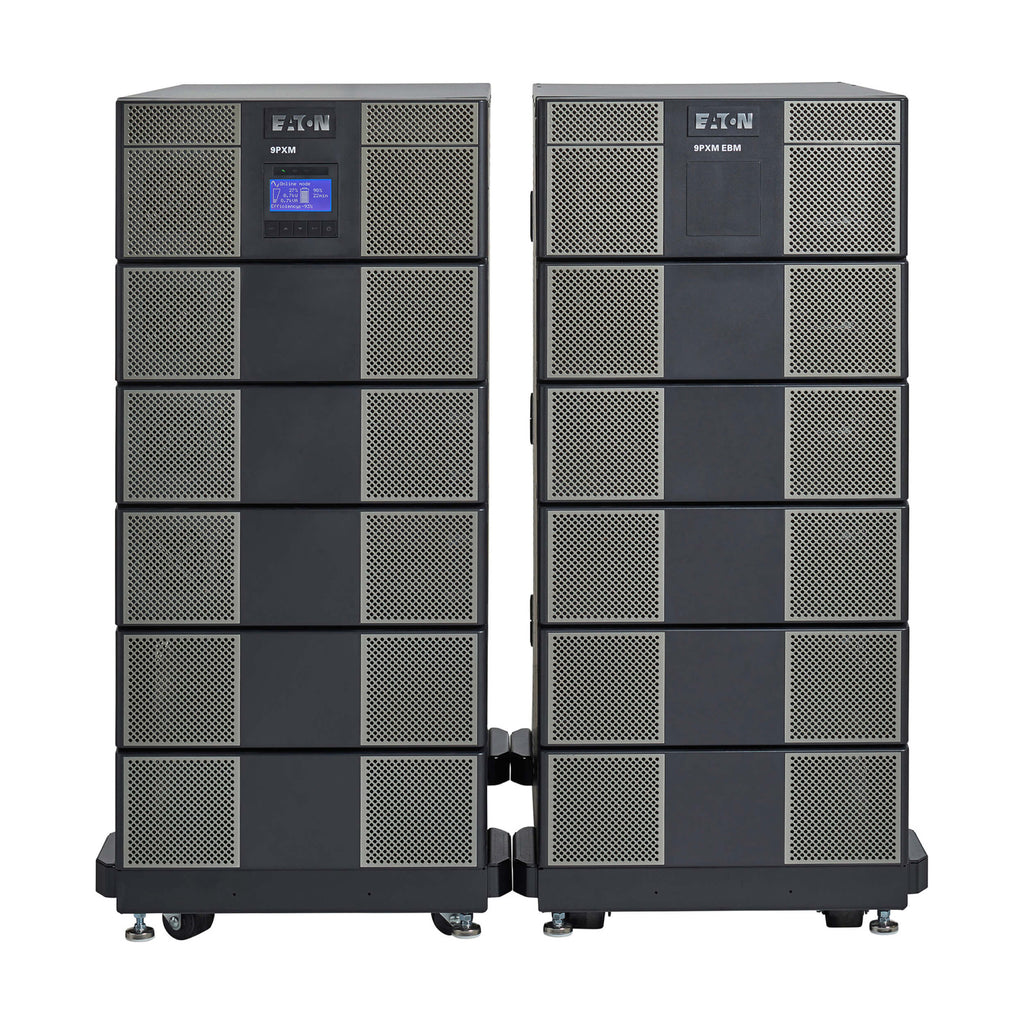

Extend the runtime of your Eaton 9PXM Online Double-Conversion UPS with the Eaton 9PXM08SEBM 8-Slot Standard External Battery Cabinet. Designed to accommodate up to 16 hot-swappable VRLA battery cartridges (sold separately), this 14U rack/tower battery enclosure is ideal for high-capacity, high-availability applications in colocation, edge data centers, and commercial environments. Connect up to three EBMs in parallel for even greater runtime scalability. It supports rackmount installation using an optional kit or secure floor setup with included leveling feet and caster tray. TAA-compliant and engineered for long-lasting performance, the 9PXM08SEBM is a reliable solution for mission-critical power backup needs.
| Specification | Details |
|---|---|
| Model Number | 9PXM08SEBM |
| Use Case | External battery cabinet for Eaton 9PXM UPS |
| Battery Slots | 8 slots (holds up to 16 9PXMBAT cartridges, 2 per slot - sold separately) |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Battery Management | ABM technology (3-stage charging) |
| Hot-Swappable Batteries | Yes |
| Parallel Expandability | Supports up to 3 EBMs |
| Mounting Options | 14U Rackmount (with 9PXMRK2 kit) or Tower with included feet/casters |
| Input Phase | Single-Phase |
| DC System Voltage | 120 VDC per battery string |
| Form Factor | Rack/Tower |
| Dimensions (H x W x D) | 25.00 x 17.50 x 34.50 in. (63.5 x 44.5 x 87.6 cm) |
| Rack Height | 14U |
| Minimum Rack Depth Required | 38 in. (96.52 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 5% to 95% non-condensing |
| Compliance | RoHS, FCC (USA), TAA |
| Warranty | 2-Year Limited Warranty |
| UPC Code | 743172091420 |
| Extended Service Plans Available | Advanced Depot Exchange & 5-Year On-Site Plan (US only) |
