Description

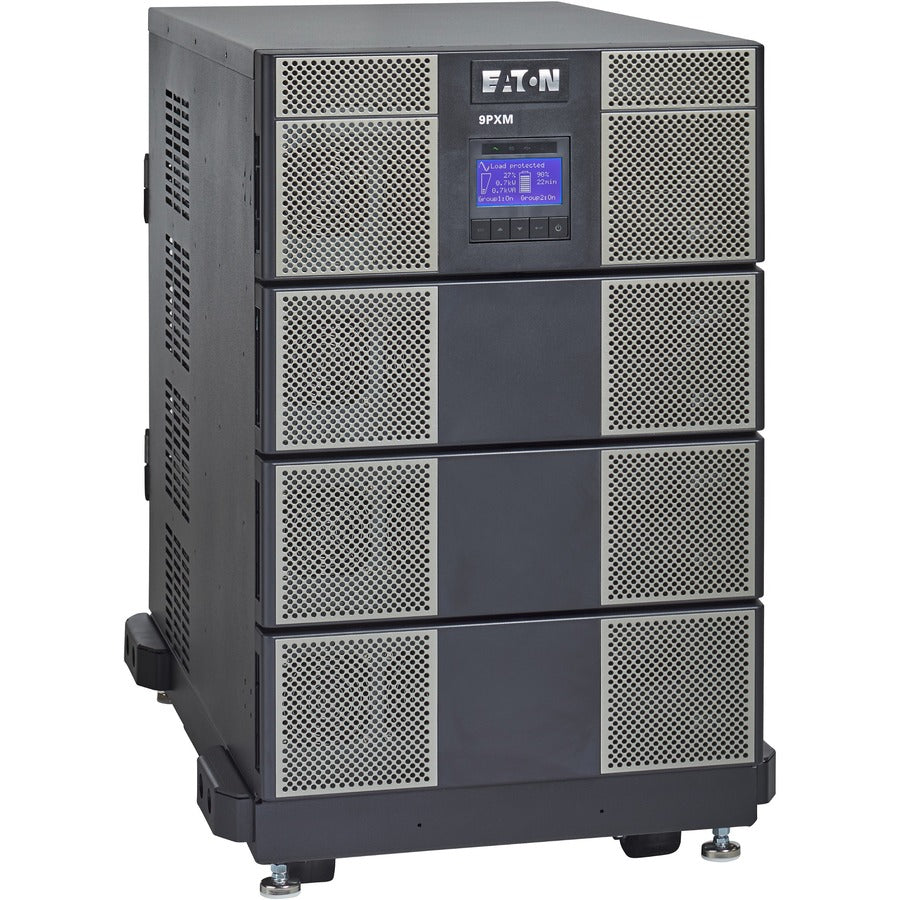

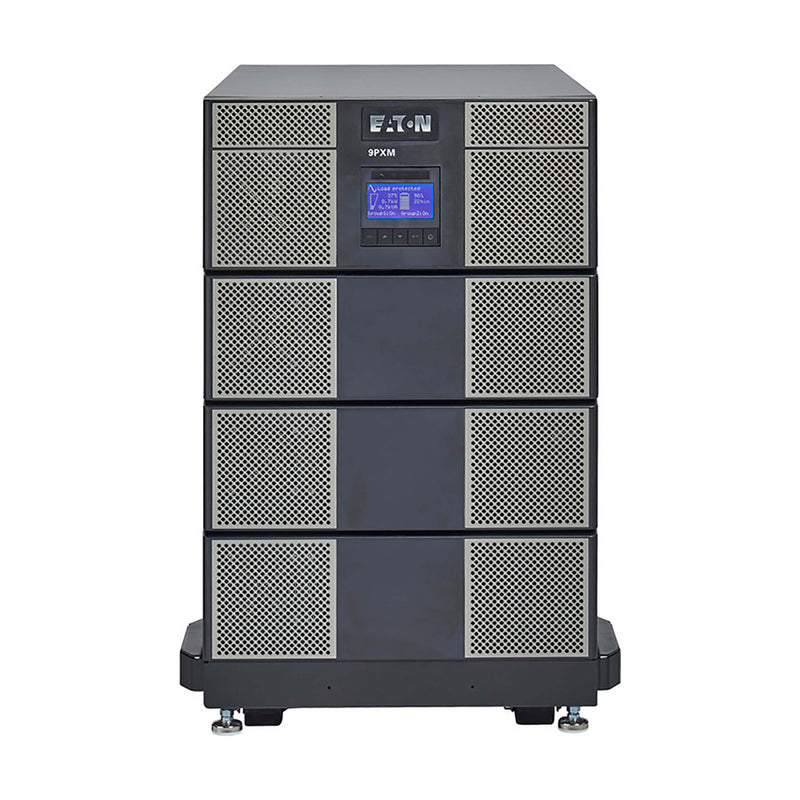

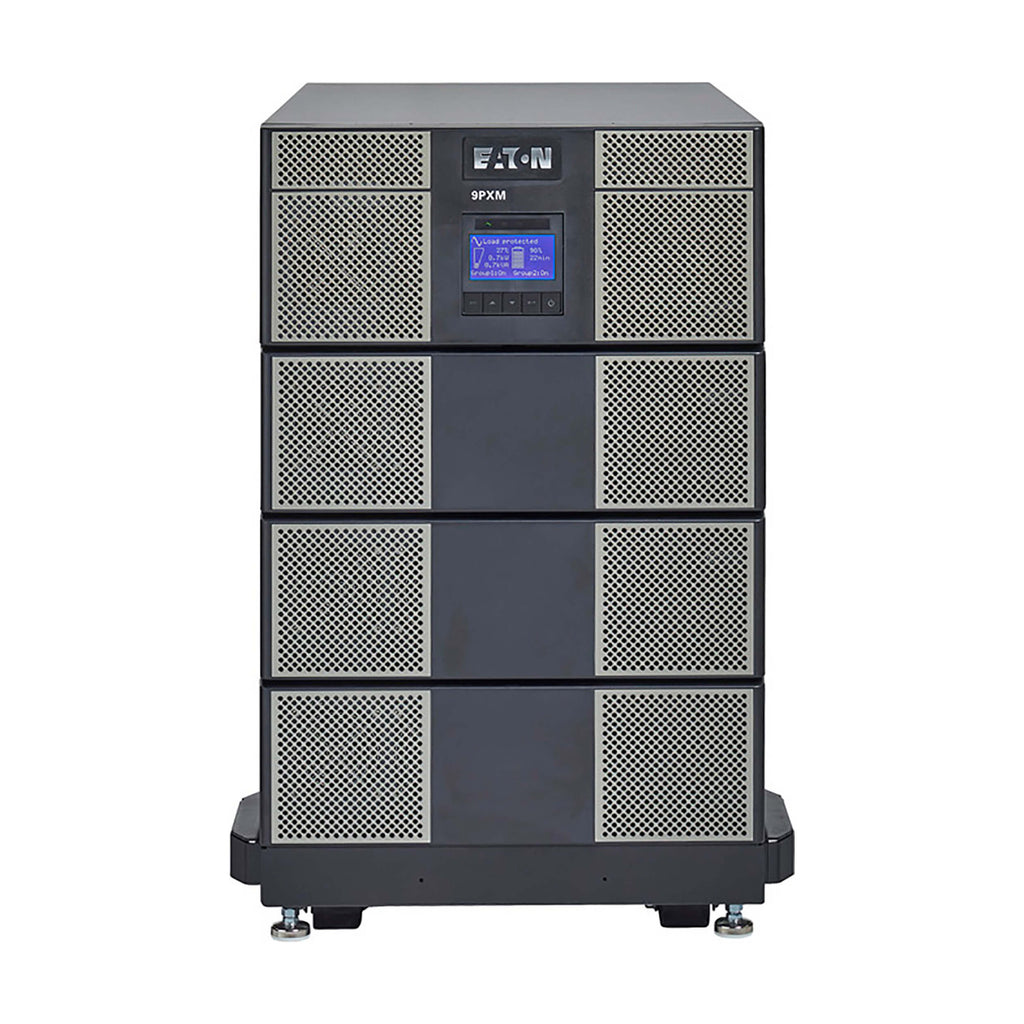

The Eaton 9PXM8S8K-PD is a modular, scalable, and cybersecure 8kVA (7.2kW) online double-conversion UPS, ideal for mission-critical colocation, edge data centers, and industrial applications. This 14U system features N+X redundancy, hot-swappable power and battery modules, and advanced battery management (ABM) technology for extended battery life. It includes a hardwired input, (4) 5-20R and (2) L6-30R outlets, and a NETWORK-M3 Gigabit network card for full remote monitoring and firmware upgrades. The UPS is TAA-compliant, ensuring eligibility for federal procurement and GSA contracts.
| Specification | Details |
|---|---|
| Model Number | 9PXM8S8K-PD |
| UPS Type | Online, Double-Conversion |
| Form Factor | Rack/Tower, 14U |
| Power Capacity | 8 kVA / 7.2 kW |
| Scalability | Up to 12 kVA with additional modules (N+X redundancy) |
| Input Voltage | 208-240V, Hardwired |
| Input Phase | Single-phase |
| Output Voltage | 110V–240V, Pure Sine Wave |
| Outlets | (4) 5-20R, (2) L6-30R |
| Runtime (Full Load) | 6 minutes |
| Runtime (Half Load) | 17 minutes |
| Battery Type | VRLA (Valve Regulated Lead Acid) |
| Battery Modules Included | 4 x 9PXMBAT |
| Power Modules Included | 2 x 9PXMSPPM |
| Battery Management | ABM® 3-stage charging, hot-swappable |
| Network Management | NETWORK-M3 (Gigabit, UL 2900-1 & IEC 62443-4-2 compliant) |
| Control Panel | LCD Graphical Display, 4 Status LEDs, ROO/EPO Switches |

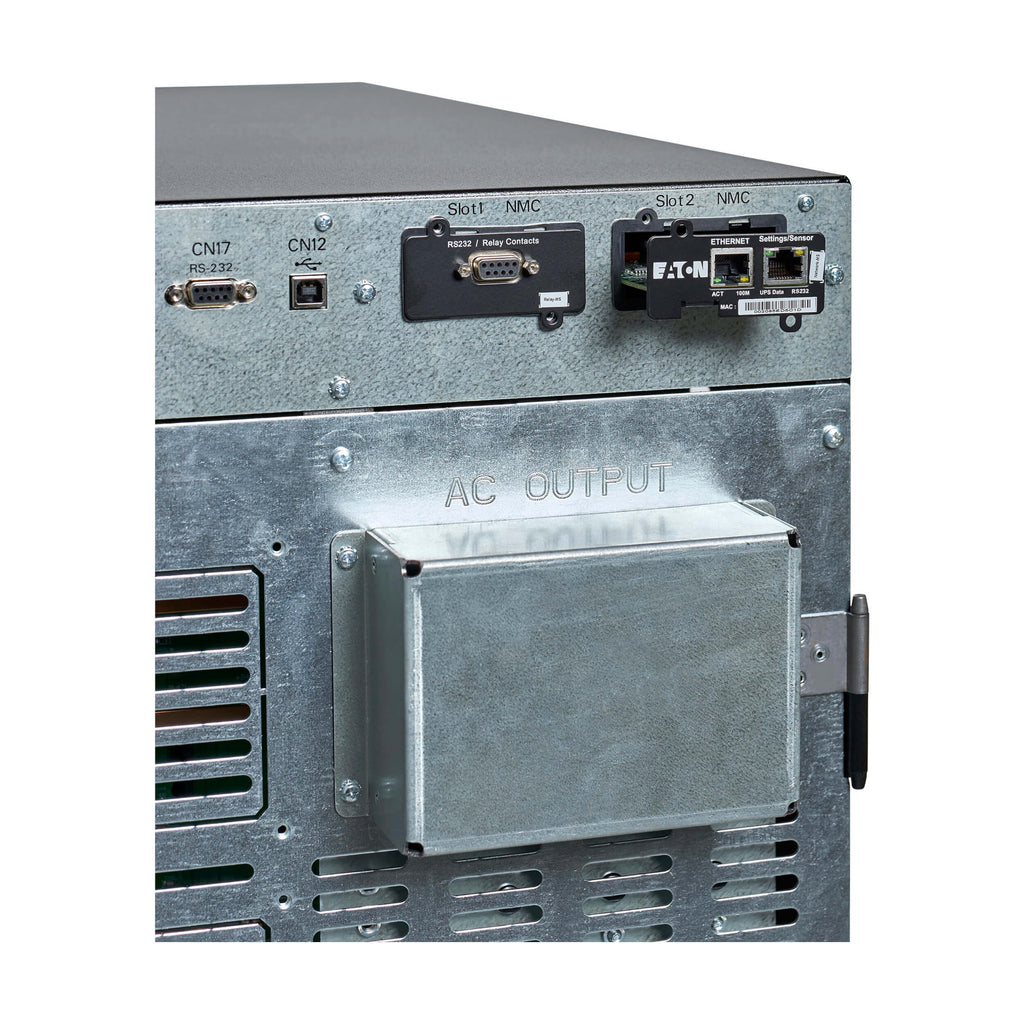

| Communications Ports | USB, RS-232 |
| Certifications | UL, cUL, CE, FCC, RoHS, TAA-compliant |
| Cooling Method | Fan |
| Efficiency | 94% (AC mode), 97% (Eco mode) |
| Dimensions (H x W x D) | 25 x 17.5 x 34.5 in (635 x 445 x 889 mm) |
| Weight | 333 lbs / 151.05 kg |
| Warranty | 2-year limited warranty |
