Description
The Eaton 9PXM UPS (9PXM8S8K) is a modular, scalable power protection solution that delivers 8 kVA of reliable backup power—scalable up to 16 kVA. Designed for versatility, it supports both rack and tower configurations within a compact 14U form factor. Ideal for IT and data center environments, the 9PXM features online double-conversion technology, hot-swappable batteries, and extended runtime capabilities with external battery modules.
Equipped with ABM® battery management for longer battery life and flexible voltage input/output support (120/208V, 120/240V, 127/220V), this TAA-compliant UPS ensures business continuity with efficient power delivery and real-time monitoring options. Optional connectivity cards and a wide range of service plans are available to enhance operational efficiency.
| Feature | Details |
|---|---|
| Model | Eaton 9PXM UPS |
| SKU | 9PXM8S8K |

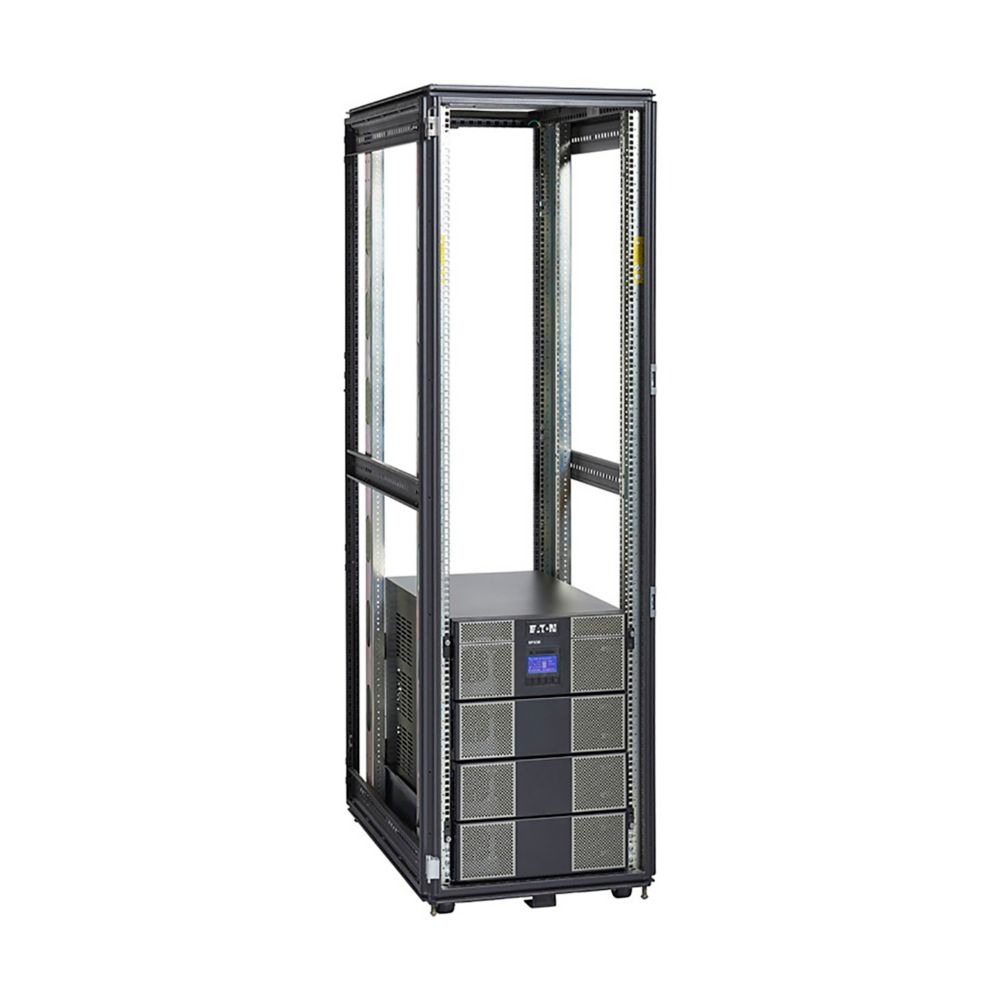

| Form Factor | Rack/Tower, 14U |
| Power Rating | 8 kVA / 7.2 kW |
| Scalability | Scalable up to 16 kVA |
| Input Connection | Hardwired |
| Output Connection | Hardwired |
| Input Voltage Options | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
| Output Voltage Options | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
| Topology | Online / Double-conversion |
| Output Waveform | True sine wave |
| Hot-Swappable Batteries | Yes |
| Battery Management | ABM Technology (3-stage charging, extended battery life) |
| Extended Battery Support | Yes |
| Bypass | Internal bypass included |

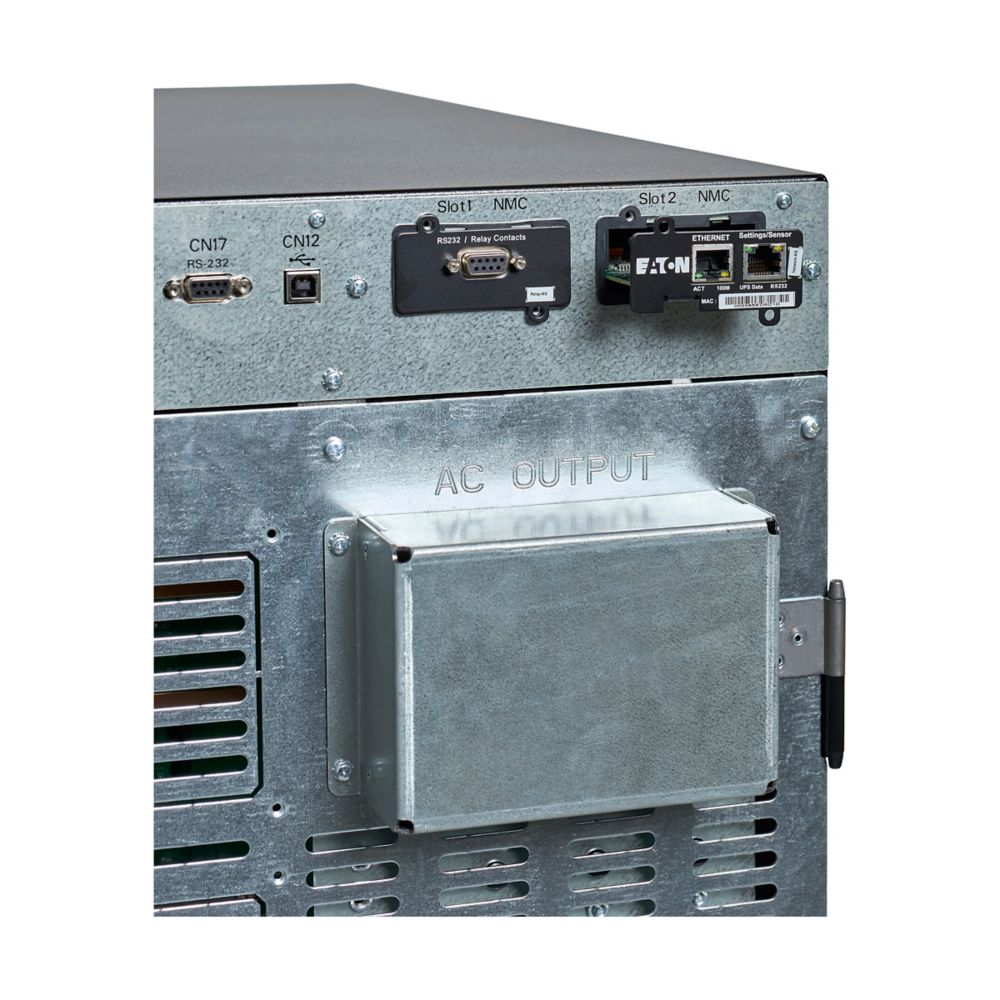

| Expansion Slots | (2) Mini-Slot ports (options: NETWORK-M2, MODBUS-MS, RELAY-MS) |
| Software | Compatible with Eaton Intelligent Power Software Suite |
| Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5%–95% non-condensing |
| Color | Black/Silver |
| Dimensions (WxDxH) | 17.5 in x 34.5 in x 25 in |
| Weight | 333 lb |
| Certifications | cULus Listed, IEC Rated |
| Compliances | TAA, FCC Compliant |
| Warranty | 2-Year Standard (Parts, Electronics, Batteries) |
| Extended Service Plans | 5-Year Depot Repair / 5-Year On-Site Plans Available |
