Description

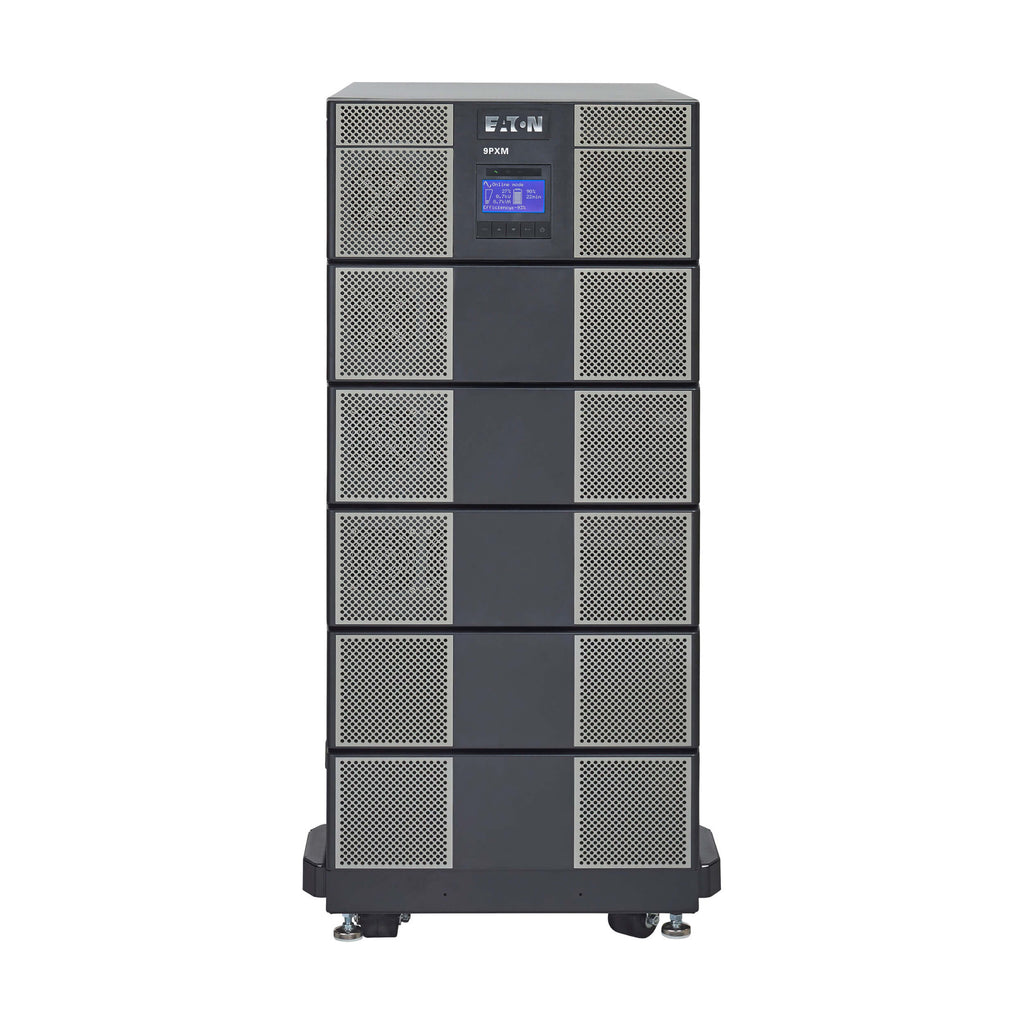

The Eaton 9PXM12S8K-PD is a modular, scalable 8kVA (7.2kW) online double-conversion UPS designed for edge data centers, colocation facilities, and demanding industrial or commercial environments. Featuring hot-swappable power and battery modules, it provides N+1 redundancy for enhanced uptime. This 21U rack/tower convertible UPS includes a mix of 14 NEMA outlets (5-20R, L6-20R, L6-30R, L14-30R), hardwired input, and Eaton’s cybersecure NETWORK-M3 card for full remote access and control.
Its robust power protection shields against blackouts, surges, and line noise. With ABM® technology that extends battery life by 50%, flexible installation options, and compliance with TAA standards, this UPS is ideal for mission-critical IT environments that demand continuous availability and scalability.
| Specification | Details |
|---|---|
| Model Number | 9PXM12S8K-PD |

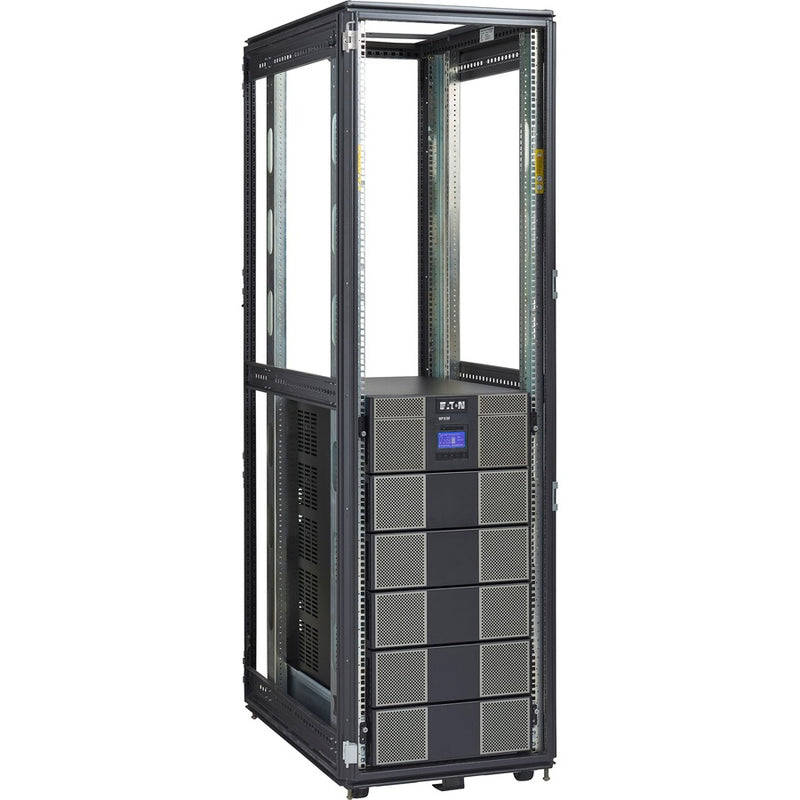

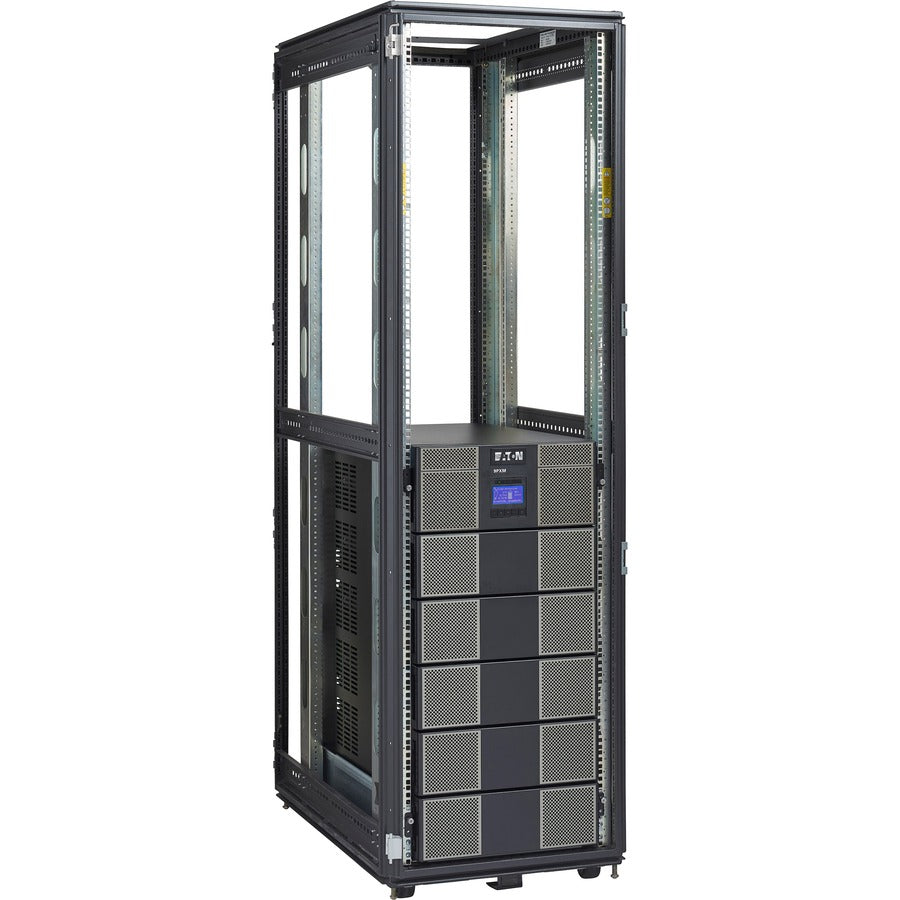

| Form Factor | Rack/Tower, 21U |
| Topology | Online, Double-Conversion |
| Power Capacity | 8 kVA / 7.2 kW (Scalable to 20 kVA) |
| Input Voltage | 208–240V, Hardwired |
| Output Voltage | 110V, 120V, 127V, 208V, 220V, 240V |
| Output Receptacles | (8) 5-20R, (2) L6-30R, (2) L6-20R, (2) L14-30R |
| Redundancy | N+1 Redundant (2x 4kVA modules included) |
| Battery Modules | (4) 9PXMBAT included, VRLA, Hot-swappable |
| Runtime (Full/Half Load) | 6 / 17 minutes |
| Battery Management | ABM® 3-stage charging, 50% extended battery life |
| Network Management | NETWORK-M3 Gigabit card (UL 2900-1 & IEC 62443-4-2 compliant) |

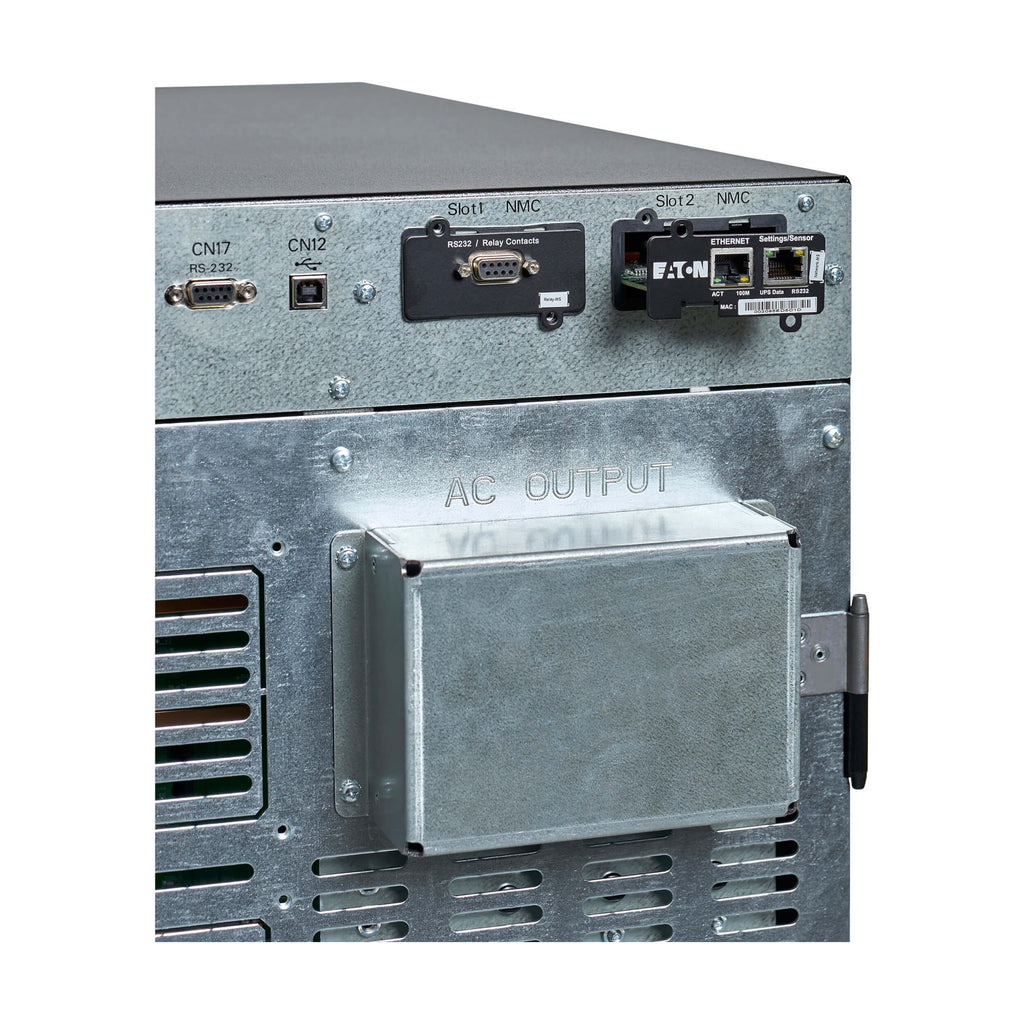

| Communication Ports | RS-232, USB, RPO/ROO |
| Display | LCD Graphical Display with LEDs |
| Certifications | UL, cUL, FCC, RoHS, CE, TAA, EN, IEC, ICES |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Efficiency | 94% (Online), 97% (Eco Mode) |
| Weight | 171.5 kg (378 lbs) |
| Dimensions (HxWxD) | 36.5 x 17.5 x 34.5 in (927 x 445 x 889 mm) |
| Warranty | 2-Year Limited Warranty (Extended Plans Available) |
