Description

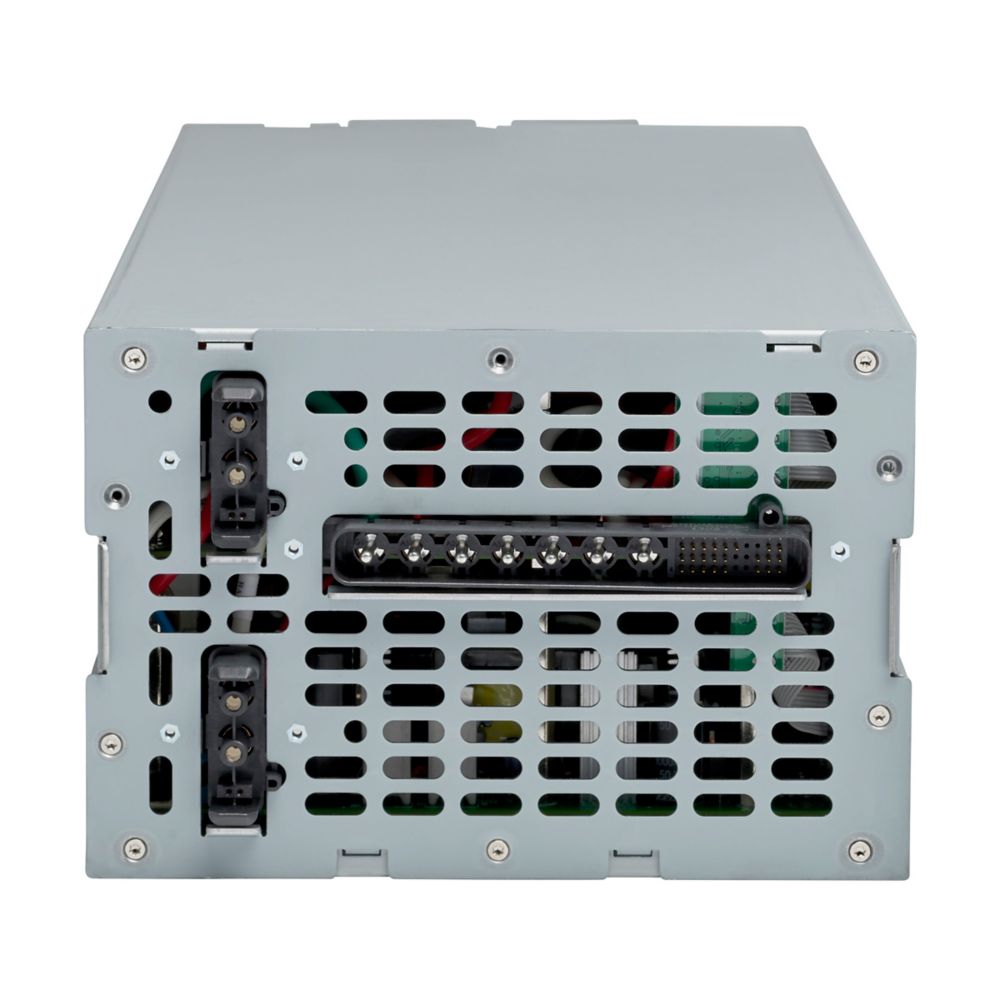

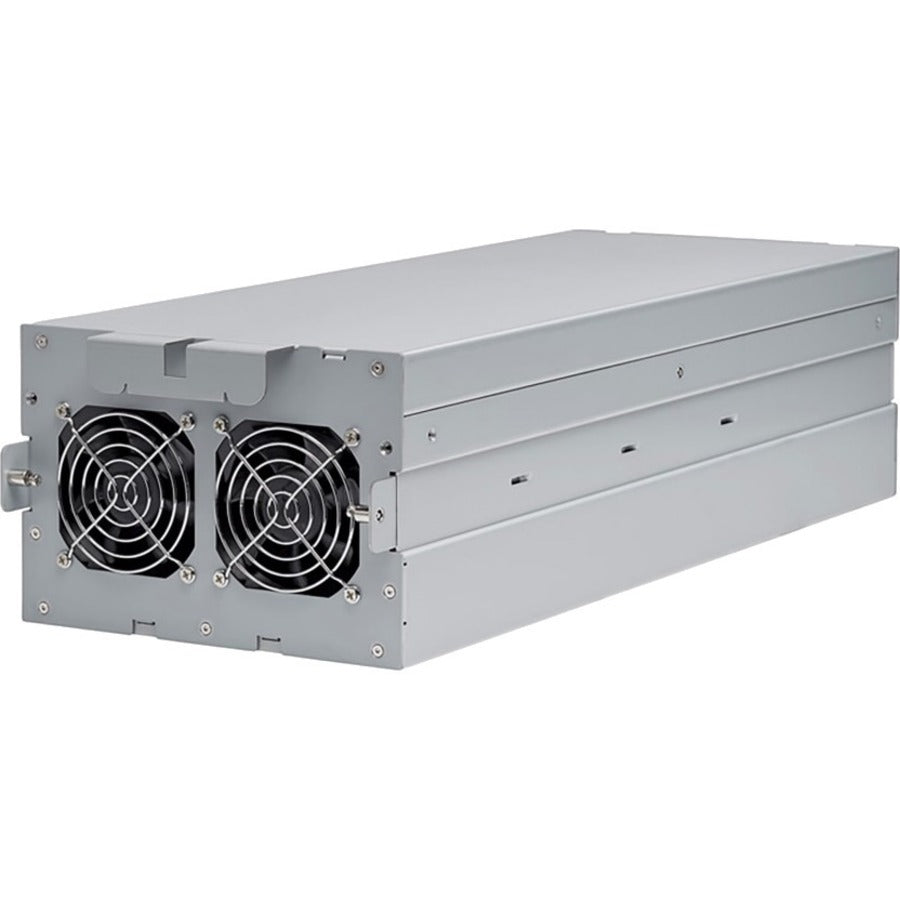

The Eaton 9PXMCHGR is a high-performance 20 Amp battery charger module designed for Eaton 9PXM UPS systems. Engineered to enhance uptime and extend battery life, this hot-swappable charger supports extended battery modules (EBMs) and utilizes Eaton’s advanced ABM technology for efficient three-stage charging. With TAA and FCC compliance, and cULus listing, it’s ideal for demanding power environments requiring reliability, safety, and serviceability.
| Specification | Details |
|---|---|
| Product Name | Eaton 9PXM Charger Module |
| Catalog Number | 9PXMCHGR |
| UPC | 743172091451 |
| Charger Current | 20 Amps |
| Battery Support | Hot-swappable internal batteries & EBMs |
| Battery Management | ABM technology, 3-stage charging |
| Extended Battery Capability | Yes |
| Input Connection | Hardwired |
| Input Frequency Range | 50–70 Hz (60 Hz), 40–60 Hz (50 Hz) |
| Input Power Factor | >0.99 typical |
| Output Frequency | 60 Hz |
| UPS Topology | Online/Double-conversion |
| Hot Swap Power | Yes |
| Internal Bypass | Yes |
| Dimensions (L x W x H) | 8.5 in x 6 in x 23 in |
| Weight | 22.5 lbs |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5–95% non-condensing |
| Certifications | IEC Rated, cULus Listed |
| Compliances | TAA Compliant, FCC Compliant |
| Color | Black/Silver |
| Package Includes | Charger module, user manual, connectors |
